GE
Top-Mount Refrigerator

Model # GTS21KCXAWW Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE GTS21KCXAWW refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

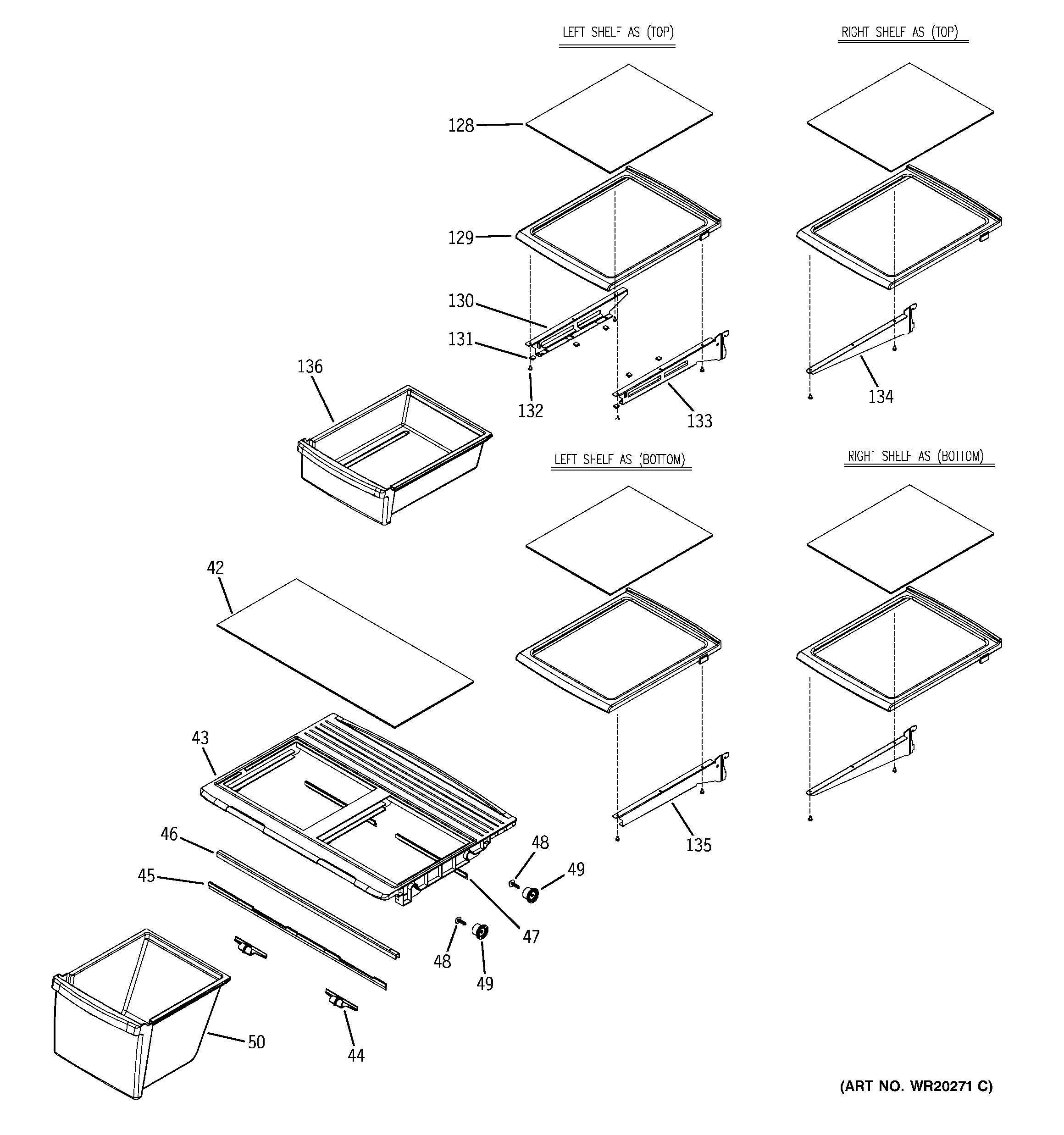

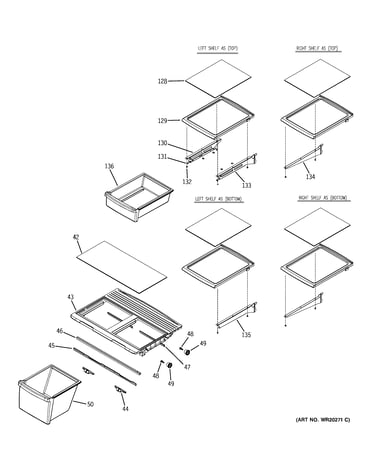

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Electronic I WR30X10061
#820

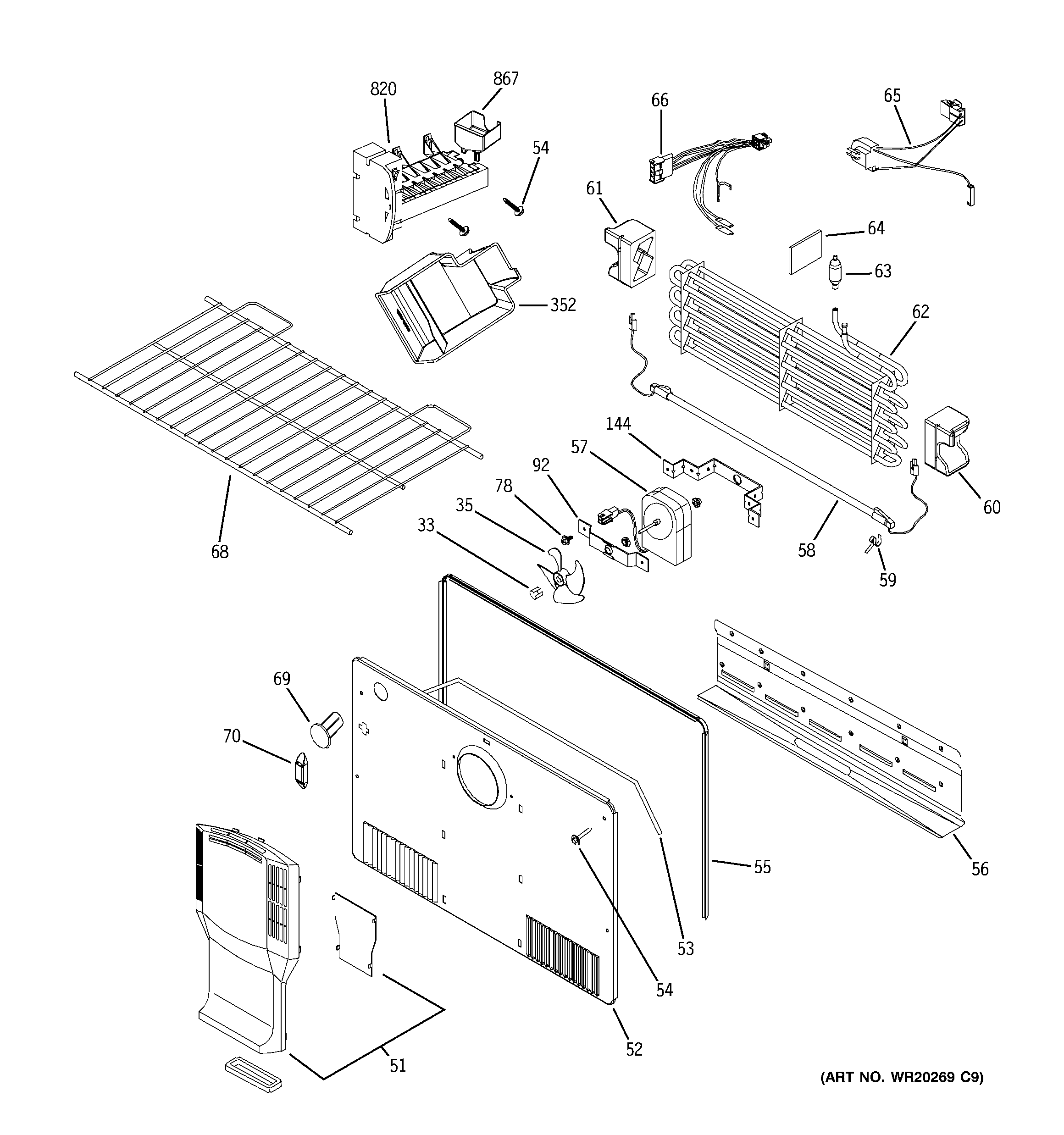

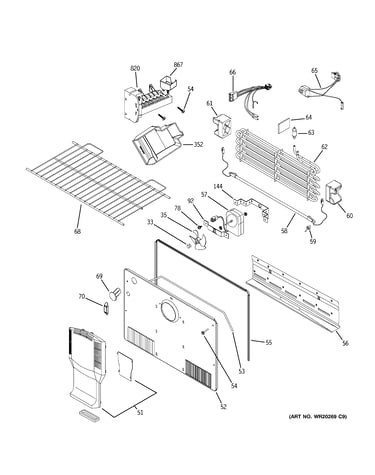

Freezer section diagram

Electronic i

Part #WR30X10061

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10061. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Refrigerator Lamp Assembly WR02X12530
#110

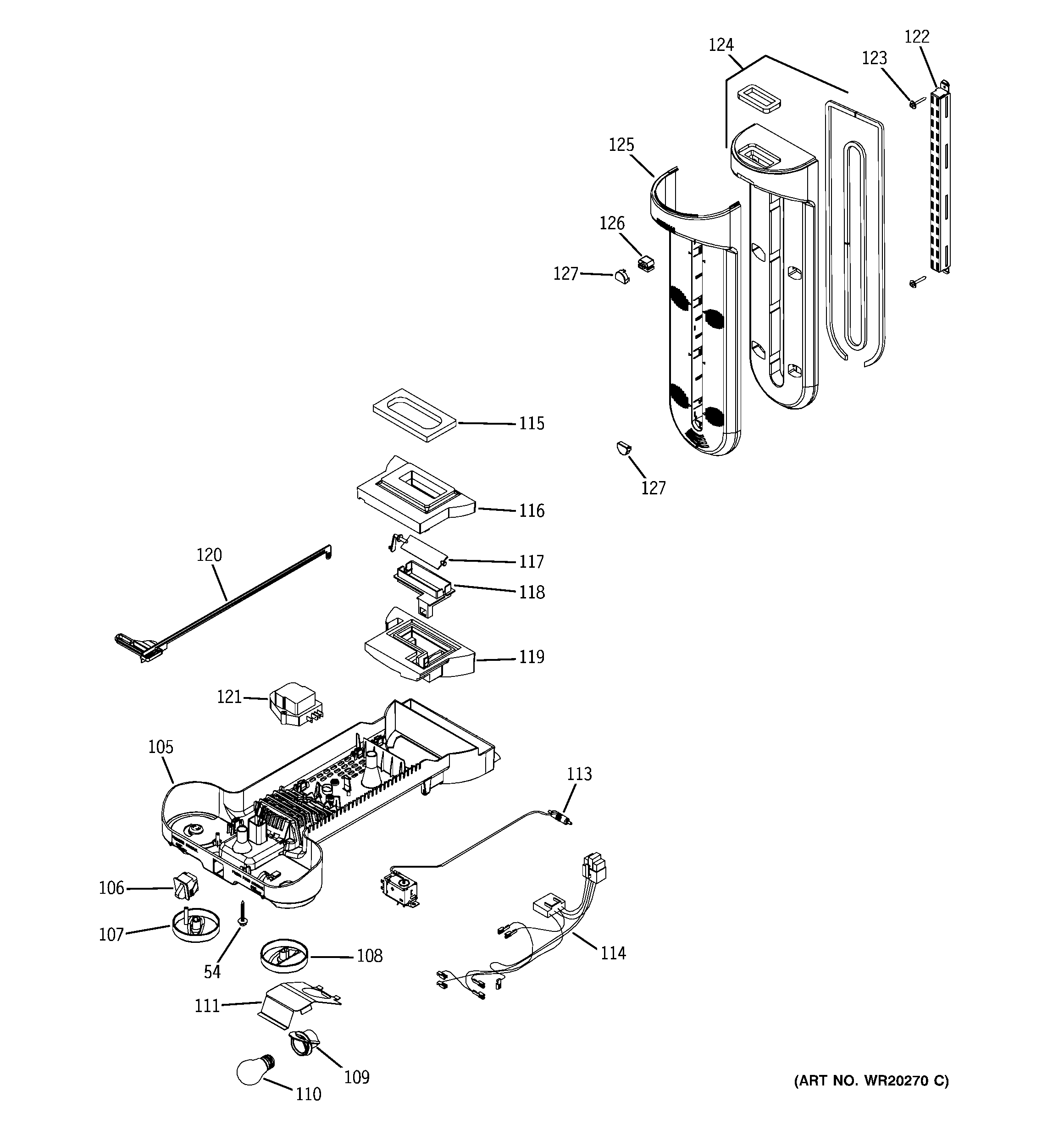

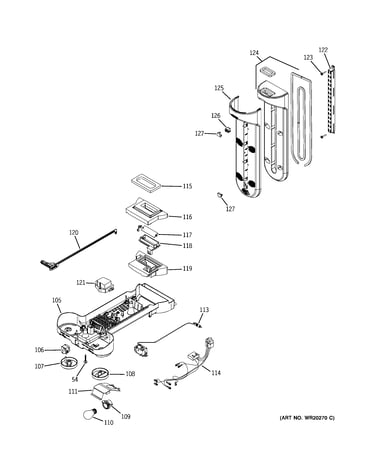

Fresh food section diagram

Refrigerator lamp assembly

Part #WR02X12530

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12530. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Water Valve WR57X10075
#155

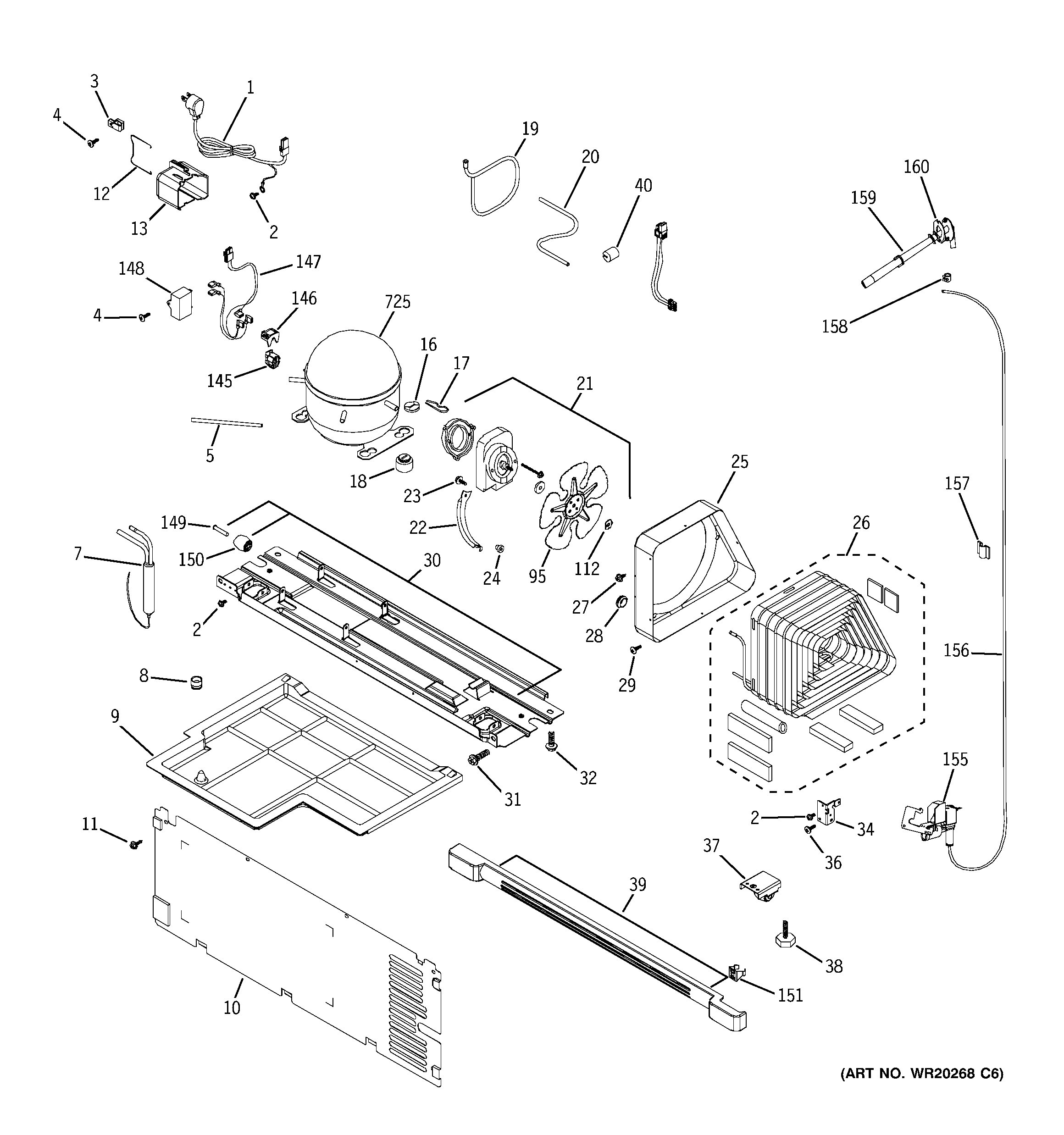

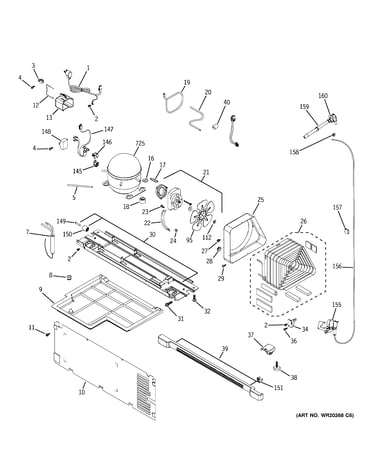

Unit parts diagram

Water valve

Part #WR57X10075

Replaced by #WR57X10033

?
Manufacturer substitution
This part replaces WR57X10075. Substitute parts can look different from the original.
BEST SELLER
$39.92 |
13% OFF Phone Price : $45.92
In Stock
Motor Fz Asm WR60X10279
#57

Freezer section diagram

Motor fz asm

Part #WR60X10279

Replaced by #WR60X26085

?
Manufacturer substitution
This part replaces WR60X10279. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Refrigerator Special Screw WR01X10717
#142

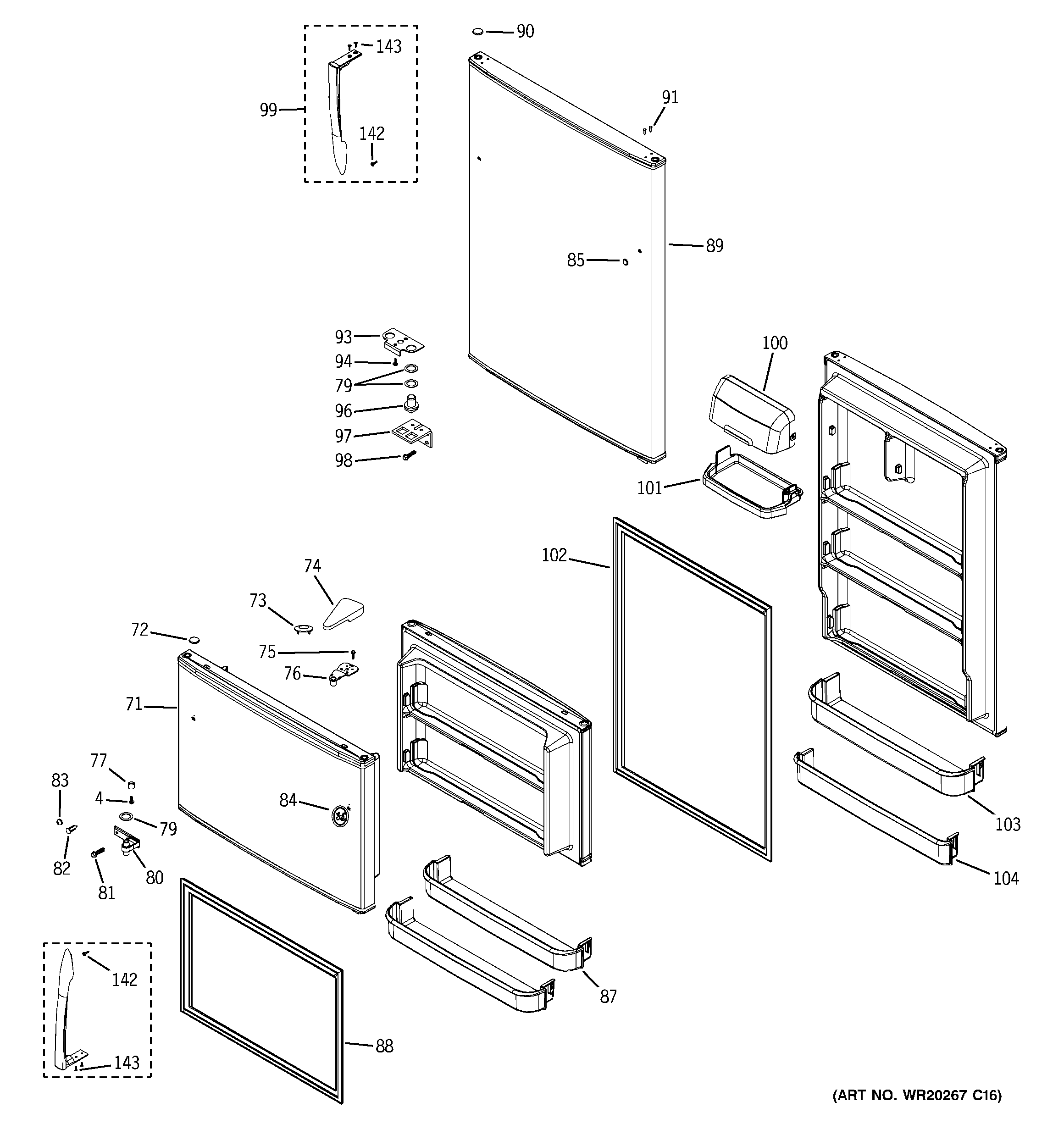

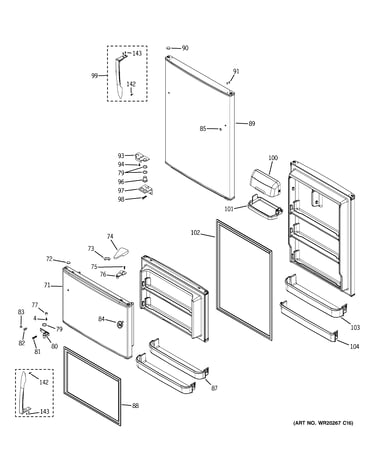

Doors diagram
