Model # THA09R50RTC Official ICP 265-v packaged terminal heat pump
Here are the diagrams and repair parts for Official ICP THA09R50RTC 265-v packaged terminal heat pump, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
THA09R50RTC 265-V Packaged Terminal Heat Pump
#12

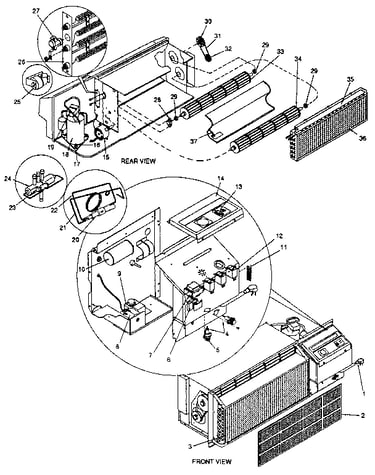

Functional diagram
Spst relay
Part #1053004
The manufacturer no longer makes this part, and there's no substitute part
#11
Functional diagram
Board termin
Part #612254
$20.06
In Stock
#29
Functional diagram
Isolator bea
Part #1058987
The manufacturer no longer makes this part, and there's no substitute part
#21
Functional diagram
Capllry tube
Part #1059074
The manufacturer no longer makes this part, and there's no substitute part
#15
Non functional diagram
Scroll blwr
Part #1058350
The manufacturer no longer makes this part, and there's no substitute part
#13
Non functional diagram
Blwr husing
Part #1058386
The manufacturer no longer makes this part, and there's no substitute part
#1
Non functional diagram
Control door
Part #1058430
The manufacturer no longer makes this part, and there's no substitute part
#37
Functional diagram
Extension spring
Part #1058530
The manufacturer no longer makes this part, and there's no substitute part
#25
Functional diagram
T-stat chang
Part #1059023
The manufacturer no longer makes this part, and there's no substitute part
#15
Functional diagram
Mtr blr / /
Part #1061129
The manufacturer no longer makes this part, and there's no substitute part
