KitchenAid
Wine & Beverage Cooler

Model # KUWL214KPA00 Official KitchenAid refrigerator, beverage center, under counter, 24 inch

Here are the diagrams and repair parts for Official KitchenAid KUWL214KPA00 refrigerator, beverage center, under counter, 24 inch, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Drier Tube W10805035
#11

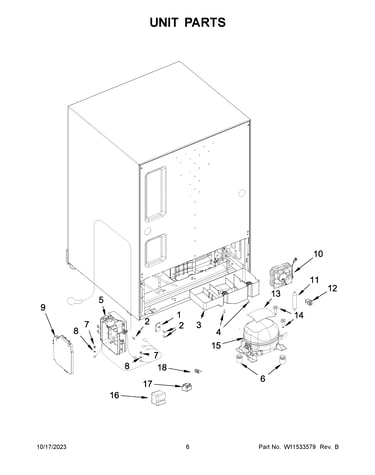

Unit parts diagram

Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Beverage Cooler Separator Assembly W11532916
#12

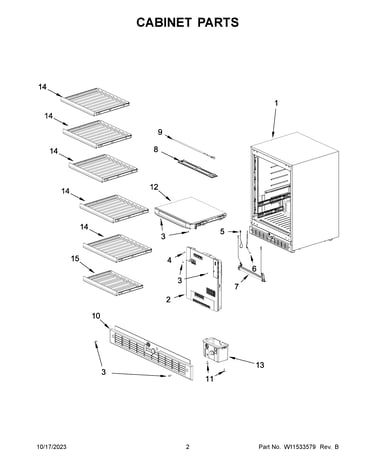

Cabinet parts diagram

Beverage cooler separator assembly

Part #W11532916

$289.56
In Stock
Lens-light W11312450
#8

Cabinet parts diagram

Lens-light

Part #W11312450

$39.80
In Stock
Screw W11375760
#4

Cabinet parts diagram

Screw

Part #W11375760

$11.78
In Stock
Assembly, Pcb Box (includes Power Cord) W11532957
#5

Unit parts diagram

Assembly, pcb box (includes power cord)

Part #W11532957

$275.67
In Stock
Whirlpool Defrost Hold W11359416
#7

Cabinet parts diagram

Whirlpool defrost hold

Part #W11359416

$78.93
In Stock
Door As (cmp W11532944
#1

Door parts diagram

Door as (cmp

Part #W11532944

$588.85
In Stock
Wine Rack As W11532969
#14

Cabinet parts diagram

Wine rack as

Part #W11532969

$225.47
In Stock
Whirlpool Pan Water Ev W11360241
#3

Unit parts diagram

Whirlpool pan water ev

Part #W11360241

$59.58
In Stock
Clip W10270517
#1

Unit parts diagram

Clip

Part #W10270517

$29.89
In Stock
