Model # 86T3 Official Bissell vacuum

Here are the diagrams and repair parts for Official Bissell 86T3 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Carpet Cleaner Solution Tank Cap And Insert 2036675
#10

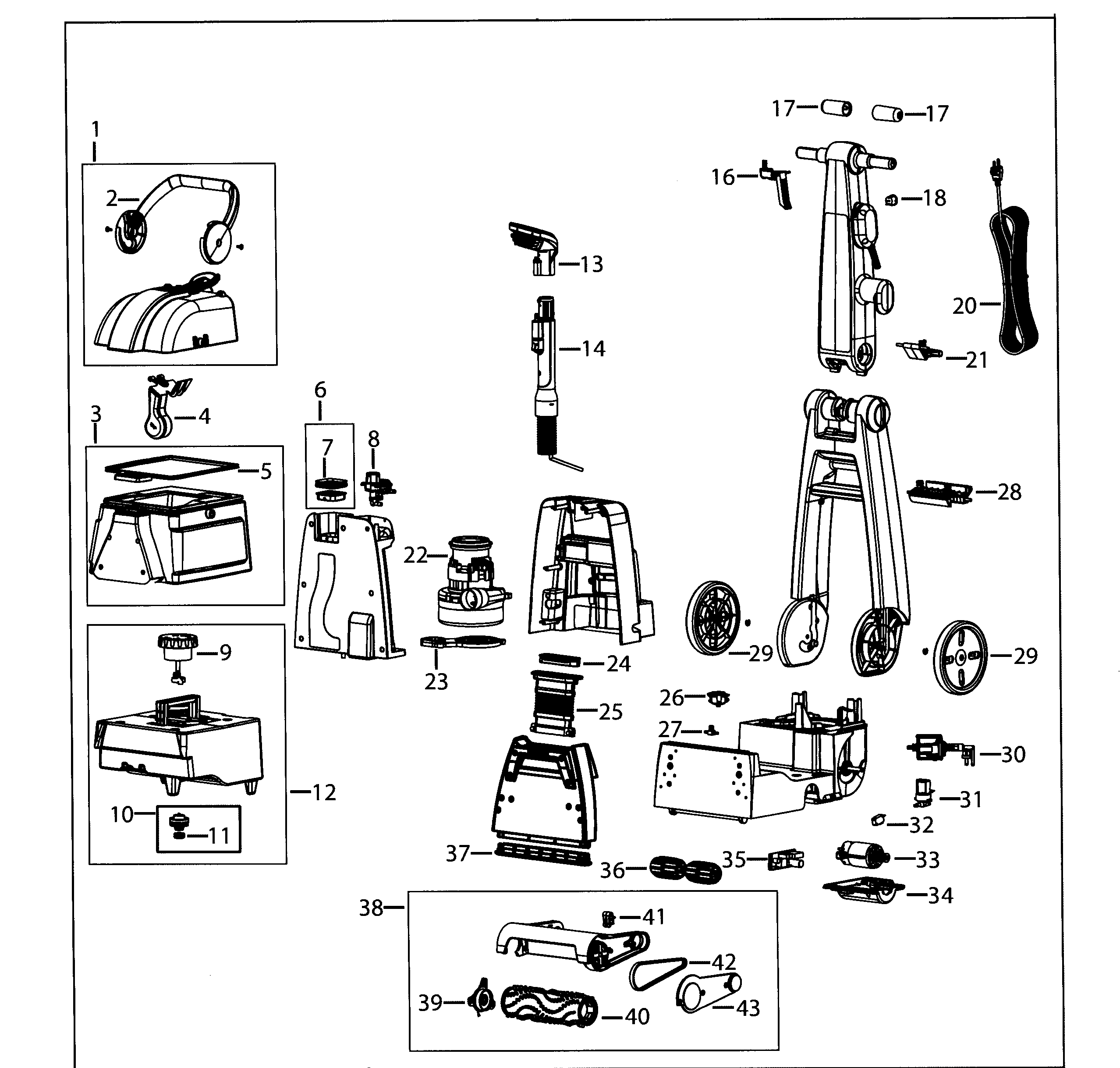

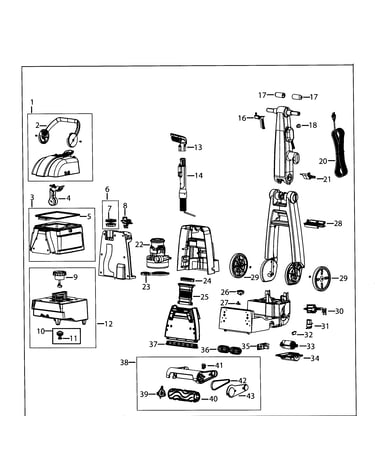

Main assy diagram

Carpet cleaner solution tank cap and insert

Part #2036675

The manufacturer no longer makes this part, and there's no substitute part

Bissell Owner's Manual 1204216
#NI

Main assy diagram

Bissell owner's manual

Part #1204216

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Stair Cleaning Tool 2036654
#13

Main assy diagram

Carpet cleaner stair cleaning tool

Part #2036654

The manufacturer no longer makes this part, and there's no substitute part

Guide 2037530
#37

Main assy diagram

Guide

Part #2037530

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Tank Seal 2036679
#11

Main assy diagram

Carpet cleaner solution tank seal

Part #2036679

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Beater Bar Micro-switch 2036759
#32

Main assy diagram

Carpet cleaner beater bar micro-switch

Part #2036759

The manufacturer no longer makes this part, and there's no substitute part

Bissell Cord 2037445
#20

Main assy diagram

Bissell cord

Part #2037445

The manufacturer no longer makes this part, and there's no substitute part

Internal Tubing - 3 Feet 2037438
#NI

Main assy diagram

Internal tubing - 3 feet

Part #2037438

The manufacturer no longer makes this part, and there's no substitute part

Hose 2037523
#14

Main assy diagram

Hose

Part #2037523

The manufacturer no longer makes this part, and there's no substitute part

Receiver Screen 2037429
#26

Main assy diagram

Receiver screen

Part #2037429

The manufacturer no longer makes this part, and there's no substitute part
