Amana
Gas Range

Model # SAK26TC Official Amana gas self-cleaning range

Here are the diagrams and repair parts for Official Amana SAK26TC gas self-cleaning range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Hinge, Oven Door - L.h. 66953
#15

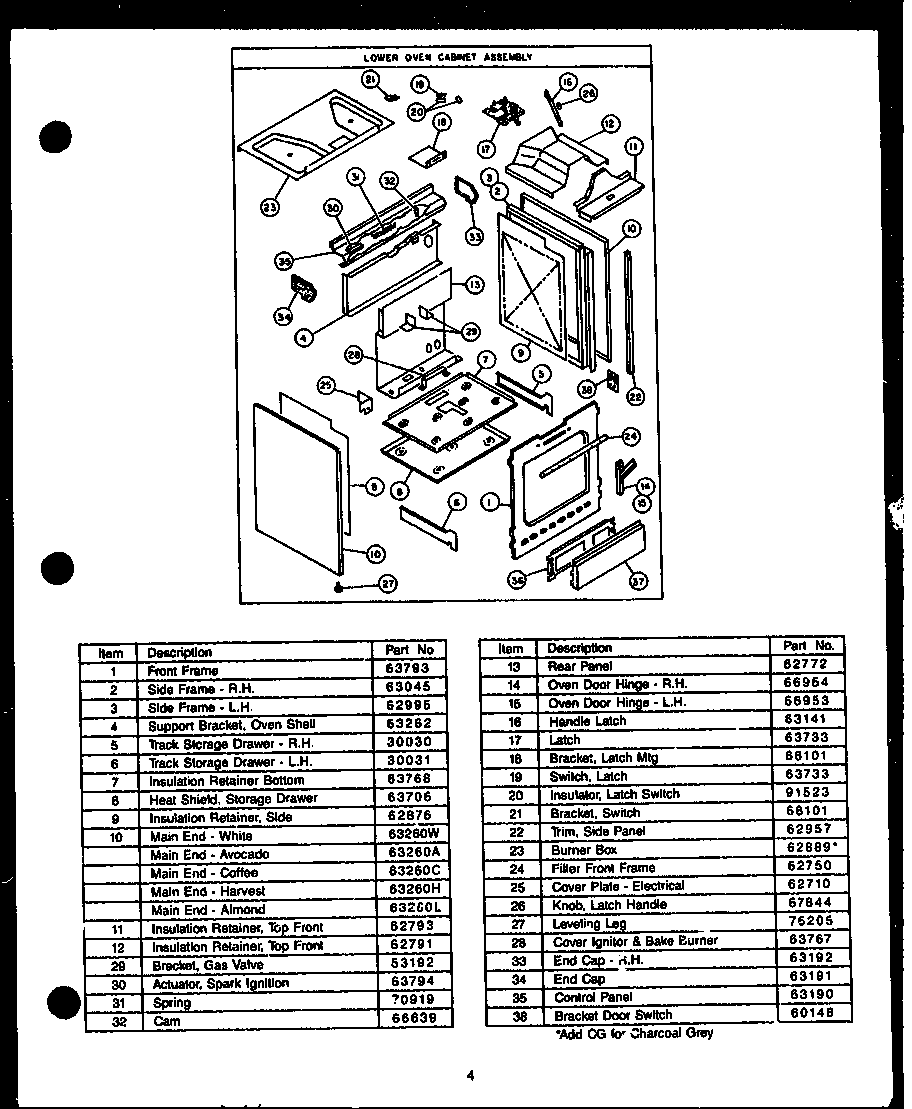

Lower oven cabinet assembly diagram

Hinge, oven door - l.h.

Part #66953

The manufacturer no longer makes this part, and there's no substitute part

Grate 67909
#27

Main top/lower oven assembly diagram

Grate

Part #67909

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Backer (add Cg For Charcoal Grey) 63516
#1

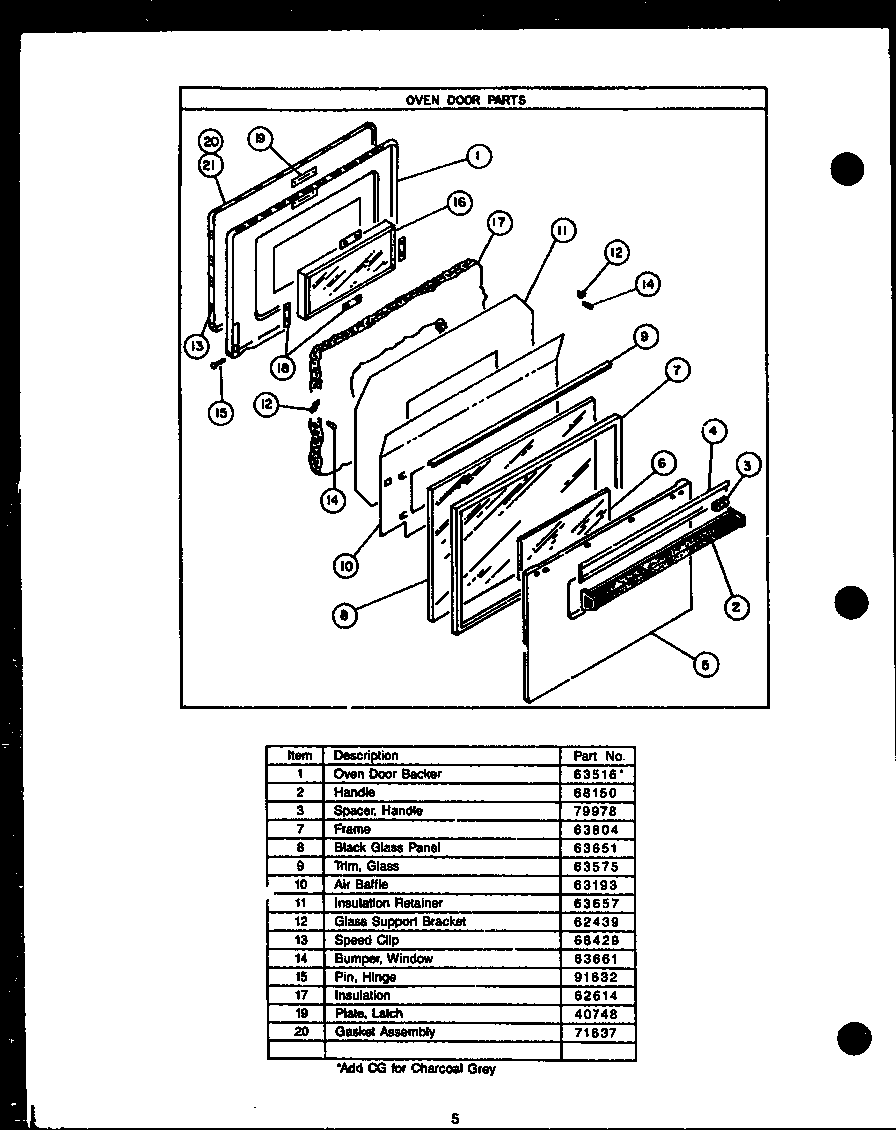

Oven door parts diagram

Oven door backer (add cg for charcoal grey)

Part #63516

The manufacturer no longer makes this part, and there's no substitute part

Insulation 62614
#17

Oven door parts diagram

Insulation

Part #62614

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Bulb 20478
#2

Lower oven electrical components diagram

Oven light bulb

Part #20478

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Lens 64875
#5

Lower oven electrical components diagram

Oven light lens

Part #64875

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light 71820
#17

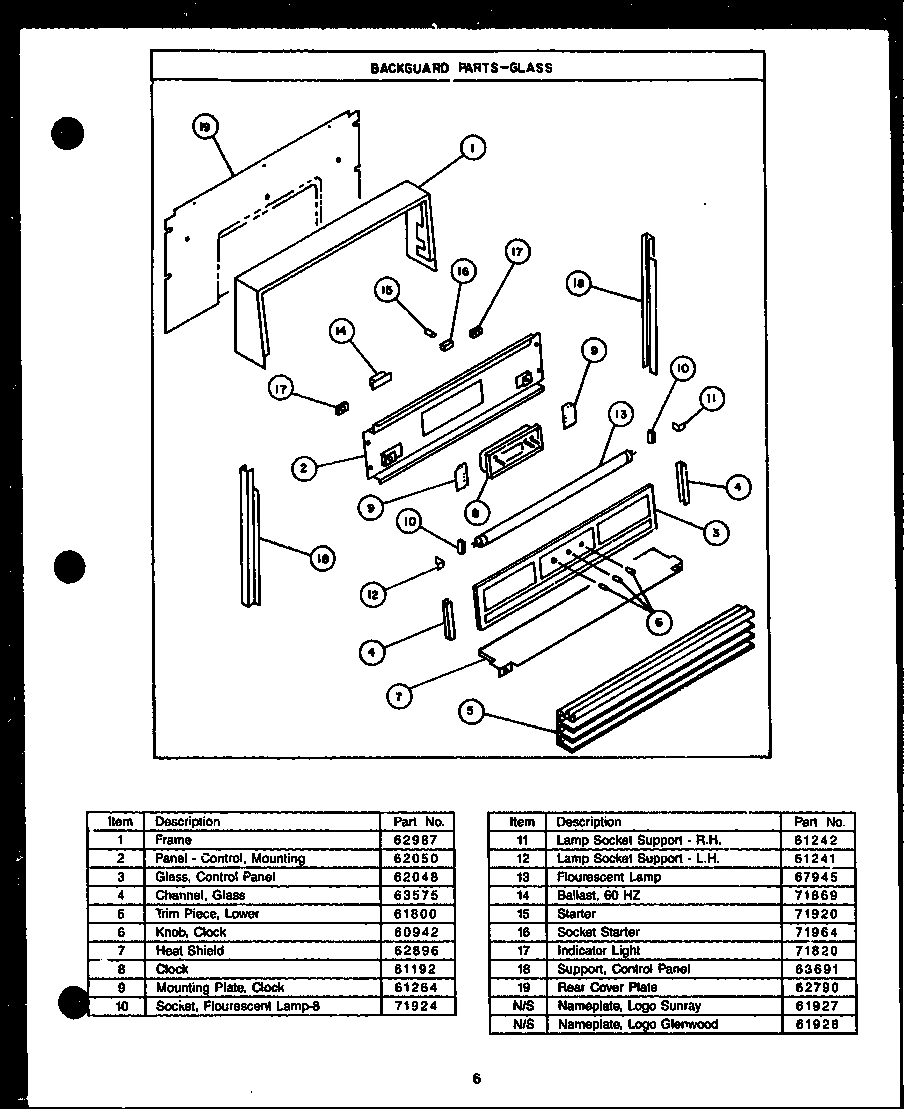

Backguard parts-glass diagram

Indicator light

Part #71820

The manufacturer no longer makes this part, and there's no substitute part

Frame 62987
#1

Backguard parts-glass diagram

Frame

Part #62987

The manufacturer no longer makes this part, and there's no substitute part

Panel, Drawer - Coffee 63702C
#2B

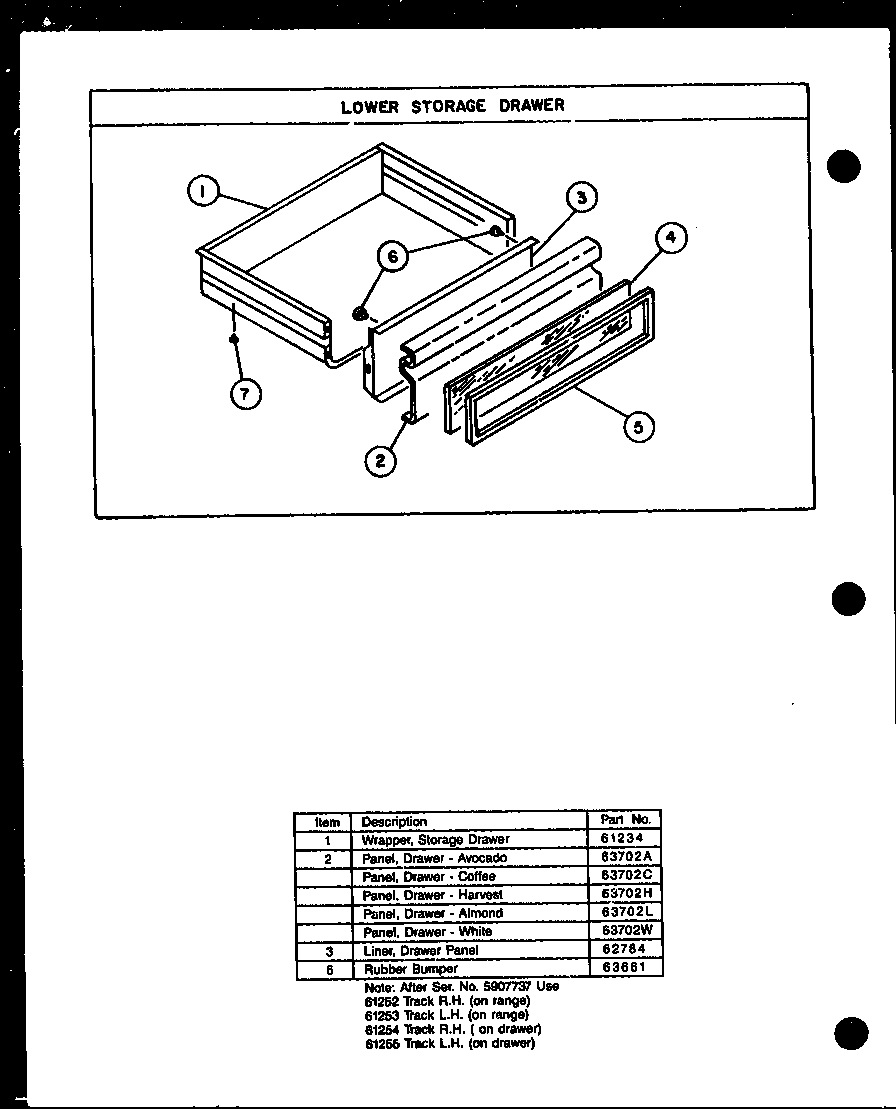

Lower storage drawer diagram

Panel, drawer - coffee

Part #63702C

The manufacturer no longer makes this part, and there's no substitute part

Clock Knob 60942
#6

Backguard parts-glass diagram

Clock knob

Part #60942

The manufacturer no longer makes this part, and there's no substitute part
