Model # 139663902 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139663902 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

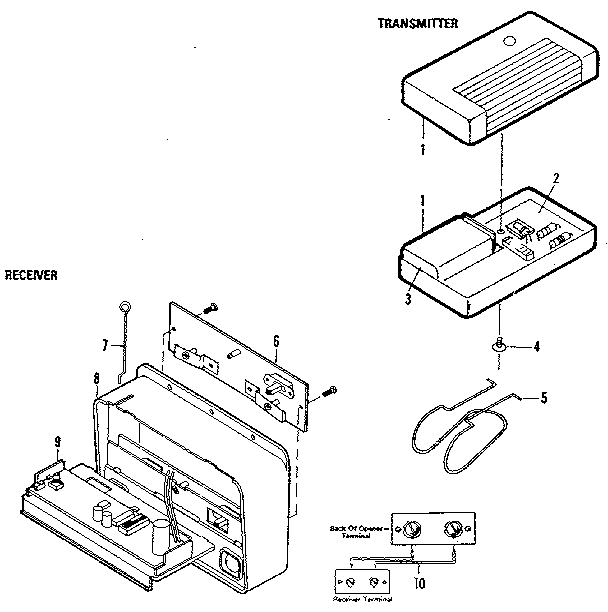

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Screw 171A183
#1

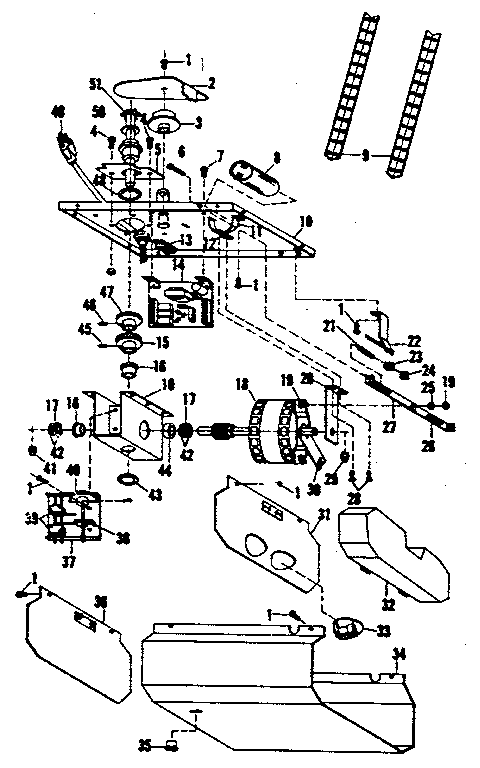

Chassis assembly diagram

Screw

Part #171A183

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A184
#22

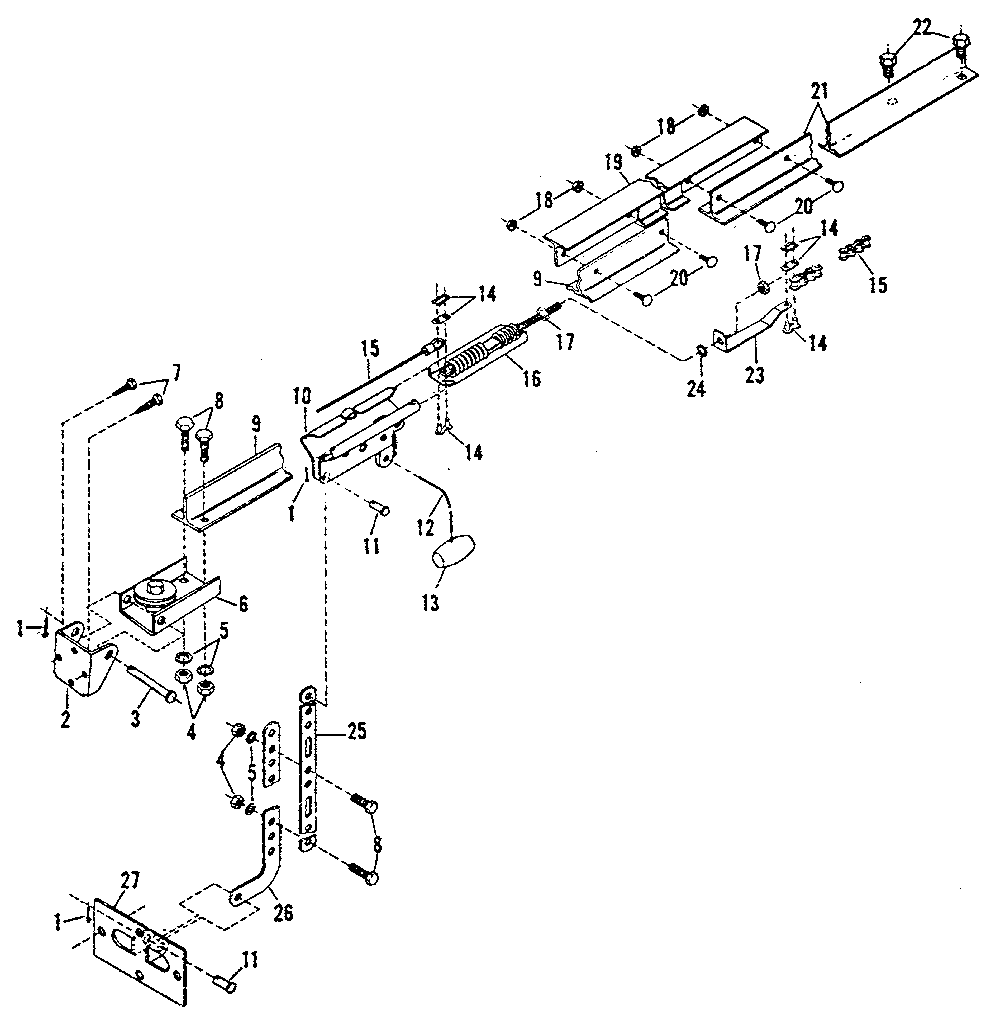

Rail assembly diagram

Screw

Part #171A184

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A254
#28

Chassis assembly diagram

Screw

Part #171A254

The manufacturer no longer makes this part, and there's no substitute part

Chassis Assembly 4A1258
#10

Chassis assembly diagram

Chassis assembly

Part #4A1258

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A24
#8

Rail assembly diagram

Screw

Part #171A24

The manufacturer no longer makes this part, and there's no substitute part

Hang Brkts 12A337
#9

Chassis assembly diagram

Hang brkts

Part #12A337

The manufacturer no longer makes this part, and there's no substitute part

T-rail End 183B36
#21

Rail assembly diagram

T-rail end

Part #183B36

The manufacturer no longer makes this part, and there's no substitute part

Relay 160B43
#14B

Chassis assembly diagram

Relay

Part #160B43

The manufacturer no longer makes this part, and there's no substitute part

Bolt 171A191
#20

Rail assembly diagram

Bolt

Part #171A191

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A74
#7

Chassis assembly diagram

Screw

Part #171A74

The manufacturer no longer makes this part, and there's no substitute part
