Kenmore
Upright Vacuum

Model # 1753195081 Official Kenmore upright vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1753195081 upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

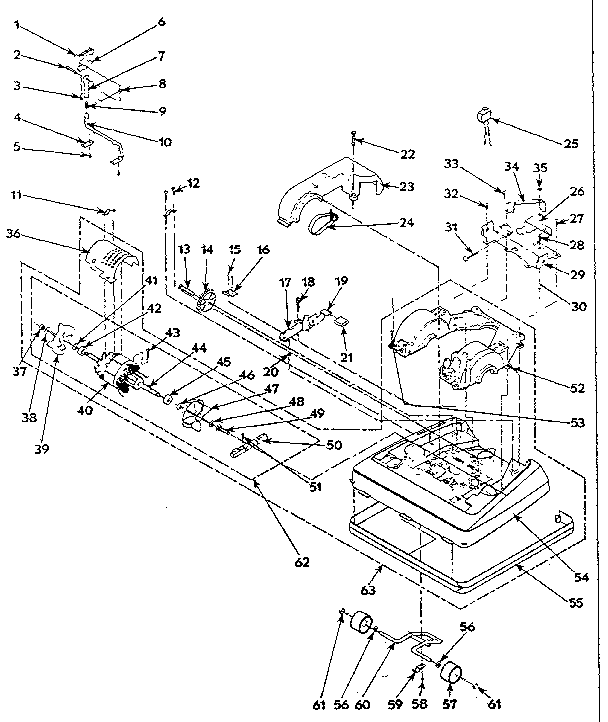

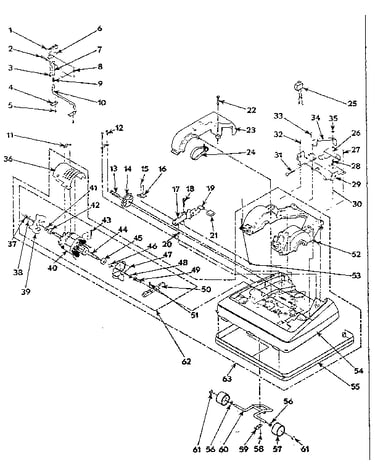

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |

Screw 640033-005
#5

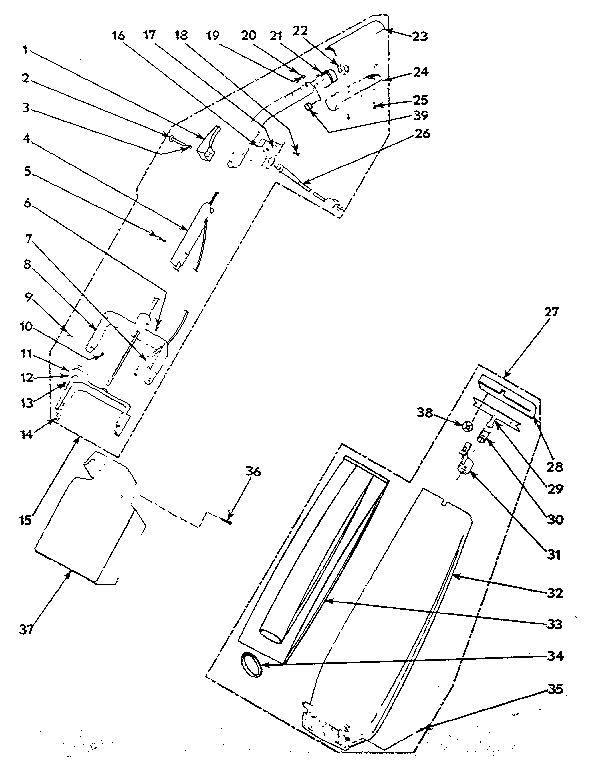

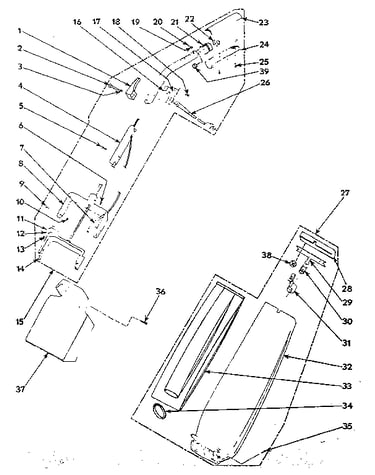

Handle and bag housing diagram

Screw

Part #640033-005

The manufacturer no longer makes this part, and there's no substitute part

Lamp 644328-001
#2

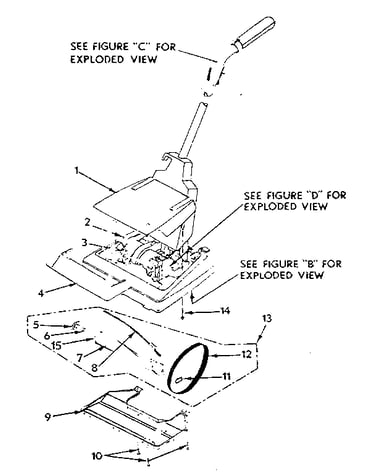

Unit parts diagram

Lamp

Part #644328-001

The manufacturer no longer makes this part, and there's no substitute part

Retainer Plate 643015-000
Retainer plate

Part #643015-000

The manufacturer no longer makes this part, and there's no substitute part

Intrlk Rd As 644272-001
#33

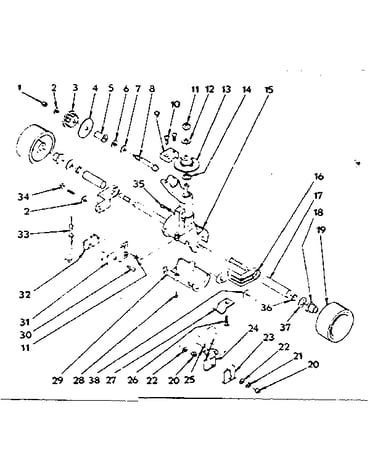

Wheel and axel assembly diagram

Intrlk rd as

Part #644272-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-321
Washer

Part #706382-321

The manufacturer no longer makes this part, and there's no substitute part

Pnon Asm Upr 644284-001
#8

Wheel and axel assembly diagram

Pnon asm upr

Part #644284-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-327
#38

Wheel and axel assembly diagram

Washer

Part #706382-327

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 706404-018
#20

Wheel and axel assembly diagram

Hex nut

Part #706404-018

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-345
#7

Wheel and axel assembly diagram

Washer

Part #706382-345

The manufacturer no longer makes this part, and there's no substitute part

Retainer Bushing 644286-001
#9

Wheel and axel assembly diagram

Retainer bushing

Part #644286-001

The manufacturer no longer makes this part, and there's no substitute part
