Model # DSC-W370G Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W370G digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 30 parts |

#107

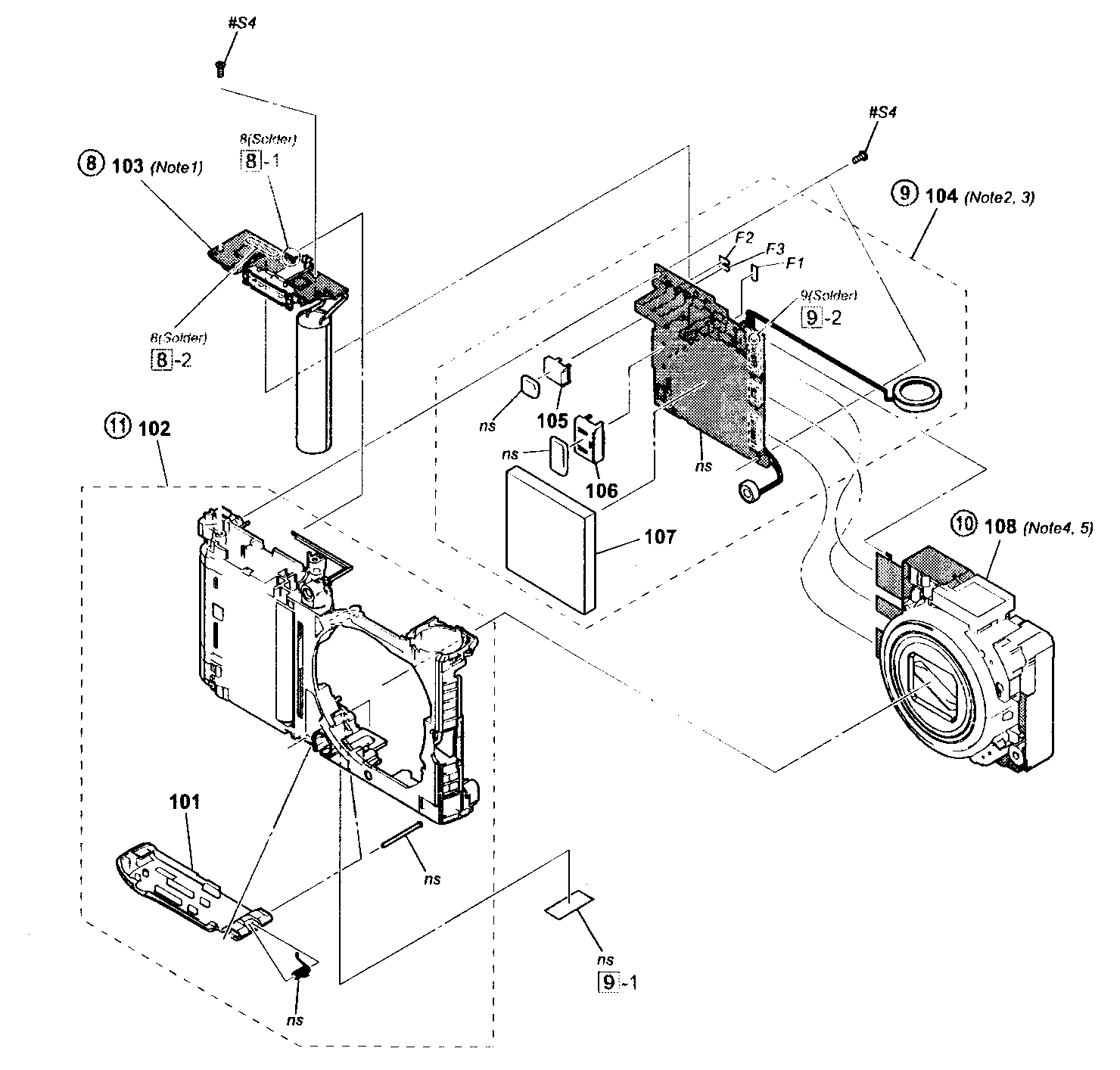

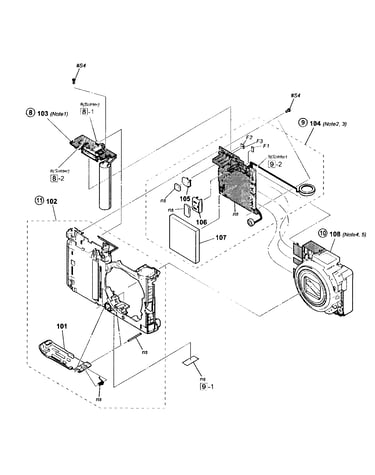

Main frame diagram

Connector

Part #182283721

Replaced by #182283741

$23.44

In Stock

Qty

#S4

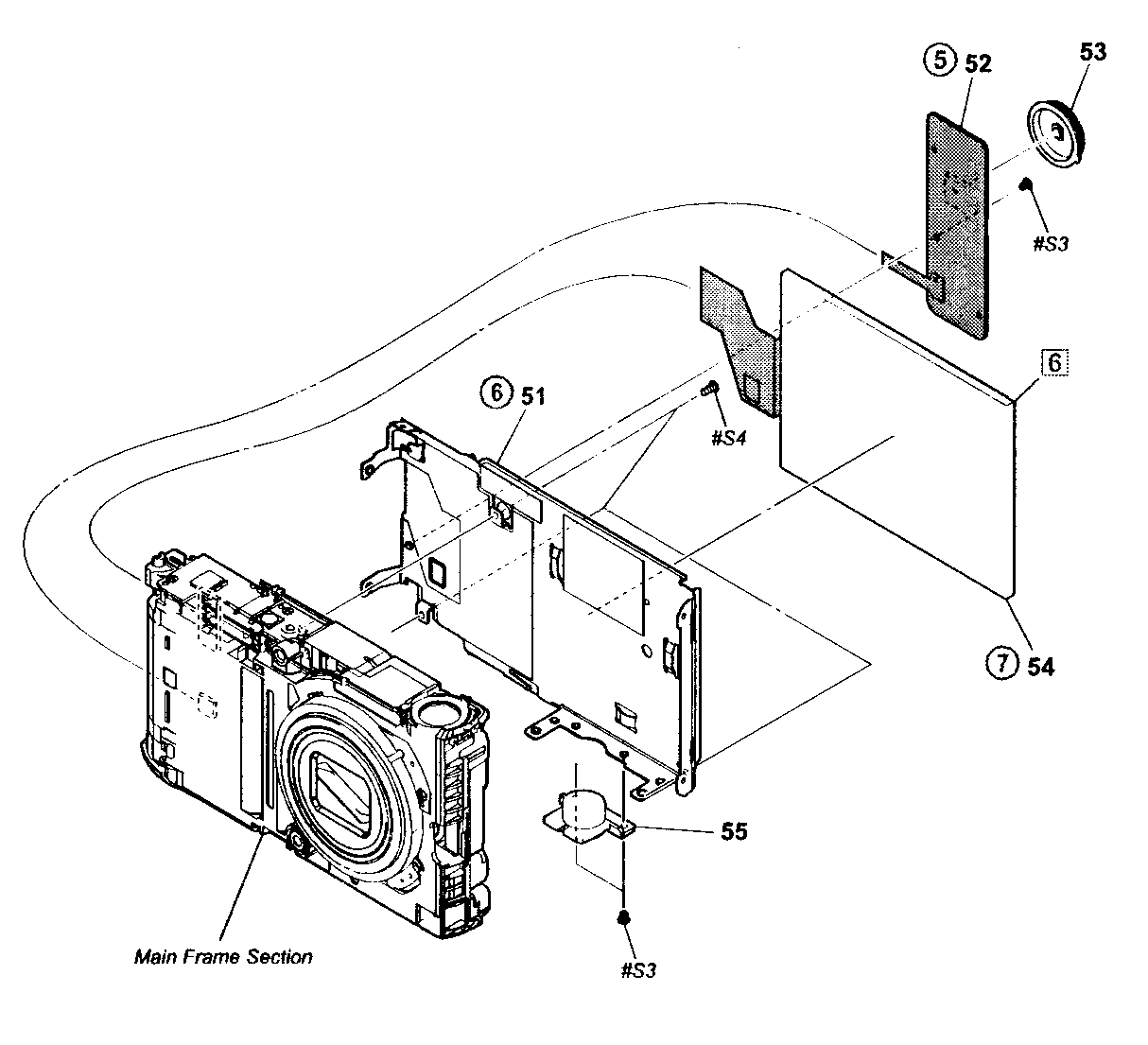

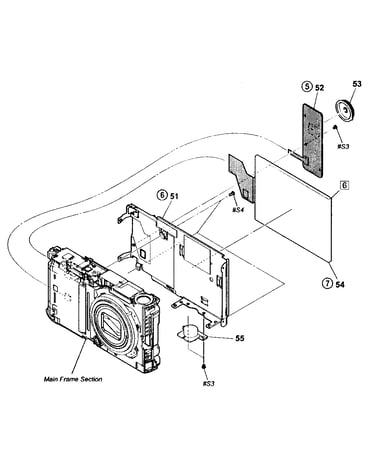

Lcd assy diagram

Tap screw

Part #417923201

This item is not returnable

$2.16

In Stock

Qty

#S2

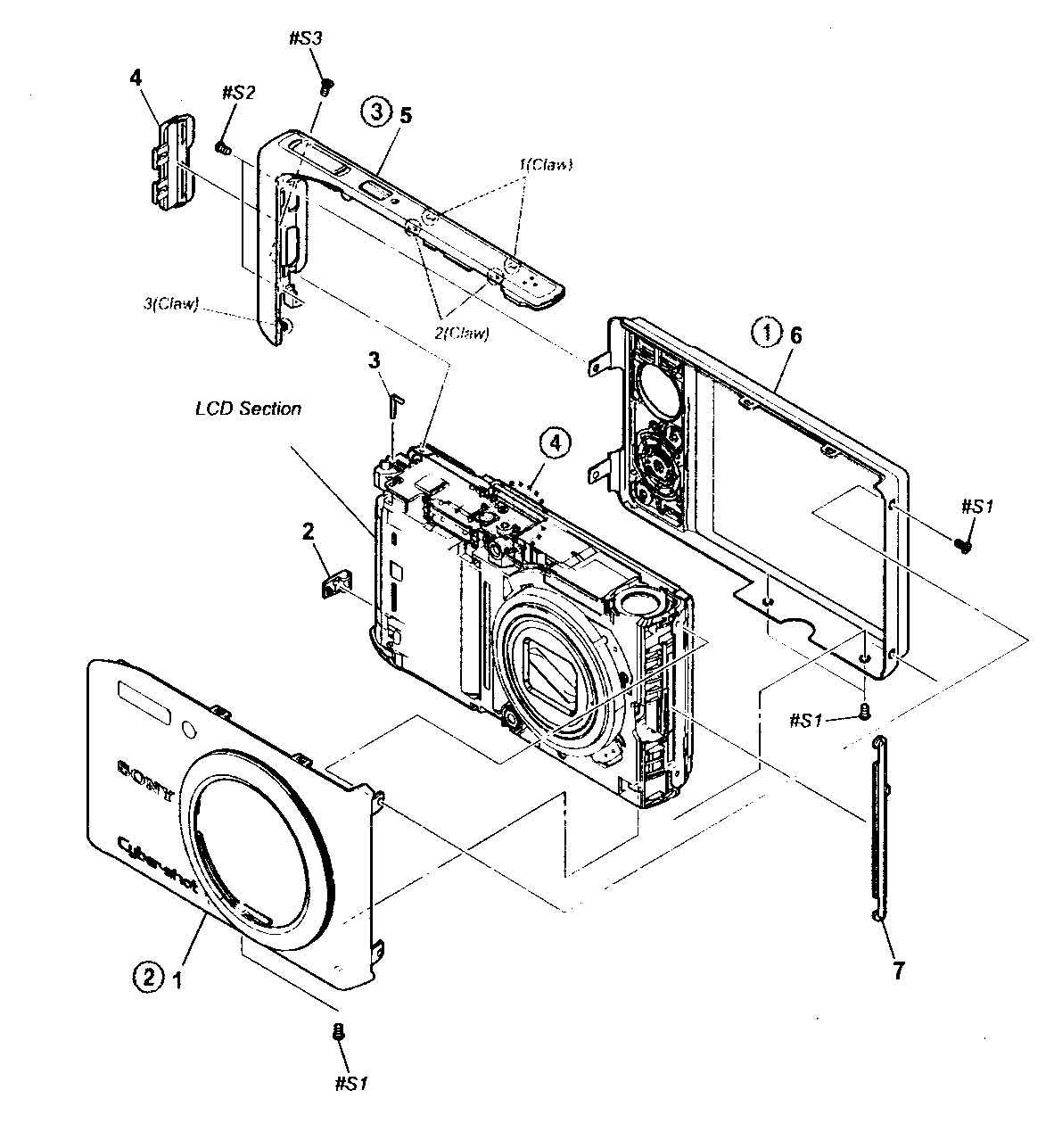

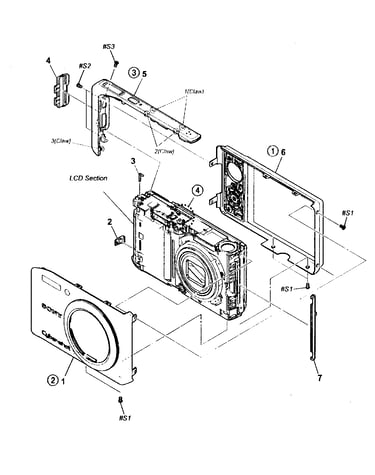

Cabinet assy diagram

Machine screw

Part #417922701

This item is not returnable

$2.16

In Stock

Qty

#S1

Cabinet assy diagram

Machine screw

Part #417922601

This item is not returnable

$2.16

In Stock

Qty

#105

Main frame diagram

Connector

Part #182033311

$13.24

In Stock

Qty

#104

Main frame diagram

Main pcb

Part #417923801

$173.06

In Stock

Qty

Cabinet assy diagram

Sony cabinet front

Part #X25471951

$87.53

In Stock

Qty

#NI

Cabinet assy diagram

A/v cable

Part #319698001

$46.26

In Stock

Qty

#F1

Main frame diagram

Fuse micro

Part #152303831

$8.26

In Stock

Qty

Cabinet assy diagram

Sony rear cabinet

Part #X25471911

$68.66

In Stock

Qty
