Thermador
Range

Model # PDR364GDZS/07 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PDR364GDZS-07 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

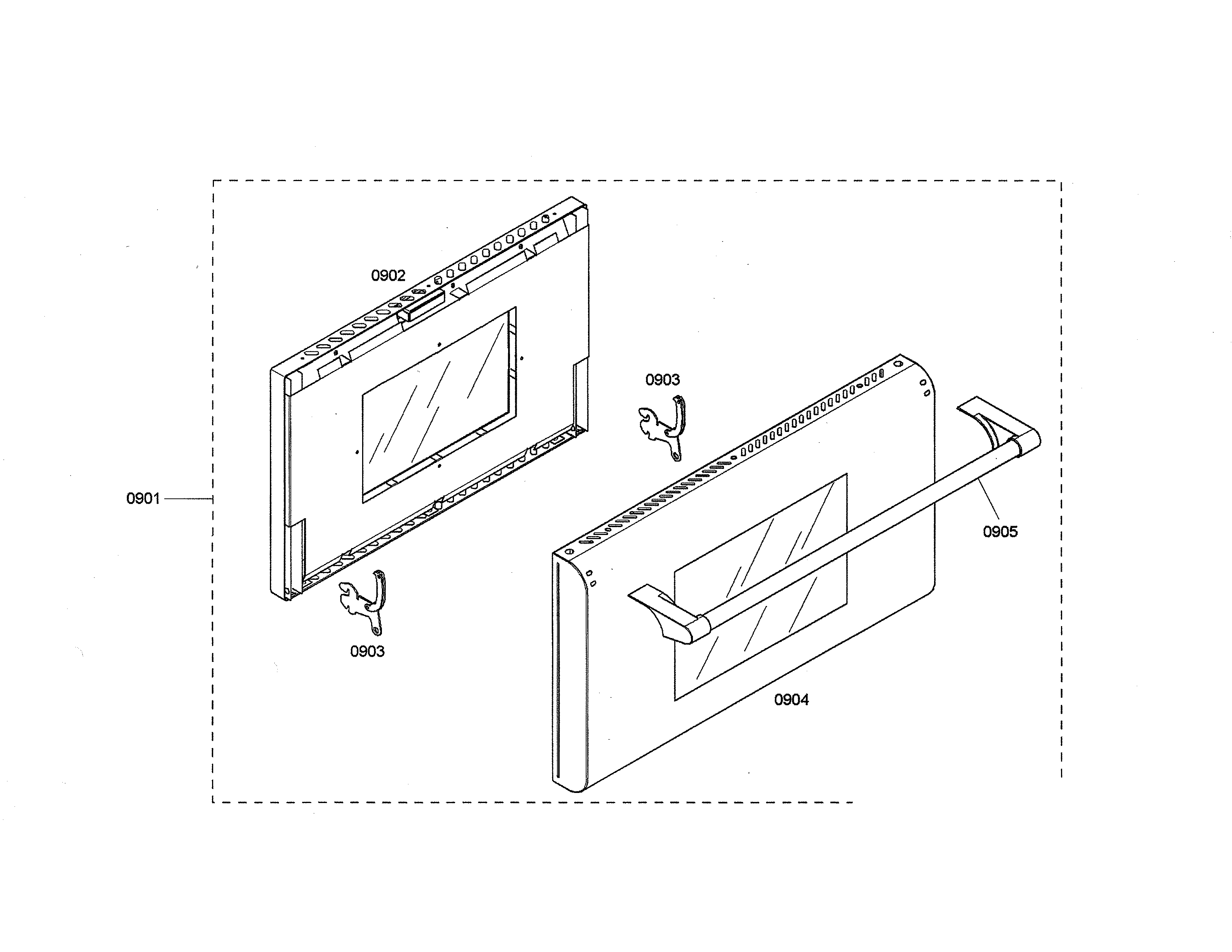

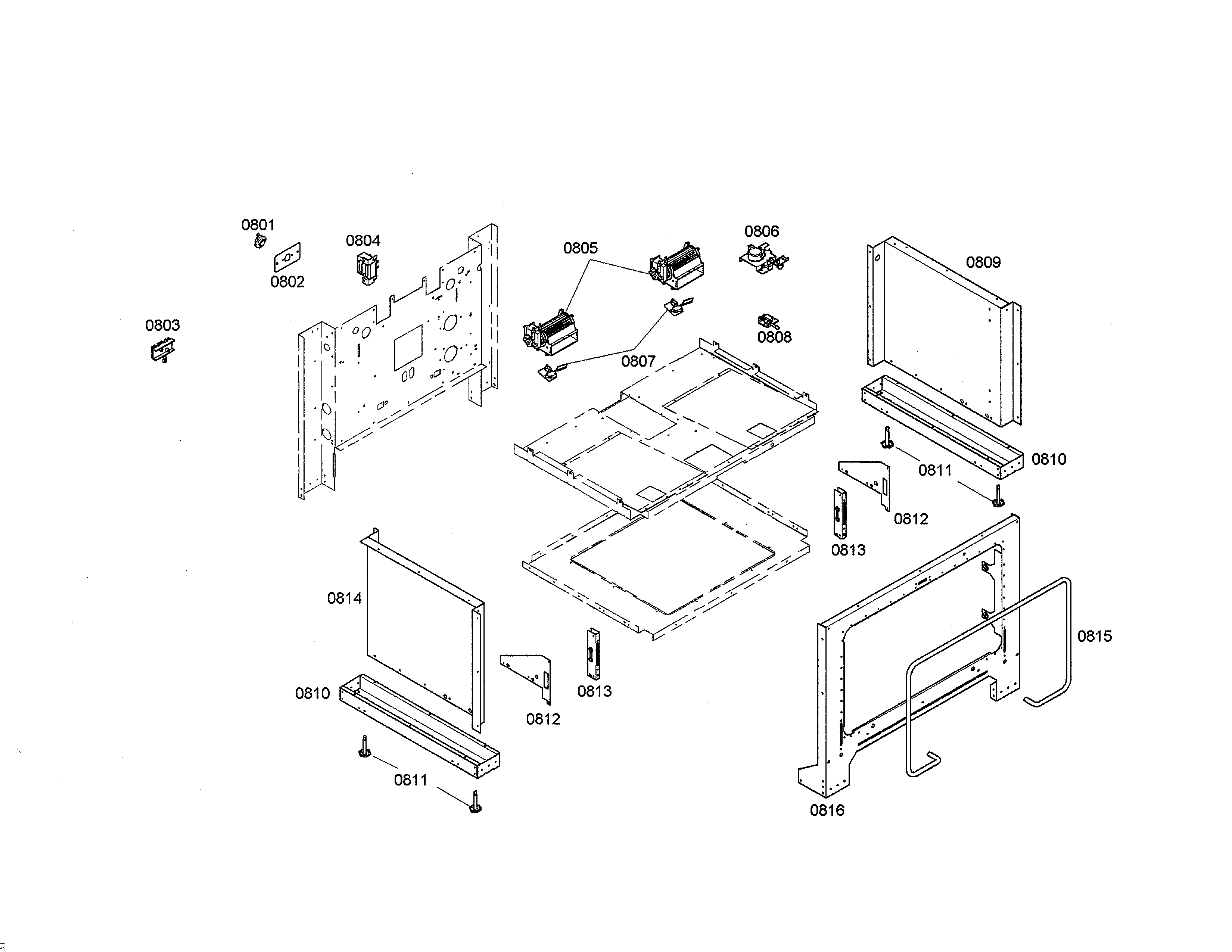

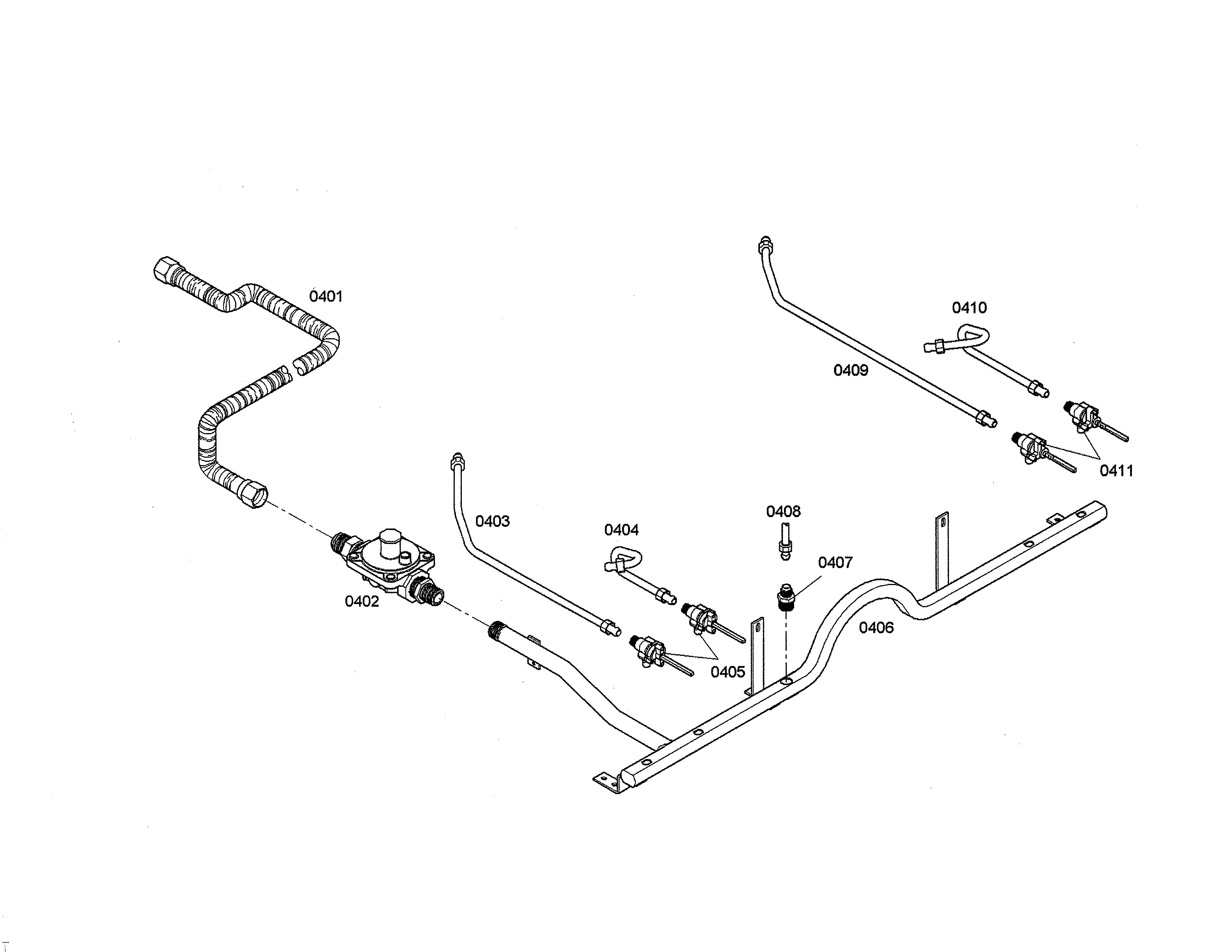

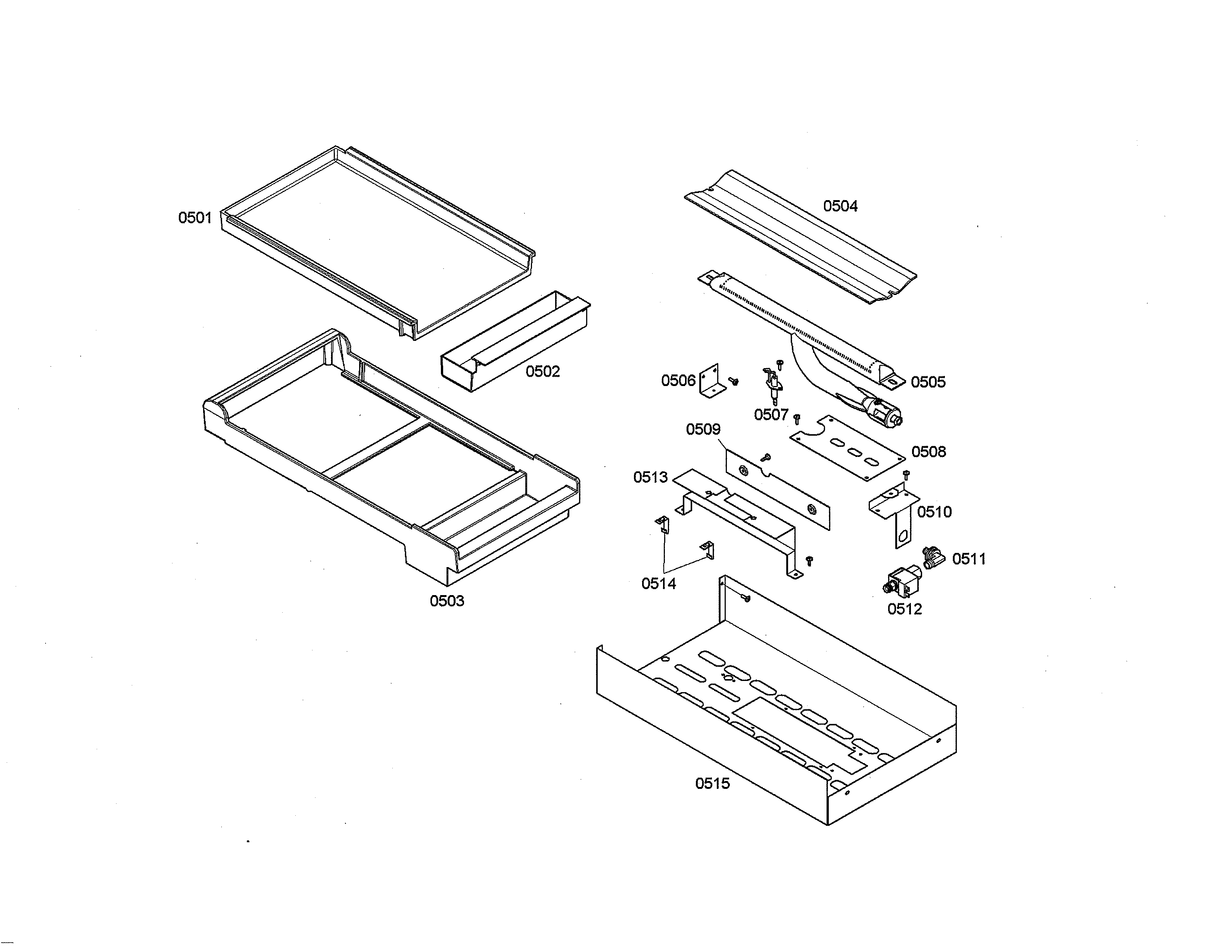

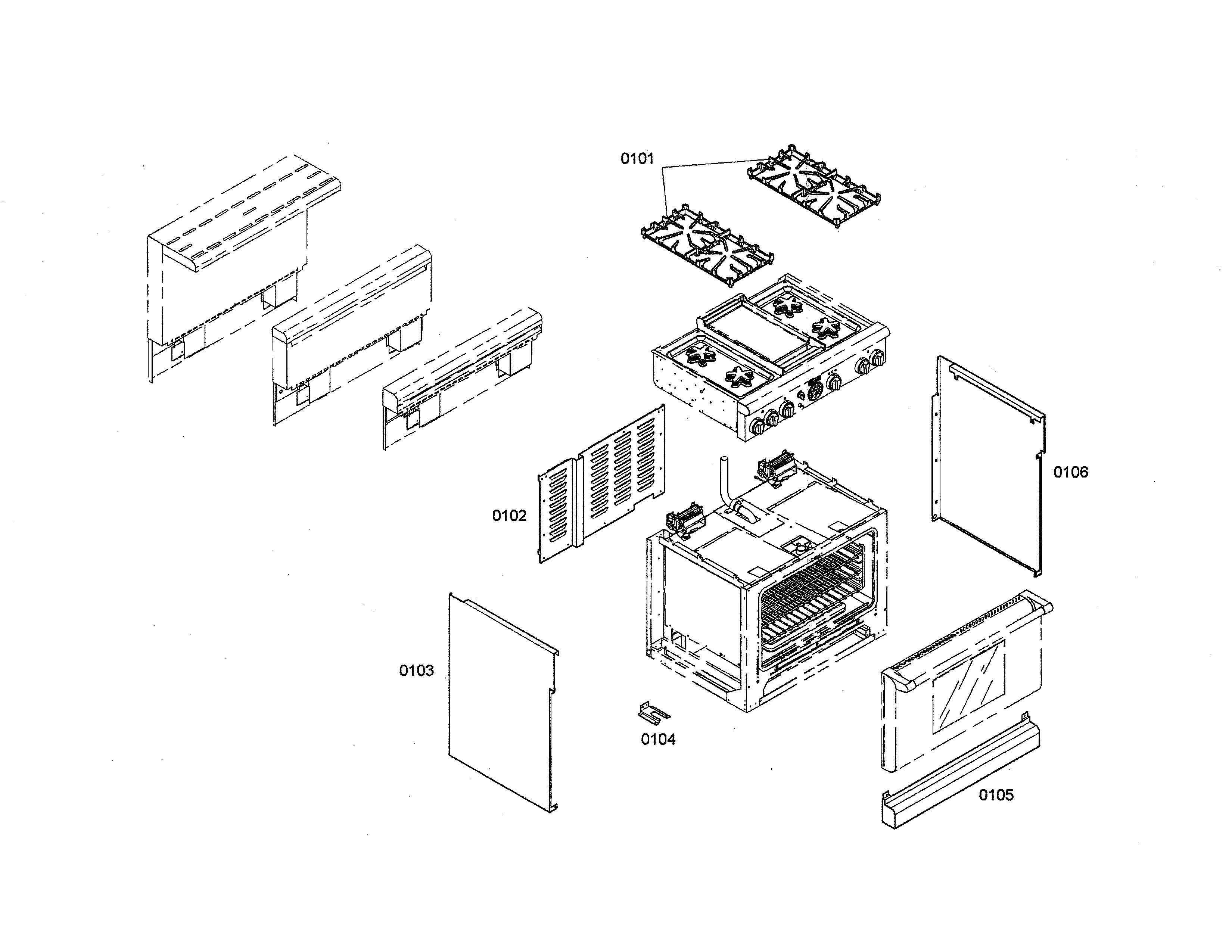

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Tube 00415133
#302

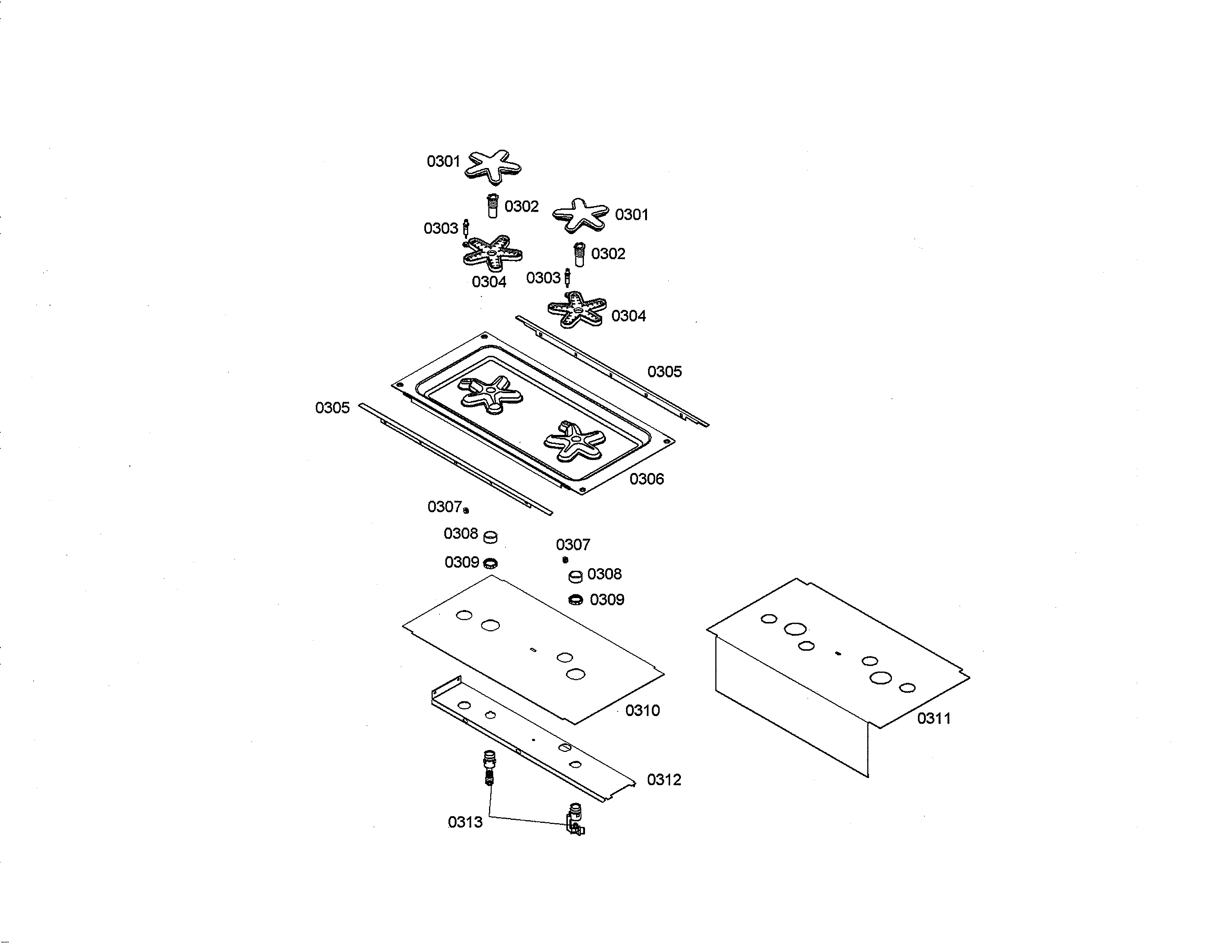

Starburner w/igniter/jet holder diagram

Tube

Part #00415133

Replaced by #00189023

?
Manufacturer substitution
This part replaces 00415133. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Cooktop Burner Igniter (replaces 00189719, 00189773, 00189889, 00413966, 00488832, 189324, 189773) 00189324
#303

Starburner w/igniter/jet holder diagram

Cooktop burner igniter (replaces 00189719, 00189773, 00189889, 00413966, 00488832, 189324, 189773)

Part #00189324

$35.49 |
14% OFF Phone Price : $41.49
In Stock
Range Surface Burner Orifice Holder 00188976
#313

Starburner w/igniter/jet holder diagram

Range surface burner orifice holder

Part #00188976

This item is not returnable
$27.64 |
18% OFF Phone Price : $33.64
In Stock
Range Surface Burner Flexible Supply Tube, 5/16 X 15-in 00432539
Range surface burner flexible supply tube, 5/16 x 15-in

Part #00432539

$51.91
In Stock
Pin 00418283
#603

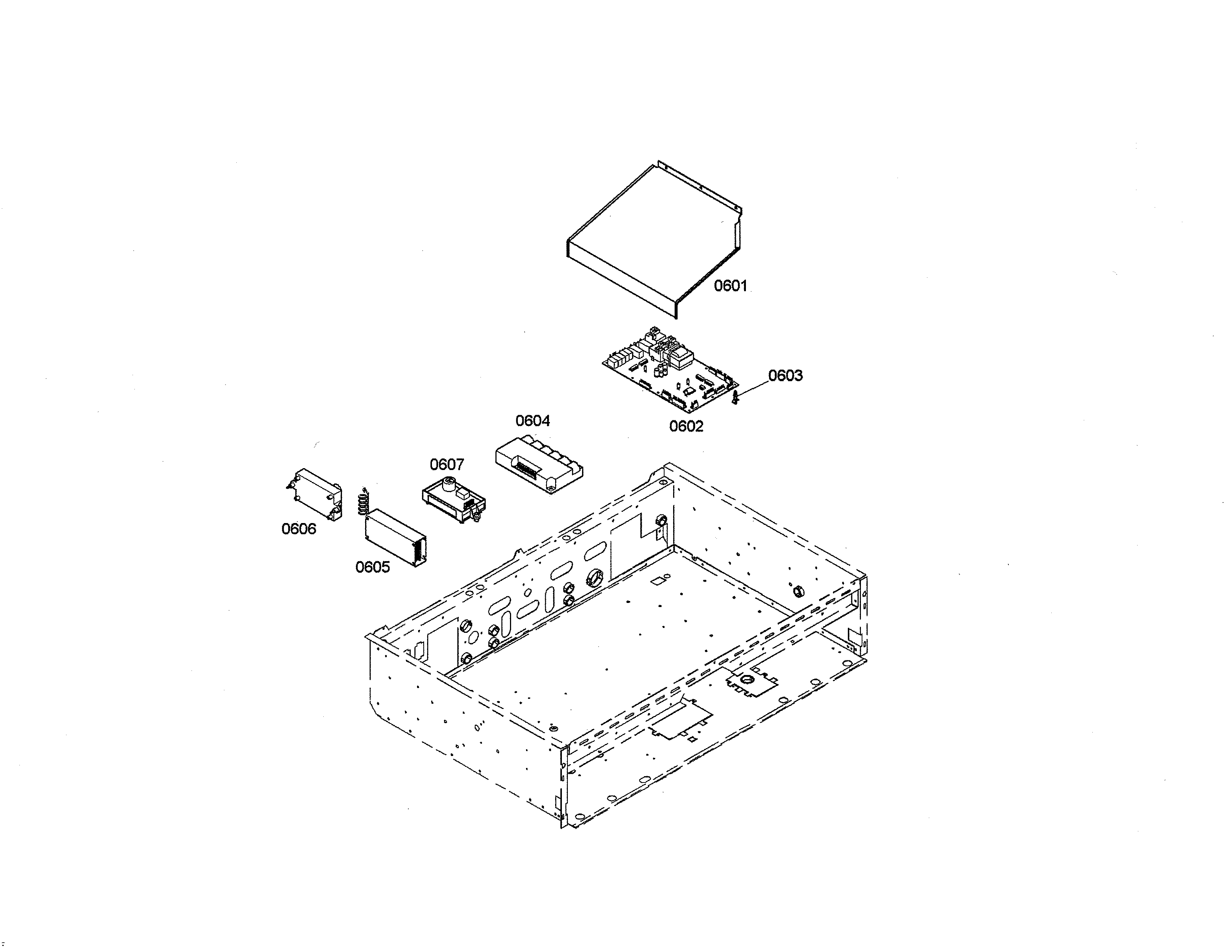

Pc board/igniter diagram

Pin

Part #00418283

This item is not returnable
$5.49
In Stock
Range Surface Burner Valve 00423093
#211

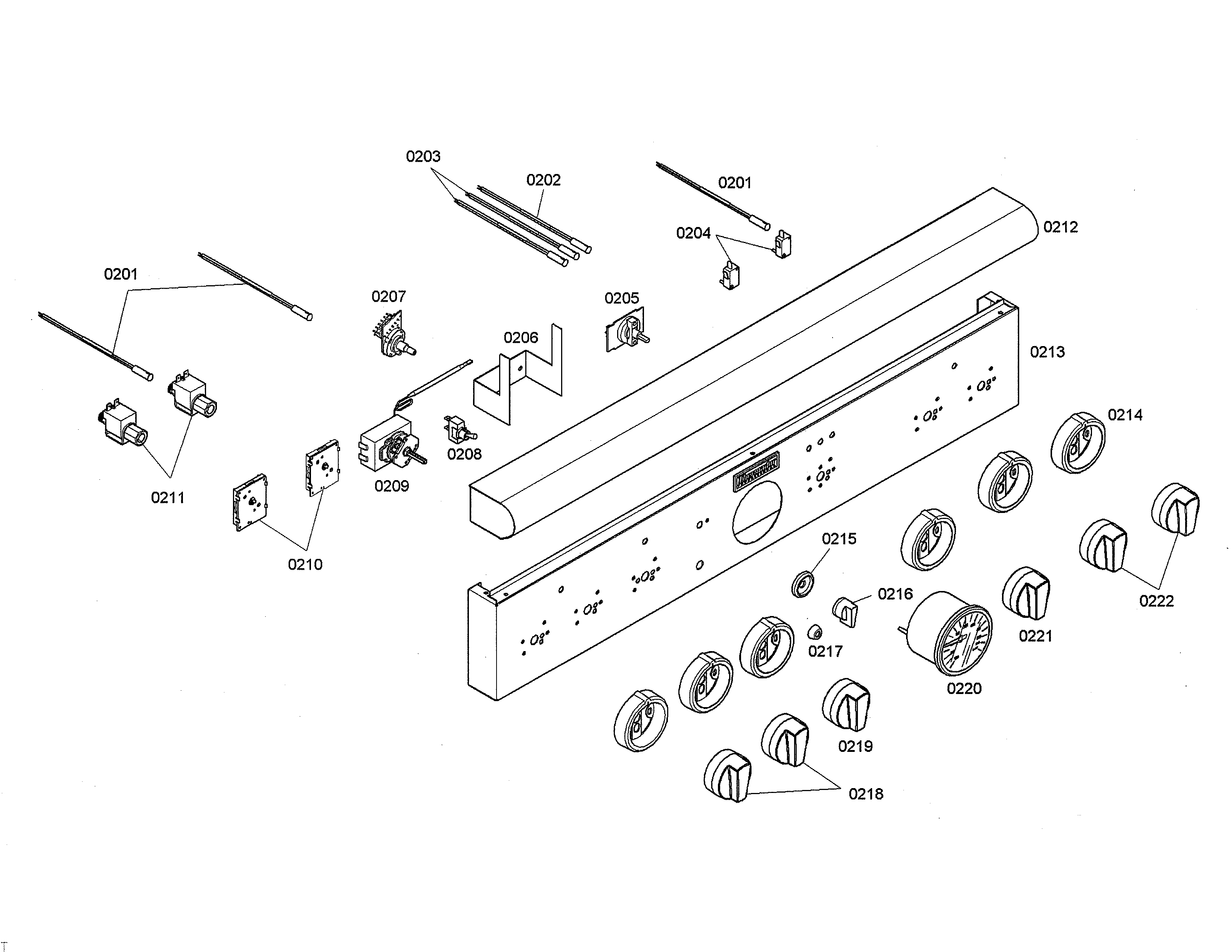

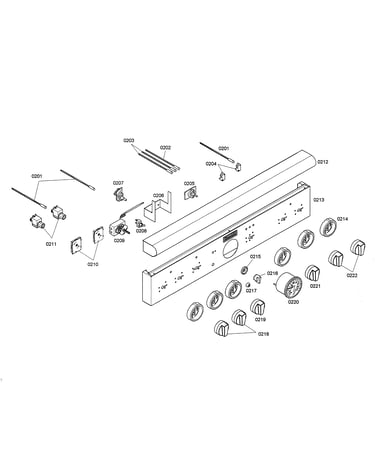

Control panel/knobs/thermostat diagram

Range surface burner valve

Part #00423093

$158.89 |
7% OFF Phone Price : $170.89
In Stock
Range Oven Rack Ladder Bracket 00418089
#716

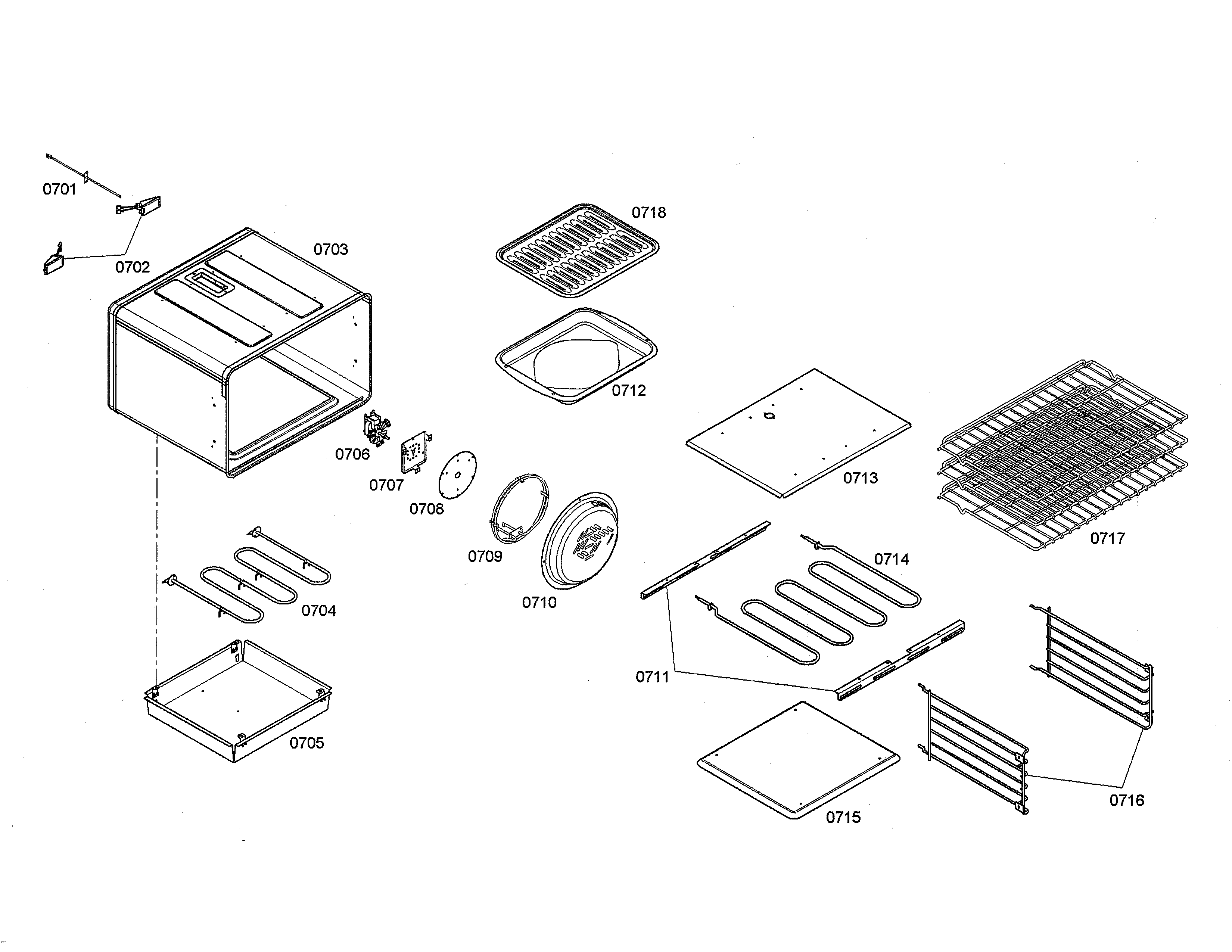

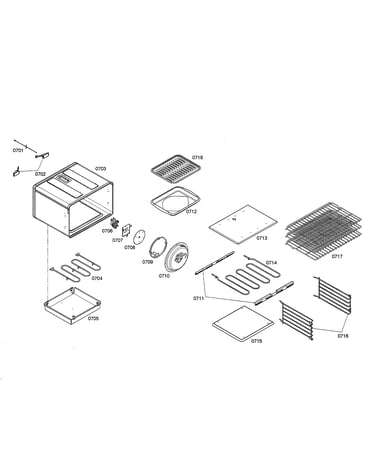

Heat element/racks diagram

Range oven rack ladder bracket

Part #00418089

$143.30
In Stock
Bracket 00418115
#711

Heat element/racks diagram

Bracket

Part #00418115

$52.91
In Stock
Wire 00239377
#652

Pc board/igniter diagram

Wire

Part #00239377

$45.76
In Stock
Motor 00497756
#706

Heat element/racks diagram

Motor

Part #00497756

$259.73 |
$12.00 OFF Phone Price : $271.73
In Stock
