Kenmore
Electric Range

Model # 1039346600 Official Kenmore electric freestanding range

Here are the diagrams and repair parts for Official Kenmore 1039346600 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

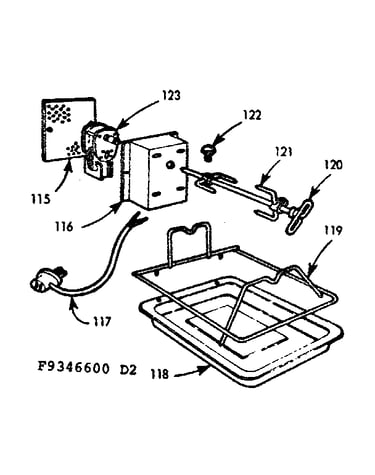

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Range Oven Light Bulb 111257

#NI

All parts diagram

Range oven light bulb

Part #111257

Replaced by #40A15

?
Manufacturer substitution
This part replaces 111257. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Thermostat 114096
#27

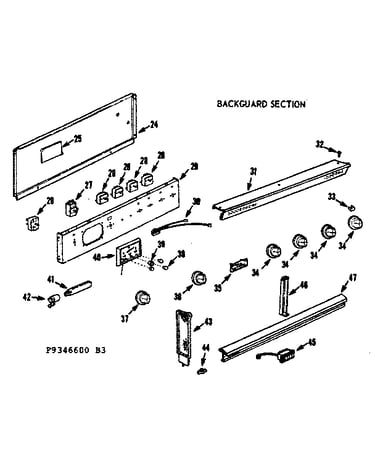

Backguard section diagram

Thermostat

Part #114096

Replaced by #5330-001

?
Manufacturer substitution
This part replaces 114096. Substitute parts can look different from the original.
$134.22 |
8% OFF Phone Price : $146.22
In Stock
Speed Nut 79431
#110

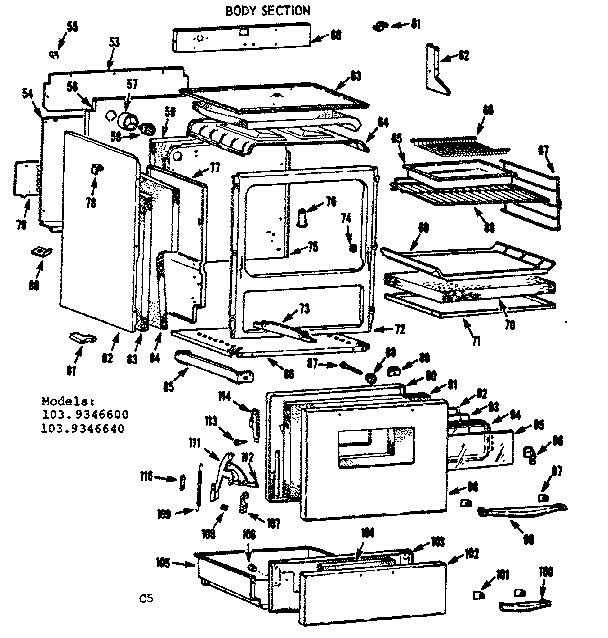

Body section diagram

Speed nut

Part #79431

This item is not returnable
$2.16
In Stock
Drawer Guide 97820
#73B

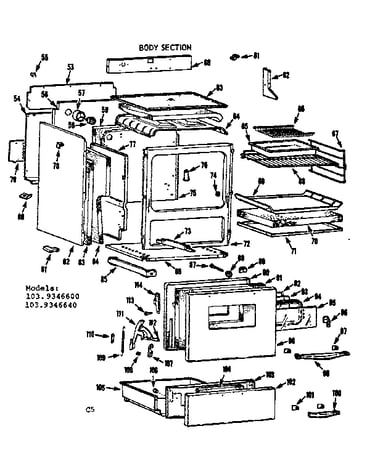

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Pan 42750
#4C

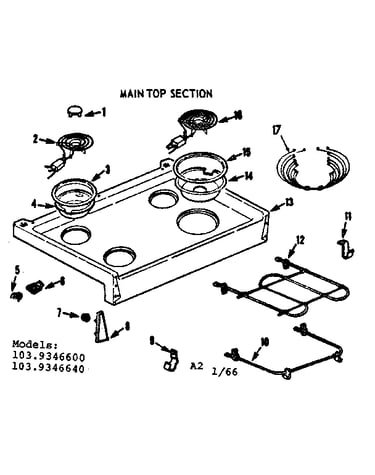

Main top section diagram

Pan

Part #42750

The manufacturer no longer makes this part, and there's no substitute part

Heat Control 113751
#28

Backguard section diagram

Heat control

Part #113751

The manufacturer no longer makes this part, and there's no substitute part

Glass Gasket 105025
#92

Body section diagram

Glass gasket

Part #105025

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces 105025. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Trim Clip 70588
#55

Body section diagram

Trim clip

Part #70588

Replaced by #WB2X9573

?
Manufacturer substitution
This part replaces 70588. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Medallion 112941
#1

Main top section diagram

Medallion

Part #112941

The manufacturer no longer makes this part, and there's no substitute part

Door Arm 97758
#112B

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
