GE
Gas Range

Model # JGBS16GPJ2 Official GE gas freestanding range

Here are the diagrams and repair parts for Official GE JGBS16GPJ2 gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Range Drip Pan WB32X90

#310

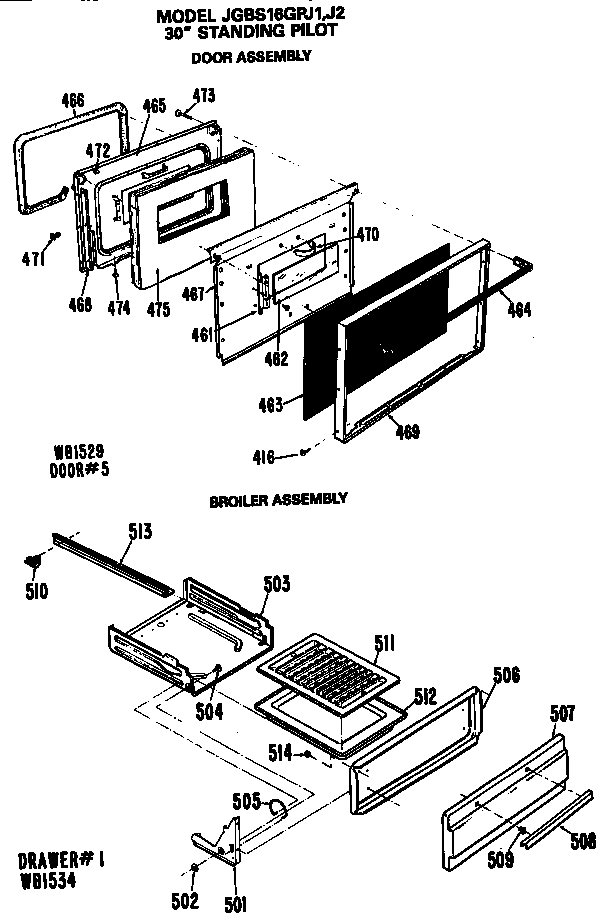

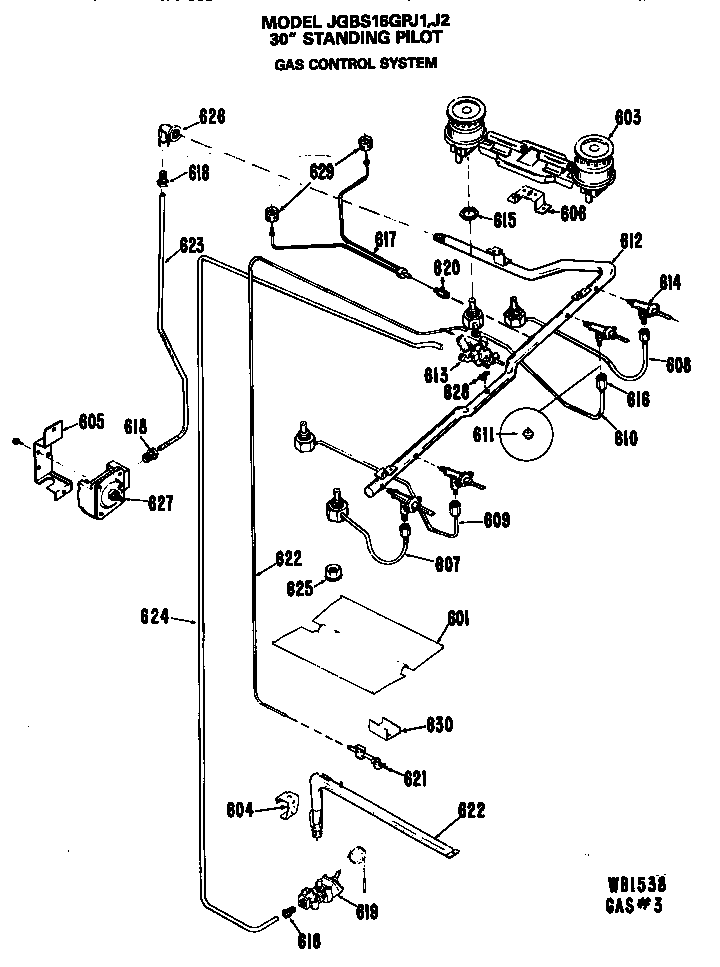

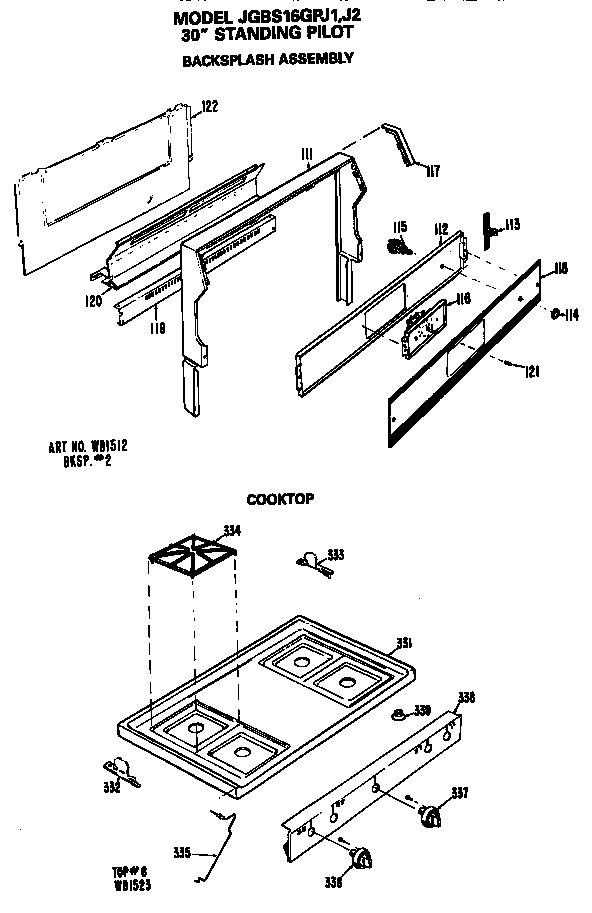

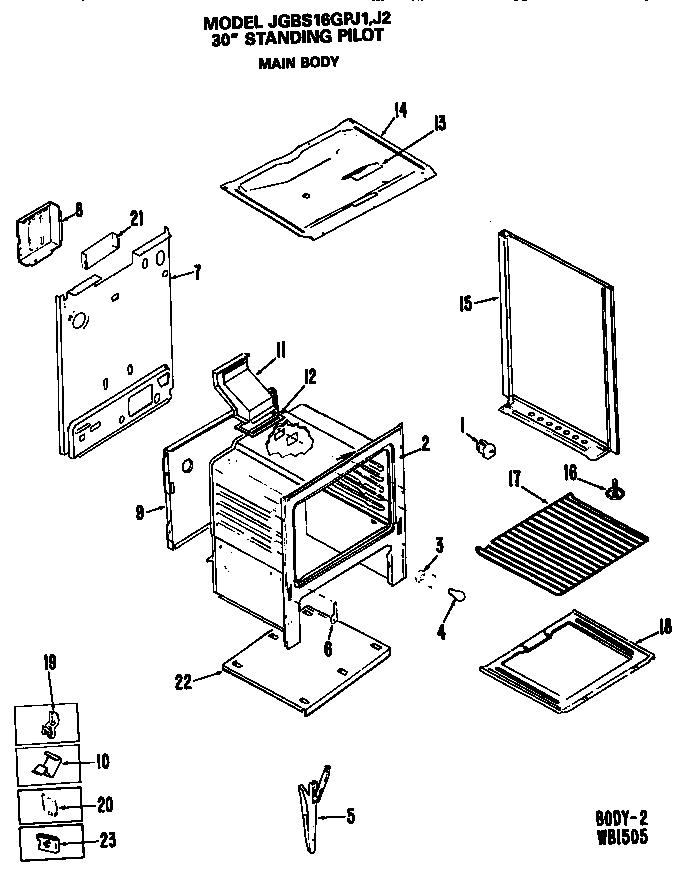

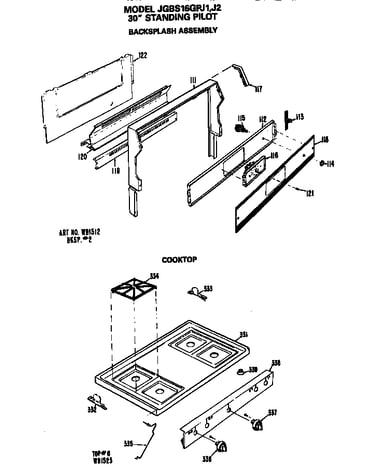

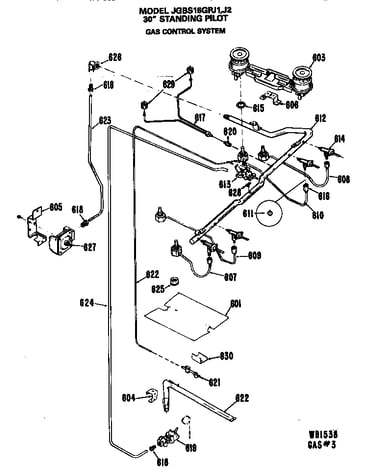

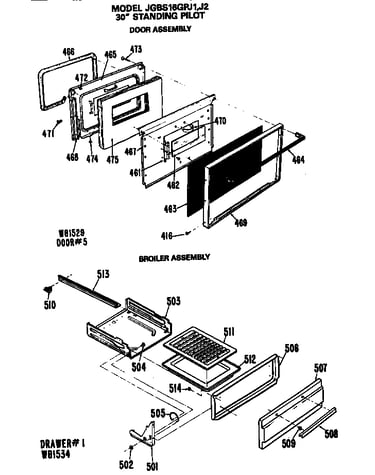

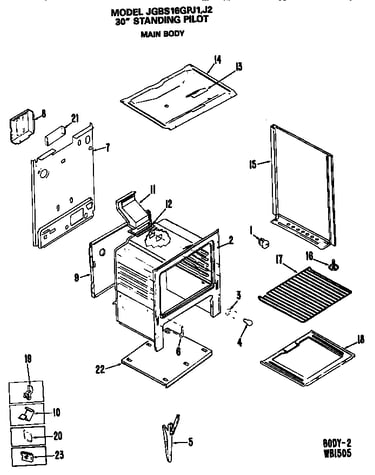

All parts diagram

Range drip pan

Part #WB32X90

The manufacturer no longer makes this part, and there's no substitute part

Bulb Oven Li BUY LOCAL

#257

All parts diagram

Bulb oven li

Part #BUY LOCAL

The manufacturer no longer makes this part, and there's no substitute part

Clock WB19X231

#256

All parts diagram

Clock

Part #WB19X231

The manufacturer no longer makes this part, and there's no substitute part

Valve WB21X443

#714

All parts diagram

Valve

Part #WB21X443

The manufacturer no longer makes this part, and there's no substitute part

Pilot WB2X104

#721

All parts diagram

Pilot

Part #WB2X104

The manufacturer no longer makes this part, and there's no substitute part

Range Thermostat Knob WB3X716

#363

All parts diagram

Range thermostat knob

Part #WB3X716

The manufacturer no longer makes this part, and there's no substitute part

Oven Burner WB28X67

#705

All parts diagram

Oven burner

Part #WB28X67

The manufacturer no longer makes this part, and there's no substitute part

Tube Harness WB2X4193

#617

All parts diagram

Tube harness

Part #WB2X4193

The manufacturer no longer makes this part, and there's no substitute part

Control WB21X445

#730

All parts diagram

Control

Part #WB21X445

The manufacturer no longer makes this part, and there's no substitute part

Floor Switch WB24X376

#255

All parts diagram

Floor switch

Part #WB24X376

The manufacturer no longer makes this part, and there's no substitute part
