Stand Mixer

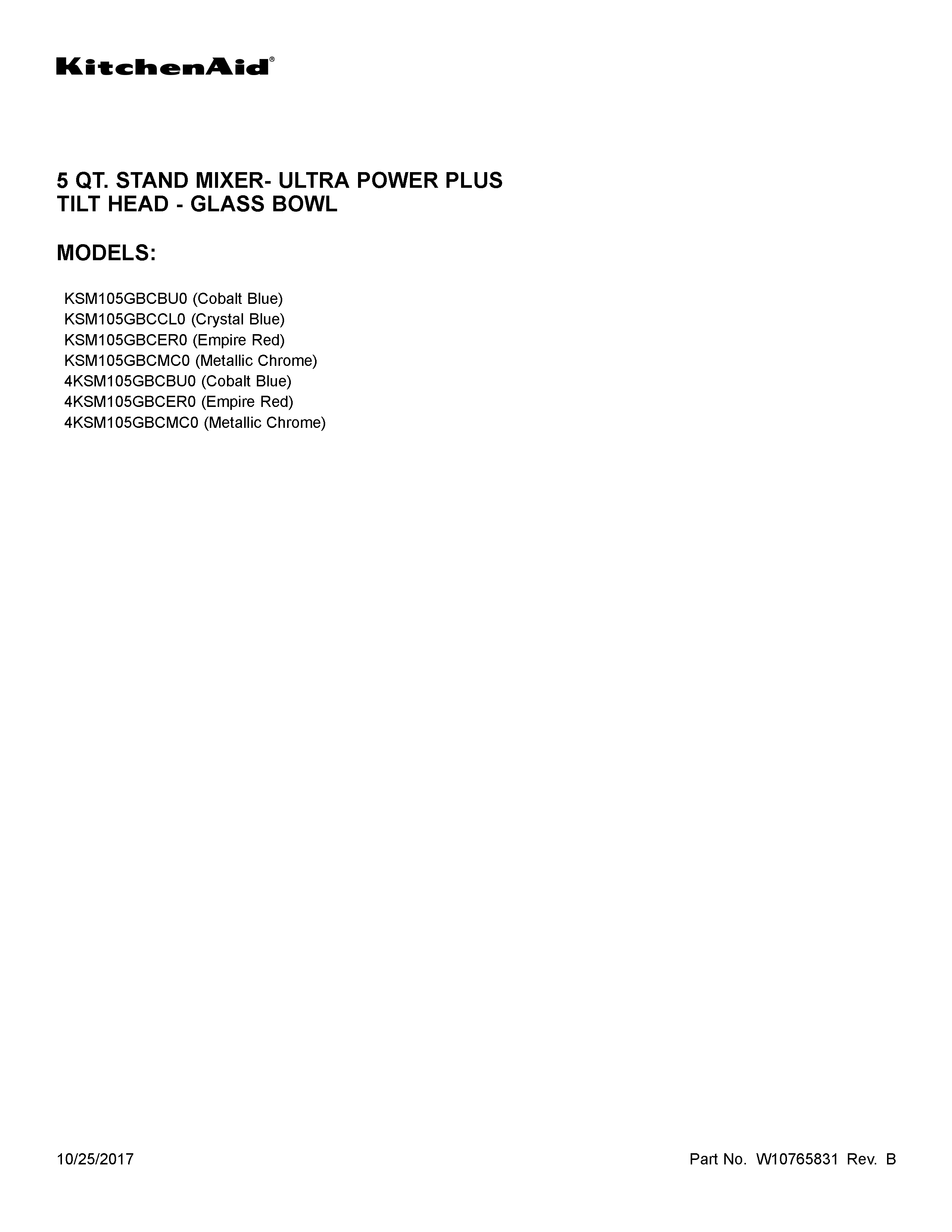

Model # KSM105GBCER0 Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid KSM105GBCER0 mixer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

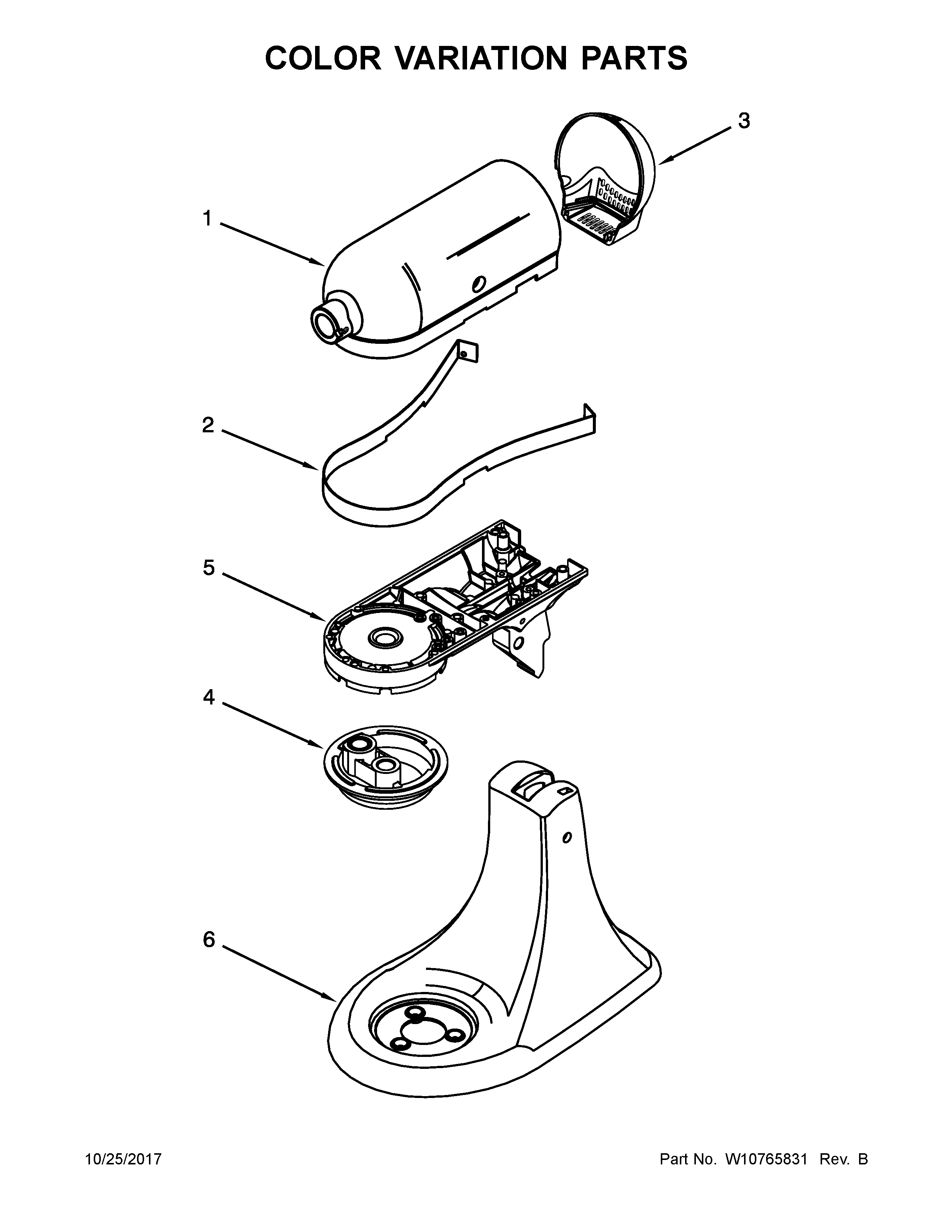

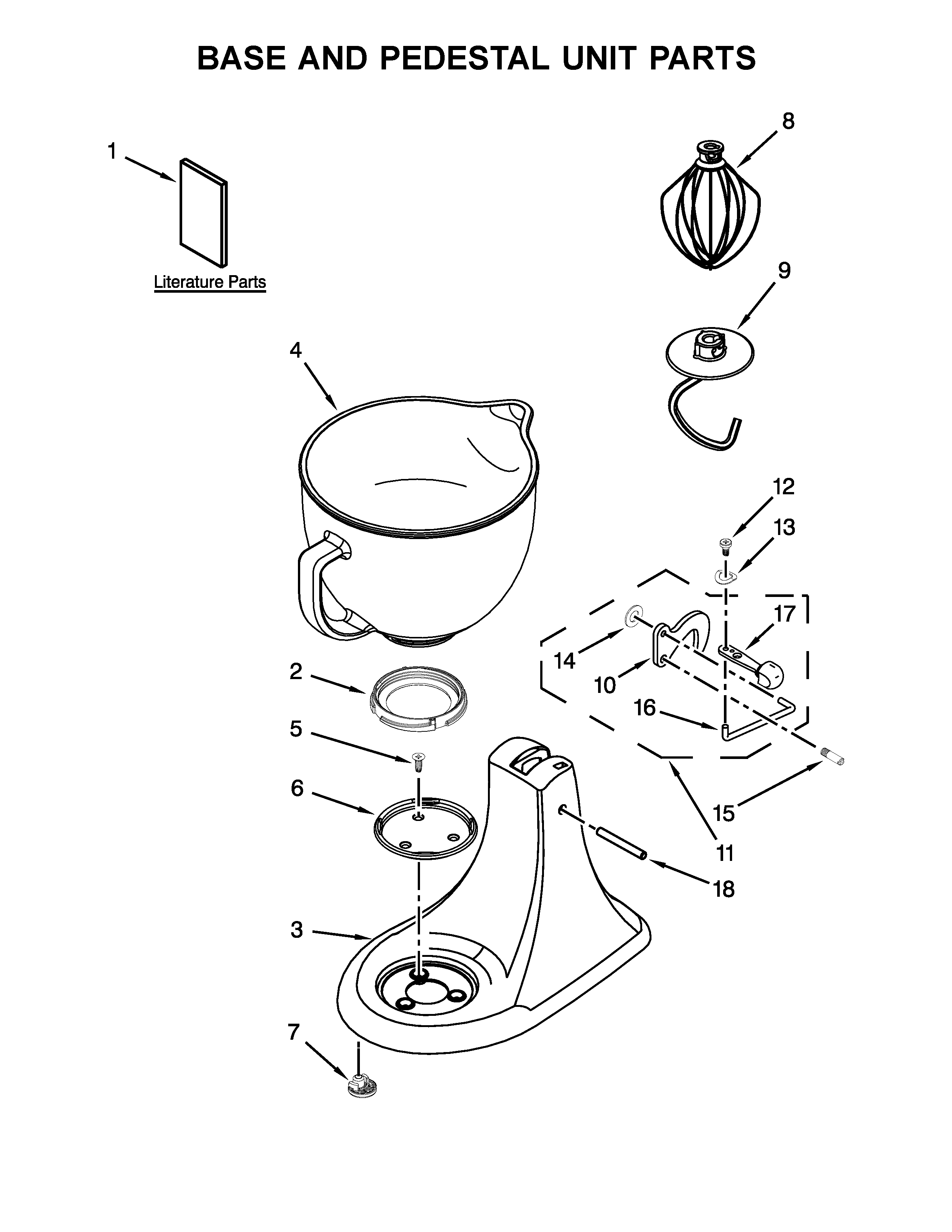

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KSM105GBCER0 Mixer
Stand Mixer Worm Gear Assembly 240309-2
#27

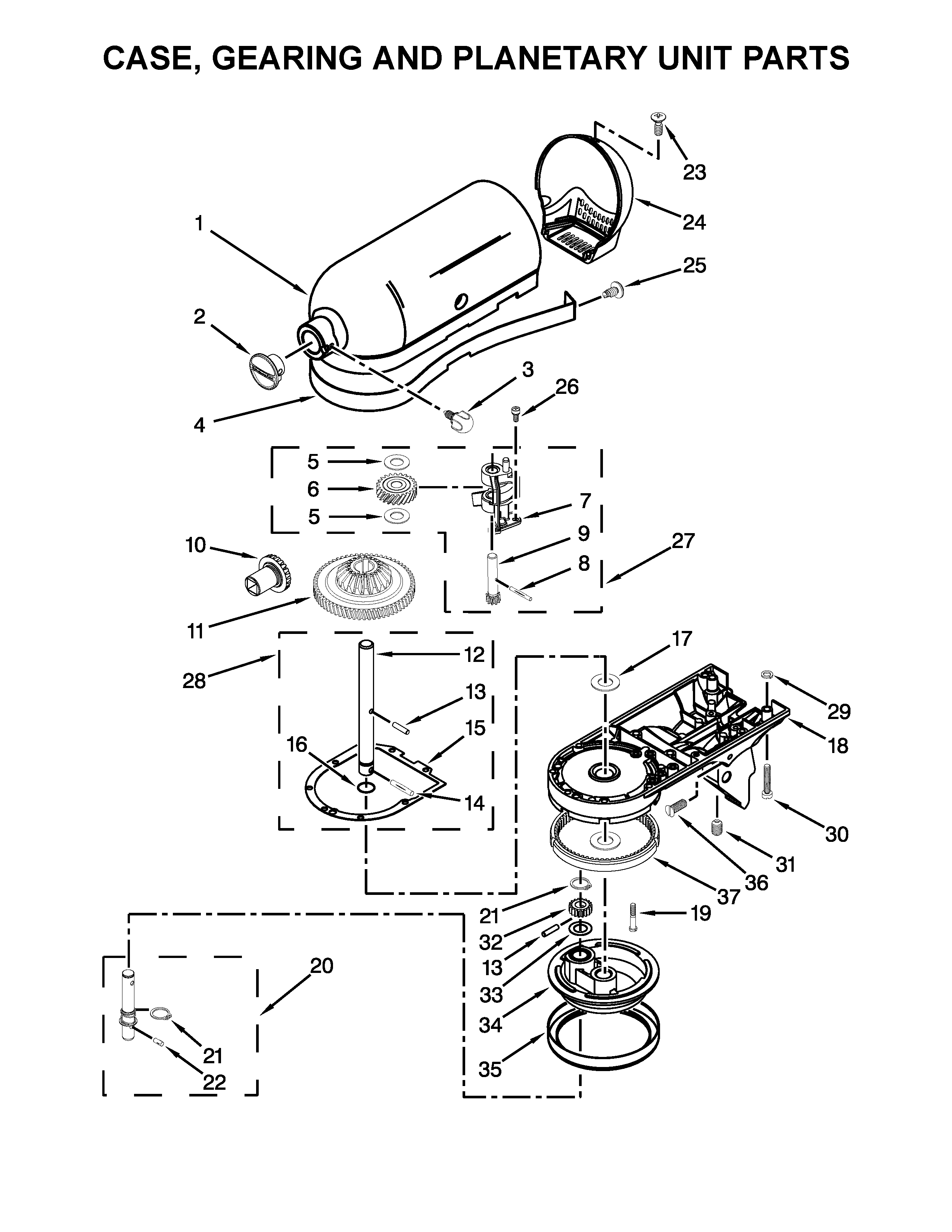

Case, gearing and planetary unit parts diagram

Stand mixer worm gear assembly

Part #240309-2

Replaced by #WP240309-2

?
Manufacturer substitution
This part replaces 240309-2. Substitute parts can look different from the original.
$32.07 |
16% OFF Phone Price : $38.07
In Stock
Gasket 4162324
#15

Case, gearing and planetary unit parts diagram

Gasket

Part #4162324

Replaced by #WP4162324

?
Manufacturer substitution
This part replaces 4162324. Substitute parts can look different from the original.
This item is not returnable
$15.90 |
11% OFF Phone Price : $17.90
In Stock
Brush-mtr W10380496
#19

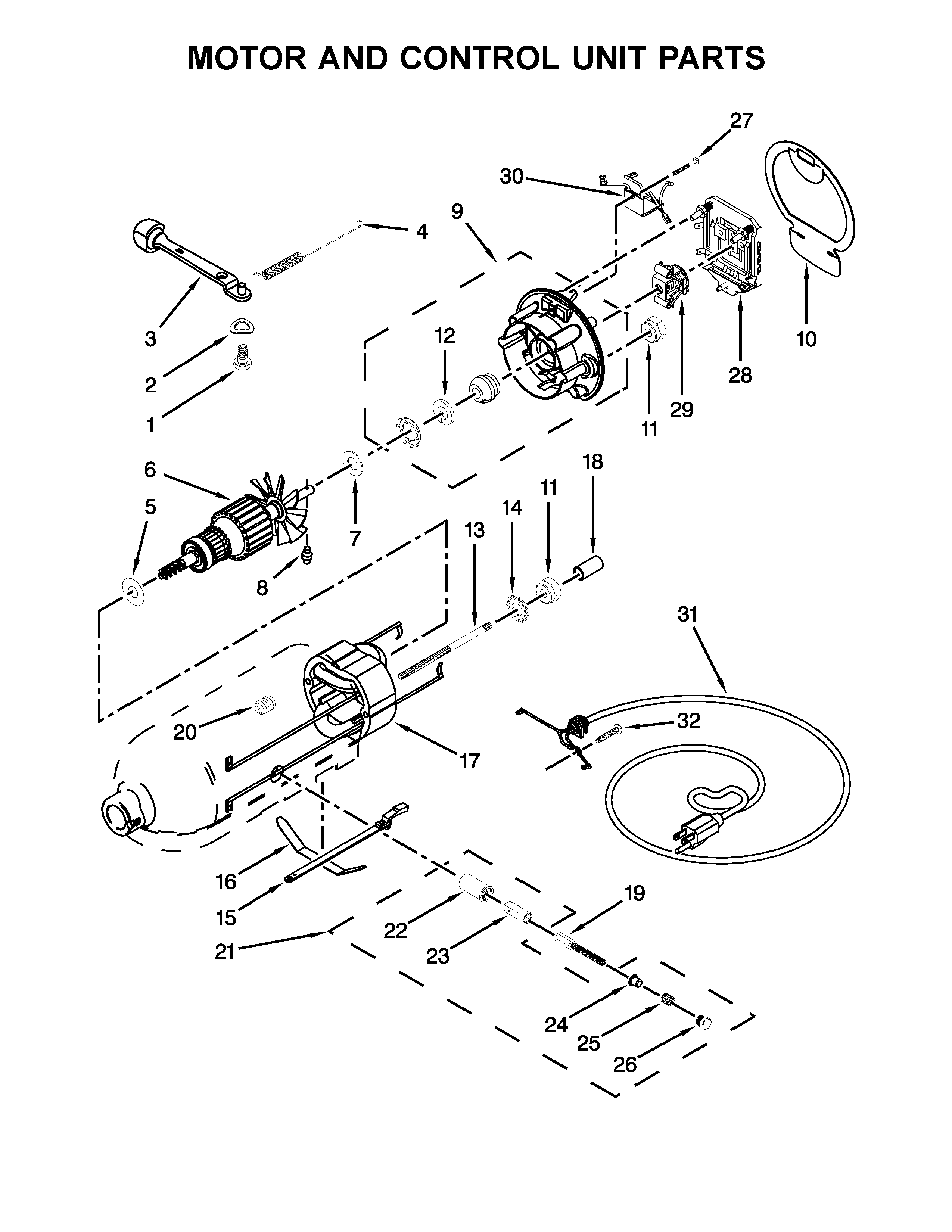

Motor and control unit parts diagram

Brush-mtr

Part #W10380496

Replaced by #WPW10380496

?
Manufacturer substitution
This part replaces W10380496. Substitute parts can look different from the original.
$7.50 |
12% OFF Phone Price : $8.50
In Stock
Link-speed 3184176
#15

Motor and control unit parts diagram

Link-speed

Part #3184176

Replaced by #W11557271

?
Manufacturer substitution
This part replaces 3184176. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Gear-centr 9709627
#11

Case, gearing and planetary unit parts diagram

Gear-centr

Part #9709627

Replaced by #W11192794

?
Manufacturer substitution
This part replaces 9709627. Substitute parts can look different from the original.
$33.69 |
15% OFF Phone Price : $39.69
In Stock
Stand Mixer Phase Control Board W10325124
#30

Motor and control unit parts diagram

Stand mixer phase control board

Part #W10325124

Replaced by #WPW10325124

?
Manufacturer substitution
This part replaces W10325124. Substitute parts can look different from the original.
This item is not returnable
$16.63 |
11% OFF Phone Price : $18.63
In Stock
Gear Hub 9705130
#10

Case, gearing and planetary unit parts diagram

Gear hub

Part #9705130

Replaced by #W11192794

?
Manufacturer substitution
This part replaces 9705130. Substitute parts can look different from the original.
$33.69 |
15% OFF Phone Price : $39.69
In Stock
Center Shaft 4160474
#28

Case, gearing and planetary unit parts diagram

Center shaft

Part #4160474

$22.88
In Stock
Speed Lever 9709276
#3

Motor and control unit parts diagram

Speed lever

Part #9709276

Replaced by #WP9709276

?
Manufacturer substitution
This part replaces 9709276. Substitute parts can look different from the original.
This item is not returnable
$5.90 |
14% OFF Phone Price : $6.90
In Stock
Washer 9706090
#33

Case, gearing and planetary unit parts diagram

Washer

Part #9706090

Replaced by #WP9706090

?
Manufacturer substitution
This part replaces 9706090. Substitute parts can look different from the original.
This item is not returnable
$4.91
In Stock
