Carrier
Heating & Cooling Combined Unit

Model # 48DTN060115300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 48DTN060115300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

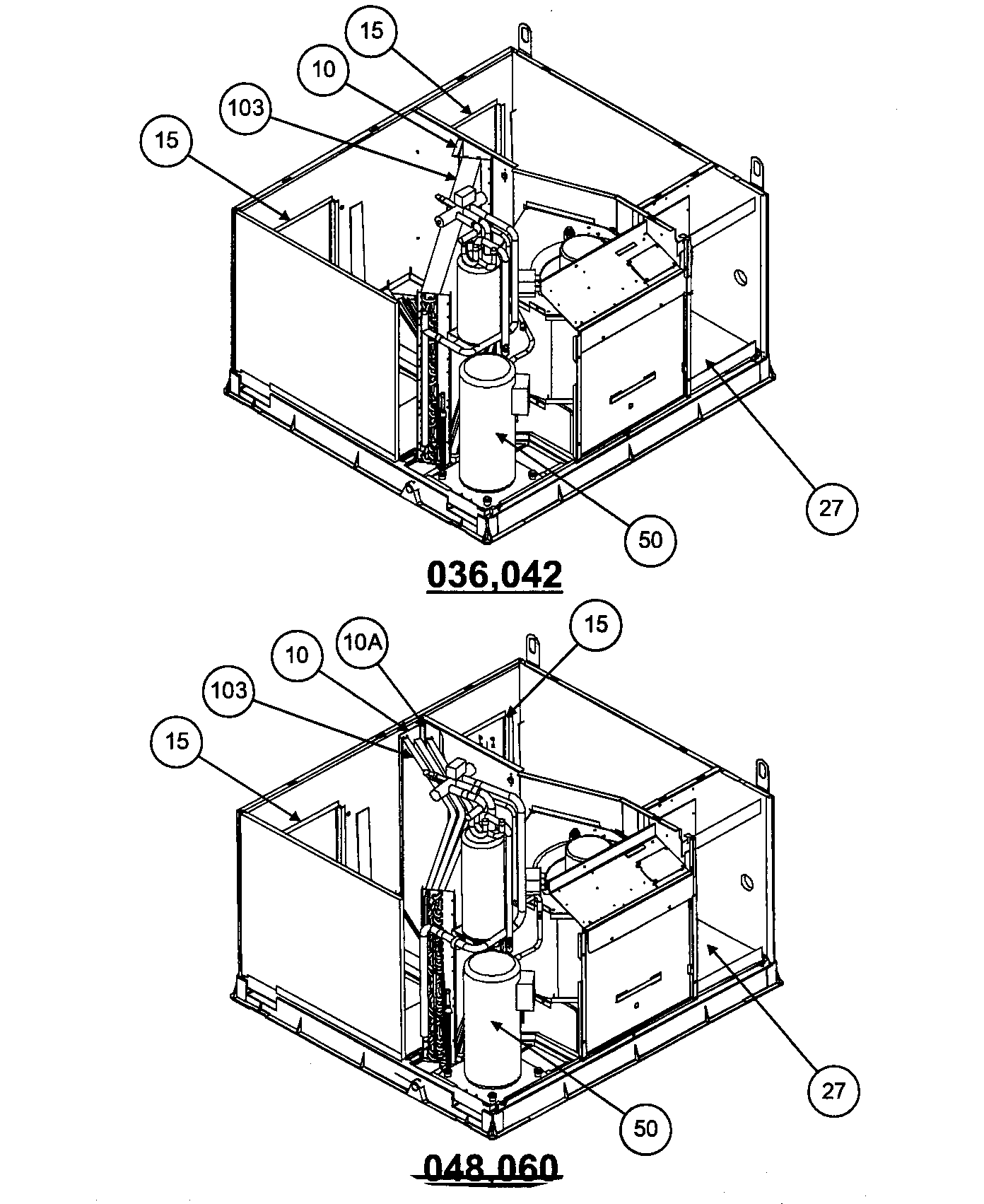

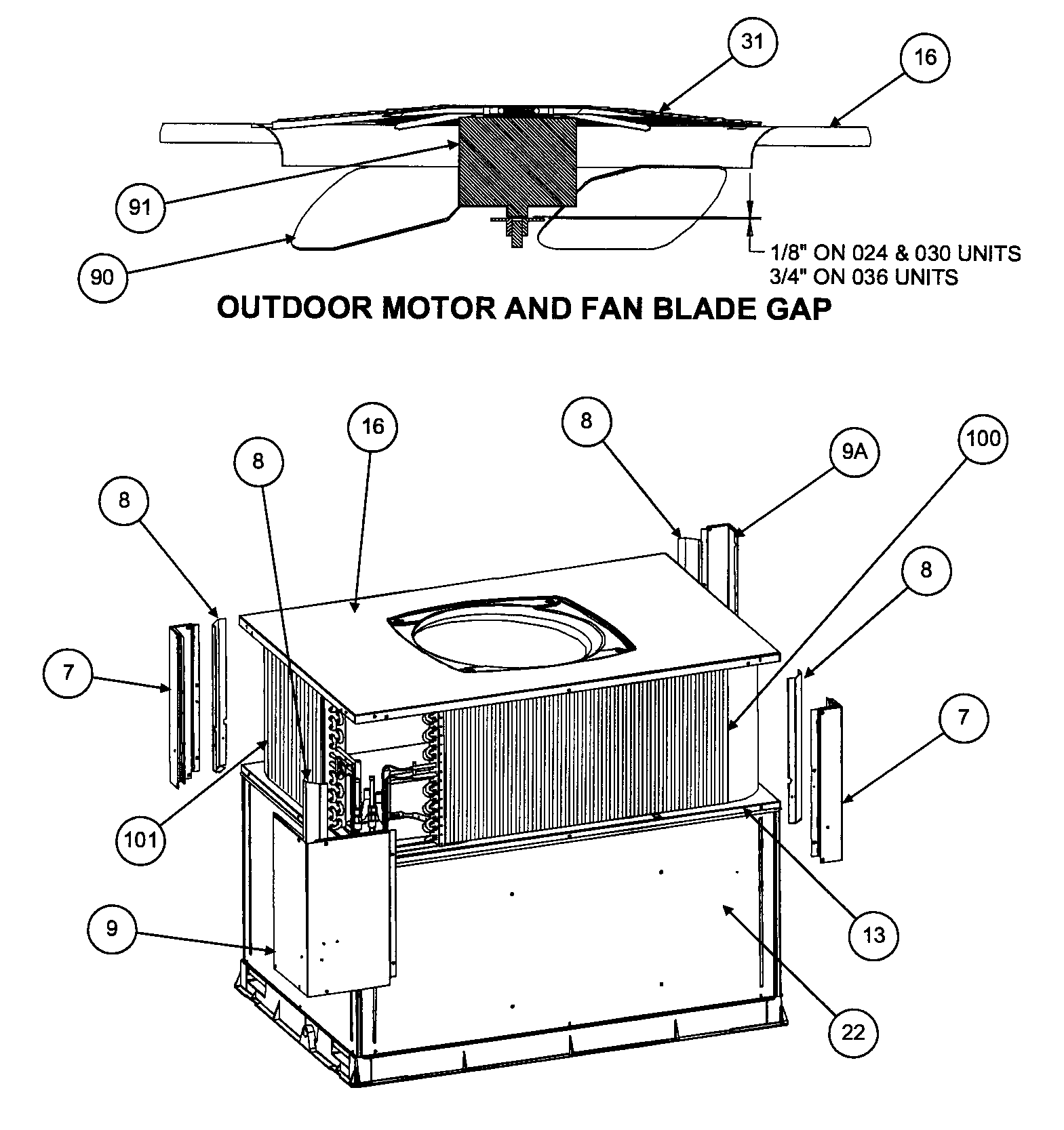

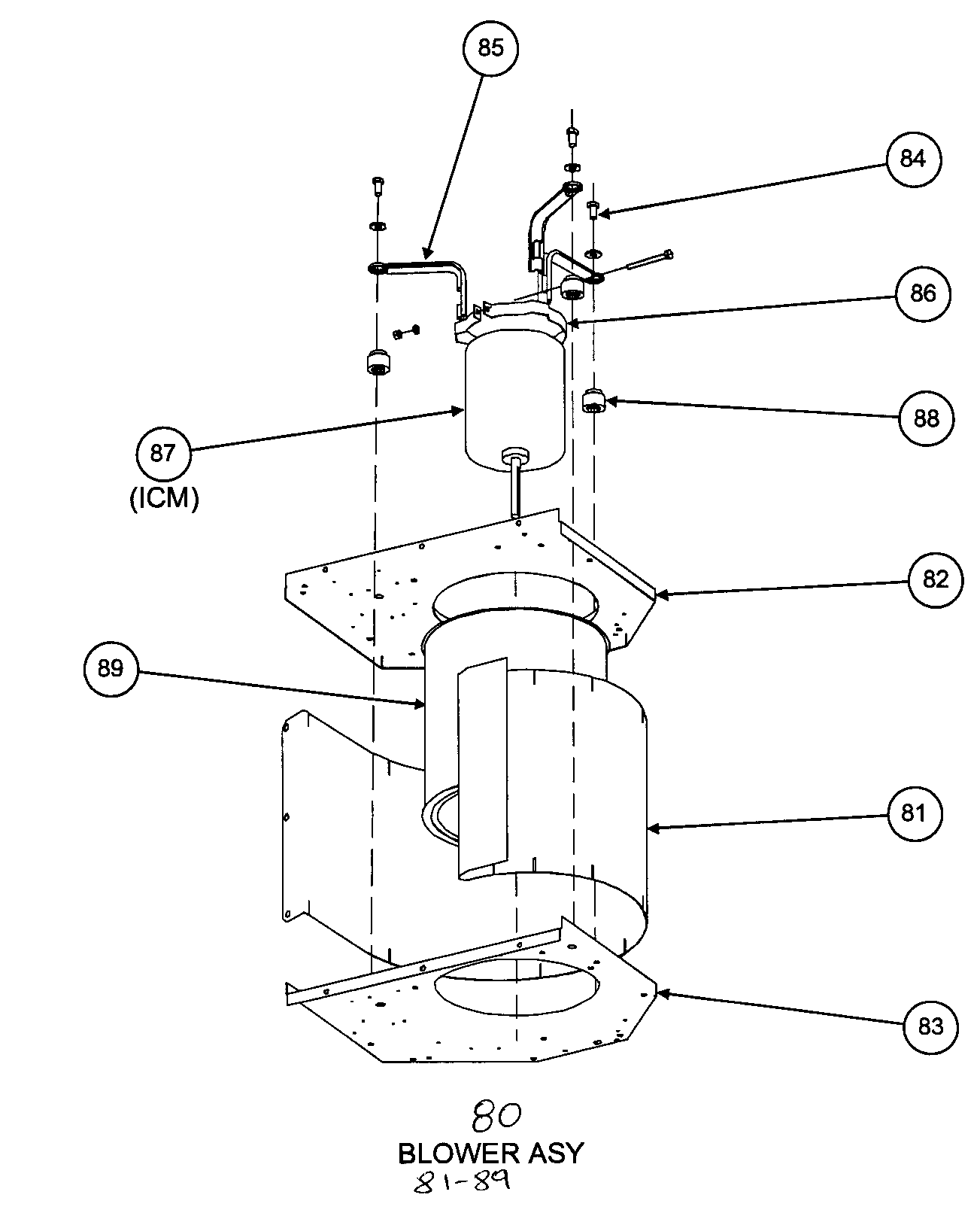

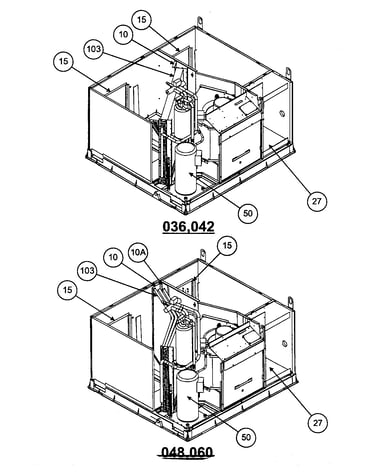

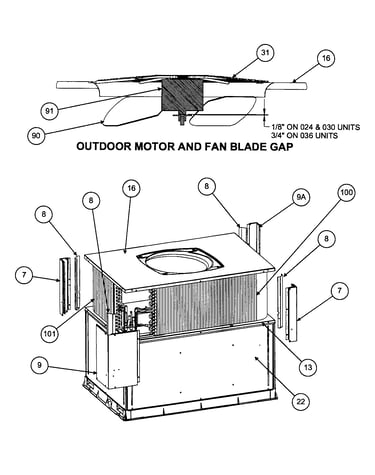

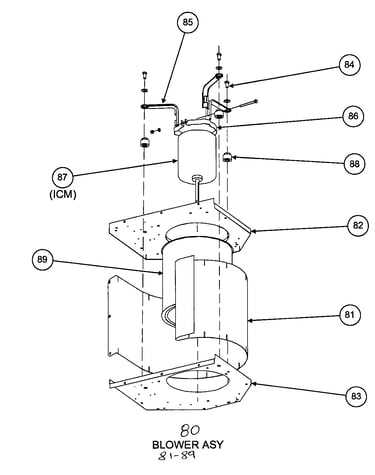

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Contactor HN51JD024
#63

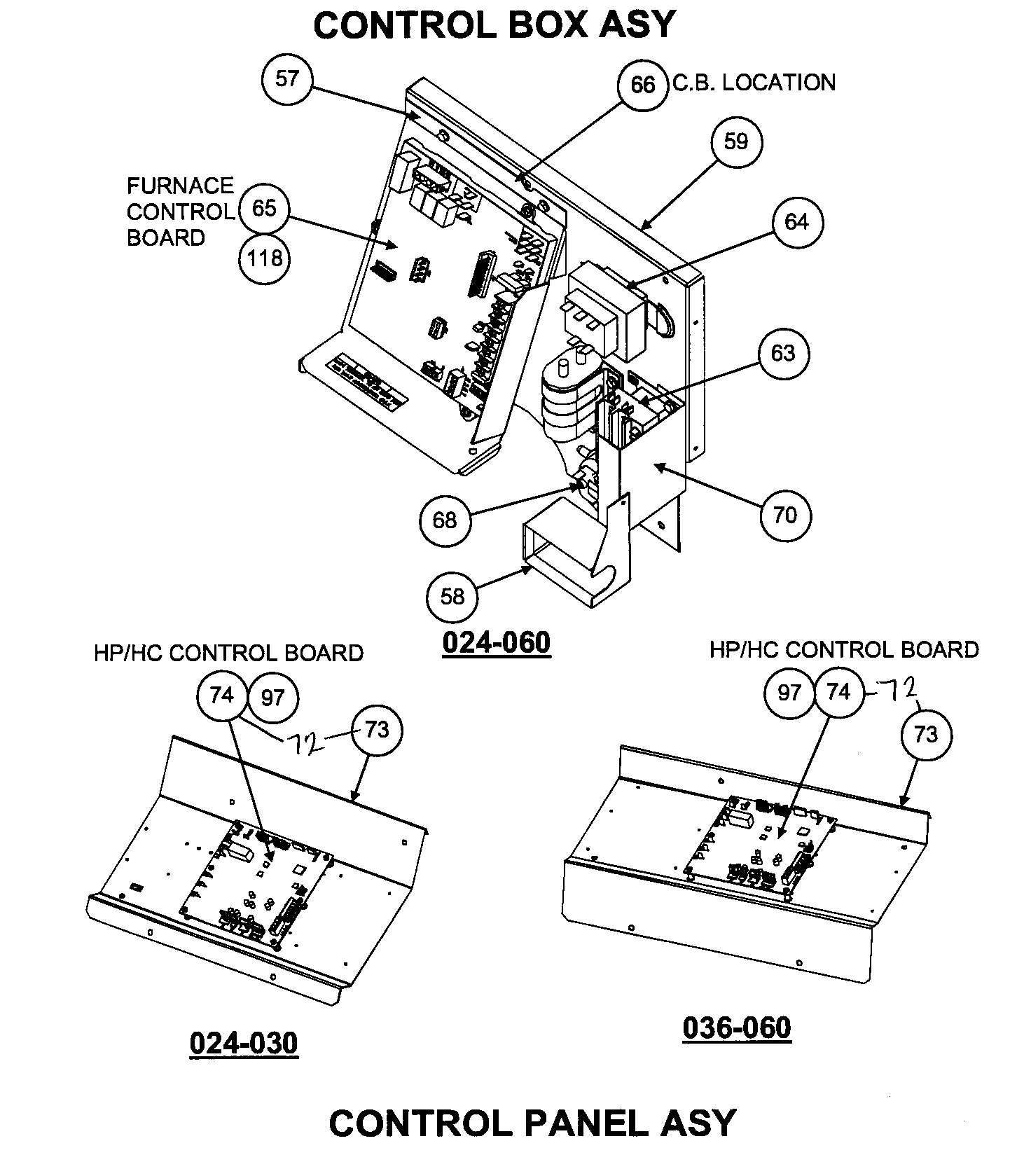

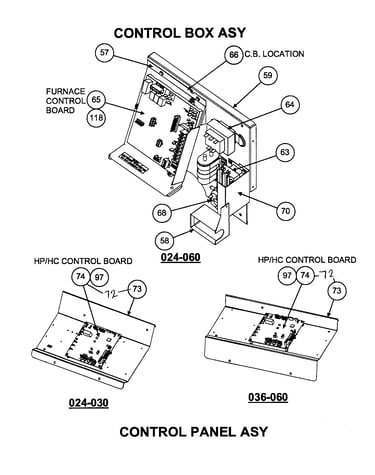

Control box/panel assy diagram

Contactor

Part #HN51JD024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51JD024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock

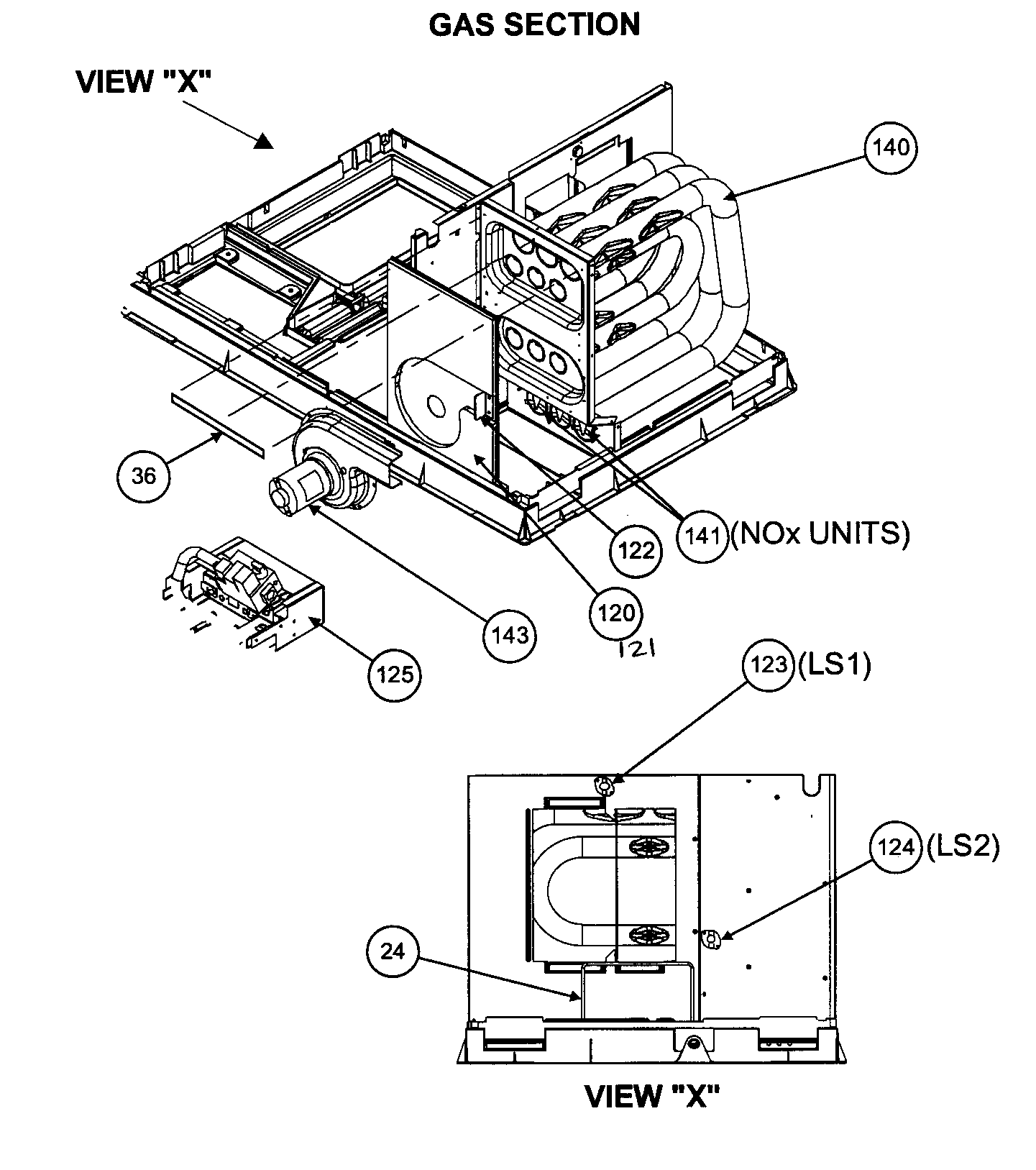

Temp Swtch HH18HA211
#124

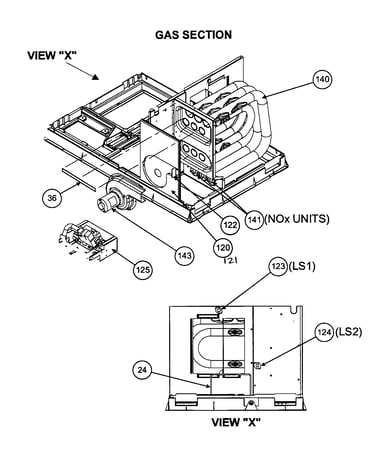

Exchange assy diagram

Temp swtch

Part #HH18HA211

$25.71
In Stock

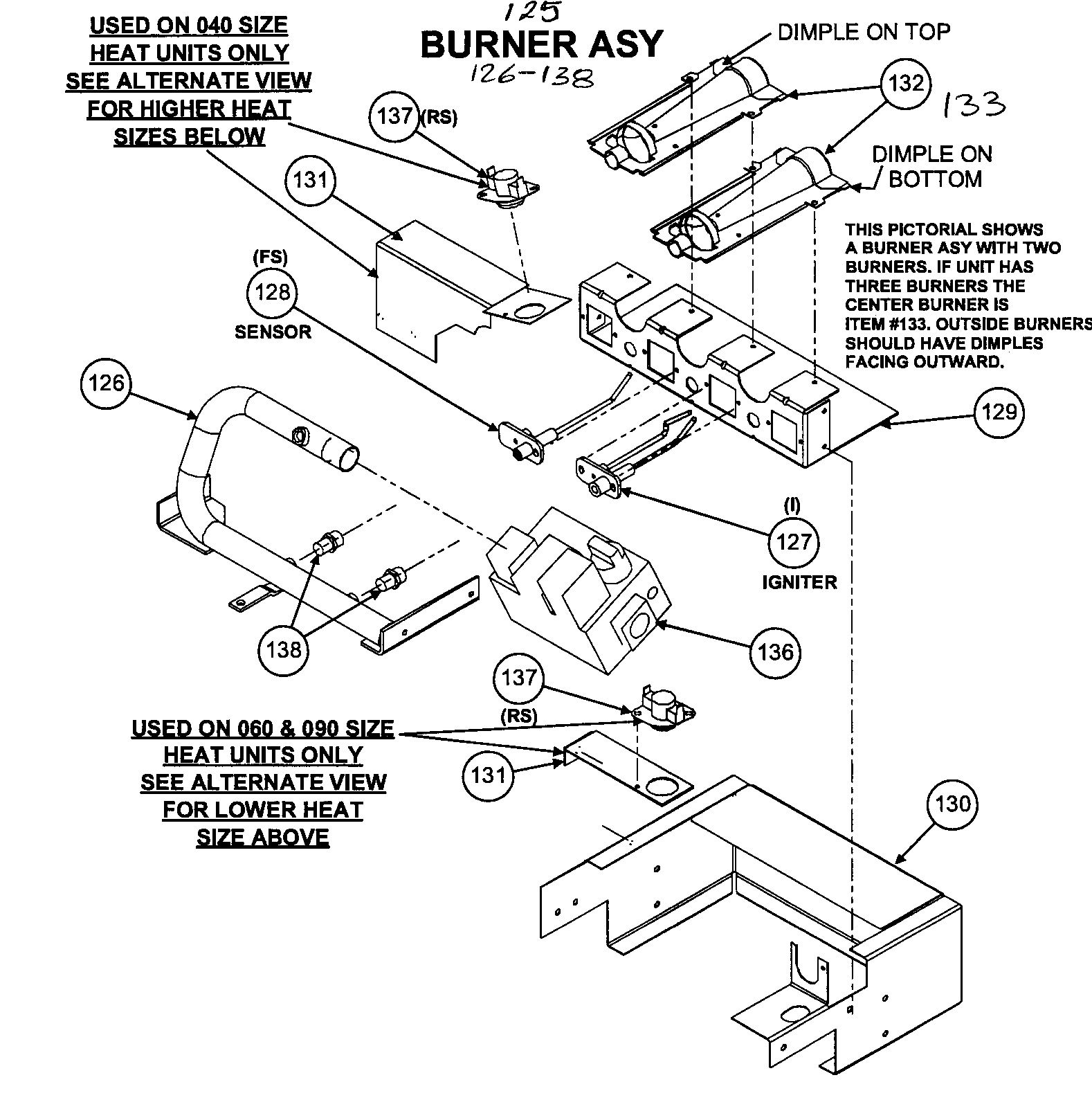

Furnace Burner 50DK407030
#132

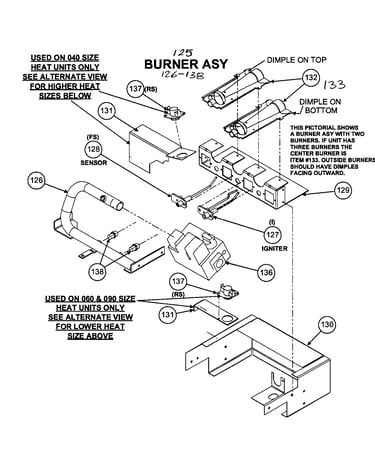

Burner assy diagram

Furnace burner

Part #50DK407030

$39.89
In Stock
Control Board HK42FZ024
#65

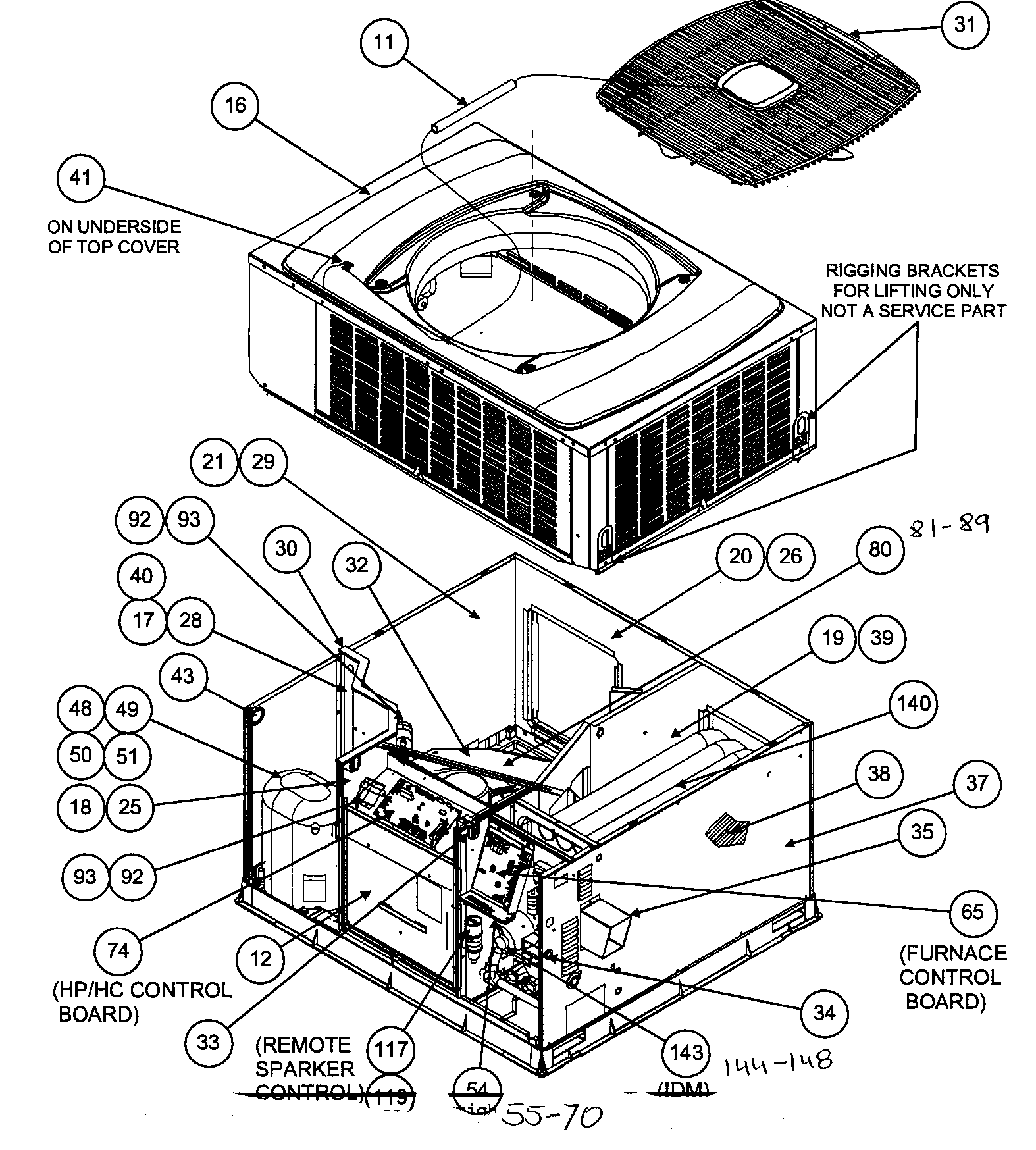

Outside view diagram

Control board

Part #HK42FZ024

Replaced by #HK42FZ035

?
Manufacturer substitution
This part replaces HK42FZ024. Substitute parts can look different from the original.
$809.30 |
$12.00 OFF Phone Price : $821.30
In Stock
Spud LH32RF113
#138

Burner assy diagram

Spud

Part #LH32RF113

$46.27
In Stock

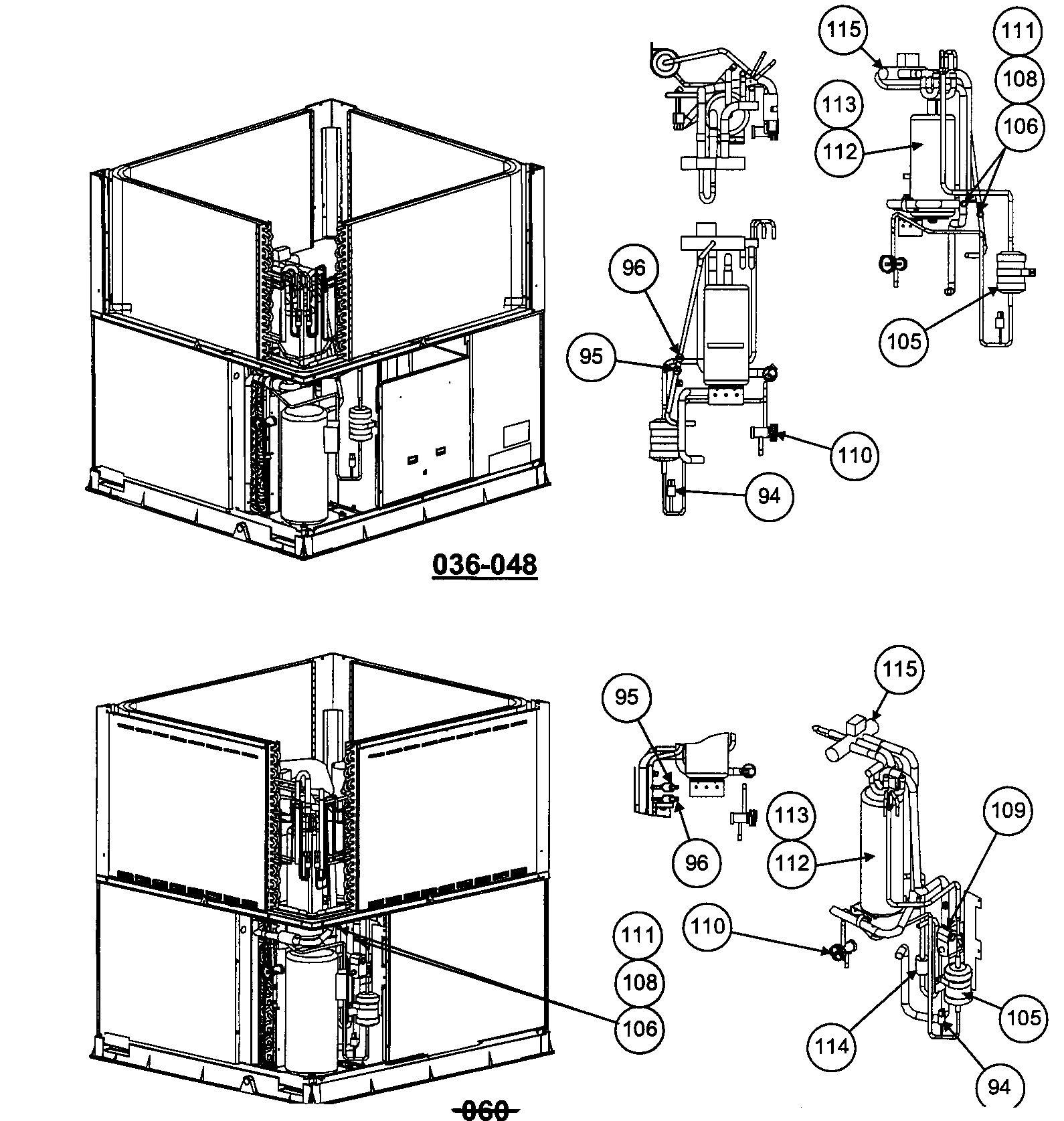

Valve,serv EC39EZ065
#106

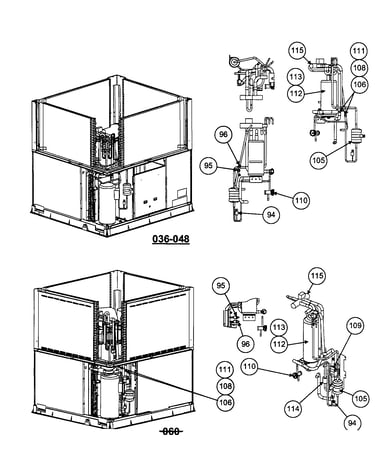

Tube assy diagram

Valve,serv

Part #EC39EZ065

$9.11
In Stock
Strap Cap P281-0028
#93

Outside view diagram

Strap cap

Part #P281-0028

$18.83
In Stock

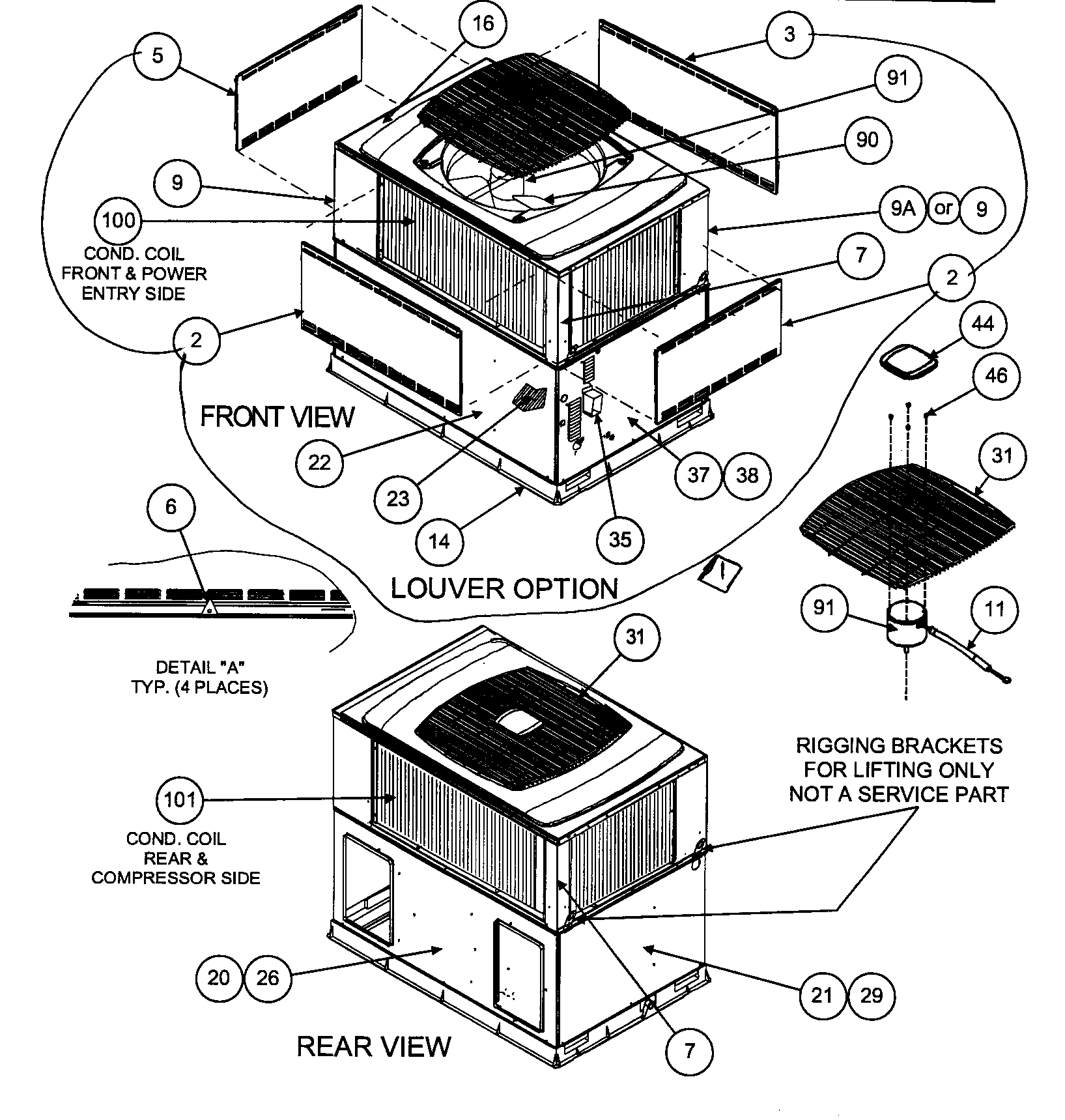

Side Panel 48GS500236
#37

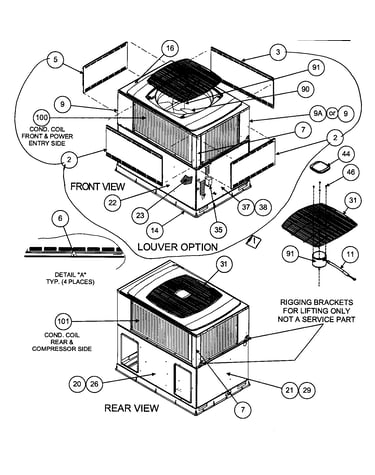

Front view/rear view diagram

Side panel

Part #48GS500236

$299.40
In Stock
Plug Assembly HY07MP311
#NI

Front view/rear view diagram

Plug assembly

Part #HY07MP311

$72.84
In Stock
Block 48NT500377
#114

Tube assy diagram

Block

Part #48NT500377

$46.00
In Stock
