Eureka
Upright Vacuum

Model # 2450BT-2 Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 2450BT-2 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

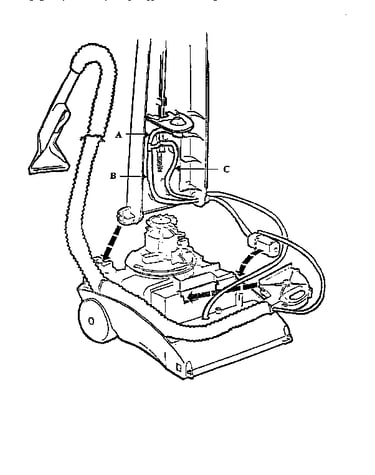

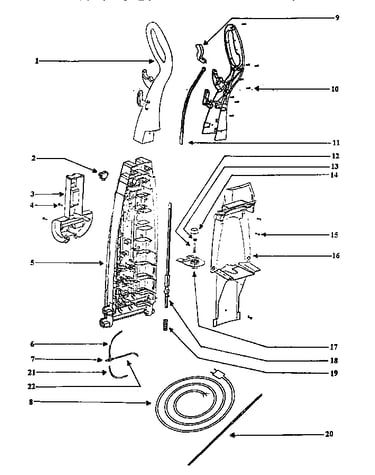

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Terminal Wire 58742
#24

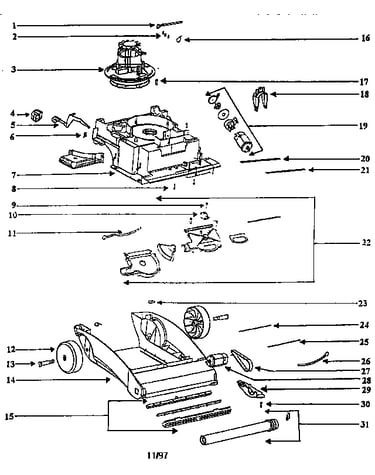

Nozzle and motor assembly diagram

Terminal wire

Part #58742

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Twist-on Wire Connector, 5-pack 60192-1
#2

Nozzle and motor assembly diagram

Vacuum twist-on wire connector, 5-pack

Part #60192-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-8
#8

Nozzle and motor assembly diagram

Vacuum screw, 10-pack

Part #53238-8

The manufacturer no longer makes this part, and there's no substitute part

Trigger 38730A-288N
#7

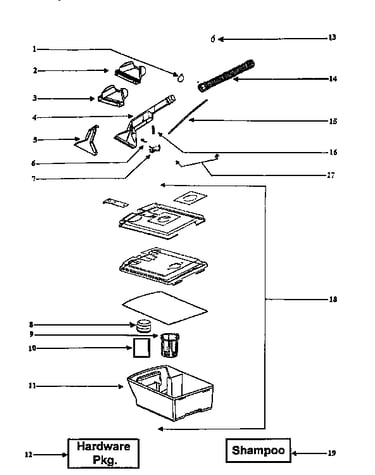

Recovery tank assembly diagram

Trigger

Part #38730A-288N

The manufacturer no longer makes this part, and there's no substitute part

Spring-5 P 60217
#6

Nozzle and motor assembly diagram

Spring-5 p

Part #60217

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Wire Tie 46713-5
#13

Recovery tank assembly diagram

Electrolux wire tie

Part #46713-5

The manufacturer no longer makes this part, and there's no substitute part

Cover Axle 38737-119N
#5

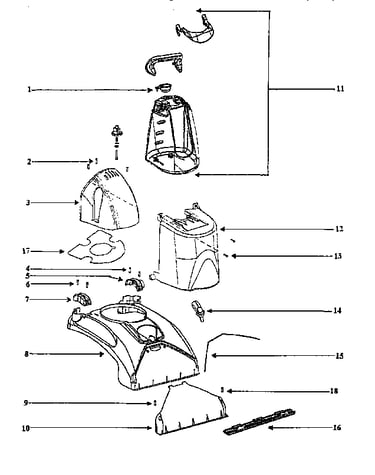

Dispensing tank assembly diagram

Cover axle

Part #38737-119N

The manufacturer no longer makes this part, and there's no substitute part

Knob 38741-288N
#14

Dispensing tank assembly diagram

Knob

Part #38741-288N

The manufacturer no longer makes this part, and there's no substitute part

Basket 27866A-119N
#9

Recovery tank assembly diagram

Basket

Part #27866A-119N

The manufacturer no longer makes this part, and there's no substitute part

Terminal Wire 58743
#26

Nozzle and motor assembly diagram

Terminal wire

Part #58743

The manufacturer no longer makes this part, and there's no substitute part
