Kenmore
Gas Grill

Model # 41515440 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 41515440 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

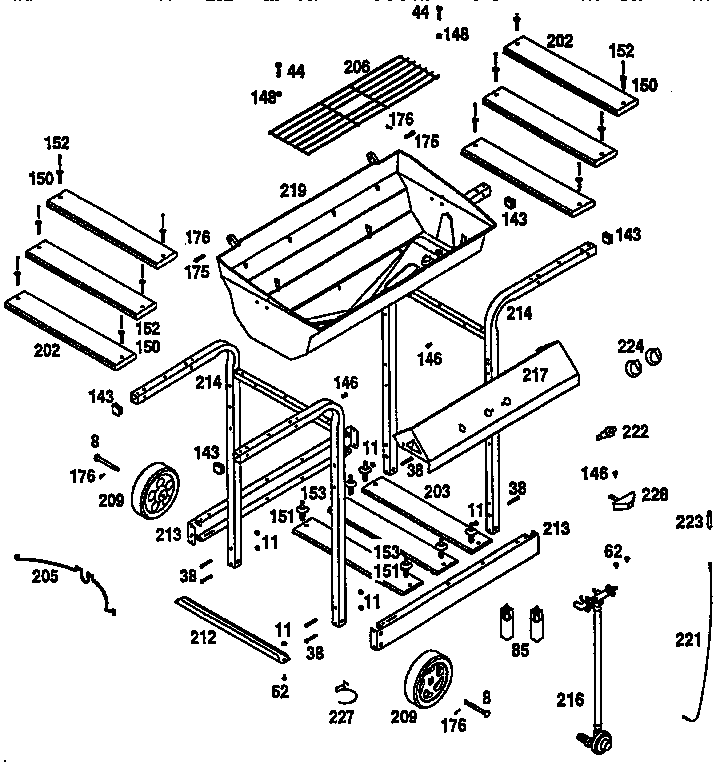

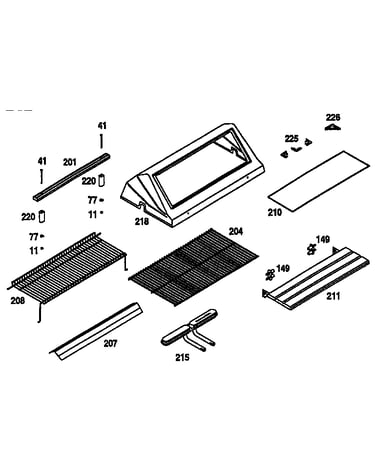

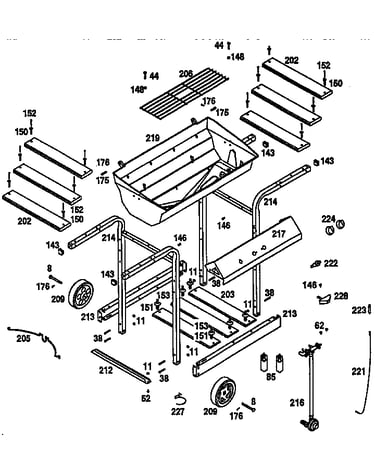

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Thermos Gas Grill Flame Tamer, 23-1/2 X 2-9/16 4156417

#207

All parts diagram

Thermos gas grill flame tamer, 23-1/2 x 2-9/16

Part #4156417

$21.62 |
22% OFF Phone Price : $27.62
In Stock
Grease Clip 4156894

#227

All parts diagram

Grease clip

Part #4156894

Replaced by #80011874

?
Manufacturer substitution
This part replaces 4156894. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Ken-ran Gas Grill Axle Bolt 4080155

#8

All parts diagram

Ken-ran gas grill axle bolt

Part #4080155

This item is not returnable
$2.16
In Stock
Ken-ran Gas Grill Screw 4080307

#41

All parts diagram

Ken-ran gas grill screw

Part #4080307

This item is not returnable
$2.16
In Stock
Ken-ran Gas Grill Lid Hinge Pin 4156513

#175

All parts diagram

Ken-ran gas grill lid hinge pin

Part #4156513

This item is not returnable
$2.16
In Stock
Wire 4153720

#221

All parts diagram

Wire

Part #4153720

Replaced by #4153196

?
Manufacturer substitution
This part replaces 4153720. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Handle Spacer 4069908

#220

All parts diagram

Handle spacer

Part #4069908

Replaced by #4253274

?
Manufacturer substitution
This part replaces 4069908. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Wheel 4156956

#209

All parts diagram

Wheel

Part #4156956

Replaced by #G206-0025-W1

?
Manufacturer substitution
This part replaces 4156956. Substitute parts can look different from the original.
$6.69 |
13% OFF Phone Price : $7.69
In Stock
Rivet Bag 4252997

#NI

All parts diagram

Rivet bag

Part #4252997

The manufacturer no longer makes this part, and there's no substitute part

Casting 4581565

#218

All parts diagram

Casting

Part #4581565

The manufacturer no longer makes this part, and there's no substitute part
