Reliance
Electric Water Heater

Model # 940DKRT Official Reliance water heater

Here are the diagrams and repair parts for Official Reliance 940DKRT water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Thermostat 183534-000
#13

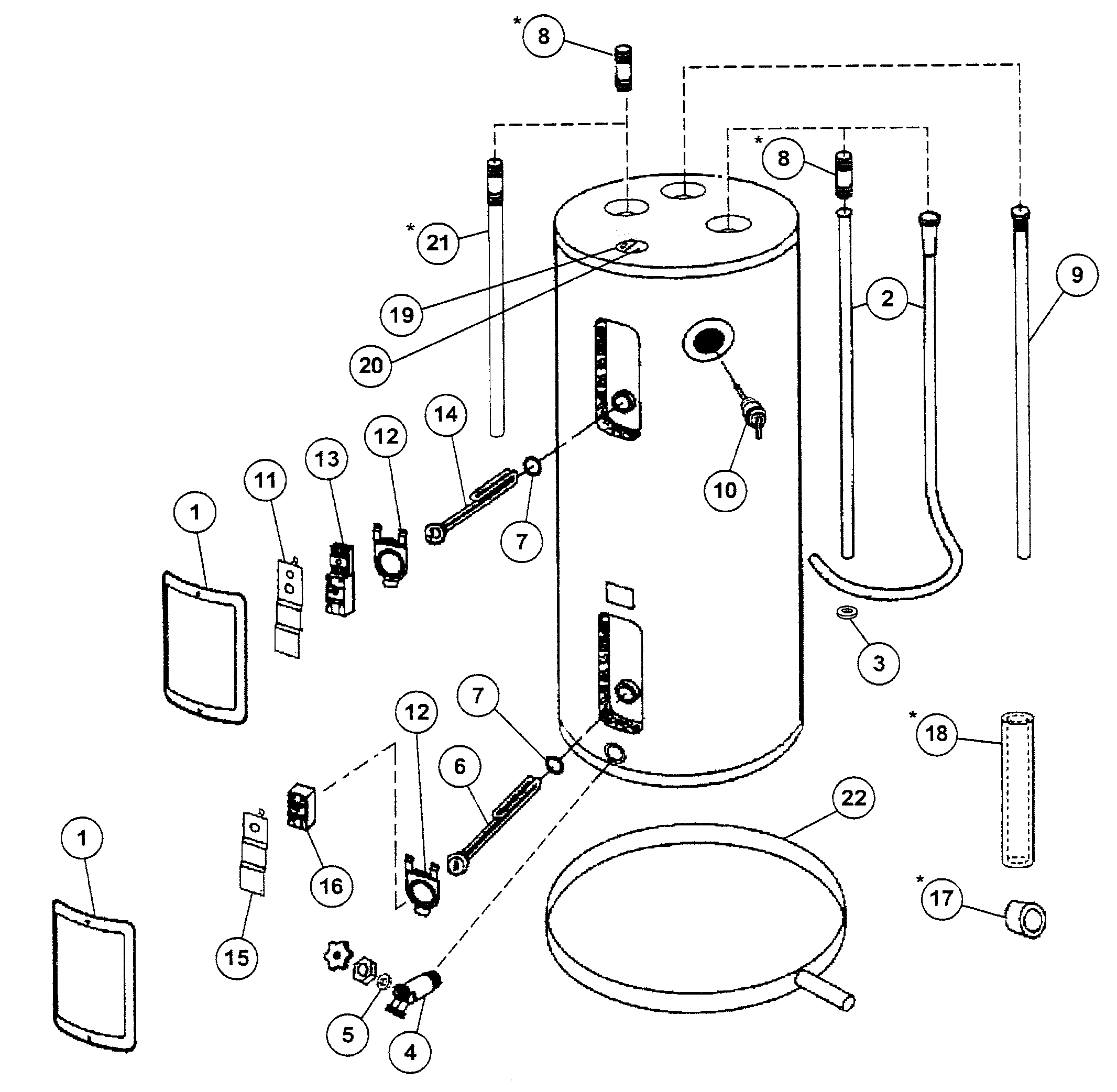

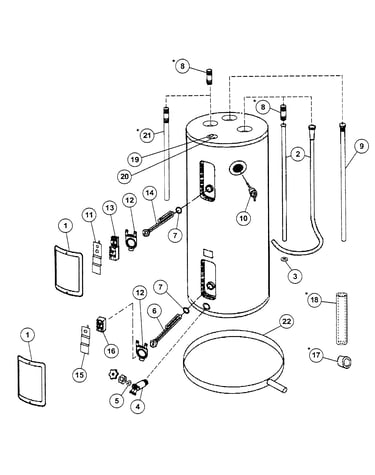

Water heater diagram

Thermostat

Part #183534-000

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 183534-000. Substitute parts can look different from the original.
BEST SELLER
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Thermostat 183532-000
#16

Water heater diagram

Thermostat

Part #183532-000

Replaced by #9000507015

?
Manufacturer substitution
This part replaces 183532-000. Substitute parts can look different from the original.
BEST SELLER
$33.17 |
15% OFF Phone Price : $39.17
In Stock
Cover 184659-000
#19

Water heater diagram

Cover

Part #184659-000

$17.99
In Stock
Box Cover 184660-000
#20

Water heater diagram

Box cover

Part #184660-000

$17.99
In Stock
Access Panel 181260-000
#1

Water heater diagram

Access panel

Part #181260-000

Replaced by #100109599

?
Manufacturer substitution
This part replaces 181260-000. Substitute parts can look different from the original.
$30.00
In Stock
Drain Pan 9002842
#22

Water heater diagram

Drain pan

Part #9002842

The manufacturer no longer makes this part, and there's no substitute part

Bracket 184608-000
#12

Water heater diagram

Bracket

Part #184608-000

The manufacturer no longer makes this part, and there's no substitute part

Plastic Stnd 9002844
#22B

Water heater diagram

Plastic stnd

Part #9002844

The manufacturer no longer makes this part, and there's no substitute part

Element Lower 042285-025
Element lower

Part #042285-025

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 9002845
#22C

Water heater diagram

Drain pan

Part #9002845

The manufacturer no longer makes this part, and there's no substitute part
