Model # 6933586200 Official Kenmore room heater

Here are the diagrams and repair parts for Official Kenmore 6933586200 room heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

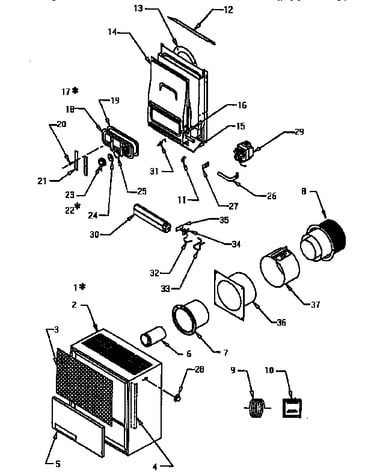

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Thermopile 48950-G1
#32

Functional replacement parts diagram

Thermopile

Part #48950-G1

The manufacturer no longer makes this part, and there's no substitute part

Cap 107674-G1
#25

Functional replacement parts diagram

Cap

Part #107674-G1

The manufacturer no longer makes this part, and there's no substitute part

Control Knob 110878-G1
#28

Functional replacement parts diagram

Control knob

Part #110878-G1

The manufacturer no longer makes this part, and there's no substitute part

Adjustable Thermostat N/P
Adjustable thermostat

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Air Tube 109339-G1-1
#7

Functional replacement parts diagram

Air tube

Part #109339-G1-1

The manufacturer no longer makes this part, and there's no substitute part

Burner 110669-G1
#30

Functional replacement parts diagram

Burner

Part #110669-G1

The manufacturer no longer makes this part, and there's no substitute part

Valve 110502-G2
#29

Functional replacement parts diagram

Valve

Part #110502-G2

The manufacturer no longer makes this part, and there's no substitute part

Orifice 110340-G2
#34

Functional replacement parts diagram

Orifice

Part #110340-G2

The manufacturer no longer makes this part, and there's no substitute part

Cap Assembly 106582-G2
#22

Functional replacement parts diagram

Cap assembly

Part #106582-G2

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 110877-G1
#10A

Functional replacement parts diagram

Thermostat

Part #110877-G1

The manufacturer no longer makes this part, and there's no substitute part
