GE
Gas Range

Model # JGBP61WEW1WW Official GE gas range

Here are the diagrams and repair parts for Official GE JGBP61WEW1WW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
40a15bulb STD372401
#257A

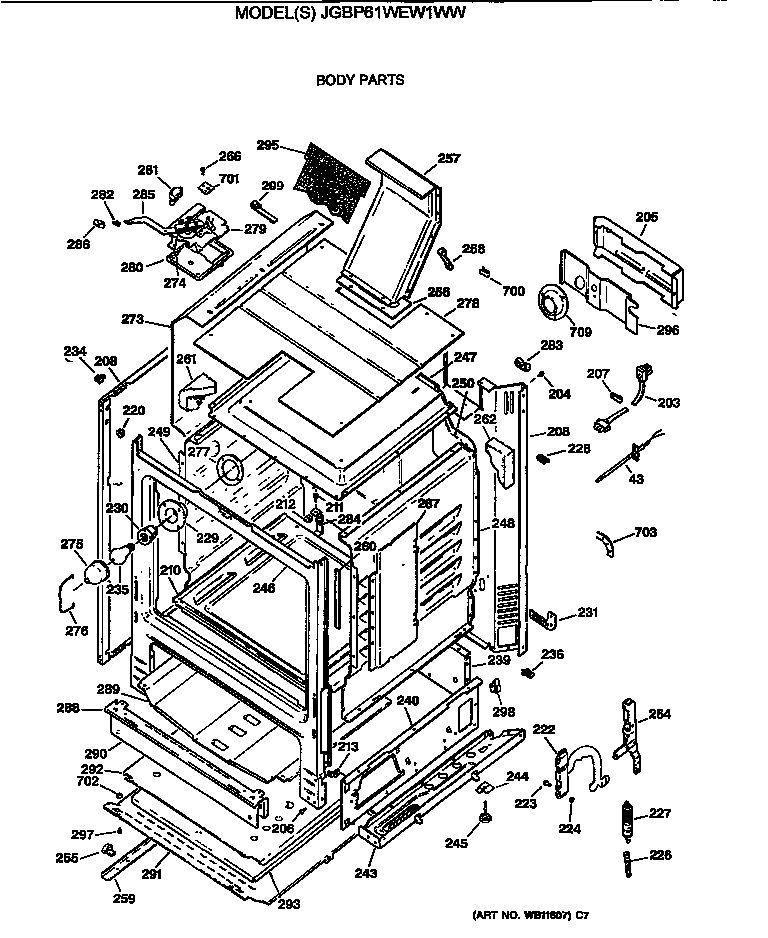

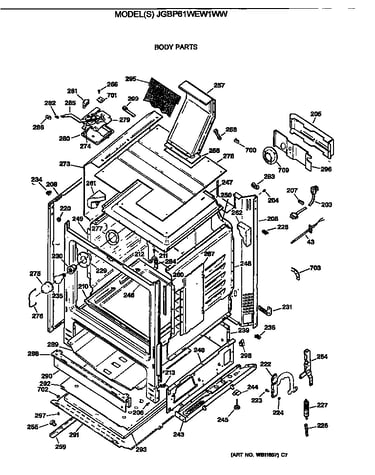

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Burner Igniter (replaces Wb13k0018) WB13K18
#154

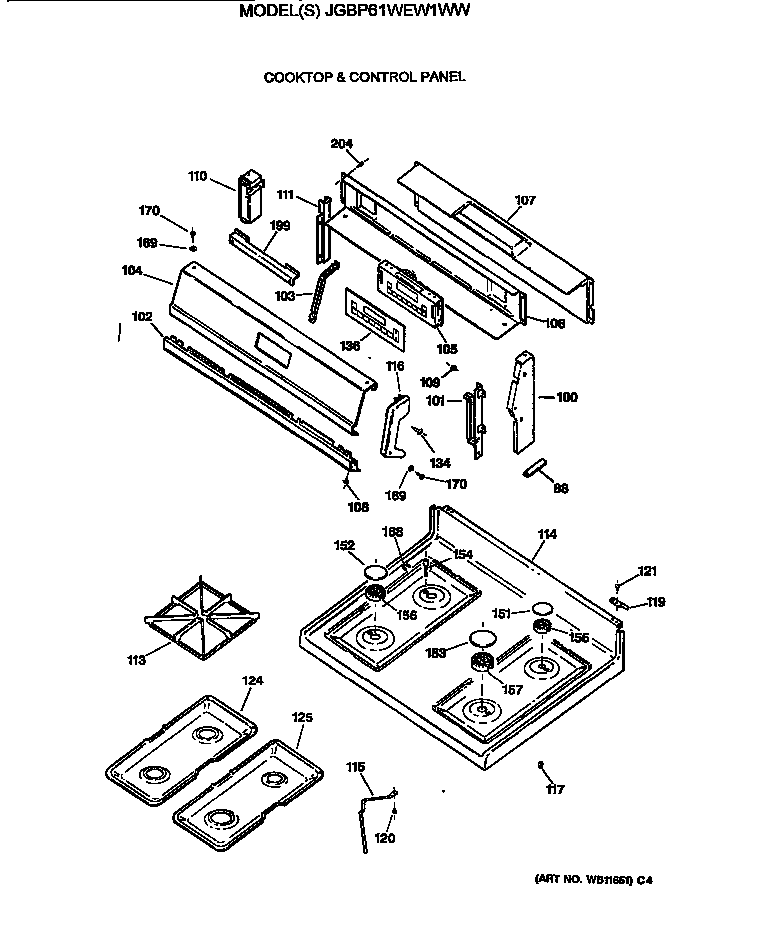

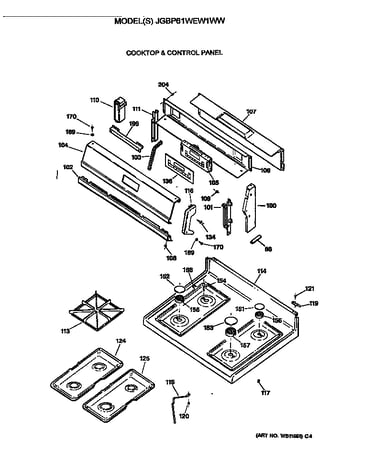

Cooktop & control panel diagram

Range surface burner igniter (replaces wb13k0018)

Part #WB13K18

$31.68 |
16% OFF Phone Price : $37.68
In Stock
Screw WB1K50
#28A

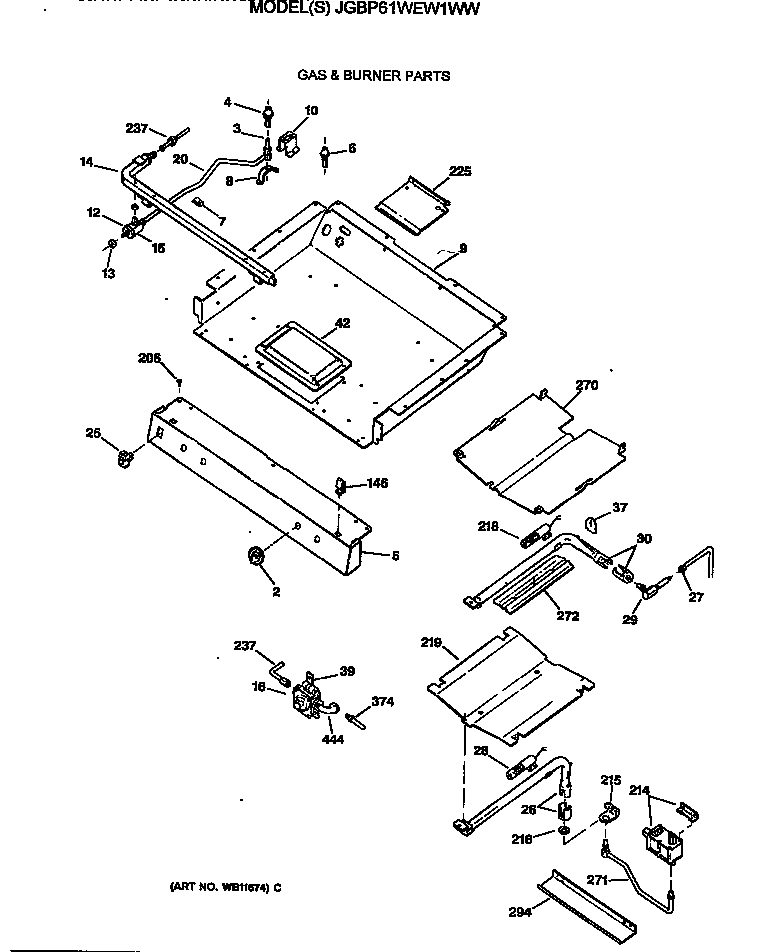

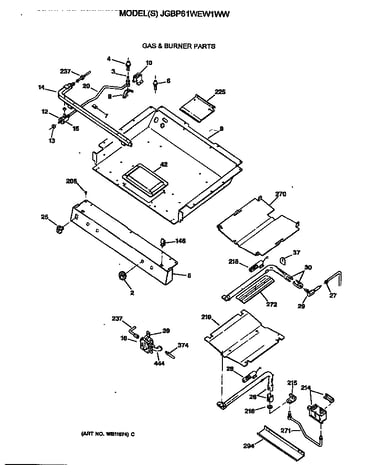

Gas & burner parts diagram

Screw

Part #WB1K50

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB1K50. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Anti-tip Bracket WB2K20

#NI

All parts diagram

Range anti-tip bracket

Part #WB2K20

$11.37 |
15% OFF Phone Price : $13.37
In Stock
Range Oven Door Hinge Roller WB10K12
#222

Body parts diagram

Range oven door hinge roller

Part #WB10K12

$31.51 |
16% OFF Phone Price : $37.51
In Stock
Washer WB1X119
#312

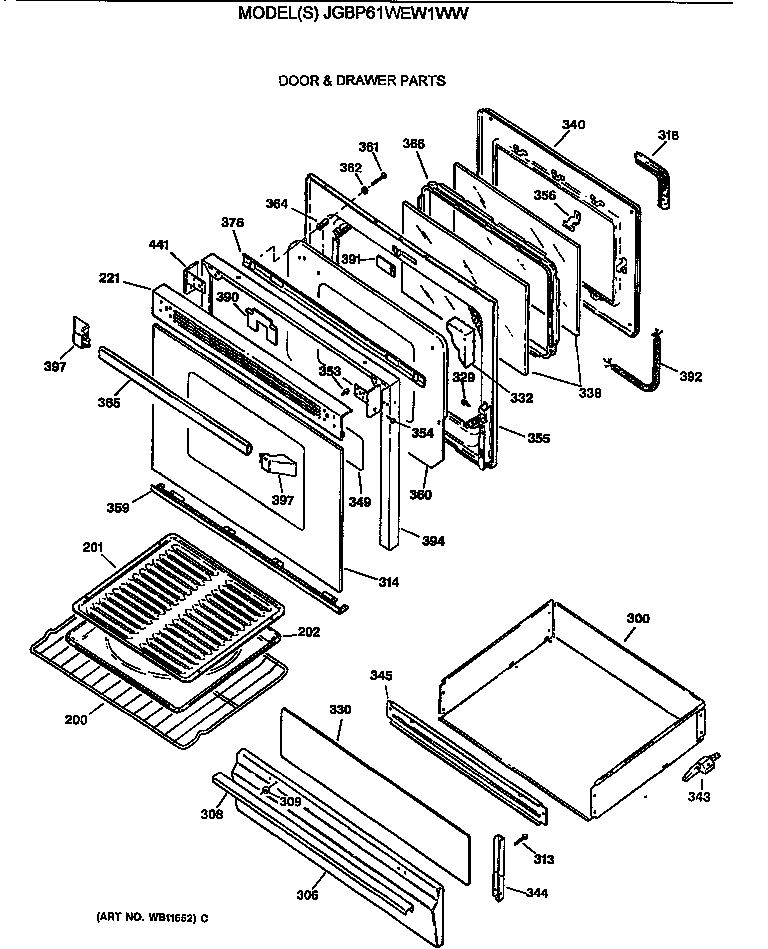

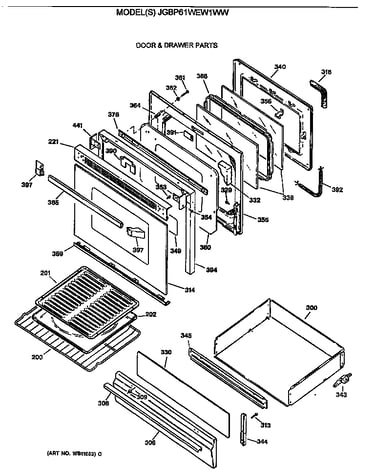

Door & drawer parts diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Range Screw WB1K21
Range screw

Part #WB1K21

Replaced by #WR01X10065

?
Manufacturer substitution
This part replaces WB1K21. Substitute parts can look different from the original.
This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Drawer Support WB2K43
#255

Body parts diagram

Drawer support

Part #WB2K43

Replaced by #WB02K10158

?
Manufacturer substitution
This part replaces WB2K43. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Igniter Clip WB1K56
#168

Cooktop & control panel diagram

Range surface burner igniter clip

Part #WB1K56

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Light Lens Retainer WB2K27
#276

Body parts diagram

Range oven light lens retainer

Part #WB2K27

$45.50 |
12% OFF Phone Price : $51.50
In Stock
