Dacor
Warming Drawer

Model # EWD30SCH Official Dacor warming drawer

Here are the diagrams and repair parts for Official Dacor EWD30SCH warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Appliance Screw 83534
#11

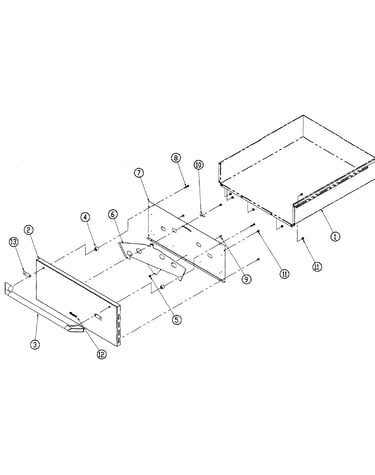

Drawer diagram

Appliance screw

Part #83534

This item is not returnable
$2.16
Back Order
Cover 101610
#18

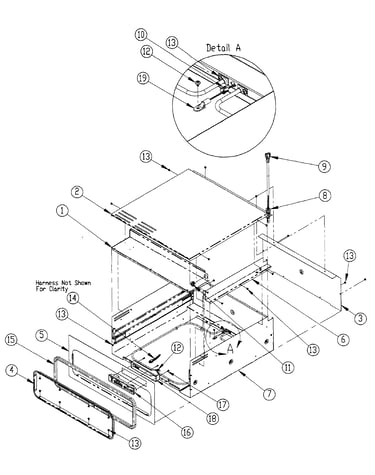

Chassis diagram

Cover

Part #101610

This item is not returnable
$6.49
In Stock
Slide 36454
#6

Drawer diagram

Slide

Part #36454

$55.49
In Stock
Screw 83692
#8

Drawer diagram

Screw

Part #83692

This item is not returnable
$2.16
In Stock
Control Kit 701120
#NI

Chassis diagram

Control kit

Part #701120

$243.99
In Stock
Channel Control 700738-03
#1

Chassis diagram

Channel control

Part #700738-03

$44.49
In Stock
Warming Drawer Electronic Control Board 101645
#16

Chassis diagram

Warming drawer electronic control board

Part #101645

$165.49
In Stock
Screw 102499
#17

Chassis diagram

Screw

Part #102499

This item is not returnable
$2.16
In Stock
Rear Part 101881-03
#2

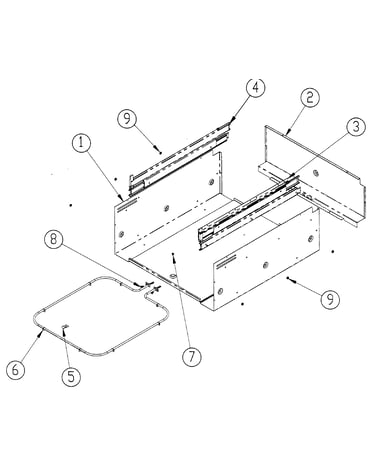

Chassis wrap diagram

Rear part

Part #101881-03

$33.99
In Stock
