Kenmore Elite
Washer

Model # 79631462410 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 79631462410 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Washer Drive Shaft And Shifter Assembly AEN73131403
#K170

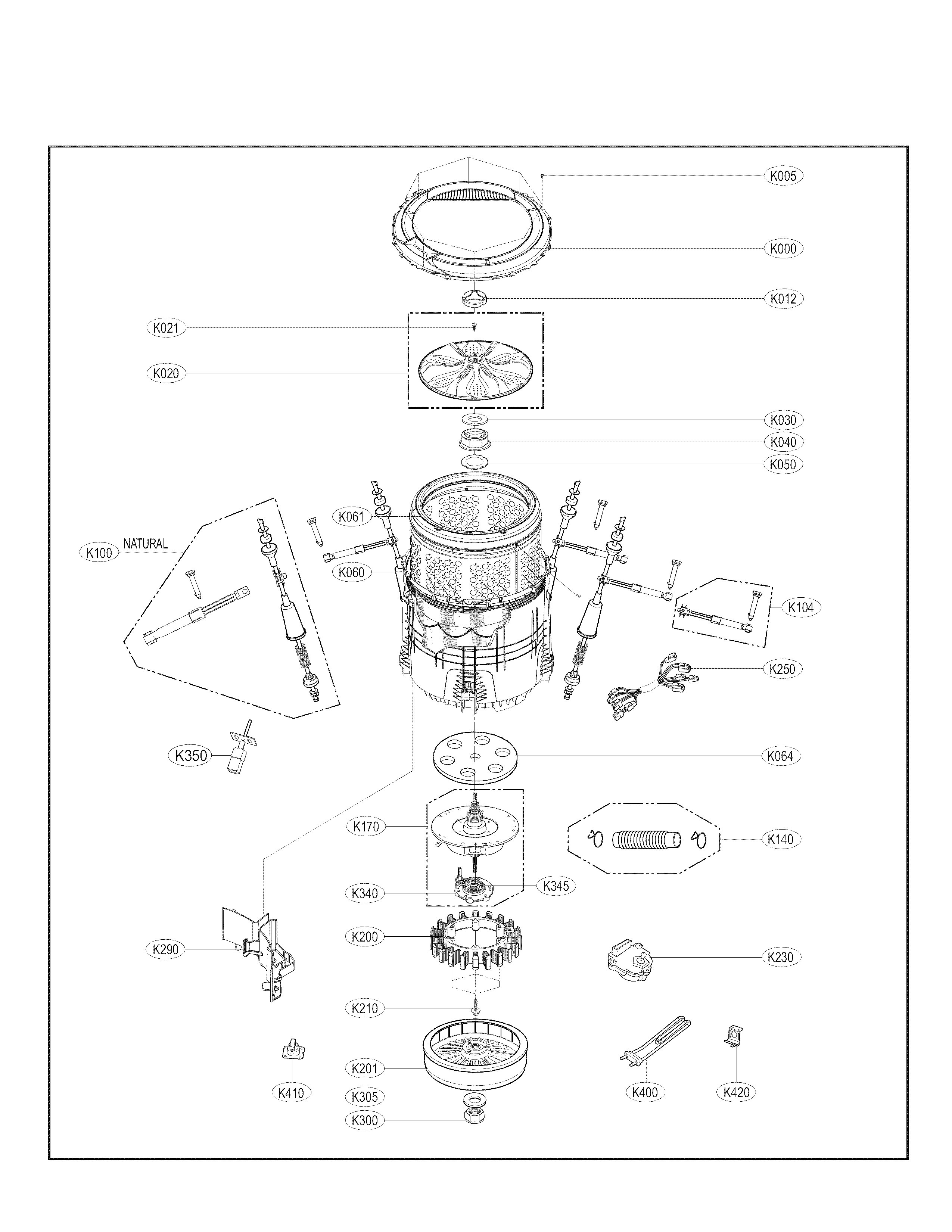

Tub assembly parts diagram

Washer drive shaft and shifter assembly

Part #AEN73131403

Replaced by #AEN73131406

?
Manufacturer substitution
This part replaces AEN73131403. Substitute parts can look different from the original.
BEST SELLER
$202.17 |
6% OFF Phone Price : $214.17
In Stock
Washer Water-level Pressure Switch 6501EA1001R
#A200

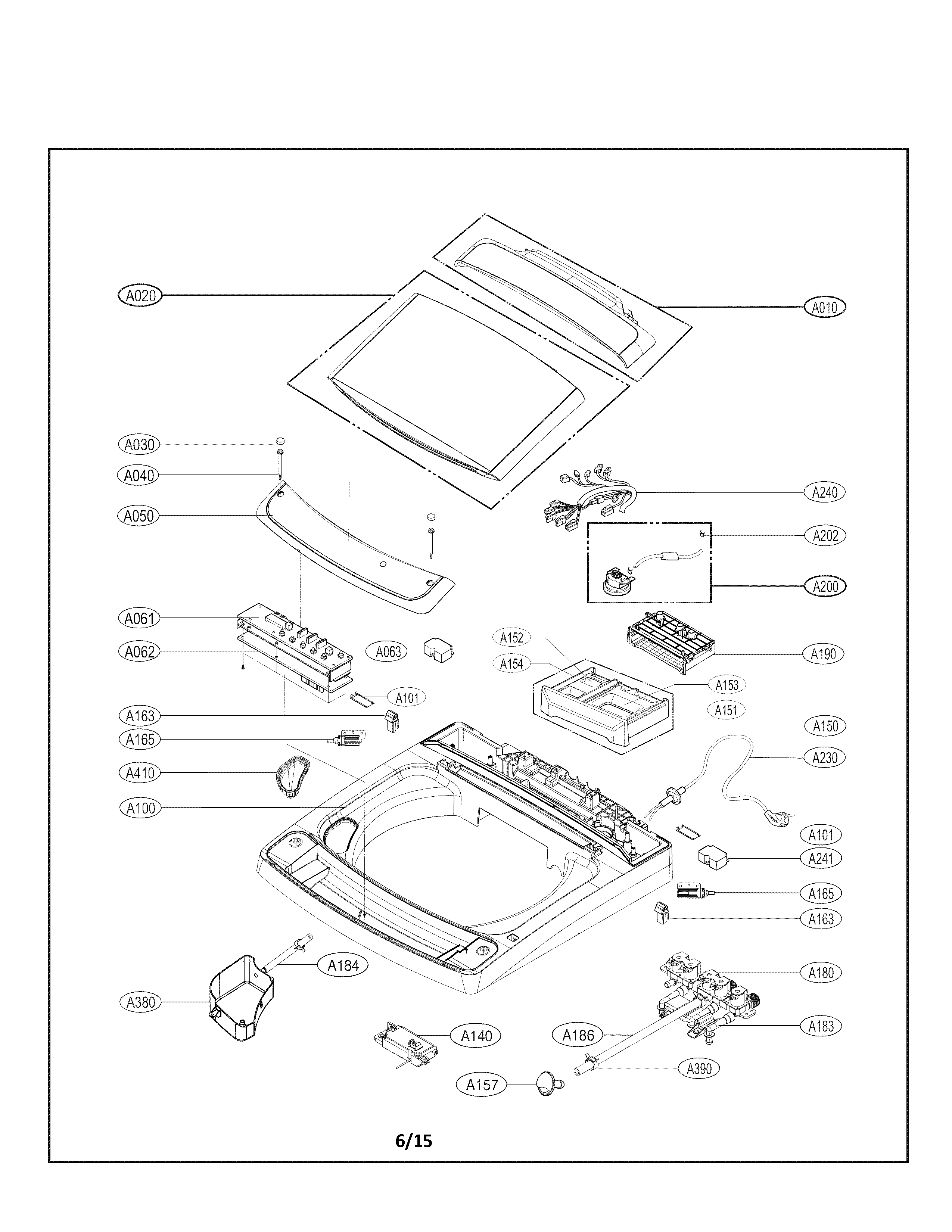

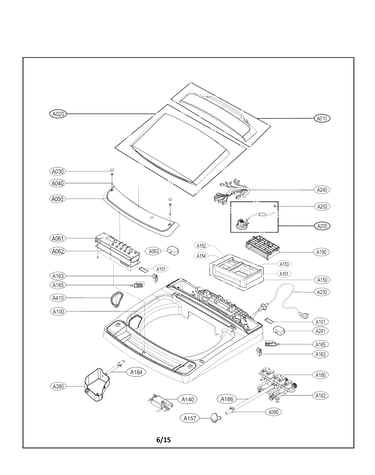

Top cover parts diagram

Washer water-level pressure switch

Part #6501EA1001R

BEST SELLER
$39.36 |
13% OFF Phone Price : $45.36
In Stock
Washer Drain Pump Assembly AHA74333301
#F080

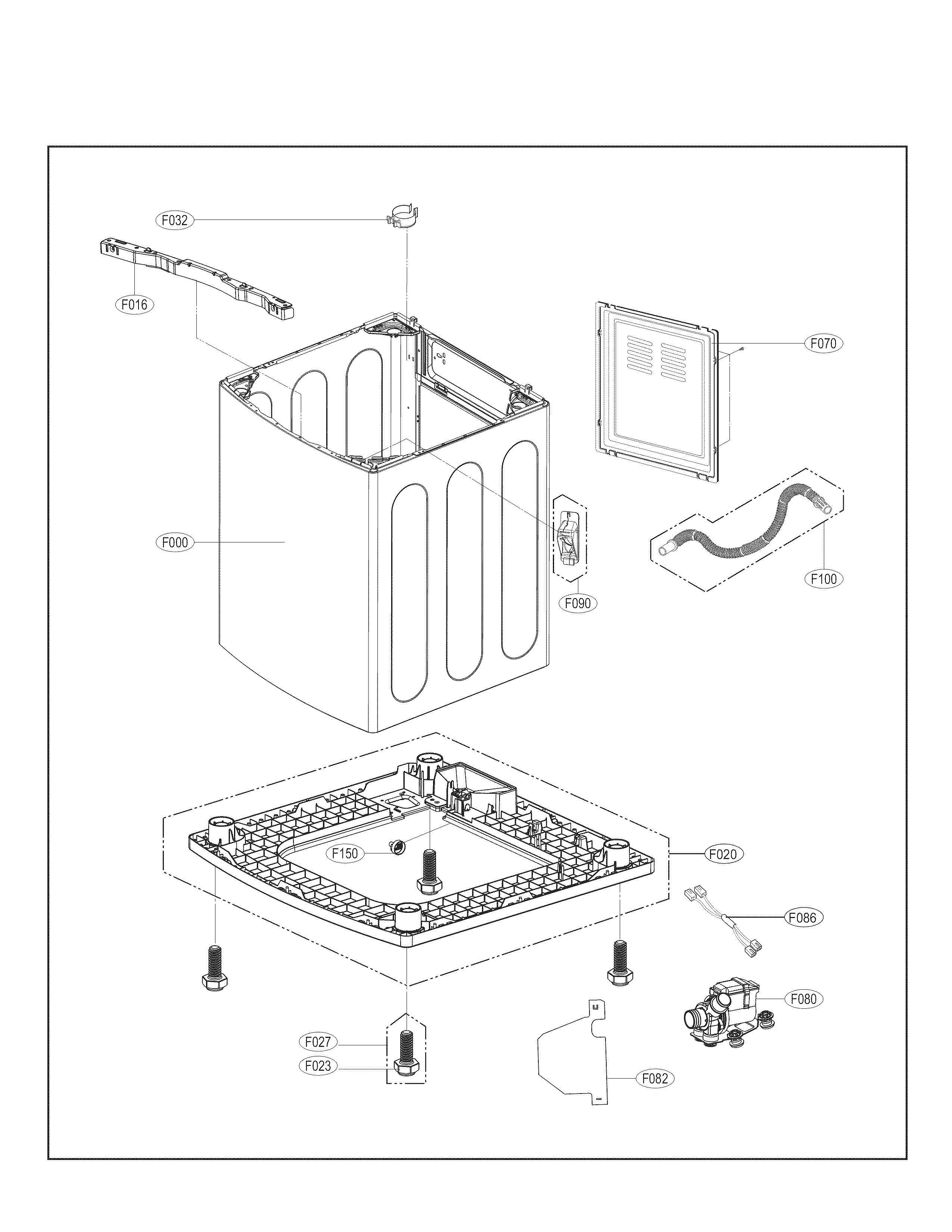

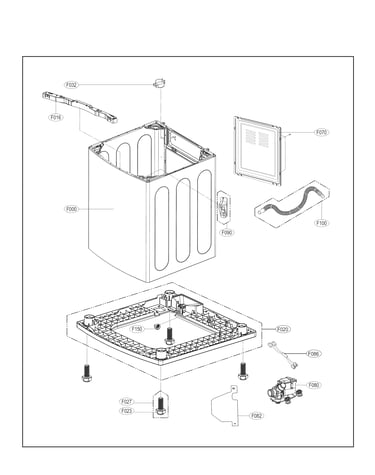

Out case parts diagram

Washer drain pump assembly

Part #AHA74333301

Replaced by #5859EA1004F

?
Manufacturer substitution
This part replaces AHA74333301. Substitute parts can look different from the original.
BEST SELLER
$76.95 |
7% OFF Phone Price : $82.95
In Stock
Washer Motor Stator (replaces Agf77725080) AJB73816004
#K200

Tub assembly parts diagram

Washer motor stator (replaces agf77725080)

Part #AJB73816004

BEST SELLER
$198.01 |
6% OFF Phone Price : $210.01
In Stock
Washer Washplate Cap MBL65219301
#K012

Tub assembly parts diagram

Washer washplate cap

Part #MBL65219301

Replaced by #5006EA3009B

?
Manufacturer substitution
This part replaces MBL65219301. Substitute parts can look different from the original.
BEST SELLER
$27.71 |
18% OFF Phone Price : $33.71
In Stock
Washer Drain Hose (replaces 5215ea1001a, Aem73653001, Aem73732903, Aem74053001, Mej62685201) AEM73732901
#F100

Out case parts diagram

Washer drain hose (replaces 5215ea1001a, aem73653001, aem73732903, aem74053001, mej62685201)

Part #AEM73732901

BEST SELLER
$33.82 |
15% OFF Phone Price : $39.82
In Stock
Washer Drain Hose AEM73652901
#K140

Tub assembly parts diagram

Washer drain hose

Part #AEM73652901

Replaced by #AEM73213001

?
Manufacturer substitution
This part replaces AEM73652901. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
14% OFF Phone Price : $42.75
In Stock
Washer Clutch Band MCJ61941202
#K345

Tub assembly parts diagram

Washer clutch band

Part #MCJ61941202

Replaced by #MCJ61861201

?
Manufacturer substitution
This part replaces MCJ61941202. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Washer Drive Hub Coupling ACP72929002
#K340

Tub assembly parts diagram

Washer drive hub coupling

Part #ACP72929002

BEST SELLER
$36.27 |
14% OFF Phone Price : $42.27
In Stock
Washing Machine Washer FAF30370601
#K050

Tub assembly parts diagram

Washing machine washer

Part #FAF30370601

Replaced by #4040FA4045C

?
Manufacturer substitution
This part replaces FAF30370601. Substitute parts can look different from the original.
BEST SELLER
$15.60 |
11% OFF Phone Price : $17.60
In Stock
