Model # CPD9826A429R Official Hardwick gas range

Here are the diagrams and repair parts for Official Hardwick CPD9826A429R gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

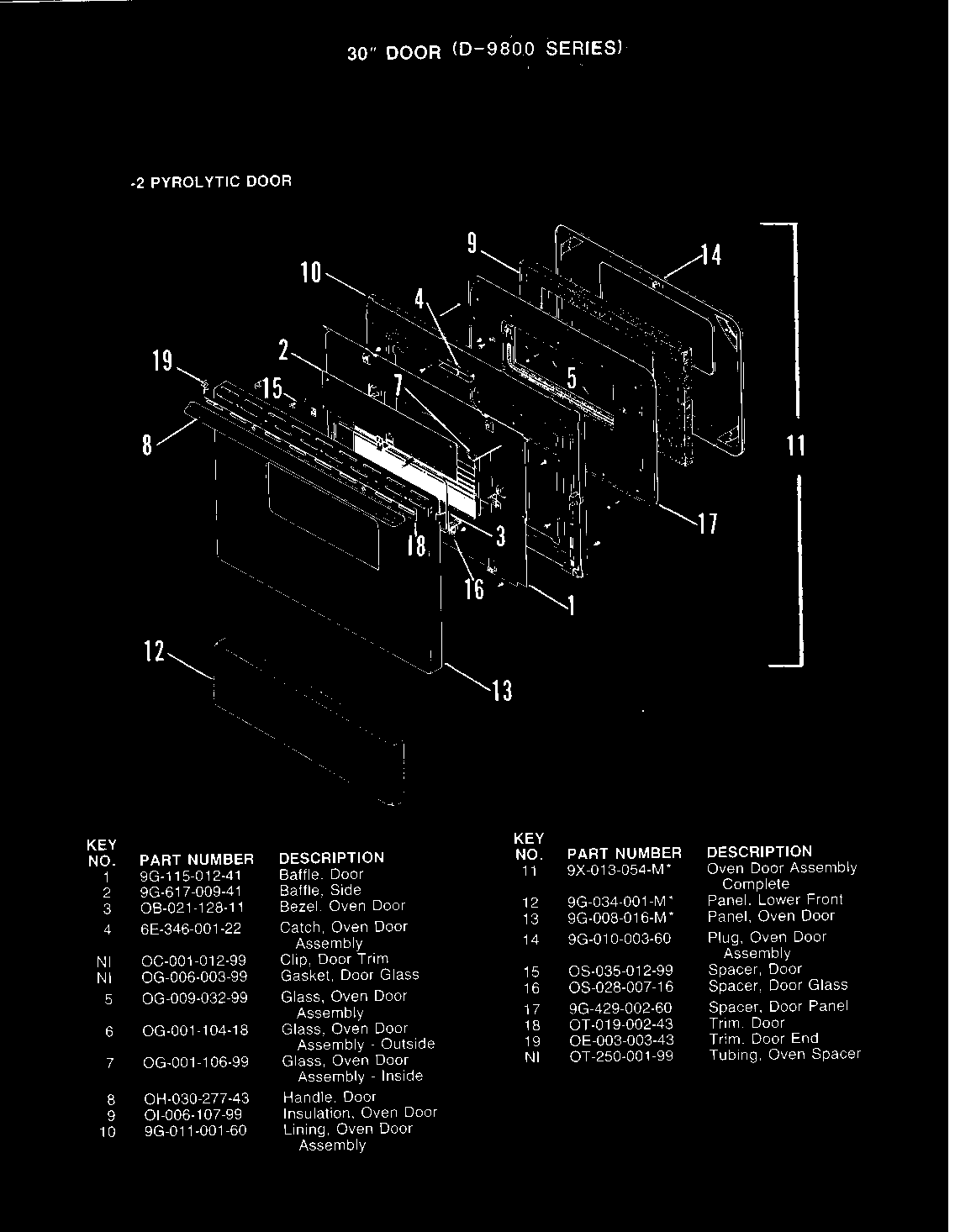

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Broiler Tray 9G06700453
#17

Top & panels diagram

Broiler tray

Part #9G06700453

Replaced by #4396923

?
Manufacturer substitution
This part replaces 9G06700453. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Rim End Panel 0T01800211
#18

Top & panels diagram

Rim end panel

Part #0T01800211

Replaced by #Y0T01800211

?
Manufacturer substitution
This part replaces 0T01800211. Substitute parts can look different from the original.
$8.47
In Stock
Screw 0S11002822
#10

Door (-6 models) diagram

Screw

Part #0S11002822

Replaced by #WP7101P072-60

?
Manufacturer substitution
This part replaces 0S11002822. Substitute parts can look different from the original.
This item is not returnable
$2.78
In Stock
Broiler Pan 9G06400453
#7

Top & panels diagram

Broiler pan

Part #9G06400453

Replaced by #4396923

?
Manufacturer substitution
This part replaces 9G06400453. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Indicator Light 0L00603423
#9

Control panel (-539 models) diagram

Indicator light

Part #0L00603423

The manufacturer no longer makes this part, and there's no substitute part

Switch 0S03005999
#28A

Controls diagram

Switch

Part #0S03005999

The manufacturer no longer makes this part, and there's no substitute part

Fuse, 250v 6 0F01600599
#12

Controls diagram

Fuse, 250v 6

Part #0F01600599

The manufacturer no longer makes this part, and there's no substitute part

Target Top 9G43300198
#29

Controls diagram

Target top

Part #9G43300198

The manufacturer no longer makes this part, and there's no substitute part

Type Connector MC05800599
Type connector

Part #MC05800599

The manufacturer no longer makes this part, and there's no substitute part

Oven Socket 0S04000499
#48

Body diagram

Oven socket

Part #0S04000499

The manufacturer no longer makes this part, and there's no substitute part
