Model # 52CEA212401AA Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 52CEA212401AA package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Central Air Conditioner Run Capacitor P291-2054RS
#82

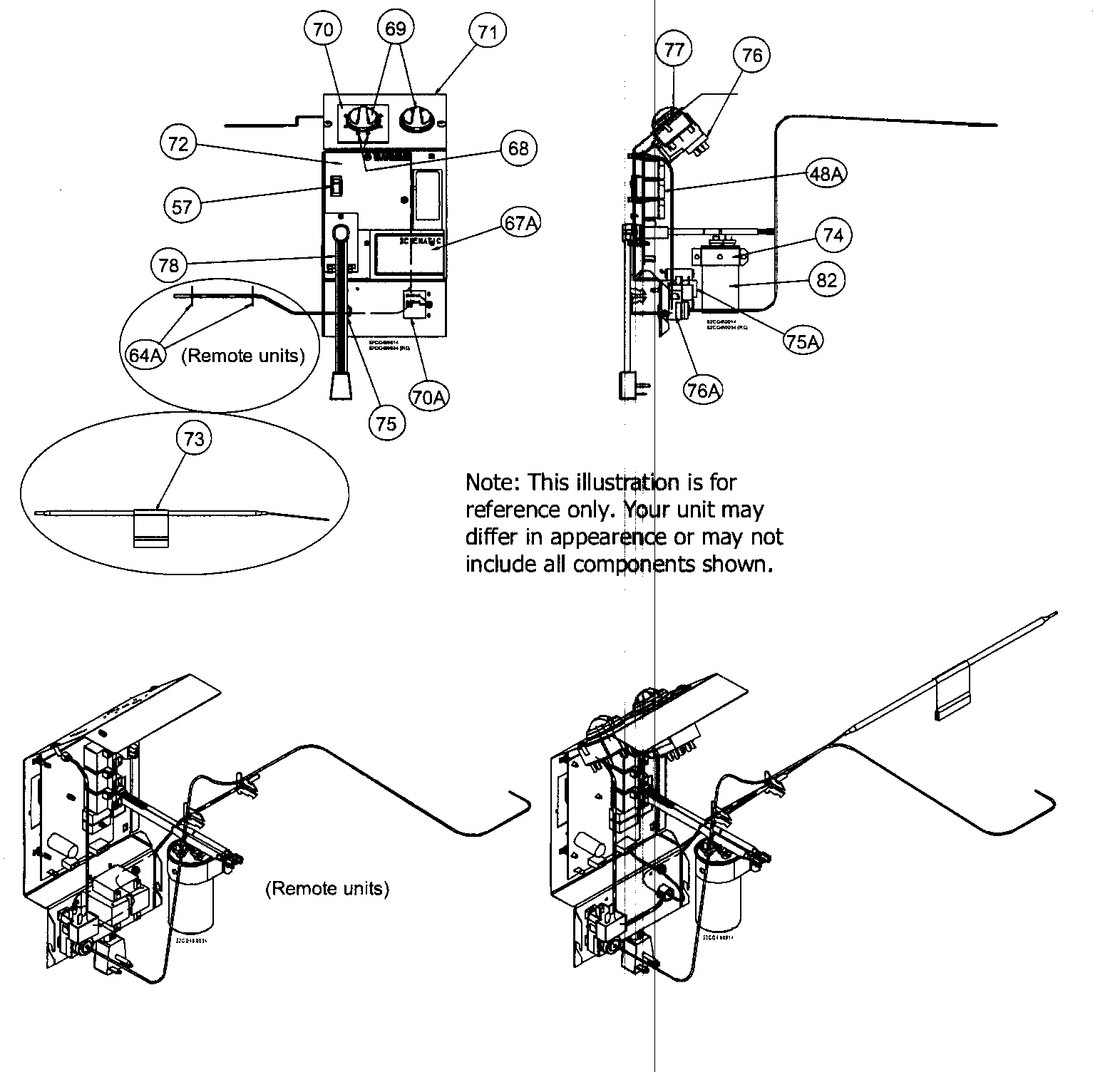

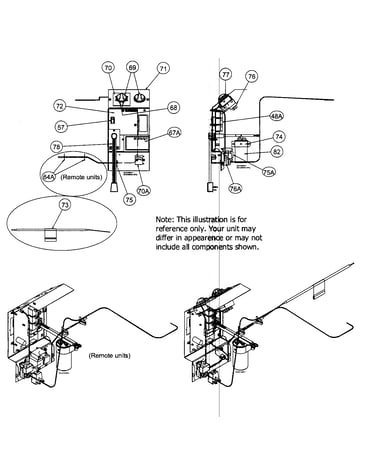

Control assy diagram

Central air conditioner run capacitor

Part #P291-2054RS

$39.04
In Stock
Filter 52CQ500414
#25

Front panel assy diagram

Filter

Part #52CQ500414

$98.49
In Stock
Room Air Conditioner Louver 52CQ500434
#27

Front panel assy diagram

Room air conditioner louver

Part #52CQ500434

$258.80
In Stock
Clip 52CQ502223
#73

Control assy diagram

Clip

Part #52CQ502223

$17.26
In Stock
Mount,mtr 52CQ500214
#NI

Front panel assy diagram

Mount,mtr

Part #52CQ500214

$46.67
In Stock
Overload HN68GP152
#NI

Front panel assy diagram

Overload

Part #HN68GP152

$50.42
In Stock
Paint 313974-751
#NI

Front panel assy diagram

Paint

Part #313974-751

$60.89
In Stock
Blwr.wheel 52CQ500664
#125

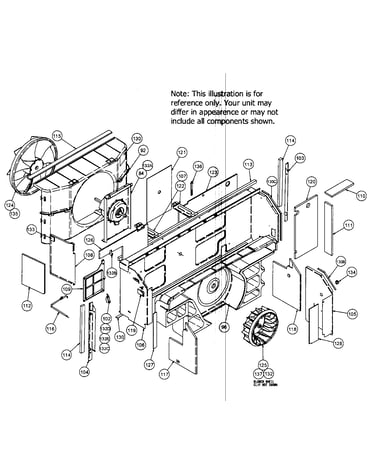

Cabinet parts diagram

Blwr.wheel

Part #52CQ500664

$198.32
In Stock
Strainer KH11NH079
#NI

Front panel assy diagram

Strainer

Part #KH11NH079

$17.49
In Stock
On/off Knob 52CQ500394
#69

Control assy diagram

On/off knob

Part #52CQ500394

$36.49
In Stock
