Model # FFAD2233W10 Official Frigidaire dehumidifier

Here are the diagrams and repair parts for Official Frigidaire FFAD2233W10 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Switch,inching 5304523392
#4

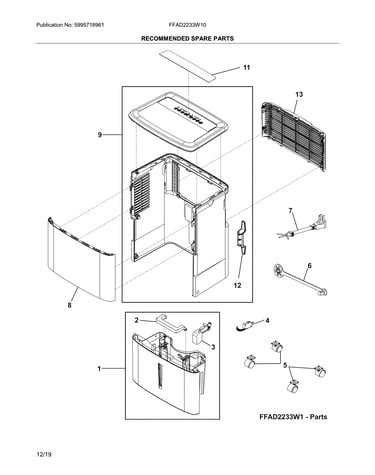

Recommended spare parts diagram

Switch,inching

Part #5304523392

$17.49
In Stock
Float,bucket 5304523391
#3

Recommended spare parts diagram

Float,bucket

Part #5304523391

$12.60
In Stock
Handle,bucket 5304523390
#2

Recommended spare parts diagram

Handle,bucket

Part #5304523390

$9.11
In Stock
Kit 5304516978
#6

Recommended spare parts diagram

Kit

Part #5304516978

This item is not returnable
$13.97
In Stock
Power Cord,assembly 5304512498
#7

Recommended spare parts diagram

Power cord,assembly

Part #5304512498

$35.93
In Stock
Frigidaire Bucket Assembly,complete ,w/float-handle 5304523389
#1

Recommended spare parts diagram

Frigidaire bucket assembly,complete ,w/float-handle

Part #5304523389

$118.39 |
9% OFF Phone Price : $130.39
In Stock
Overlay,control Panel 5304523396
#11

Recommended spare parts diagram

Overlay,control panel

Part #5304523396

$27.84
In Stock
Caster,(4) 5304512486
#5

Recommended spare parts diagram

Caster,(4)

Part #5304512486

This item is not returnable
$19.57
In Stock
Frigidaire Wrapper,assembly ,w/top And Hook 5304523394
#9

Recommended spare parts diagram

Frigidaire wrapper,assembly ,w/top and hook

Part #5304523394

$141.08
In Stock
Front Panel,assembly 5304523393
#8

Recommended spare parts diagram

Front panel,assembly

Part #5304523393

$61.53
In Stock
