Troybilt
Gas Pressure Washer

Model # 020287 Official Troybilt pressure washer

Here are the diagrams and repair parts for Official Troybilt 020287 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
O-ring Kit 100516GS

#NI06

All parts diagram

O-ring kit

Part #100516GS

Replaced by #705001

?
Manufacturer substitution
This part replaces 100516GS. Substitute parts can look different from the original.
BEST SELLER
$26.04 |
19% OFF Phone Price : $32.04
In Stock
Relief Valve 194298GS
Relief valve

Part #194298GS

Replaced by #208673GS

?
Manufacturer substitution
This part replaces 194298GS. Substitute parts can look different from the original.
BEST SELLER
$20.84 |
22% OFF Phone Price : $26.84
In Stock
Pressure Washer Chemical Injection Kit (replaces 11587628pgs, 1250280gs, 1560520gs, 1982520gs, 231b2327gs, 480480gs) 192914GS
#D

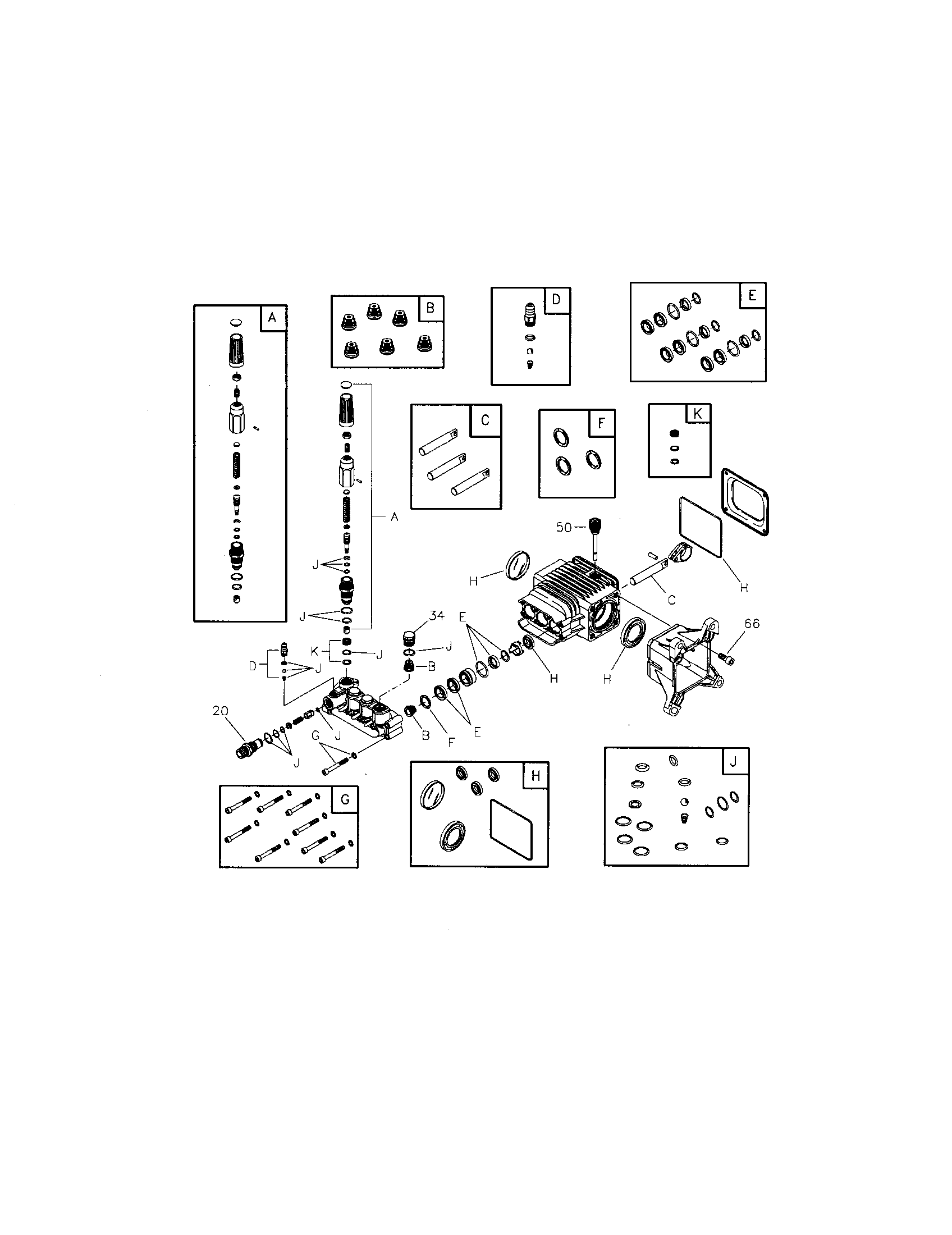

Pump diagram

Pressure washer chemical injection kit (replaces 11587628pgs, 1250280gs, 1560520gs, 1982520gs, 231b2327gs, 480480gs)

Part #192914GS

This item is not returnable
$26.70 |
18% OFF Phone Price : $32.70
In Stock
Briggs & Stratton Pressure Washer Pump Saver (replaces 100515gs) 6039
Briggs & stratton pressure washer pump saver (replaces 100515gs)

Part #6039

$16.56 |
11% OFF Phone Price : $18.56
In Stock
Husqvarna Pressure Washer Handle Attachment Kit (replaces B2203) B2203GS
#15

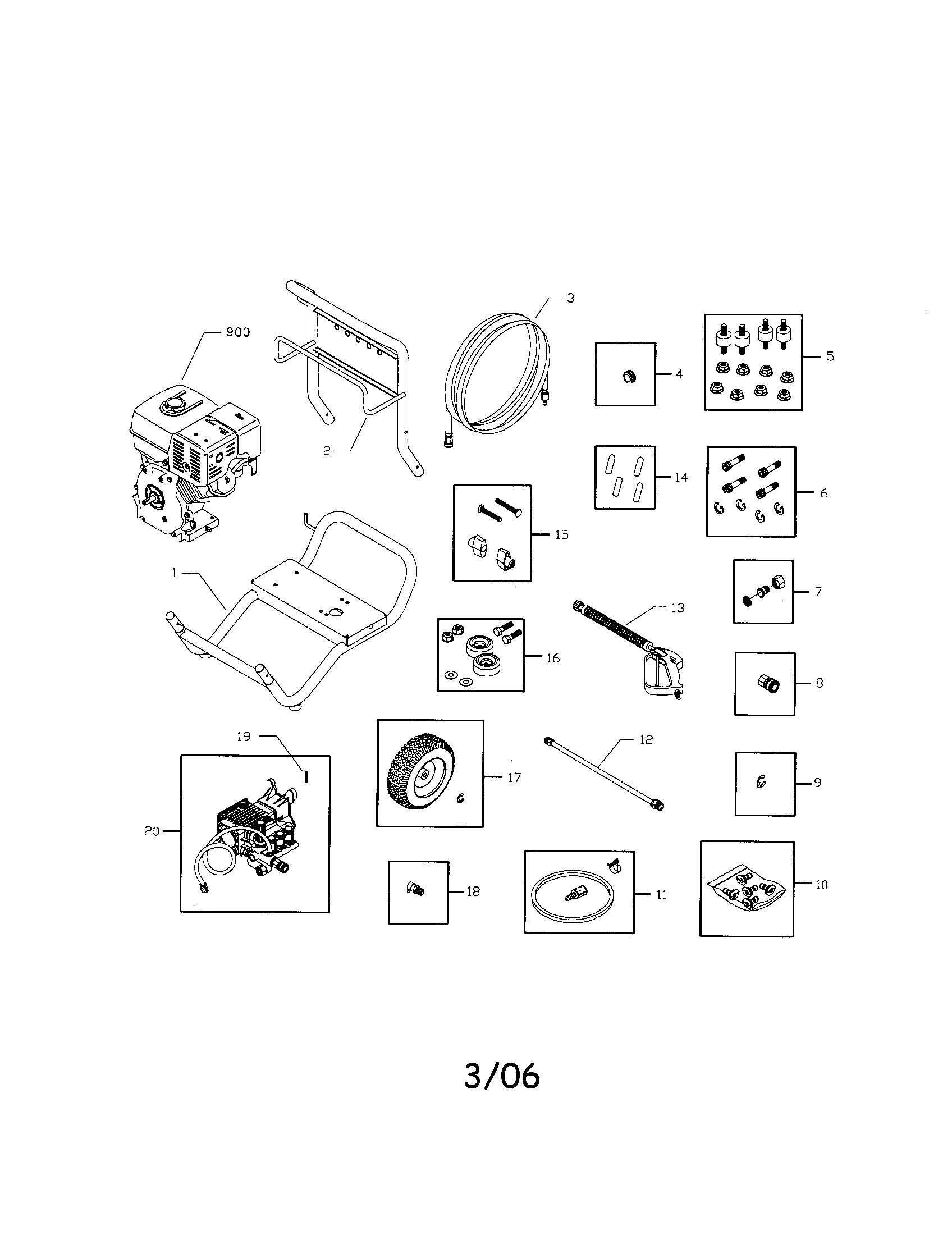

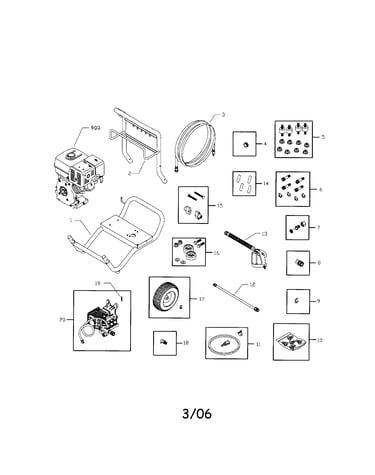

Main unit diagram

Husqvarna pressure washer handle attachment kit (replaces b2203)

Part #B2203GS

This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Generator E-ring 191265GS
#9

Main unit diagram

Generator e-ring

Part #191265GS

Replaced by #703977

?
Manufacturer substitution
This part replaces 191265GS. Substitute parts can look different from the original.
This item is not returnable
$8.26
In Stock
Nozzle 195851ZZGS
#10E

Main unit diagram

Nozzle

Part #195851ZZGS

Replaced by #195846ZZGS

?
Manufacturer substitution
This part replaces 195851ZZGS. Substitute parts can look different from the original.
This item is not returnable
$19.49 |
9% OFF Phone Price : $21.49
In Stock
Gun, 4000p B1436BGS
#13

Main unit diagram

Gun, 4000p

Part #B1436BGS

Replaced by #704311

?
Manufacturer substitution
This part replaces B1436BGS. Substitute parts can look different from the original.
$106.06 |
10% OFF Phone Price : $118.06
In Stock
Base B194424GS
#1

Main unit diagram

Base

Part #B194424GS

$271.47
In Stock
Cap Kit 192126GS
#14

Main unit diagram

Cap kit

Part #192126GS

$20.34
In Stock
