Horizon
Treadmill

Model # T73 Official Horizon treadmill

Here are the diagrams and repair parts for Official Horizon T73 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Socket MC0703023
#P07

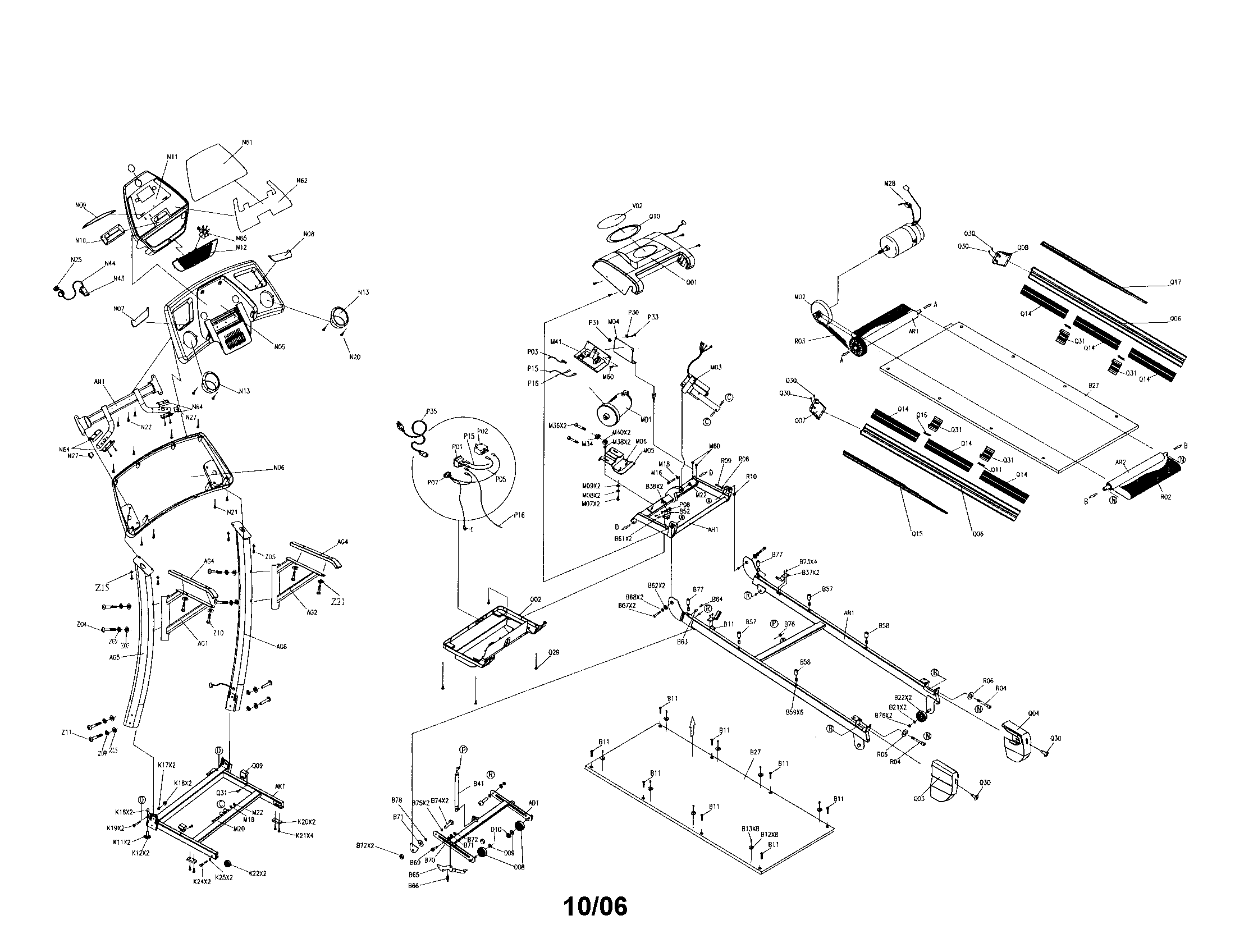

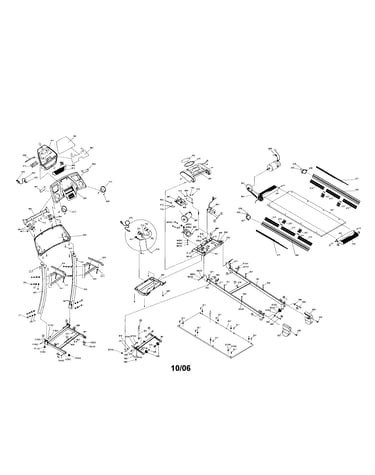

Treadmill diagram

Socket

Part #MC0703023

Replaced by #019749-A

?
Manufacturer substitution
This part replaces MC0703023. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Nut MZE0204005
Nut

Part #MZE0204005

Replaced by #004926-00

?
Manufacturer substitution
This part replaces MZE0204005. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Nut ME0204008AB
#D10

Treadmill diagram

Nut

Part #ME0204008AB

Replaced by #004926-00

?
Manufacturer substitution
This part replaces ME0204008AB. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Breaker MC0702011
#P02

Treadmill diagram

Breaker

Part #MC0702011

Replaced by #003346-00

?
Manufacturer substitution
This part replaces MC0702011. Substitute parts can look different from the original.
$14.80
In Stock
T-wrench MZE1002003
#KIT

Treadmill diagram

T-wrench

Part #MZE1002003

Replaced by #005393-00

?
Manufacturer substitution
This part replaces MZE1002003. Substitute parts can look different from the original.
$8.50
In Stock
Drive Belt MD0602001
#R03

Treadmill diagram

Drive belt

Part #MD0602001

Replaced by #1000109551

?
Manufacturer substitution
This part replaces MD0602001. Substitute parts can look different from the original.
$55.69 |
10% OFF Phone Price : $61.69
In Stock
Elastomer MB0502018A
#B77

Treadmill diagram

Elastomer

Part #MB0502018A

Replaced by #018951-A

?
Manufacturer substitution
This part replaces MB0502018A. Substitute parts can look different from the original.
$8.67
In Stock
Rail Lock MB0643001
#B12

Treadmill diagram

Rail lock

Part #MB0643001

Replaced by #001251-F

?
Manufacturer substitution
This part replaces MB0643001. Substitute parts can look different from the original.
This item is not returnable
$3.92
In Stock
Arc Washer ME0503001
#Z07

Treadmill diagram

Arc washer

Part #ME0503001

Replaced by #005163-00

?
Manufacturer substitution
This part replaces ME0503001. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw MZE0103001
#P34

Treadmill diagram

Screw

Part #MZE0103001

Replaced by #004415-Z

?
Manufacturer substitution
This part replaces MZE0103001. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
