Kenmore
Electric Range

Model # 9119187711 Official Kenmore 30" electric range

Here are the diagrams and repair parts for Official Kenmore 9119187711 30" electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

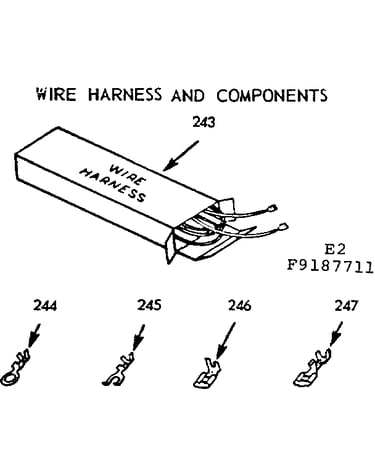

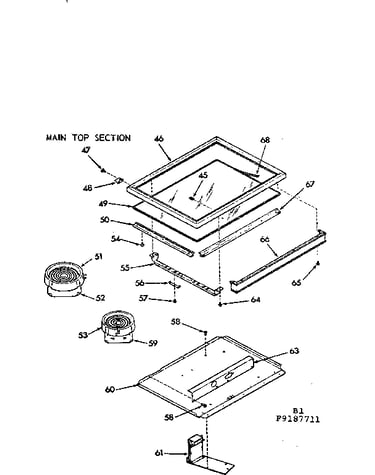

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Lamp Bulb STD372401
#127

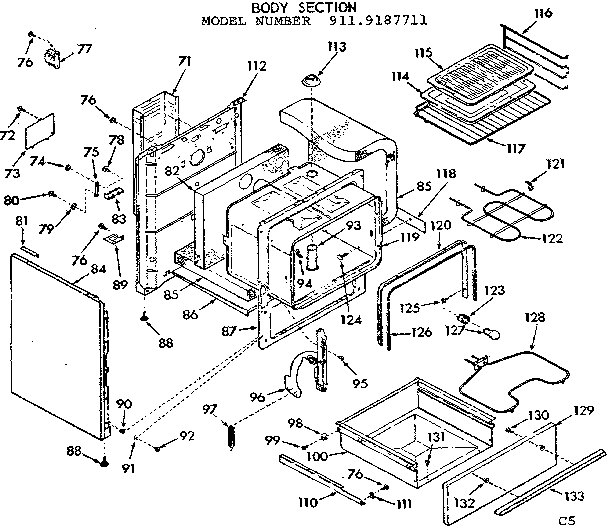

Body section diagram

Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Infinite Switch 306383
#5

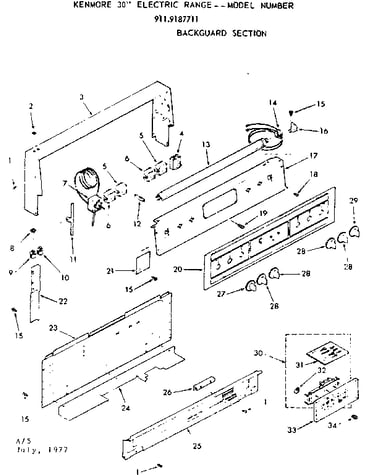

Backguard section diagram

Infinite switch

Part #306383

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces 306383. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Infinite Switch 306382
#6

Backguard section diagram

Infinite switch

Part #306382

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces 306382. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Screw 105771
#250

Optional rotisserie diagram

Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102430
Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 299424
#80

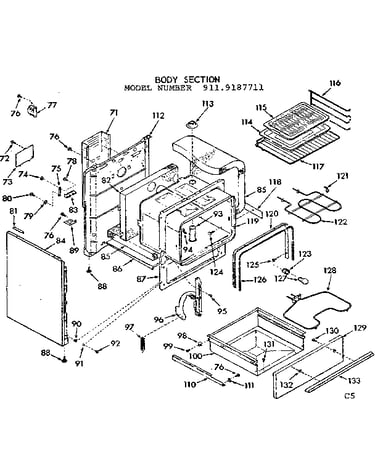

Body section diagram

Screw

Part #299424

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 299424. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer 106462
#238

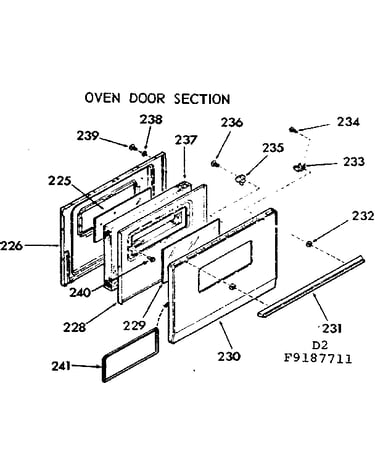

Oven door section diagram

Washer

Part #106462

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces 106462. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Gm Hex Nut 453284
#74

Body section diagram

Gm hex nut

Part #453284

Replaced by #WB1X1259

?
Manufacturer substitution
This part replaces 453284. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
