Bosch
Electric Wall Oven

Model # HBN755AUC/02 Official Bosch oven

Here are the diagrams and repair parts for Official Bosch HBN755AUC-02 oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

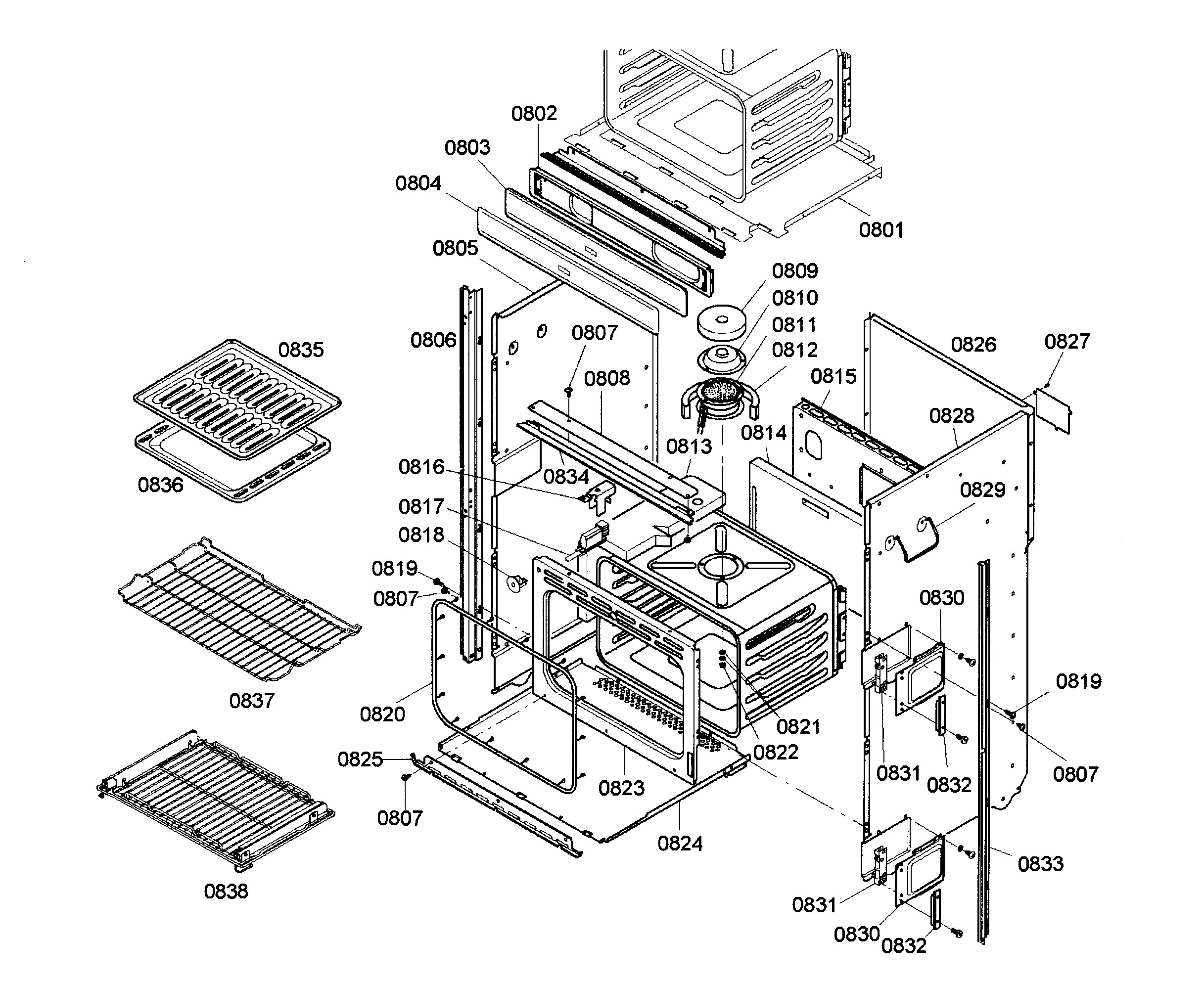

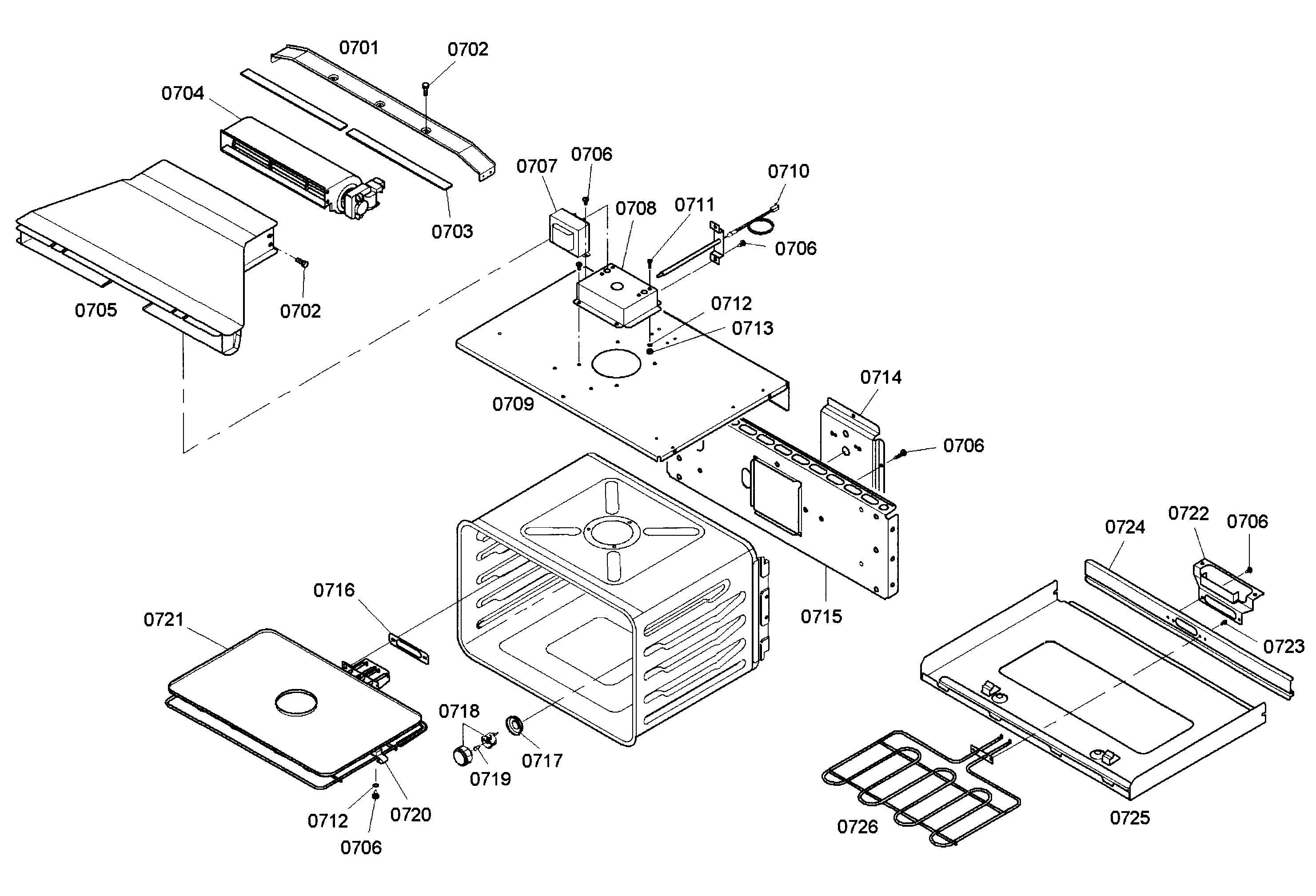

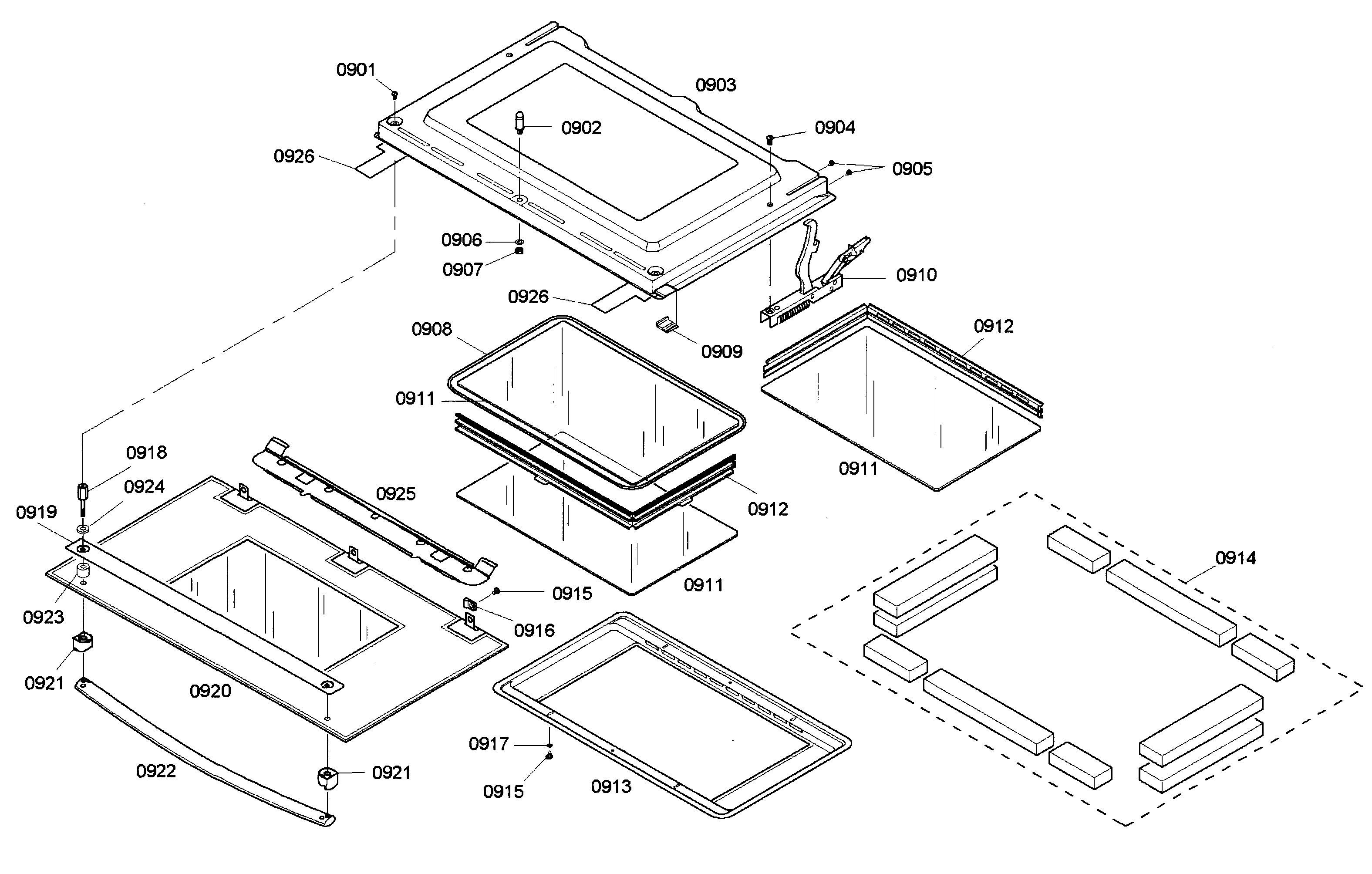

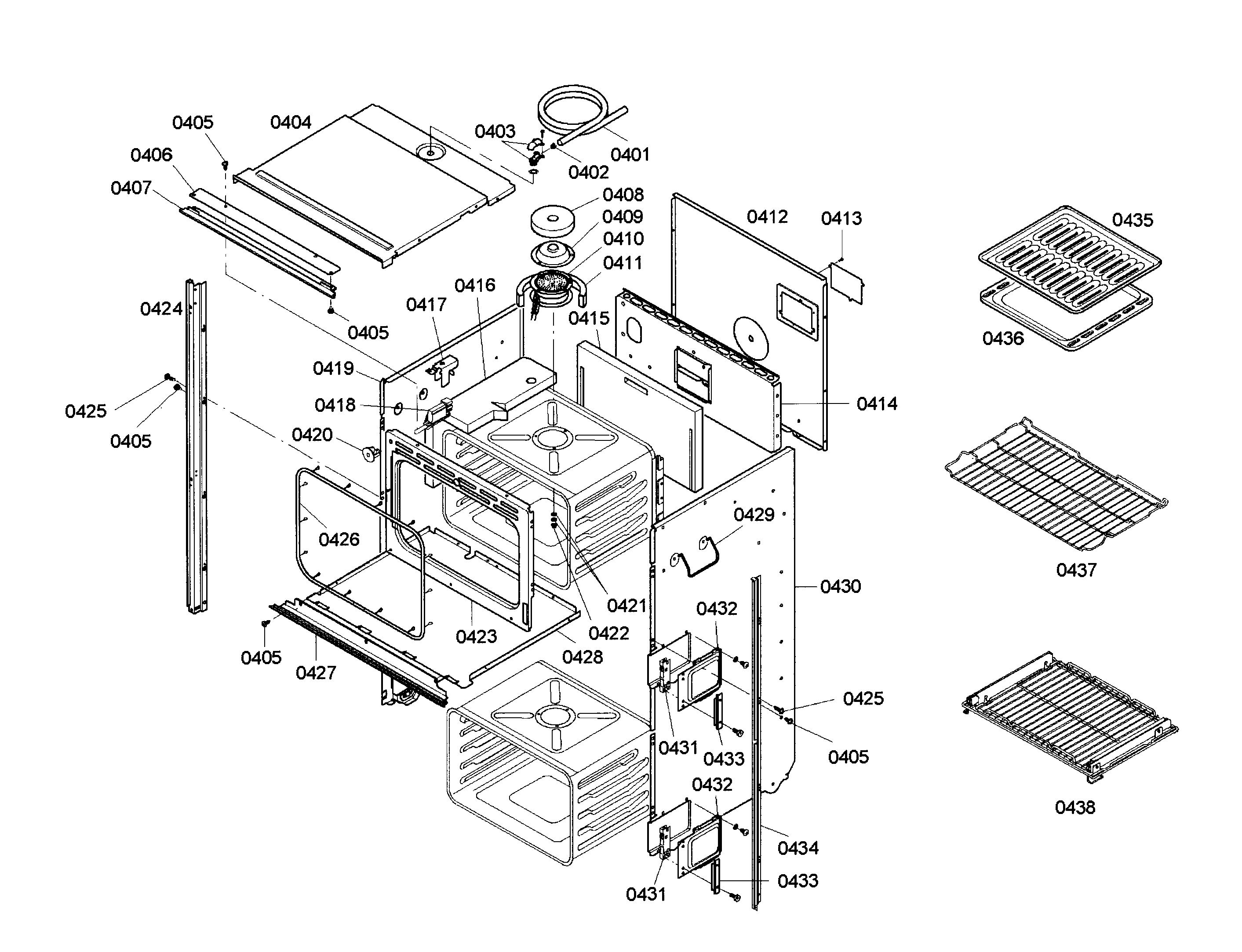

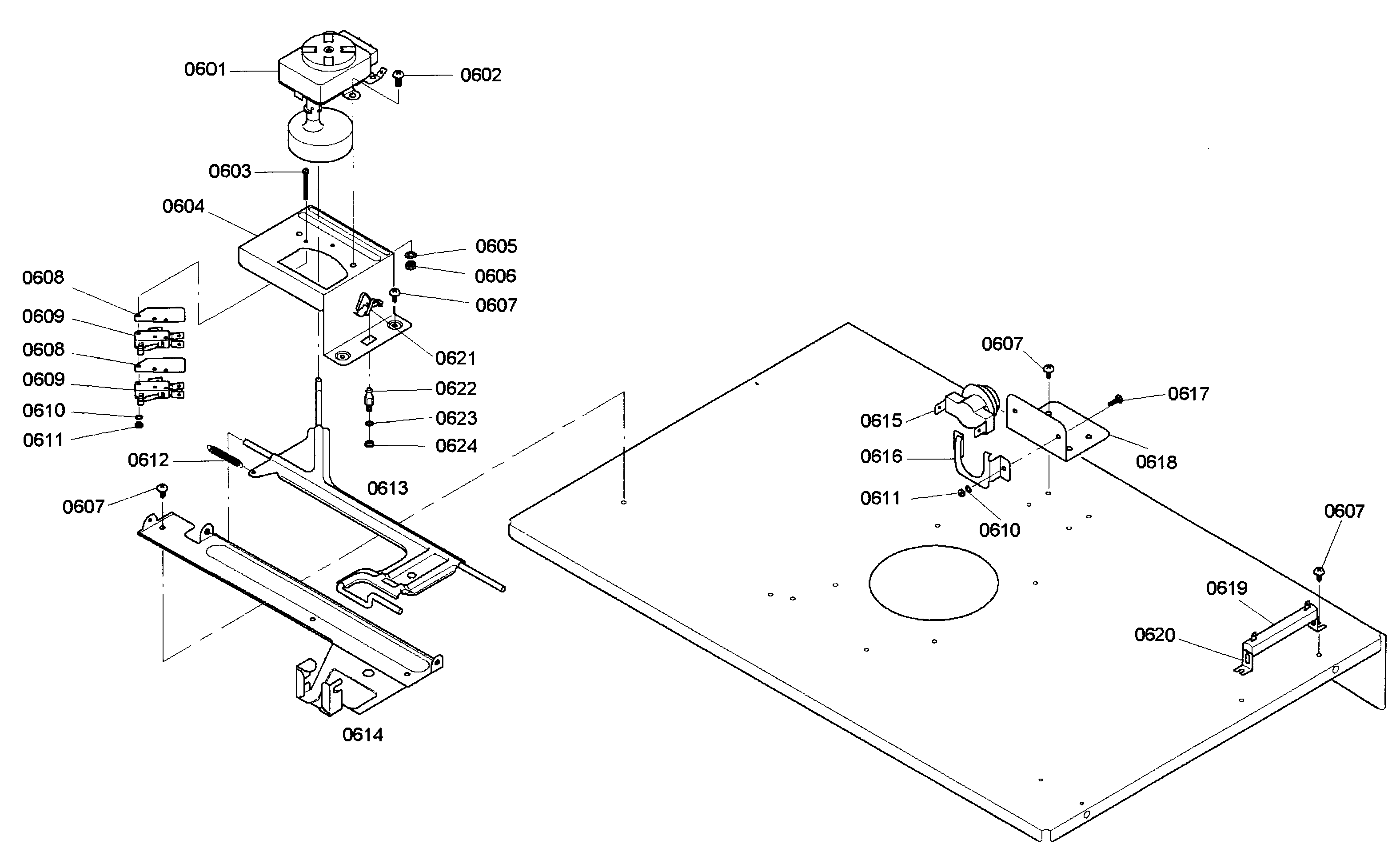

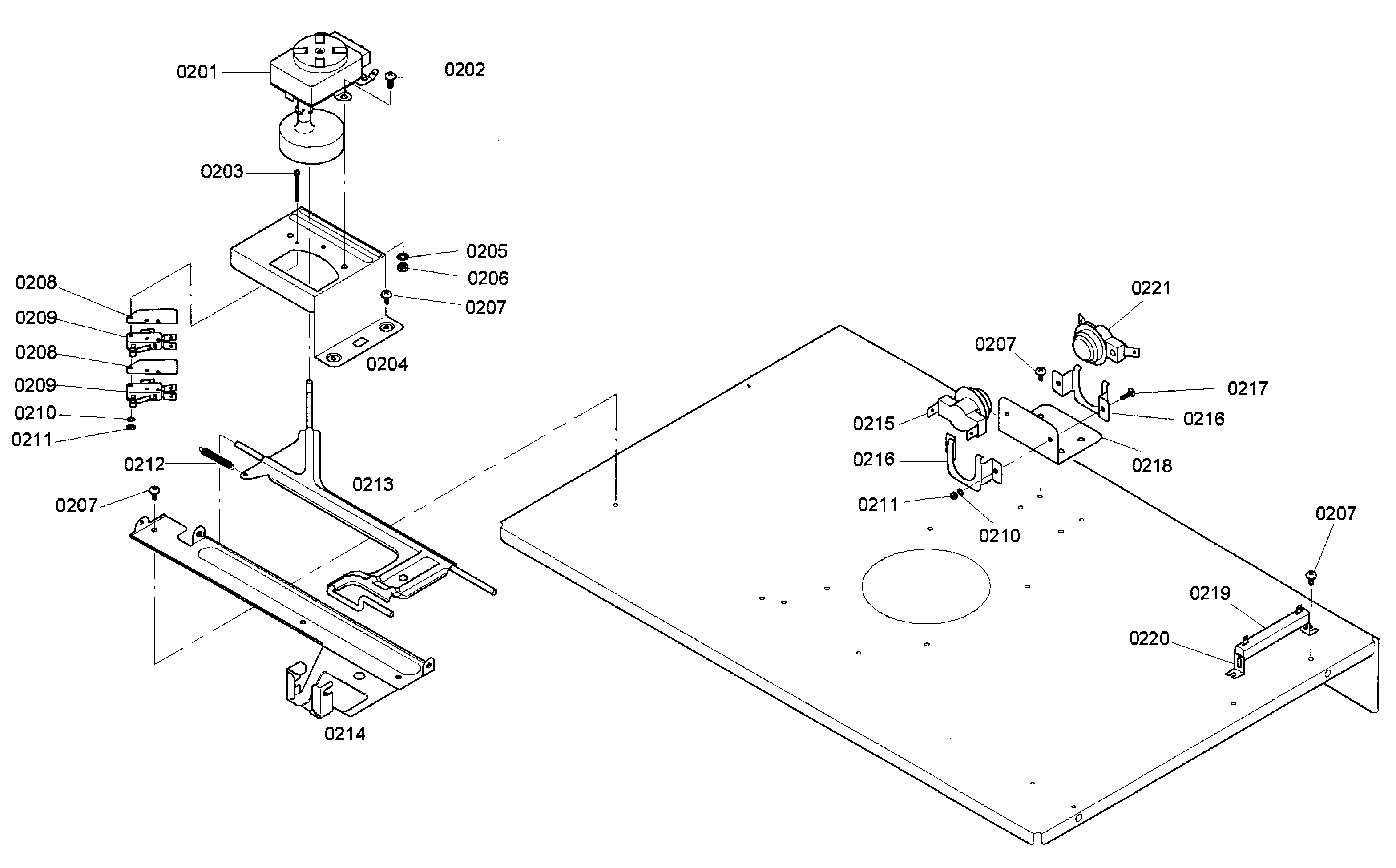

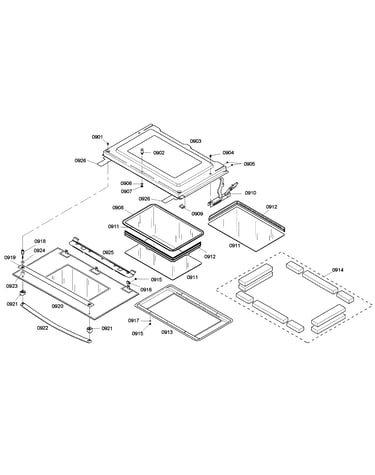

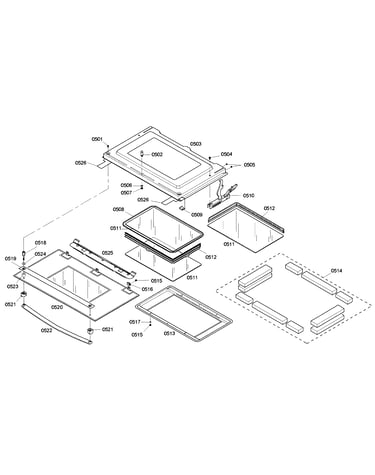

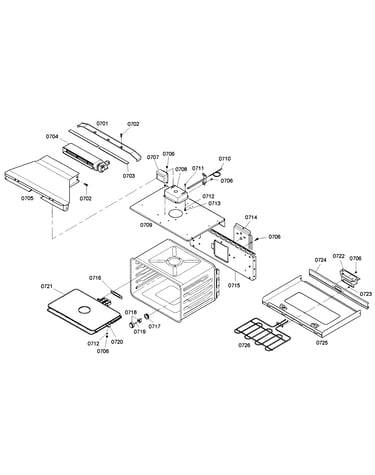

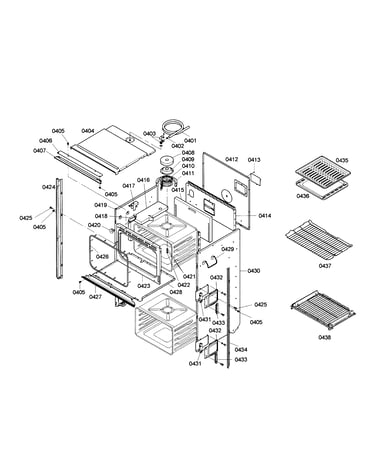

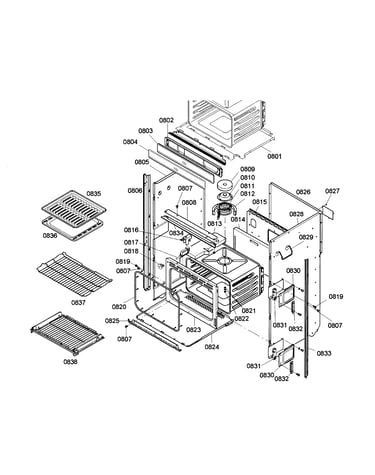

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Display 00489268
#105

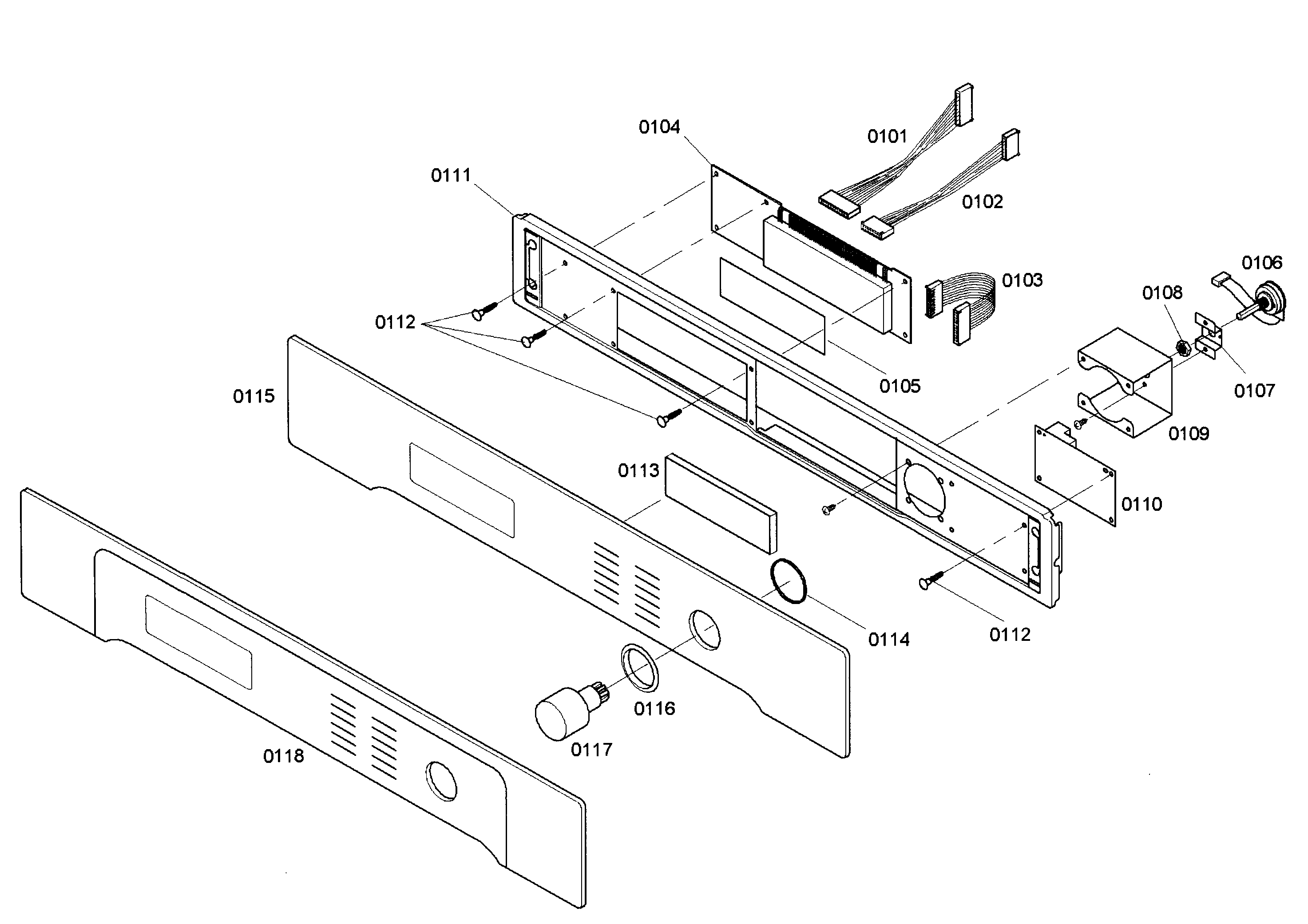

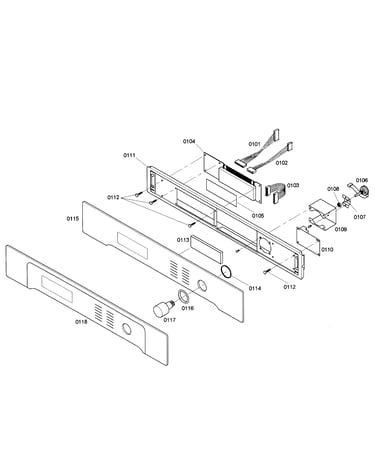

Control panel diagram

Display

Part #00489268

$29.04 |
17% OFF Phone Price : $35.04
In Stock
Wall Oven Convection Element 00241778
#337

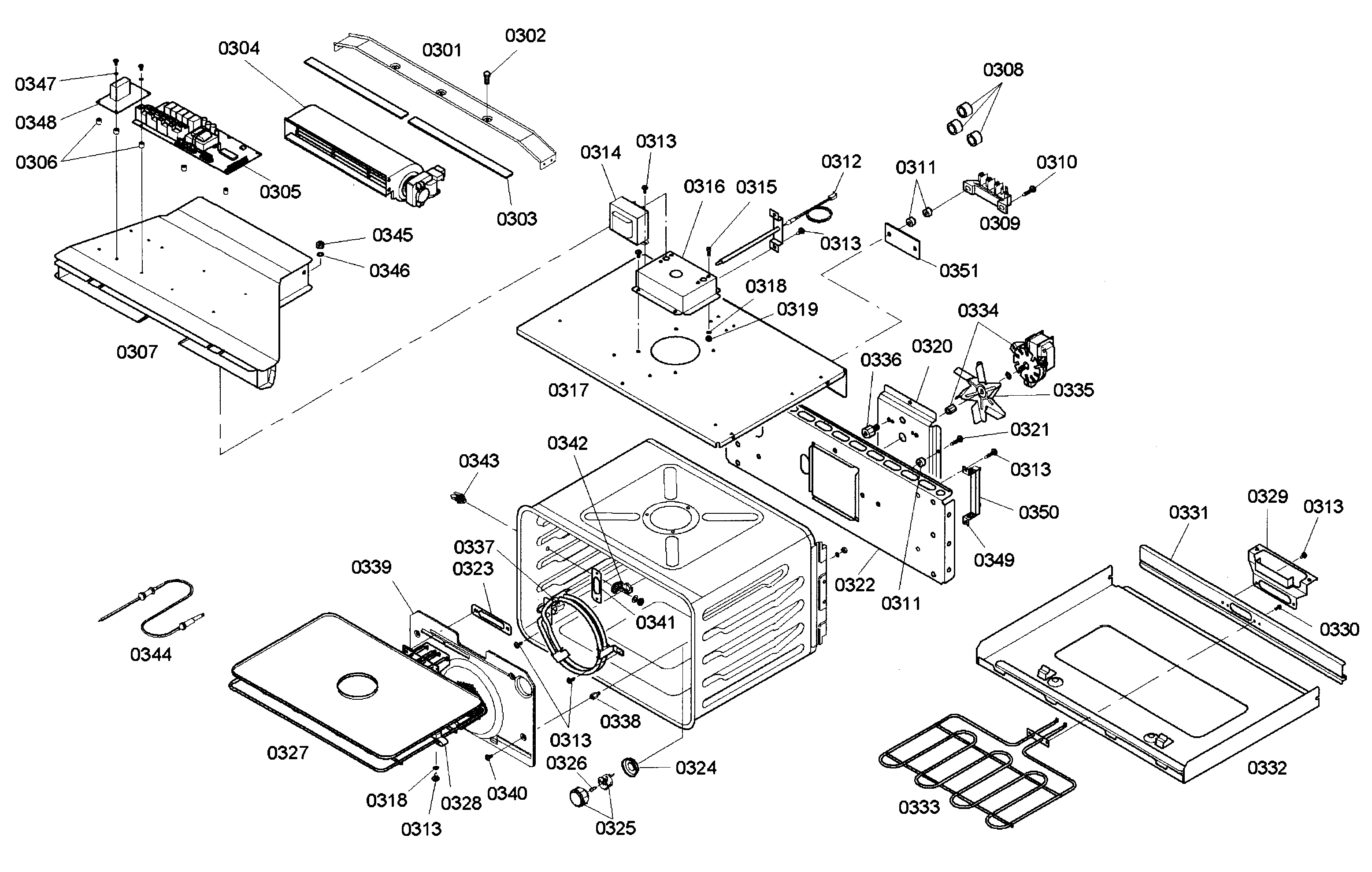

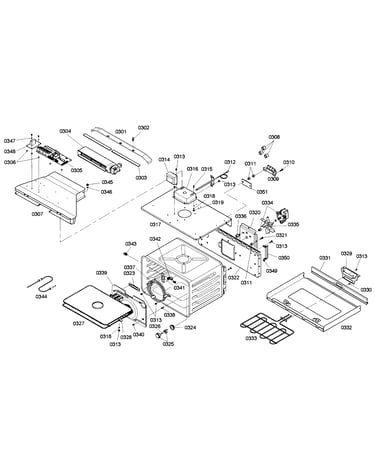

Cavity 1 diagram

Wall oven convection element

Part #00241778

$114.79 |
9% OFF Phone Price : $126.79
In Stock
Lamp 00420228
Lamp

Part #00420228

Replaced by #00189351

?
Manufacturer substitution
This part replaces 00420228. Substitute parts can look different from the original.
$25.79 |
19% OFF Phone Price : $31.79
In Stock
Grid 00143673
Grid

Part #00143673

Replaced by #00449756

?
Manufacturer substitution
This part replaces 00143673. Substitute parts can look different from the original.
$57.89
In Stock
Oven Hinge 00600169
Oven hinge

Part #00600169

The manufacturer no longer makes this part, and there's no substitute part

Box 00497236
Box

Part #00497236

The manufacturer no longer makes this part, and there's no substitute part

Handle 00239464
Handle

Part #00239464

The manufacturer no longer makes this part, and there's no substitute part

Divider 00243227
Divider

Part #00243227

The manufacturer no longer makes this part, and there's no substitute part

Screw 00420230
Screw

Part #00420230

The manufacturer no longer makes this part, and there's no substitute part

Resistor 00490362
#350

Cavity 1 diagram

Resistor

Part #00490362

The manufacturer no longer makes this part, and there's no substitute part
