Wall Oven/Microwave Combo

Model # FDO-250-2W Official Modern Maid electric self-cleaning wall oven - fdo-250-2d fdo-250-2w

Here are the diagrams and repair parts for Official Modern Maid FDO-250-2W electric self-cleaning wall oven - fdo-250-2d fdo-250-2w, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Upper Flue Box 69-053254-42-B
#1

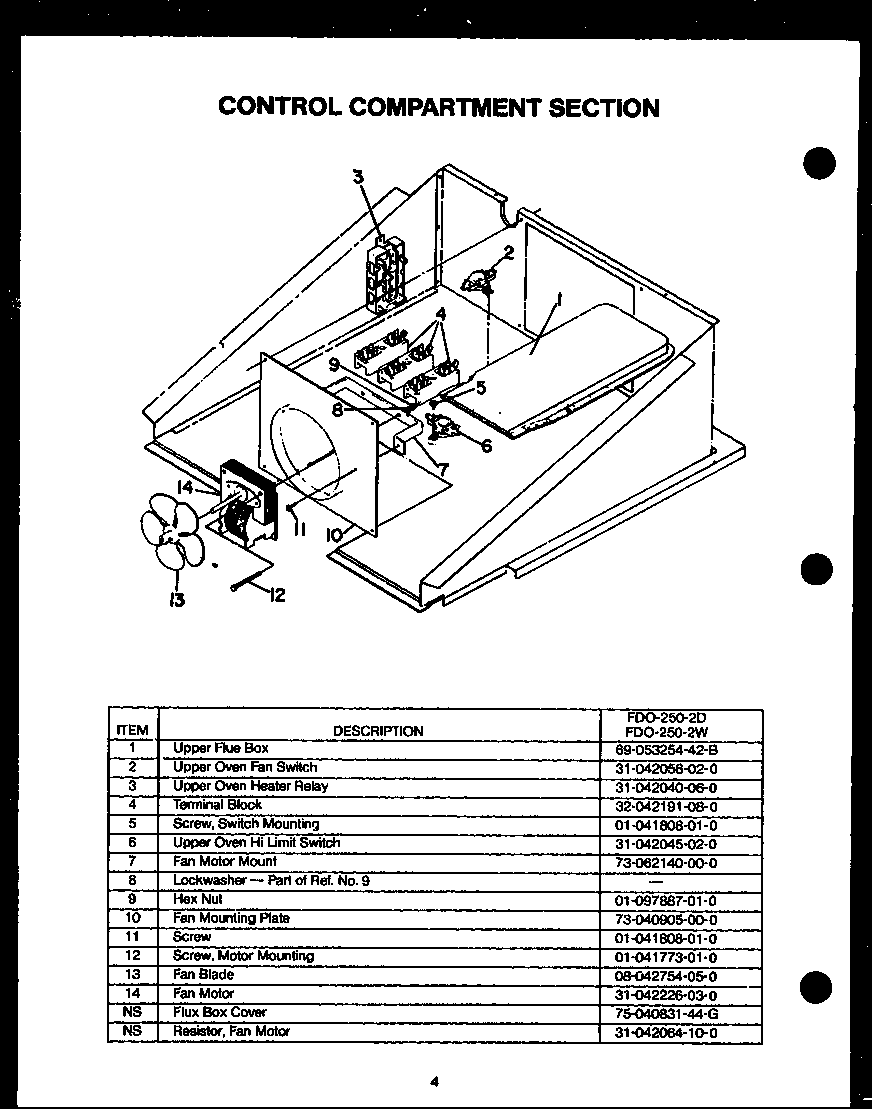

Control compartment section diagram

Upper flue box

Part #69-053254-42-B

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut, Clock To Cont. Box 01-097885-02-0
#11

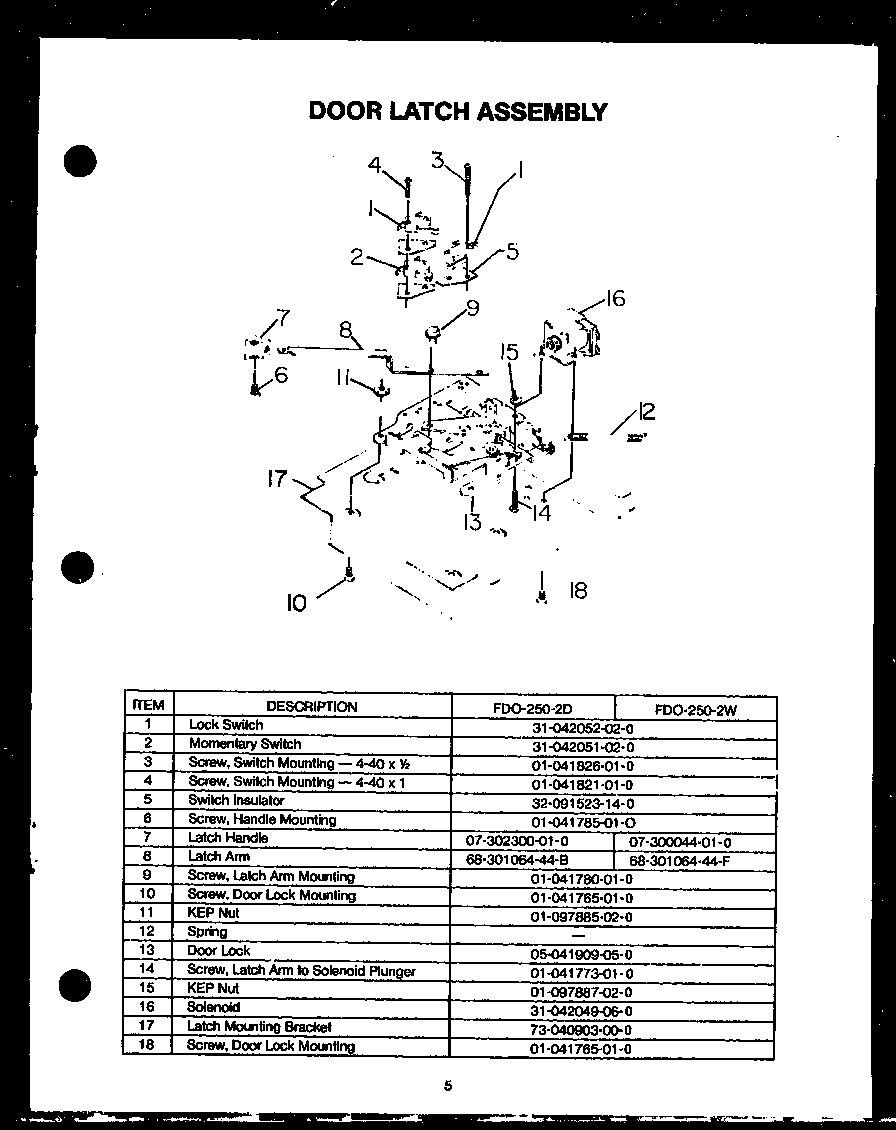

Door latch assembly diagram

Hex nut, clock to cont. box

Part #01-097885-02-0

The manufacturer no longer makes this part, and there's no substitute part

Chip Cover, Oven Cavity 75-040398-00-0

#NI

All parts diagram

Chip cover, oven cavity

Part #75-040398-00-0

The manufacturer no longer makes this part, and there's no substitute part

Screw 01-041785-01-0
#6

Door latch assembly diagram

Screw

Part #01-041785-01-0

The manufacturer no longer makes this part, and there's no substitute part

Broiler Pan 70-011161-45-CG
#13

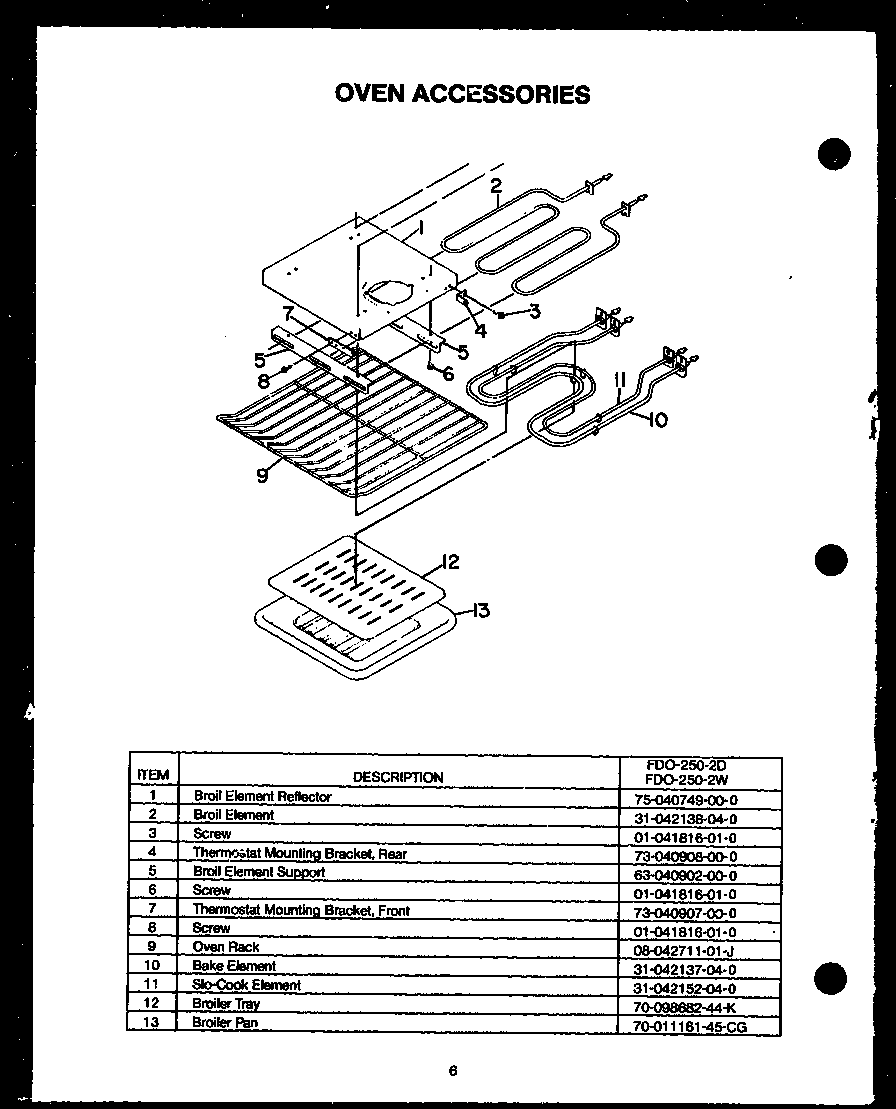

Oven accessories diagram

Broiler pan

Part #70-011161-45-CG

The manufacturer no longer makes this part, and there's no substitute part

Screw, Switch Mounting - 4-40 X 1/2 01-041826-01-0
#3

Door latch assembly diagram

Screw, switch mounting - 4-40 x 1/2

Part #01-041826-01-0

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Trim - Top 07-042575-04-0
#9A

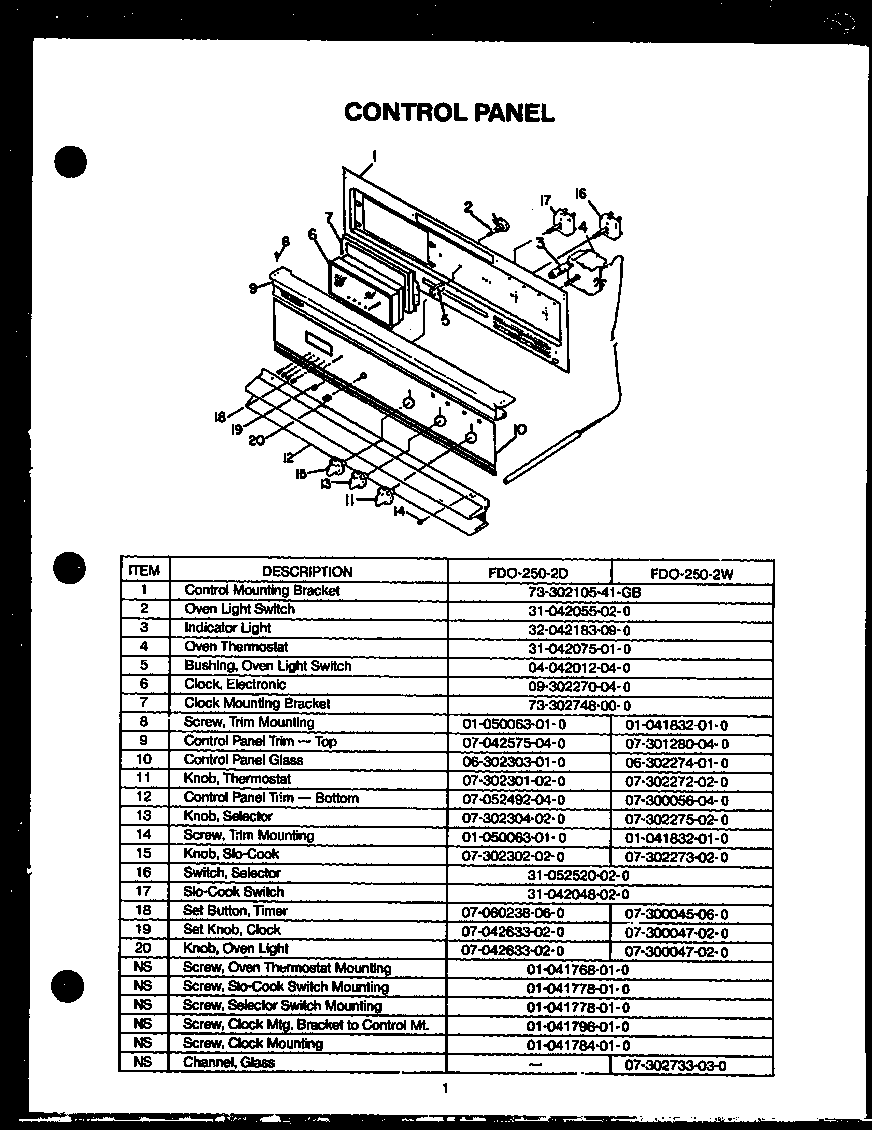

Control panel diagram

Control panel trim - top

Part #07-042575-04-0

The manufacturer no longer makes this part, and there's no substitute part

Glass Control Panel 06-302274-01-0
#10B

Control panel diagram

Glass control panel

Part #06-302274-01-0

The manufacturer no longer makes this part, and there's no substitute part

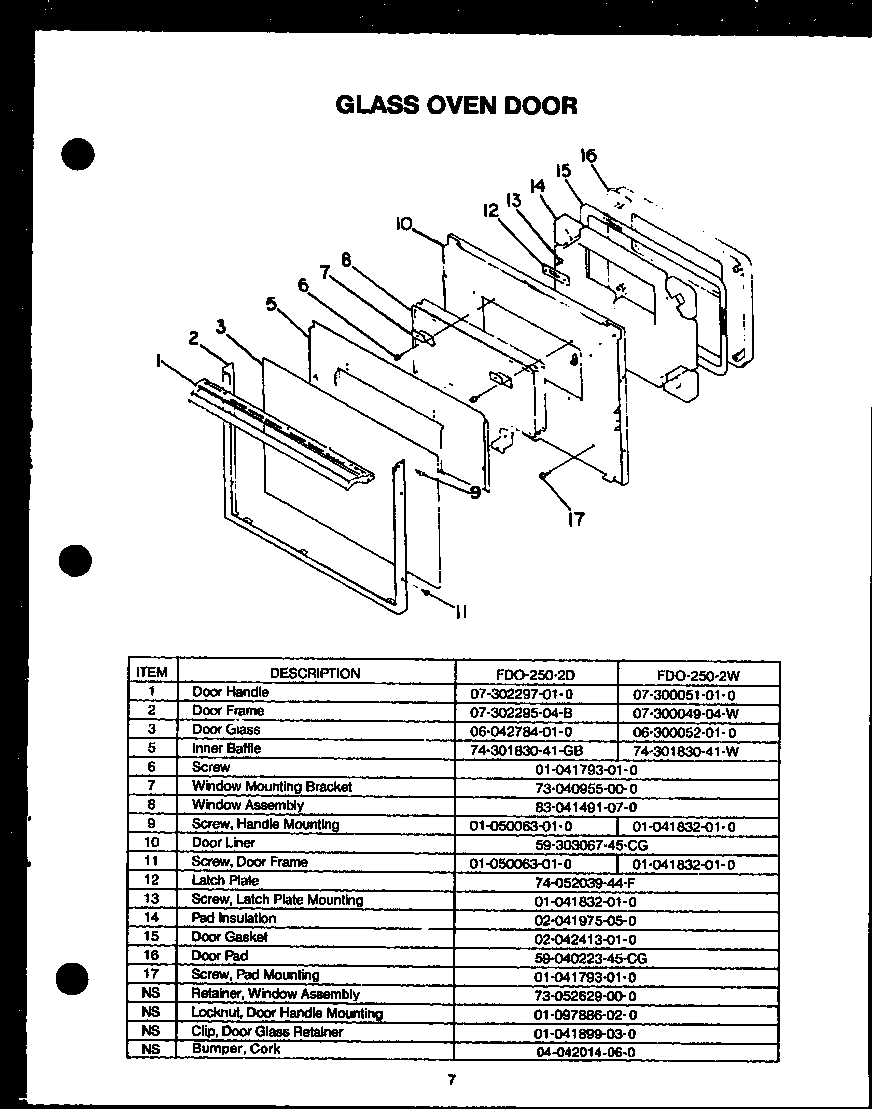

Screw 01-041793-01-0
Screw

Part #01-041793-01-0

The manufacturer no longer makes this part, and there's no substitute part

Bottom Trim 07-042576-04-0
#24A

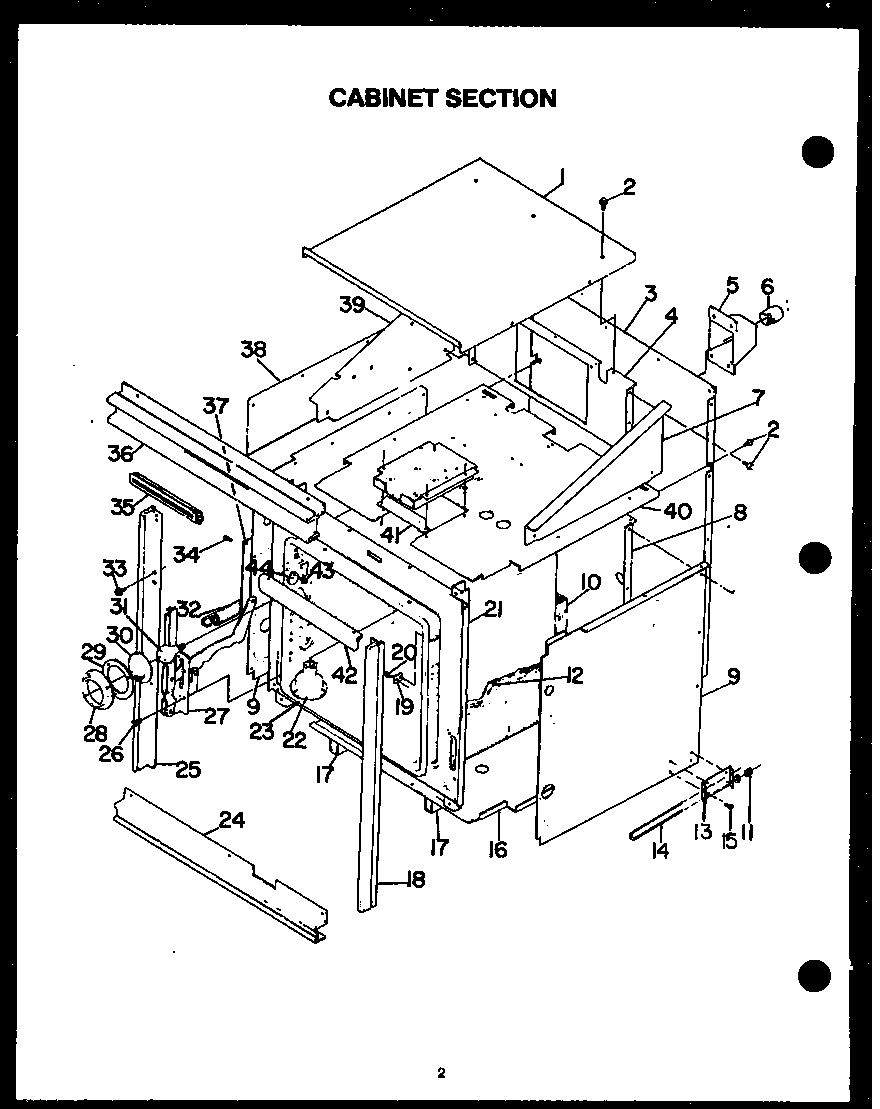

Cabinet section diagram

Bottom trim

Part #07-042576-04-0

The manufacturer no longer makes this part, and there's no substitute part
