Frigidaire
Washer

Model # FWTR867GHS0 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire FWTR867GHS0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Door Strike 131763300
#14

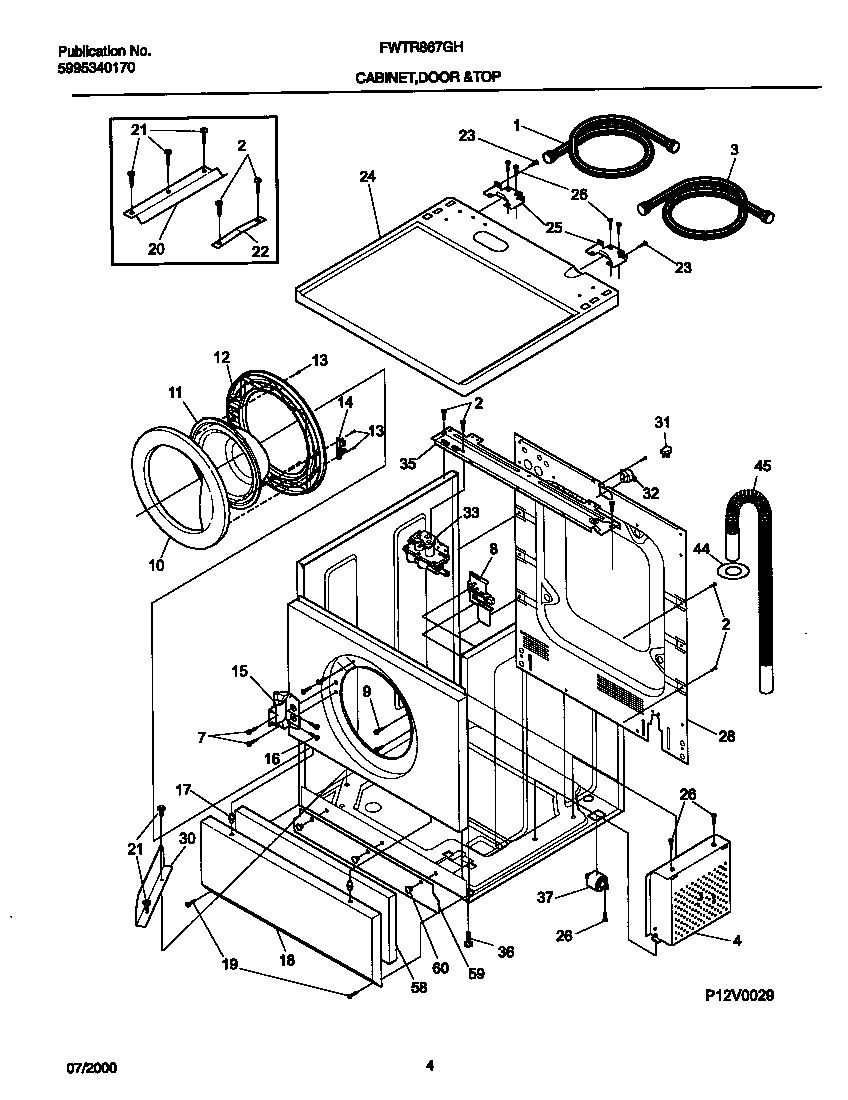

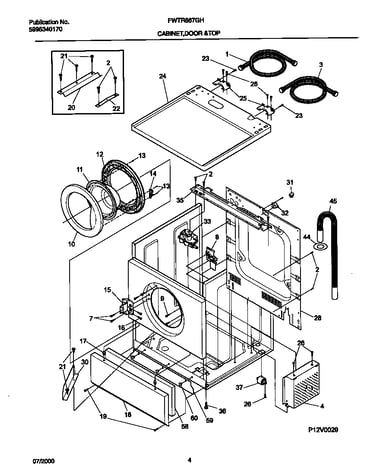

Wshr cab,door diagram

Door strike

Part #131763300

Replaced by #131763310

?
Manufacturer substitution
This part replaces 131763300. Substitute parts can look different from the original.
BEST SELLER
$15.23 |
12% OFF Phone Price : $17.23
In Stock
Level Shock 131268200
#30

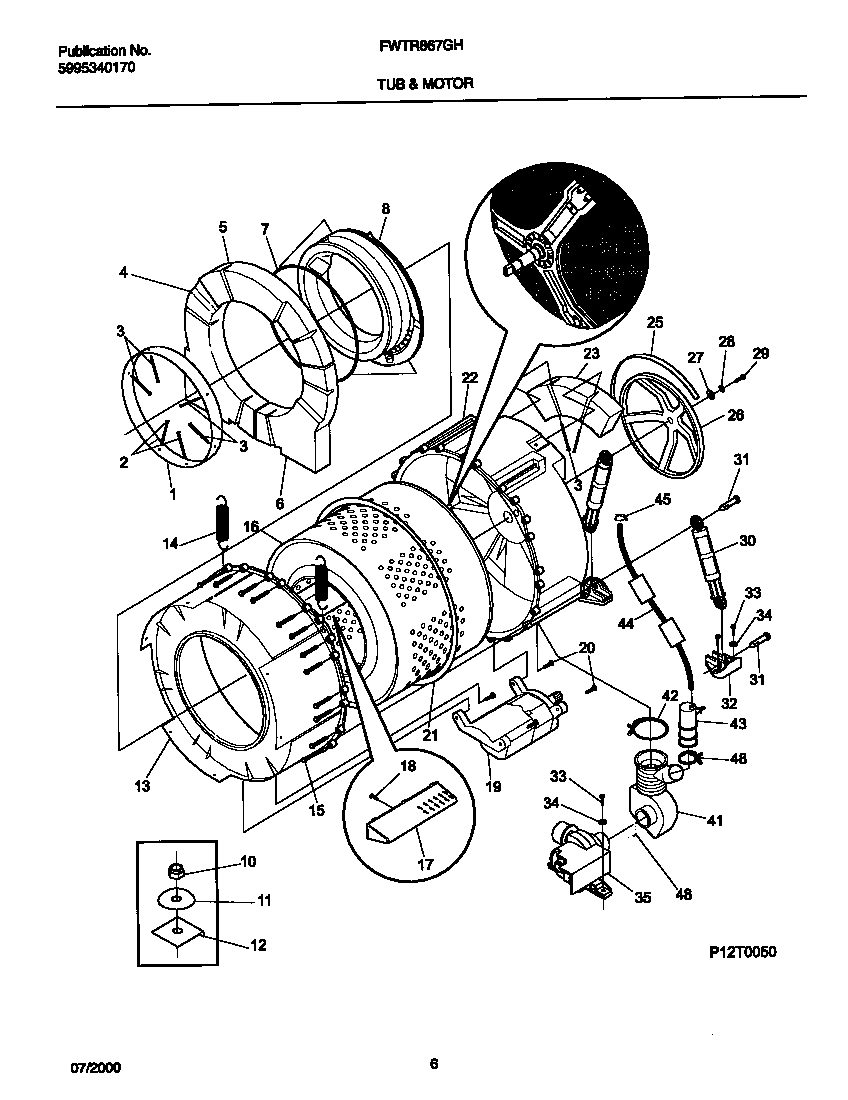

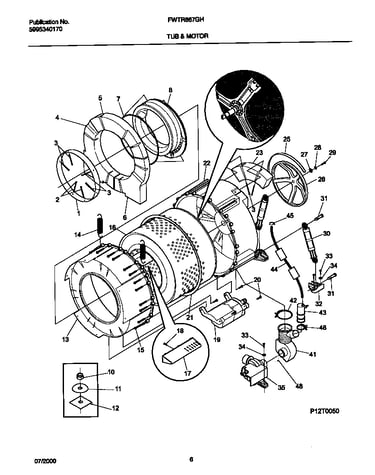

Wshr tub,motor diagram

Level shock

Part #131268200

Replaced by #5304485917

?
Manufacturer substitution
This part replaces 131268200. Substitute parts can look different from the original.
BEST SELLER
$49.77 |
11% OFF Phone Price : $55.77
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Pump 131889800
#35

Wshr tub,motor diagram

Pump

Part #131889800

The manufacturer no longer makes this part, and there's no substitute part

Washer Baffle Screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300) 131302800
#18

Wshr tub,motor diagram

Washer baffle screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300)

Part #131302800

BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Siphon Screw 131303300
#9

Wshr cab,door diagram

Siphon screw

Part #131303300

Replaced by #131302800

?
Manufacturer substitution
This part replaces 131303300. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Bellows 131277100
#8

Wshr tub,motor diagram

Bellows

Part #131277100

Replaced by #5303937187

?
Manufacturer substitution
This part replaces 131277100. Substitute parts can look different from the original.
$114.62 |
9% OFF Phone Price : $126.62
In Stock
Spring Sleeve 131663600
#14

Wshr tub,motor diagram

Spring sleeve

Part #131663600

Replaced by #134144700

?
Manufacturer substitution
This part replaces 131663600. Substitute parts can look different from the original.
$43.85 |
12% OFF Phone Price : $49.85
In Stock
Electrolux Washer Front Outer Tub Assembly 131618600
#13

Wshr tub,motor diagram

Electrolux washer front outer tub assembly

Part #131618600

This item is not returnable
$343.29 |
$12.00 OFF Phone Price : $355.29
In Stock
Electrolux Washer Baffle 131274600
#17

Wshr tub,motor diagram

Electrolux washer baffle

Part #131274600

$54.19 |
10% OFF Phone Price : $60.19
In Stock
