Model # JP3030SW2SS Official GE electric counter unit

Here are the diagrams and repair parts for Official GE JP3030SW2SS electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Range Radiant Surface Element, 8-in WB30T10136
#57

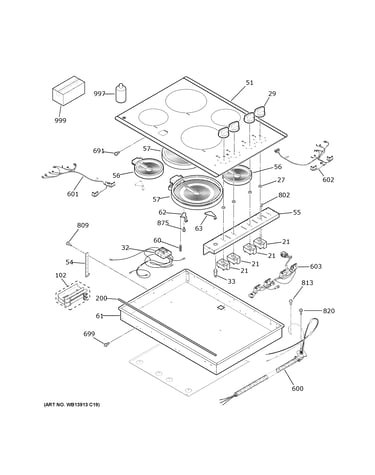

Control panel & cooktop diagram

Range radiant surface element, 8-in

Part #WB30T10136

BEST SELLER
$110.93 |
10% OFF Phone Price : $122.93
In Stock
Range Surface Element Spring (replaces Wb09t10013) WB09X40389
#60

Control panel & cooktop diagram

Range surface element spring (replaces wb09t10013)

Part #WB09X40389

$9.54
In Stock
Screw WB01X1137
#809

Control panel & cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Seal Infinite Control WB02X40330
#27

Control panel & cooktop diagram

Seal infinite control

Part #WB02X40330

$7.51
In Stock
Conduit Wire Asm WB18X32525
#600

Control panel & cooktop diagram

Conduit wire asm

Part #WB18X32525

$84.38
In Stock
Range Surface Element Mounting Spring WB02X20902
#62

Control panel & cooktop diagram

Range surface element mounting spring

Part #WB02X20902

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Scr 8-32 Tt WB01X23501
#802

Control panel & cooktop diagram

Scr 8-32 tt

Part #WB01X23501

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wire Harness WB18X48551
#603

Control panel & cooktop diagram

Wire harness

Part #WB18X48551

$48.44
In Stock
Maintop Wire WB18X48550
#602

Control panel & cooktop diagram

Maintop wire

Part #WB18X48550

$29.11
In Stock
Screw, #10-32 WS02X10087
#813

Control panel & cooktop diagram

Screw, #10-32

Part #WS02X10087

$8.49
In Stock
