Model # IWD30 Official Dacor warming drawer

Here are the diagrams and repair parts for Official Dacor IWD30 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 29 parts |

Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable

$2.16

In Stock

Qty

#11

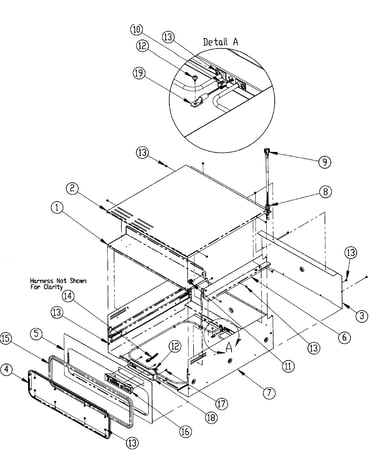

Chassis diagram

Bushing

Part #83056

This item is not returnable

$2.16

In Stock

Qty

Chassis diagram

Rear cover

Part #101657-03

$24.49

In Stock

Qty

#NI

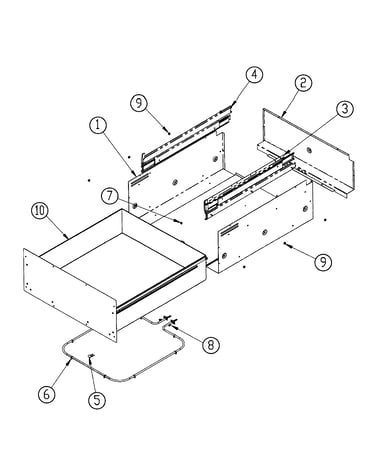

Chassis wrap diagram

Thermostat

Part #106613

$23.99

In Stock

Qty

Chassis wrap diagram

Wrap chass

Part #101883-03

$117.99

In Stock

Qty

Chassis diagram

Chase weld

Part #700877

$13.49

In Stock

Qty

#15

Chassis diagram

Gasket

Part #101649

$37.99

In Stock

Qty

#10

Chassis diagram

Bushing

Part #83523

This item is not returnable

$2.16

In Stock

Qty

Chassis diagram

Cover

Part #101882-03

$85.49

In Stock

Qty

#19

Chassis diagram

Thermistor

Part #102472

$28.99

In Stock

Qty
