Model # 7471001 Official Weber gas grill
Here are the diagrams and repair parts for Official Weber 7471001 gas grill, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
7471001 Outdoor Grills
#54

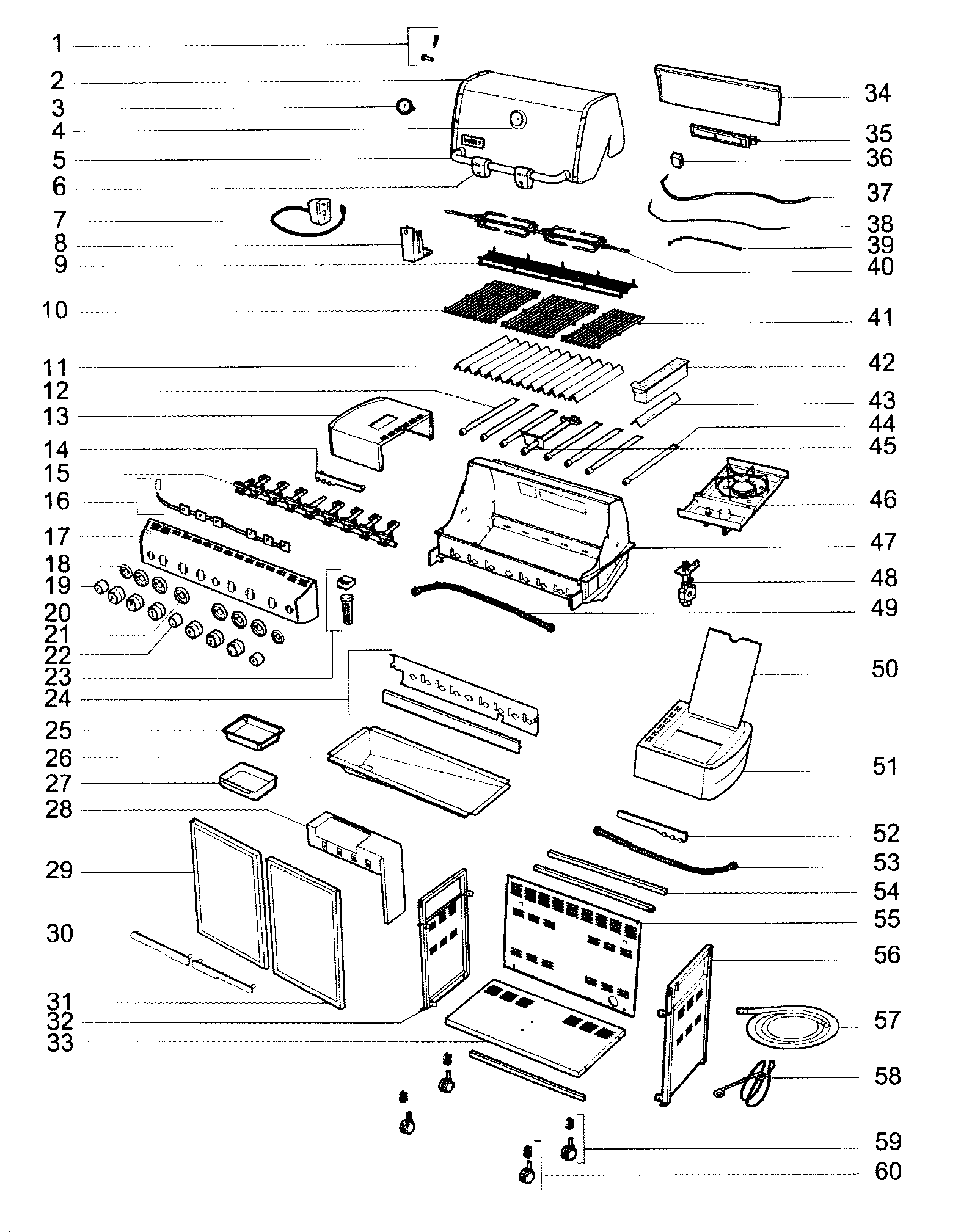

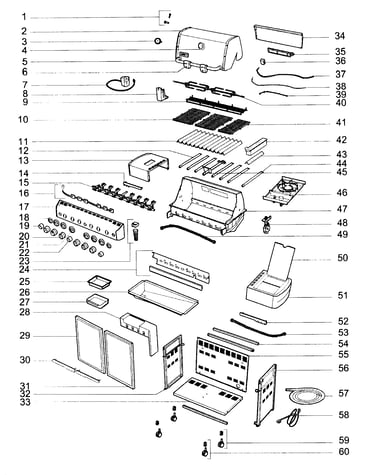

Grill parts diagram
Frame sppt
Part #70351
The manufacturer no longer makes this part, and there's no substitute part
#20
Grill parts diagram
Knob, lrg
Part #70867
The manufacturer no longer makes this part, and there's no substitute part
#23A
Grill parts diagram
Battery housing
Part #70880
The manufacturer no longer makes this part, and there's no substitute part
Door hinge
Part #70332
The manufacturer no longer makes this part, and there's no substitute part
#32
Grill parts diagram
Lhs frame asy
Part #70981
The manufacturer no longer makes this part, and there's no substitute part
#54A
Grill parts diagram
Hardware
Part #67759
The manufacturer no longer makes this part, and there's no substitute part
#21
Grill parts diagram
Bezel,lrg
Part #70318
The manufacturer no longer makes this part, and there's no substitute part
#28
Grill parts diagram
Holder
Part #70322
The manufacturer no longer makes this part, and there's no substitute part
#33A
Grill parts diagram
Hardware
Part #67762
The manufacturer no longer makes this part, and there's no substitute part
#3
Grill parts diagram
Thermometer
Part #67731
The manufacturer no longer makes this part, and there's no substitute part
Symptoms for gas grills
Choose a symptom to see related gas grill repairs.
Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…
Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…
Main cause: worn wheel…
Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…
Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…
Repair guides for gas grills
These step-by-step repair guides will help you safely fix what’s broken on your gas grill.
How to replace a gas grill wheel
Replace a broken or damaged wheel in less than 15 minutes.…
Repair difficulty
Time required
15 minutes or less
How to replace a gas grill igniter electrode
Replace the igniter electrode on your gas grill if it won’t light the burner.…
Repair difficulty
Time required
15 minutes or less
How to replace a gas grill ignition module
Follow these steps to replace the ignition module if it doesn't produce a spark. …
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your outdoor grills
Use the advice and tips in these articles and videos to get the most out of your gas grill.
Learn about the main parts of gas grills and get DIY tips for replacing gas grill parts.…
