Kenmore
Canister Vacuum

Model # 1162645086 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162645086 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Base Bumper 4147118
#23

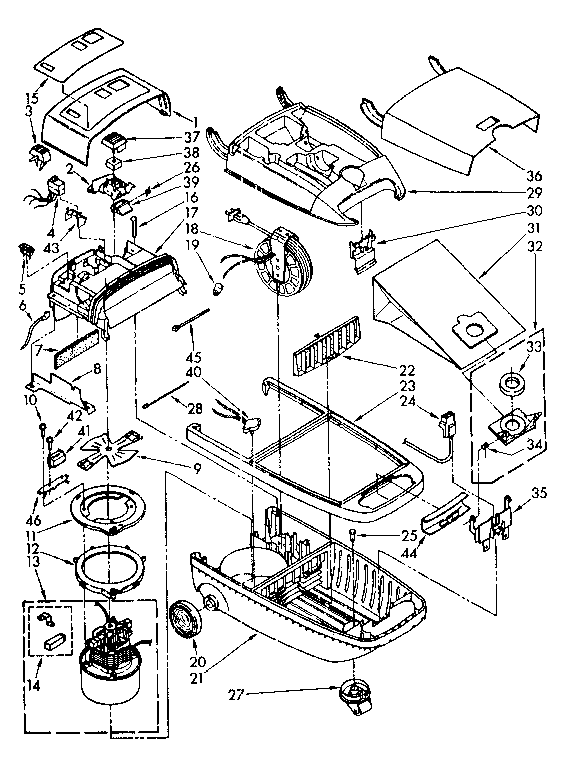

Base assembly diagram

Base bumper

Part #4147118

The manufacturer no longer makes this part, and there's no substitute part

Switch 706917
#4

Base assembly diagram

Switch

Part #706917

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 4148614
#28

Base assembly diagram

Lead wire

Part #4148614

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 747151
#15

Hose assembly diagram

Vacuum beater bar

Part #747151

The manufacturer no longer makes this part, and there's no substitute part

Hose Swivel 4147155
#2

Hose assembly diagram

Hose swivel

Part #4147155

The manufacturer no longer makes this part, and there's no substitute part

Strike (gray) 4147967
#35

Base assembly diagram

Strike (gray)

Part #4147967

The manufacturer no longer makes this part, and there's no substitute part

Frame Plug 4147153
#4

Hose assembly diagram

Frame plug

Part #4147153

The manufacturer no longer makes this part, and there's no substitute part

Control Bracket 4147497
#46

Base assembly diagram

Control bracket

Part #4147497

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 4147126
#20

Base assembly diagram

Vacuum wheel

Part #4147126

The manufacturer no longer makes this part, and there's no substitute part

Lid Tool 4147198
#36

Base assembly diagram

Lid tool

Part #4147198

The manufacturer no longer makes this part, and there's no substitute part
