Model # 229964230 Official Kenmore gas-fired boiler

Here are the diagrams and repair parts for Official Kenmore 229964230 gas-fired boiler, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
229964230 Gas-Fired Boiler
Circulator 94001
#10

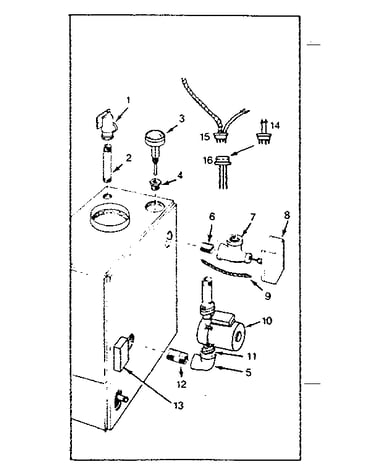

Boiler controls diagram

Circulator

Part #94001

Replaced by #103251

?
Manufacturer substitution
This part replaces 94001. Substitute parts can look different from the original.
$224.79
5% OFF Phone Price : $236.79
In Stock
Pr Gauge 588
#3

Boiler controls diagram

Pr gauge

Part #588

Replaced by #1260006SP

?
Manufacturer substitution
This part replaces 588. Substitute parts can look different from the original.
In Stock
Relief Valve 8840
#1

Boiler controls diagram

Relief valve

Part #8840

Replaced by #10-408-05

?
Manufacturer substitution
This part replaces 8840. Substitute parts can look different from the original.
$44.77
12% OFF Phone Price : $50.77
In Stock
Damper D80B-1086
#23C

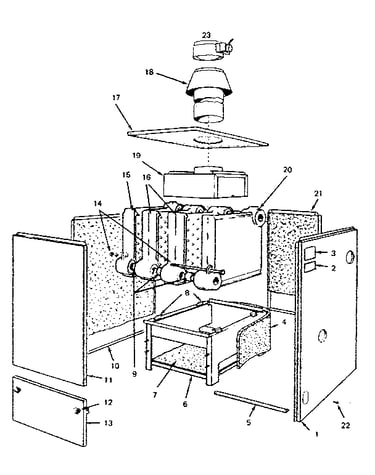

Jacket - sections & base parts diagram

Damper

Part #D80B-1086

Replaced by #FC46487201

?
Manufacturer substitution
This part replaces D80B-1086. Substitute parts can look different from the original.
In Stock
7 Sec Block 410-710

#NI

All parts diagram

7 sec block

Part #410-710

Replaced by #41000713SVC

?
Manufacturer substitution
This part replaces 410-710. Substitute parts can look different from the original.
In Stock
Gas Valve VR8440M-3022
#1A

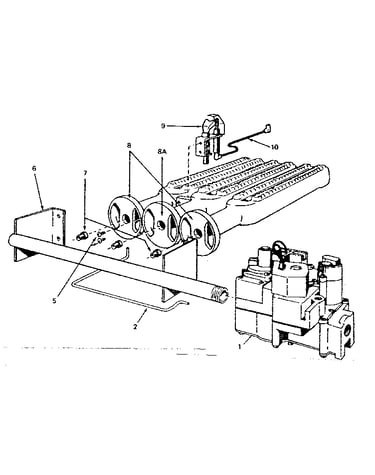

Gas burners and manifold parts diagram

Gas valve

Part #VR8440M-3022

The manufacturer no longer makes this part, and there's no substitute part

6 Sec Block 410-610

#NI

All parts diagram

6 sec block

Part #410-610

Replaced by #41000613SVC

?
Manufacturer substitution
This part replaces 410-610. Substitute parts can look different from the original.
In Stock
Bx Cable 542
#9

Boiler controls diagram

Bx cable

Part #542

Replaced by #37519501

?
Manufacturer substitution
This part replaces 542. Substitute parts can look different from the original.
In Stock
Base Boiler 104-3
#6A

Jacket - sections & base parts diagram

Base boiler

Part #104-3

Replaced by #42500734

?
Manufacturer substitution
This part replaces 104-3. Substitute parts can look different from the original.
In Stock
Base Boiler 104-4
#6B

Jacket - sections & base parts diagram

Base boiler

Part #104-4

Replaced by #42500735

?
Manufacturer substitution
This part replaces 104-4. Substitute parts can look different from the original.
In Stock
