Model # REG533D2 Official Frigidaire electric range - lf32089110

Here are the diagrams and repair parts for Official Frigidaire REG533D2 electric range - lf32089110, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Light 3013071
#12

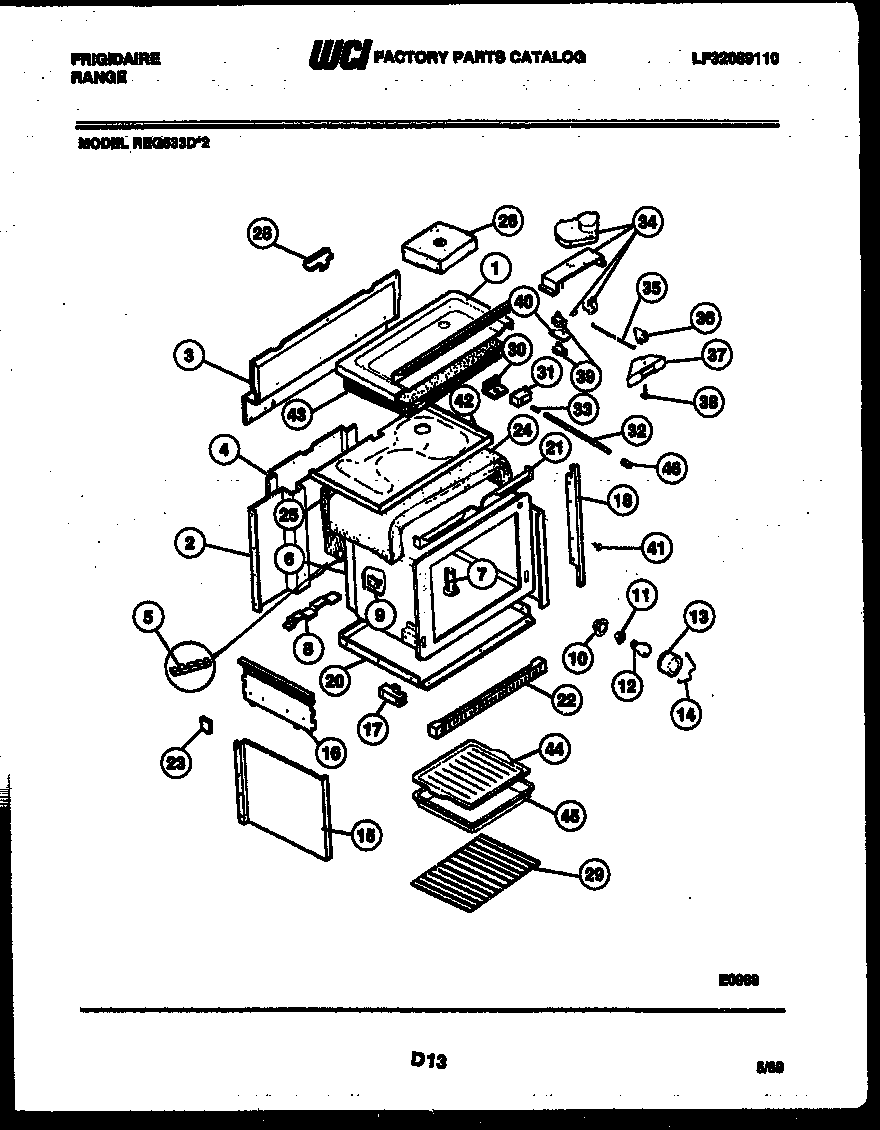

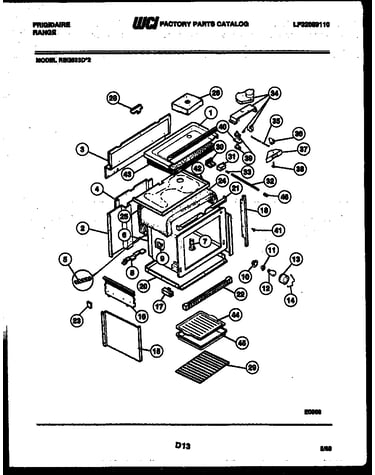

Body parts diagram

Light

Part #3013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Terminal Block 3051825
#3

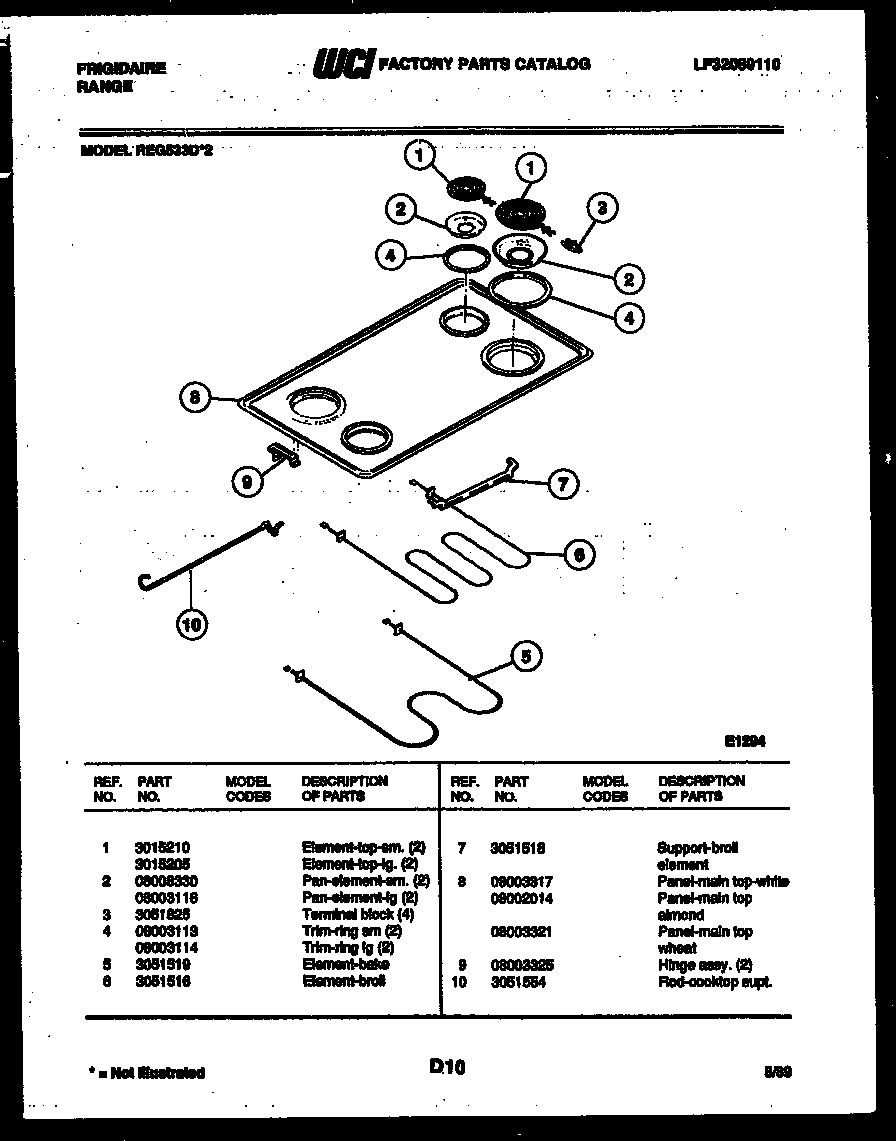

Cooktop and broiler parts diagram

Terminal block

Part #3051825

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 3051825. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Surface Element 3015210
#1

Cooktop and broiler parts diagram

Surface element

Part #3015210

Replaced by #318372211

?
Manufacturer substitution
This part replaces 3015210. Substitute parts can look different from the original.
BEST SELLER
$37.93 |
14% OFF Phone Price : $43.93
In Stock
Element 3051519
#5

Cooktop and broiler parts diagram

Element

Part #3051519

Replaced by #5303051519

?
Manufacturer substitution
This part replaces 3051519. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Receptacle 08011085
#11

Body parts diagram

Receptacle

Part #08011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 08011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Rack 3131973
#29

Body parts diagram

Oven rack

Part #3131973

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 3131973. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
Back Order
Surface Element 3015205
#1A

Cooktop and broiler parts diagram

Surface element

Part #3015205

Replaced by #5308011964

?
Manufacturer substitution
This part replaces 3015205. Substitute parts can look different from the original.
$153.29 |
7% OFF Phone Price : $165.29
In Stock
Switch-8" El 3051541
#12A

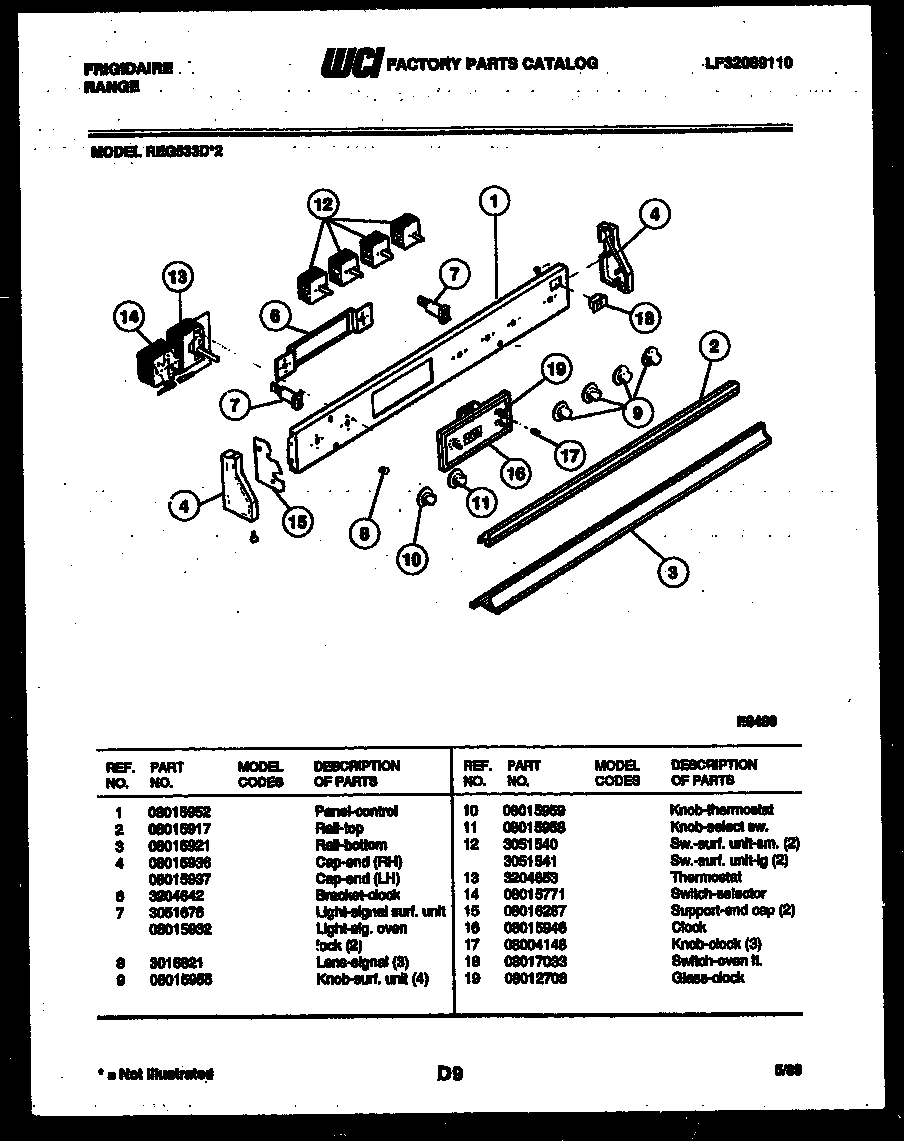

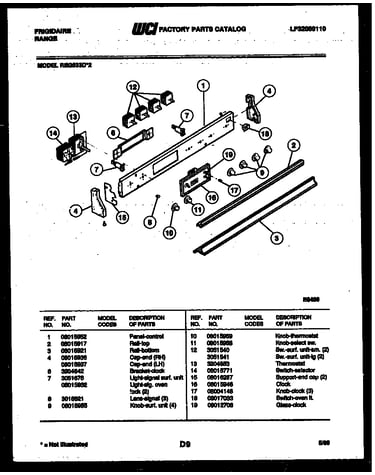

Control panel diagram

Switch-8" el

Part #3051541

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 3051541. Substitute parts can look different from the original.
$41.02 |
13% OFF Phone Price : $47.02
In Stock
Cover 08011086
#13

Body parts diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Cover 3051251
#46

Body parts diagram

Cover

Part #3051251

Replaced by #08067758

?
Manufacturer substitution
This part replaces 3051251. Substitute parts can look different from the original.
This item is not returnable
$2.51
In Stock
