Model # AZ25E15D5BM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ25E15D5BM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAZ25E15D5BM1 Zoneline Air Conditioner

  • Room Air Conditioner Heater High-limit Thermostat WP28X10007
    #2028

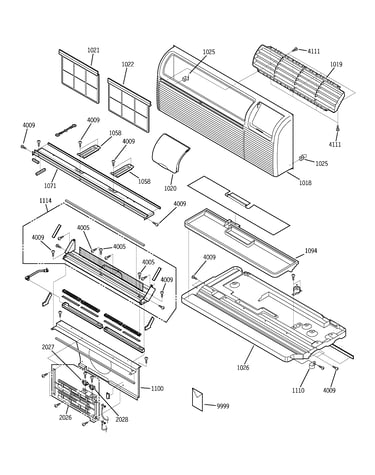

    Grille, heater & base parts diagram

    Room air conditioner heater high-limit thermostat

    Part #WP28X10007

    Replaced by #WP28X10013

    ?
    Manufacturer substitution
    This part replaces WP28X10007. Substitute parts can look different from the original.
    $53.86 |
    10% OFF Phone Price : $59.86
    In Stock
  • Power Supply WJ35X10004
    #2101

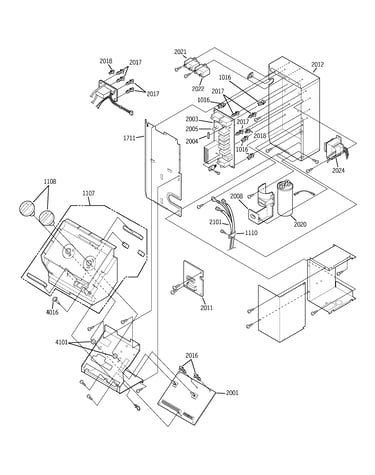

    Control parts diagram

    Power supply

    Part #WJ35X10004

    Replaced by #WJ35X10142

    ?
    Manufacturer substitution
    This part replaces WJ35X10004. Substitute parts can look different from the original.
    $118.26 |
    9% OFF Phone Price : $130.26
    In Stock
  • Room Air Conditioner Heater High-limit Thermostat WP28X10005
    #2027

    Grille, heater & base parts diagram

    Room air conditioner heater high-limit thermostat

    Part #WP28X10005

    $36.69 |
    14% OFF Phone Price : $42.69
    In Stock
  • Bulkhead Insert WJ40X10015
    #1014

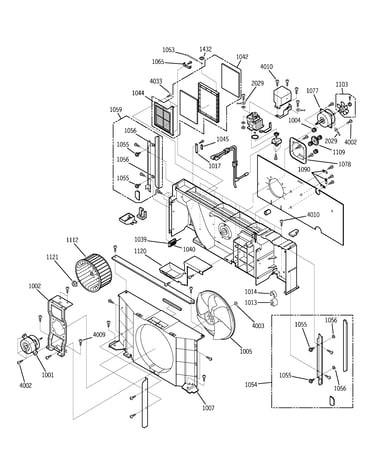

    Motor & chassis parts diagram

    Bulkhead insert

    Part #WJ40X10015

    $8.37
    In Stock
  • Special Screw WJ01X10037
    Special screw

    Part #WJ01X10037

    $14.74
    In Stock
  • Room Air Conditioner Transformer WP27X10023
    #2024

    Control parts diagram

    Room air conditioner transformer

    Part #WP27X10023

    $71.23 |
    8% OFF Phone Price : $77.23
    In Stock
  • Room Air Conditioner Compressor Grommet WJ01X10046
    #3011

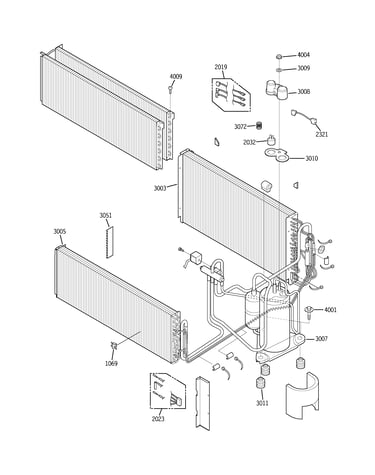

    Unit parts diagram

    Room air conditioner compressor grommet

    Part #WJ01X10046

    $32.58 |
    16% OFF Phone Price : $38.58
    In Stock
  • Special Nut WJ01X10010
    #4004

    Unit parts diagram

    Special nut

    Part #WJ01X10010

    $7.71
    In Stock
  • Thermistor H WJ03X10011
    #1069

    Unit parts diagram

    Thermistor h

    Part #WJ03X10011

    $25.02
    In Stock
  • Special Nut WJ01X10042
    #4101

    Control parts diagram

    Special nut

    Part #WJ01X10042

    $11.40
    In Stock
