Digital Camcorder

Model # HDR-GW77V/B Official Sony camcorder

Here are the diagrams and repair parts for Official Sony HDR-GW77V/B camcorder, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
HDR-GW77V/B Camcorders
Frame Lens 442758201
#104

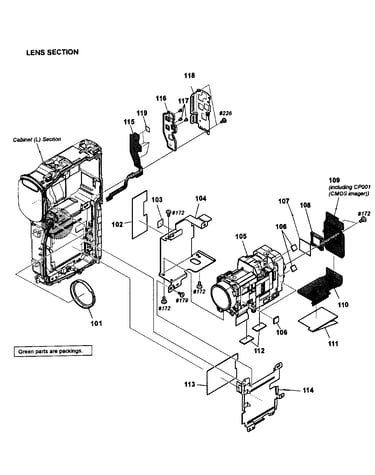

Lens assy diagram

Frame lens

Part #442758201

$8.03
In Stock
Screw,red 320853701
Screw,red

Part #320853701

This item is not returnable
$3.15
In Stock
Sheet 443444101
Sheet

Part #443444101

This item is not returnable
$2.65
In Stock
Cabinet Re 442760101
#5

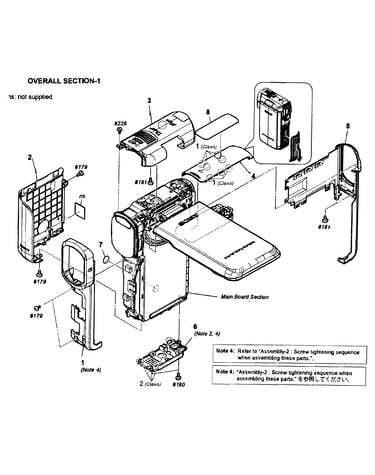

Section-1 diagram

Cabinet re

Part #442760101

$25.27
In Stock
Seal,rubbe 426848201
#108

Lens assy diagram

Seal,rubbe

Part #426848201

$10.31
In Stock
Socket,bat 125192821
#BH10

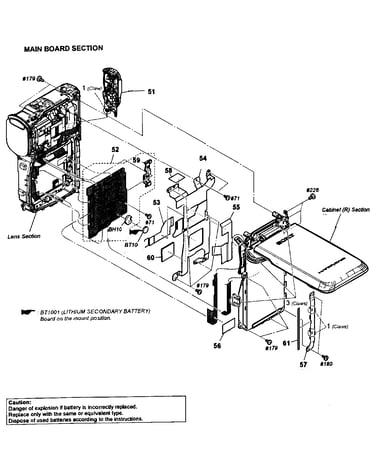

Main pcb diagram

Socket,bat

Part #125192821

This item is not returnable
$7.22
In Stock
P Cabinet 442760221
#209B

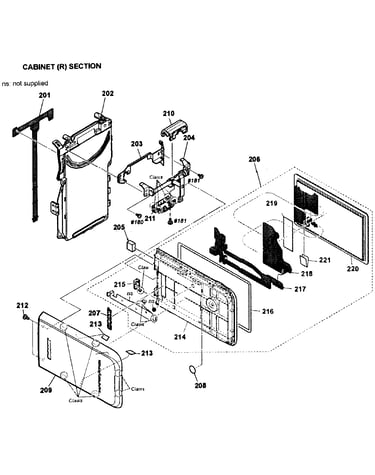

Cabinet right diagram

P cabinet

Part #442760221

$22.31
In Stock
Sheet Shield 442757101
#53

Main pcb diagram

Sheet shield

Part #442757101

This item is not returnable
$7.22
In Stock
Tape 443369301
#56

Main pcb diagram

Tape

Part #443369301

This item is not returnable
$2.65
In Stock
Fp-1529 Pc 188515911
#163

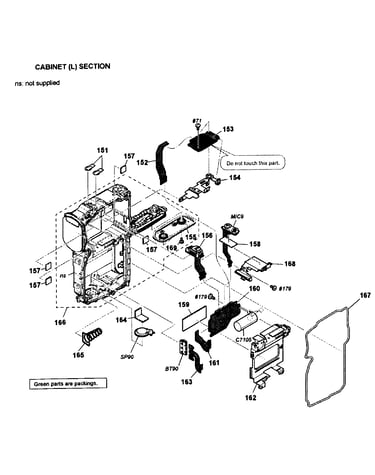

Cabinet left diagram

Fp-1529 pc

Part #188515911

$10.31
In Stock
