Model # WE5T22SH4D Official Weed Eater rotary lawn mower

Here are the diagrams and repair parts for Official Weed Eater WE5T22SH4D rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Lock Nut 83923
#46

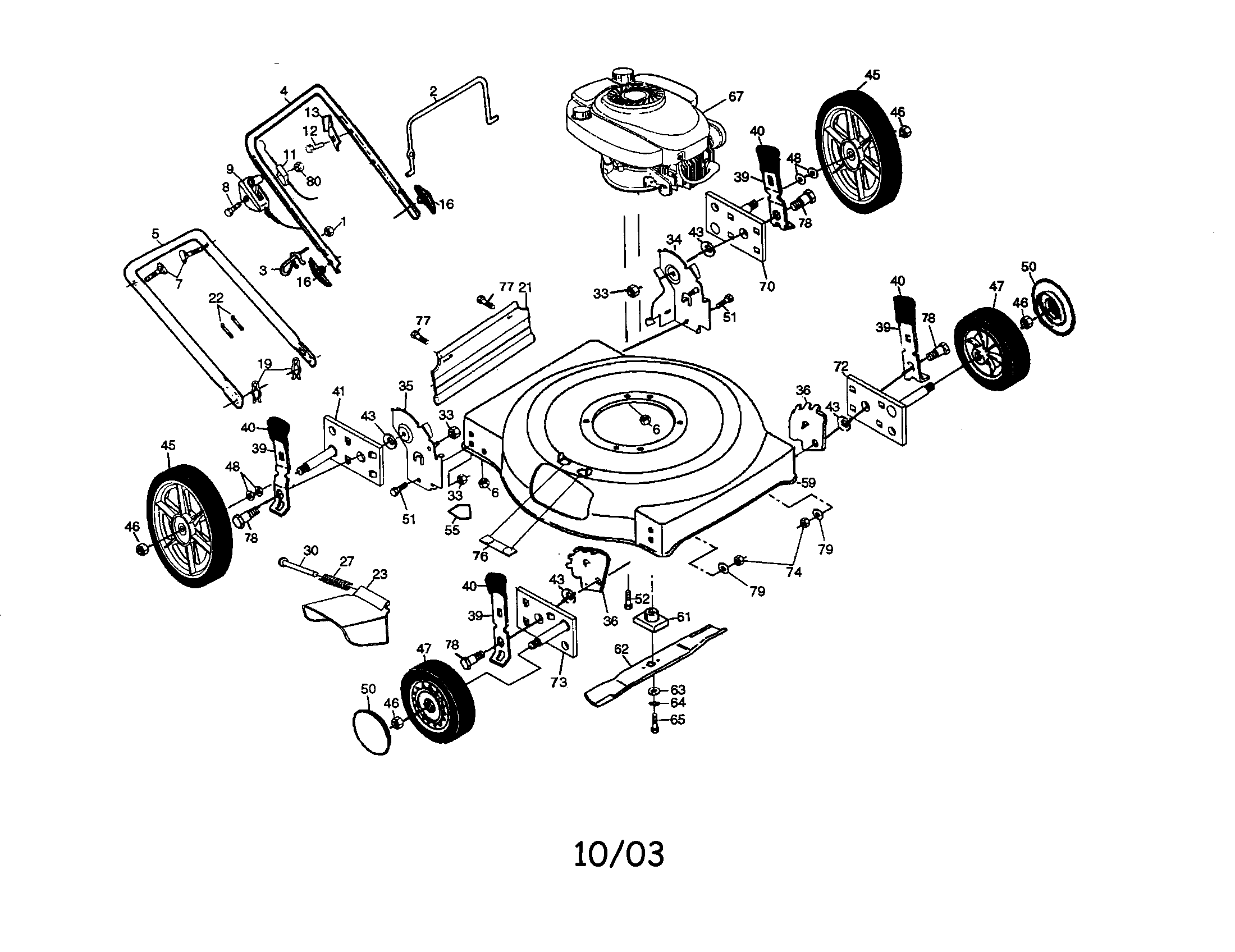

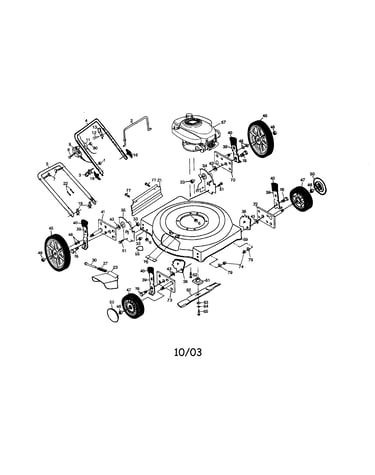

Engine/housing/wheels/handle diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Blade 141114
#62

Engine/housing/wheels/handle diagram

Lawn mower blade

Part #141114

Replaced by #532406713

?
Manufacturer substitution
This part replaces 141114. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Washer 61537
#79

Engine/housing/wheels/handle diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Handle Knob 136376
#16

Engine/housing/wheels/handle diagram

Handle knob

Part #136376

Replaced by #532185577

?
Manufacturer substitution
This part replaces 136376. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 131959
#7

Engine/housing/wheels/handle diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Wheel 146247
#47

Engine/housing/wheels/handle diagram

Lawn mower wheel

Part #146247

Replaced by #532151155

?
Manufacturer substitution
This part replaces 146247. Substitute parts can look different from the original.
$25.98 |
19% OFF Phone Price : $31.98
In Stock
Torsion Spring 160832
#27

Engine/housing/wheels/handle diagram

Torsion spring

Part #160832

Replaced by #532408585

?
Manufacturer substitution
This part replaces 160832. Substitute parts can look different from the original.
This item is not returnable
$16.69 |
11% OFF Phone Price : $18.69
In Stock
Upstop Bracket 850733X004
#13

Engine/housing/wheels/handle diagram

Upstop bracket

Part #850733X004

Replaced by #532850733

?
Manufacturer substitution
This part replaces 850733X004. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#63

Engine/housing/wheels/handle diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Skirt 165858
#21

Engine/housing/wheels/handle diagram

Skirt

Part #165858

Replaced by #532413160

?
Manufacturer substitution
This part replaces 165858. Substitute parts can look different from the original.
$20.54
In Stock
