Amana
Top-Mount Refrigerator

Model # ART316TFDW02 Official Amana top-mount refrigerator

Here are the diagrams and repair parts for Official Amana ART316TFDW02 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

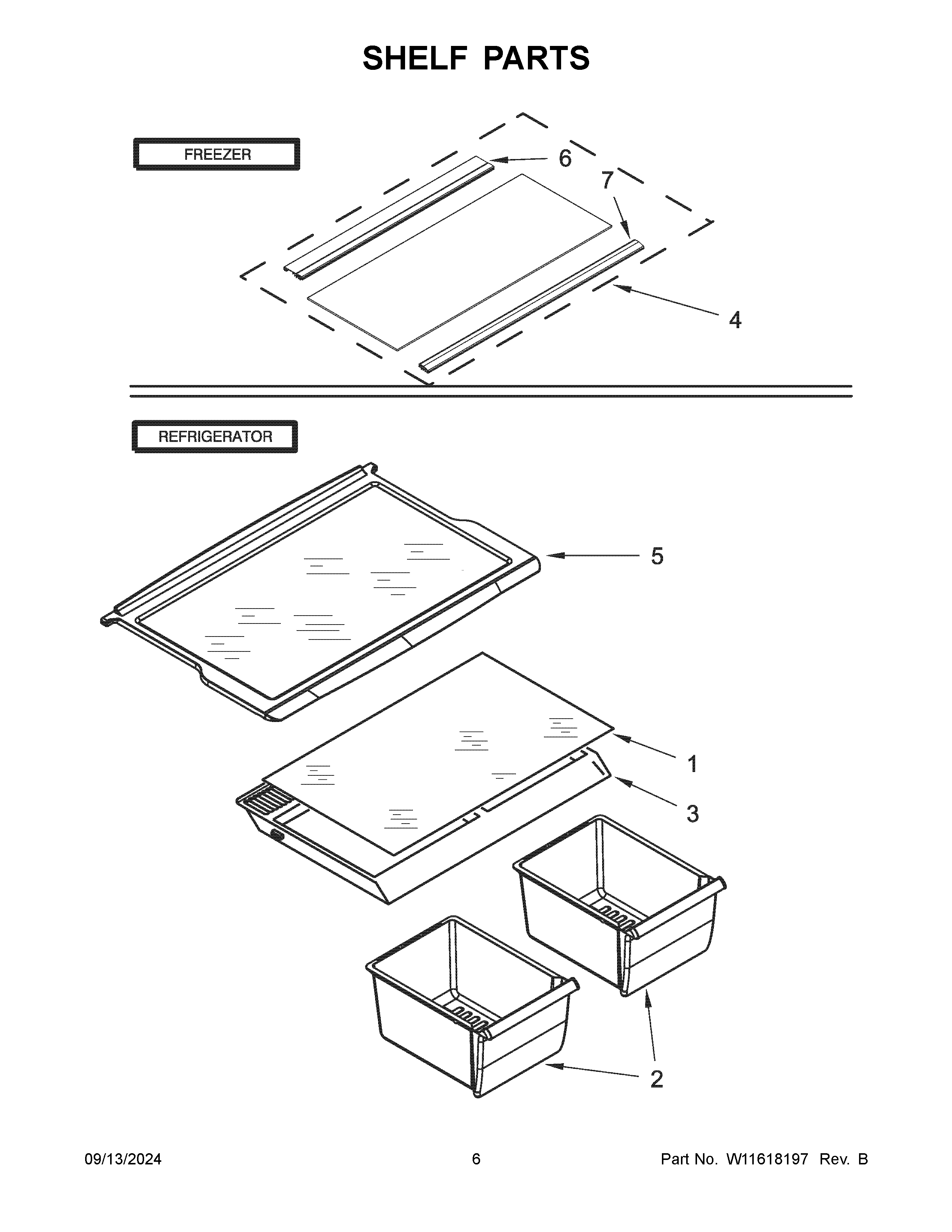

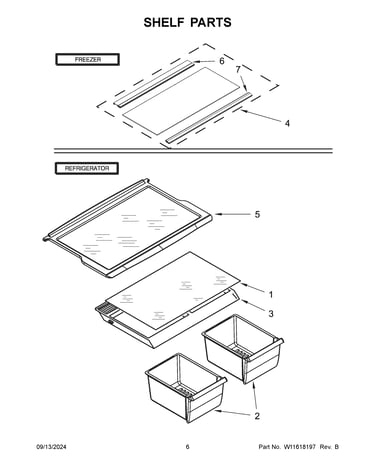

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Switch- Rock W10847853
#19

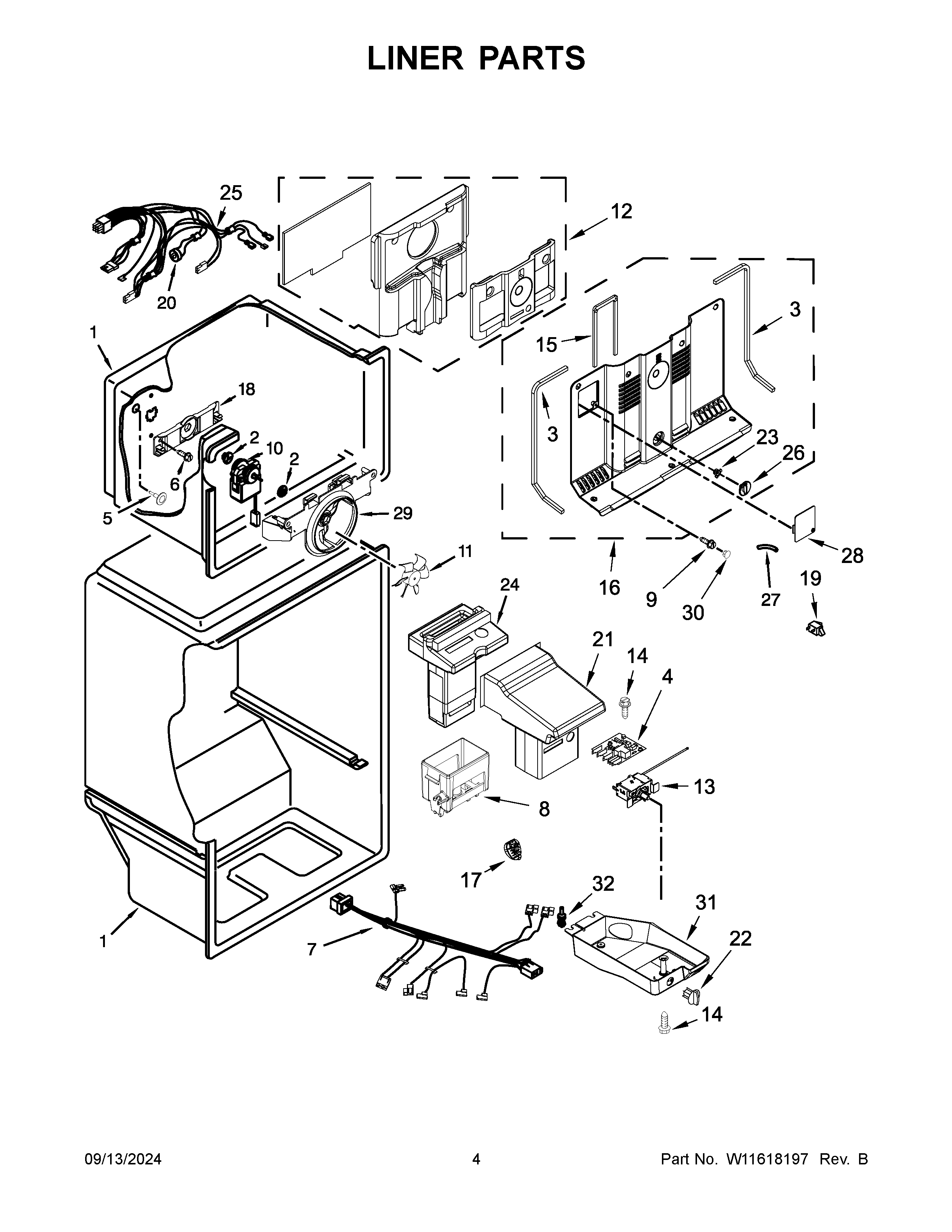

Liner parts diagram

Switch- rock

Part #W10847853

Replaced by #W11384469

?
Manufacturer substitution
This part replaces W10847853. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Drier Assembly W10669573
#24

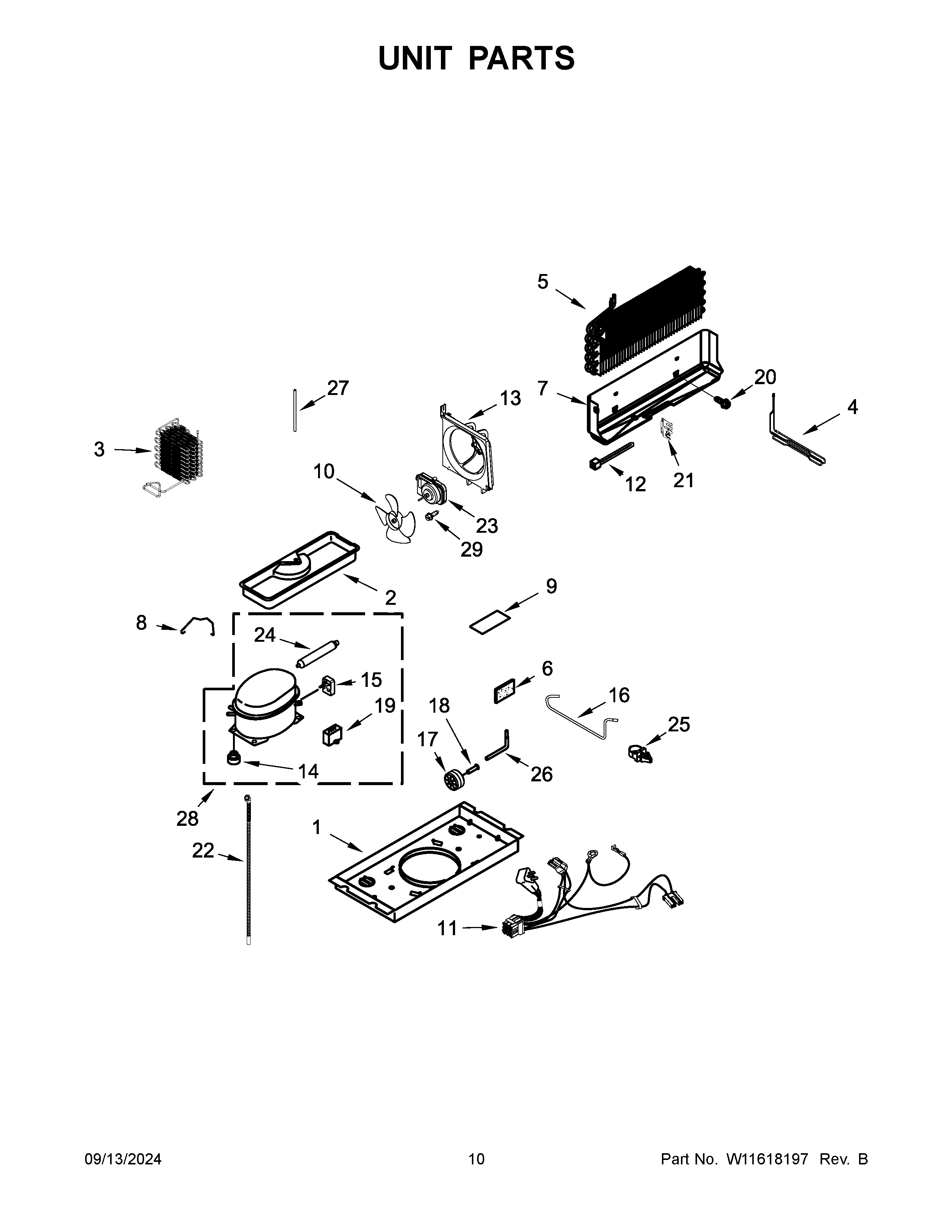

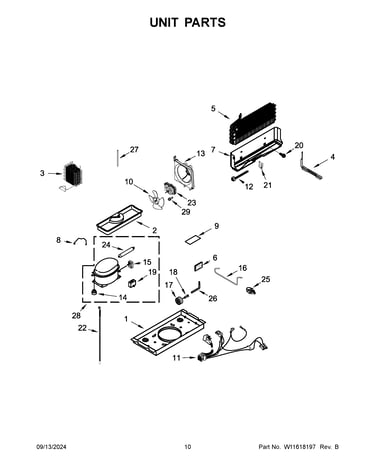

Unit parts diagram

Refrigerator drier assembly

Part #W10669573

Replaced by #W10843121

?
Manufacturer substitution
This part replaces W10669573. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Capacitor W10590083
#19

Unit parts diagram

Refrigerator capacitor

Part #W10590083

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces W10590083. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Refrigerator Ice Maker Kit (replaces W11534202, Wpw10715708) W11510803
#NI

Optional parts diagram

Refrigerator ice maker kit (replaces w11534202, wpw10715708)

Part #W11510803

BEST SELLER
$111.86 |
10% OFF Phone Price : $123.86
In Stock
Compressor A W11476127
#28

Unit parts diagram

Compressor a

Part #W11476127

Replaced by #W11580057

?
Manufacturer substitution
This part replaces W11476127. Substitute parts can look different from the original.
BEST SELLER
$273.33
In Stock
Appliance Silicone Lubricant 542638
#NI

Optional parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Touch Up Kit 72032
#NI

Optional parts diagram

Touch up kit

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Refrigerator Screw 489497
#7

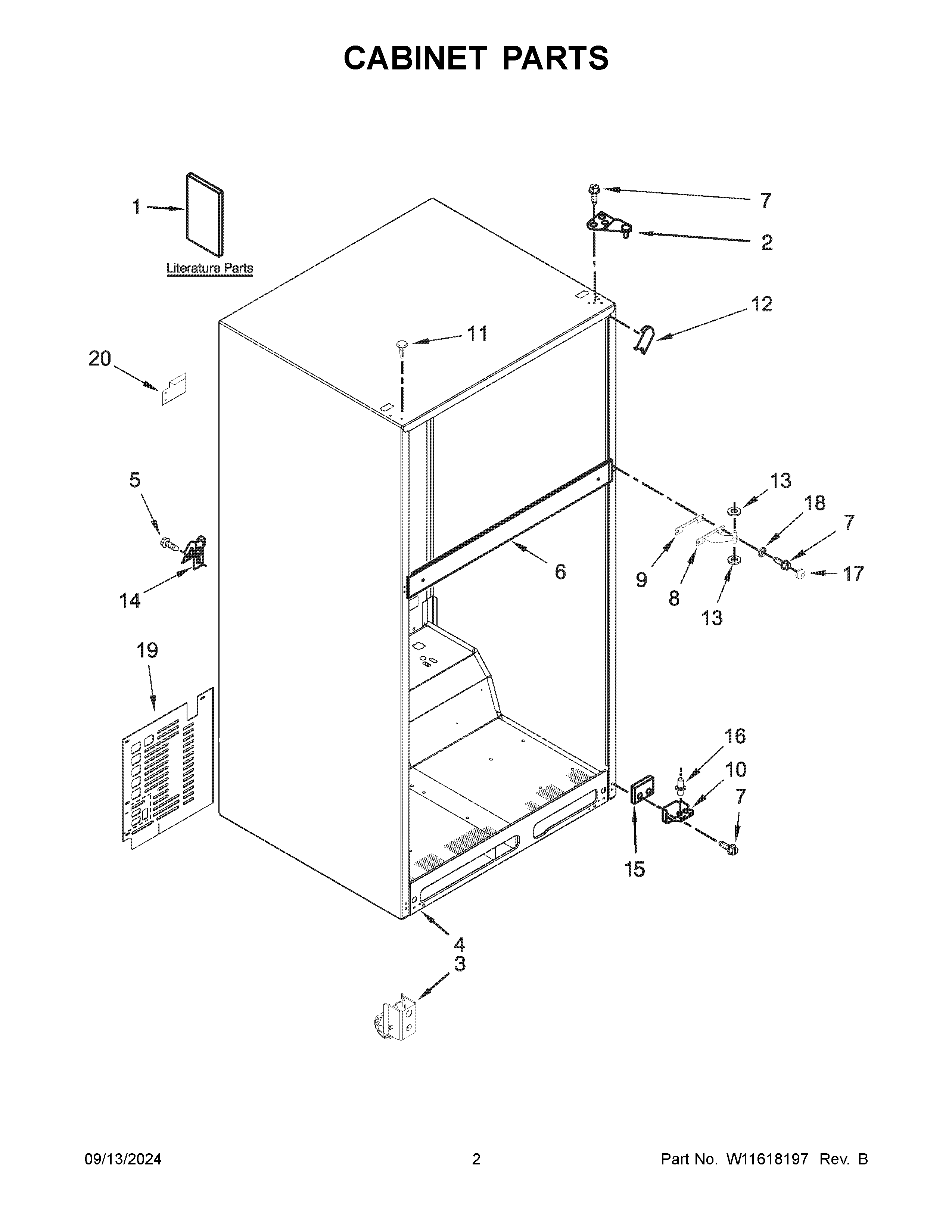

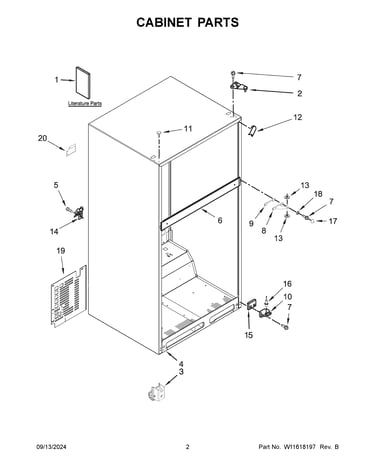

Cabinet parts diagram

Refrigerator screw

Part #489497

Replaced by #WP489497

?
Manufacturer substitution
This part replaces 489497. Substitute parts can look different from the original.
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Refrigerator Barrier 1118680
#27

Liner parts diagram

Refrigerator barrier

Part #1118680

Replaced by #WP2196003

?
Manufacturer substitution
This part replaces 1118680. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Refrigerator Door Trim W10719700
#8

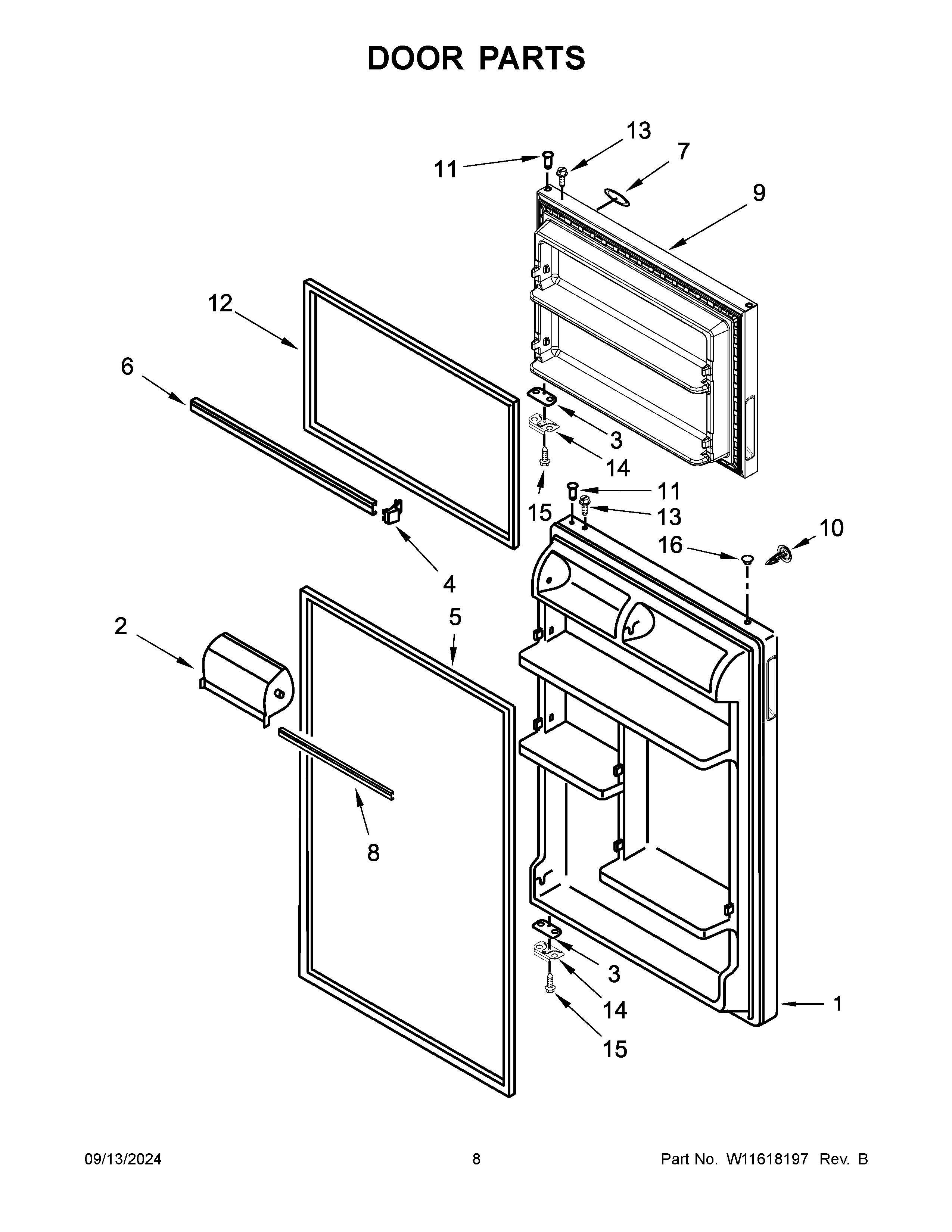

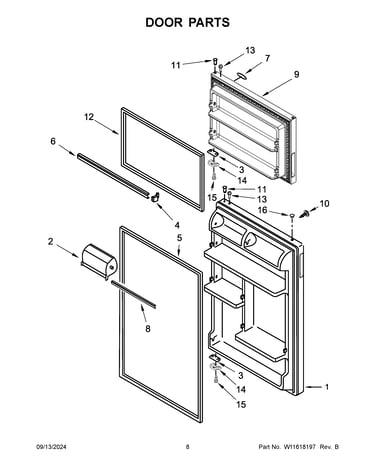

Door parts diagram

Refrigerator door trim

Part #W10719700

Replaced by #W11129820

?
Manufacturer substitution
This part replaces W10719700. Substitute parts can look different from the original.
$50.91 |
11% OFF Phone Price : $56.91
In Stock
