Model # 217585811 Official Craftsman 7.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585811 7.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

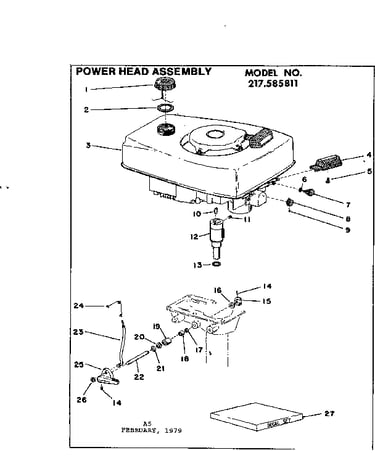

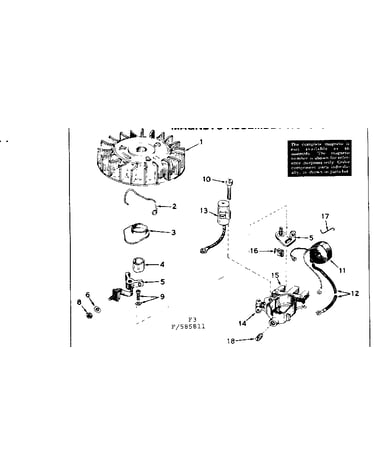

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 235 parts  |
Seal 510242
#72

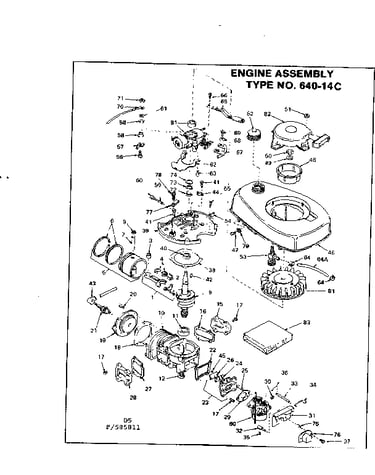

Engine assembly diagram

Seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

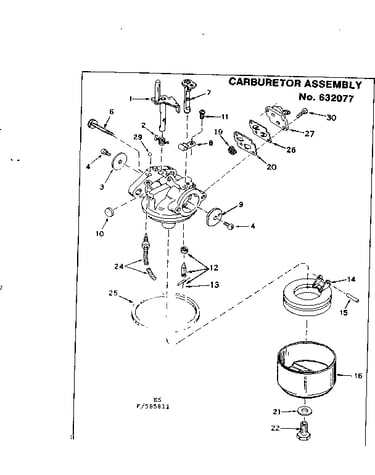

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Spring 590412
#5

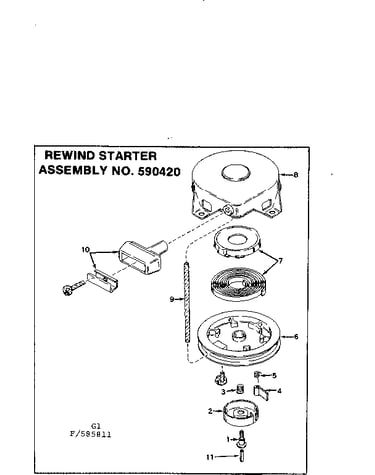

Rewind starter assembly diagram

Spring

Part #590412

The manufacturer no longer makes this part, and there's no substitute part

Gasket (gray) 26945
#1

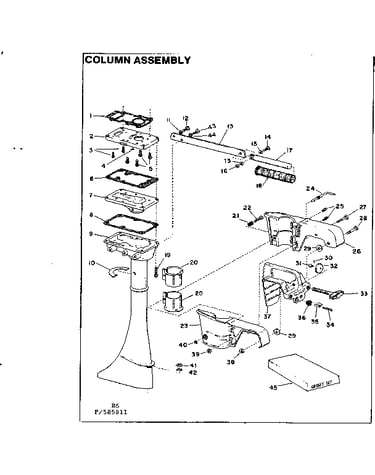

Column assembly diagram

Gasket (gray)

Part #26945

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Propeller Nut 26011
#19

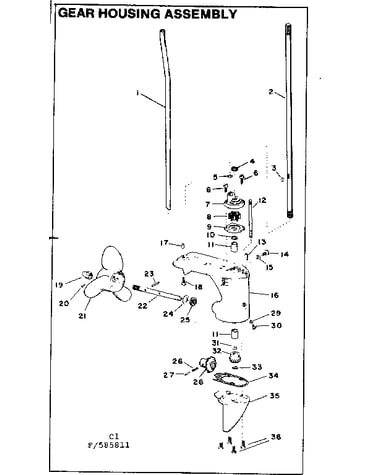

Gear housing assembly diagram

Preway boat motor propeller nut

Part #26011

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Propeller Shaft Oil Seal 96014
#25

Gear housing assembly diagram

Preway boat motor propeller shaft oil seal

Part #96014

The manufacturer no longer makes this part, and there's no substitute part

Screw 579
#19

Column assembly diagram

Screw

Part #579

The manufacturer no longer makes this part, and there's no substitute part

Exercise Equipment Washer 4447
#29

Gear housing assembly diagram

Exercise equipment washer

Part #4447

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Oil Seal 96009
#10

Gear housing assembly diagram

Preway boat motor oil seal

Part #96009

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Column Gasket 26619
#8

Column assembly diagram

Boat motor column gasket

Part #26619

The manufacturer no longer makes this part, and there's no substitute part
