Model # NEX-F3K/B Official Sony digital camera

Here are the diagrams and repair parts for Official Sony NEX-F3K-B digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

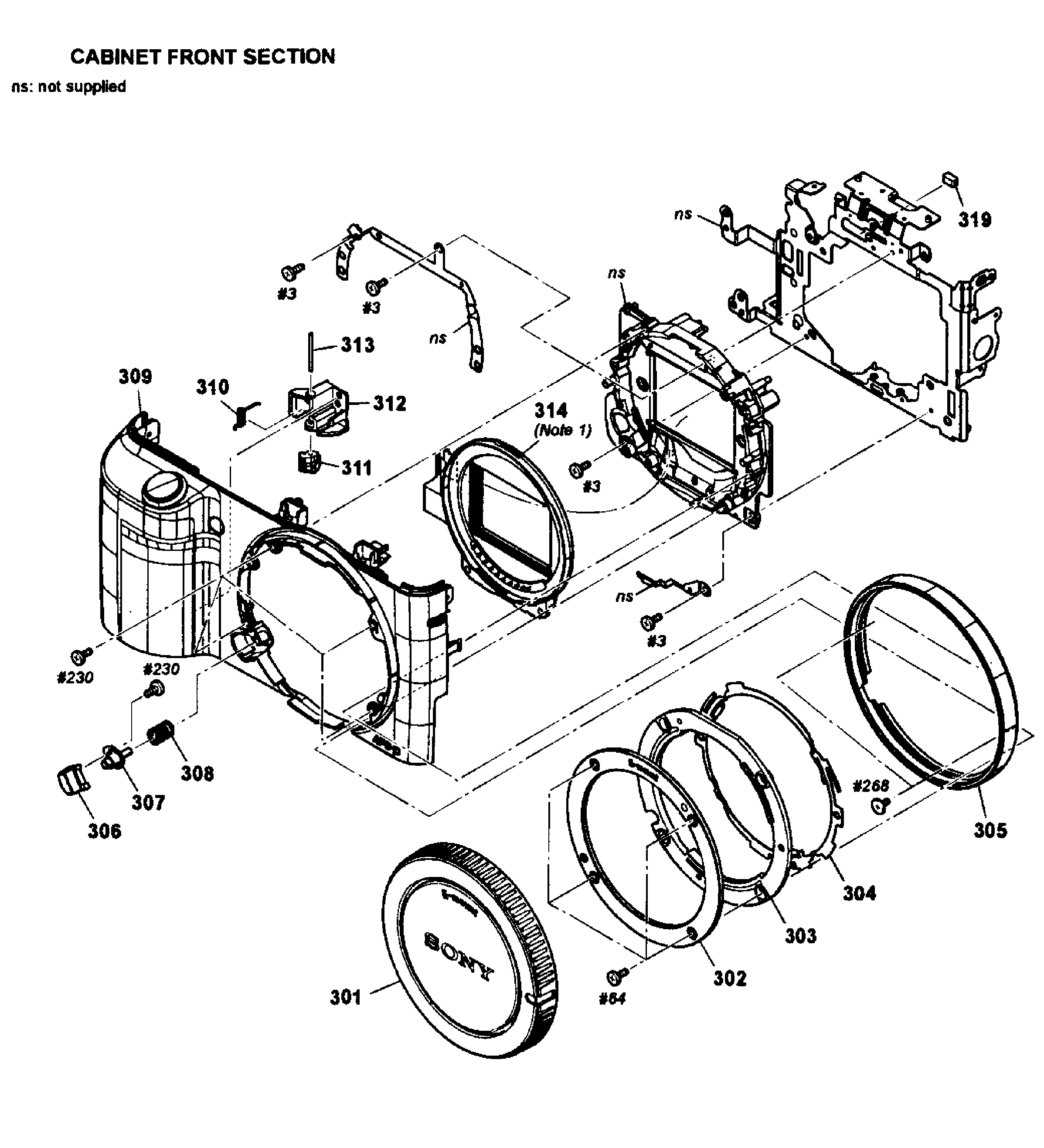

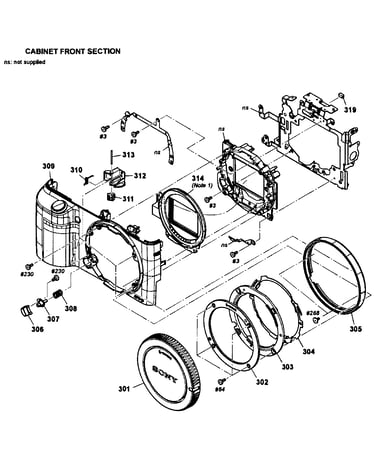

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Insulation Sheet 442738401
#105

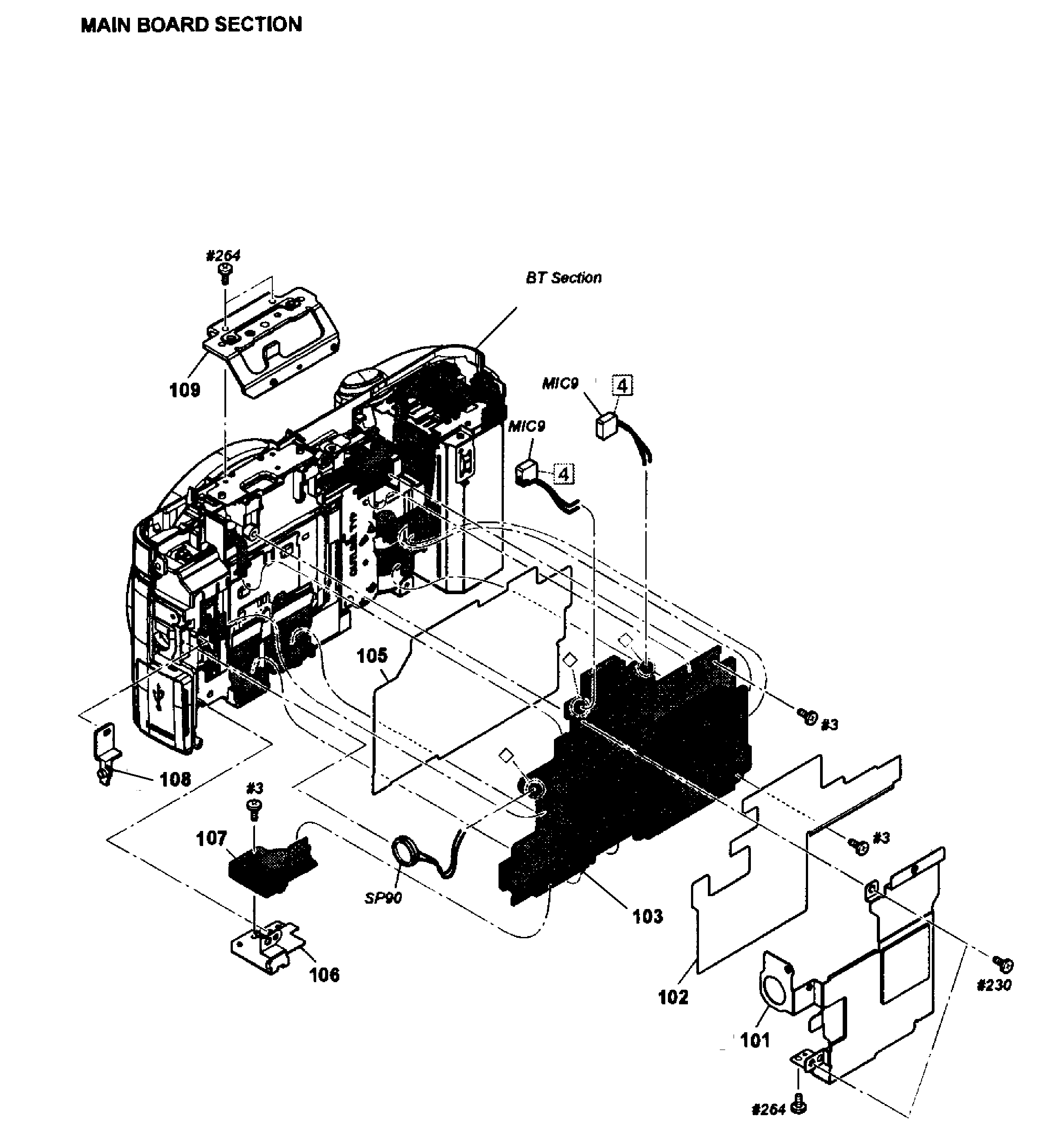

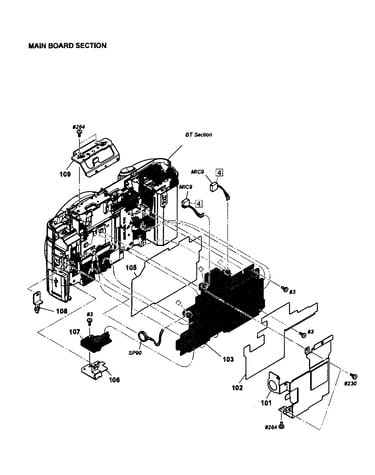

Main pcb diagram

Insulation sheet

Part #442738401

$8.86
In Stock
Sony Jack Cover X25844031
#154

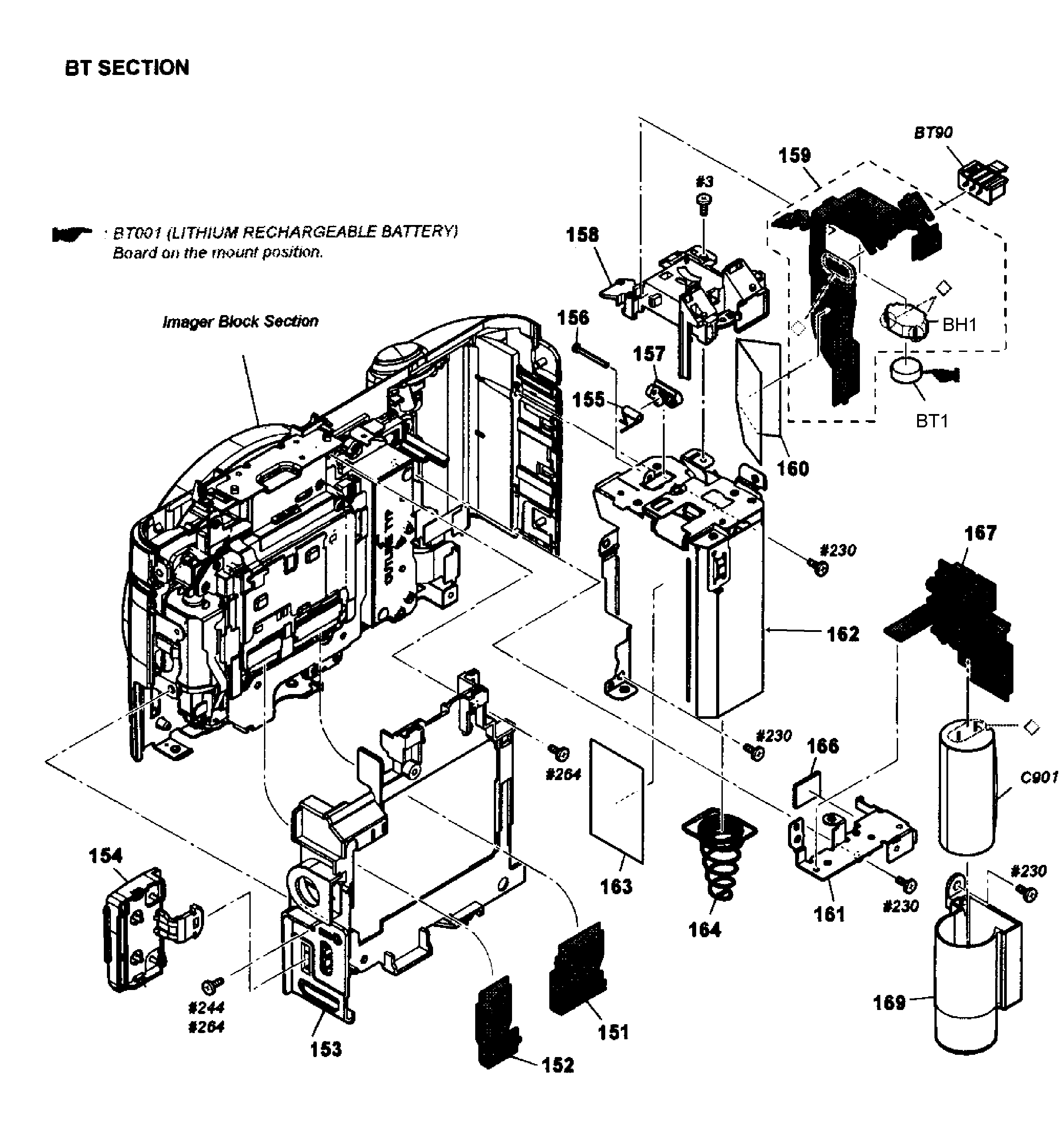

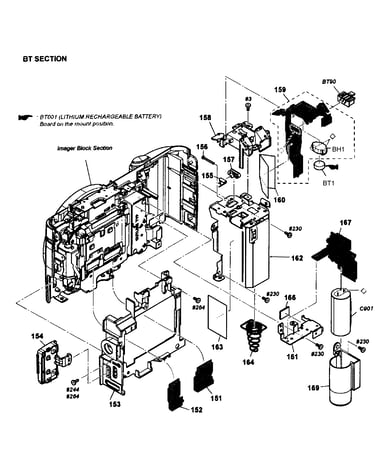

Bt assy diagram

Sony jack cover

Part #X25844031

$11.76
In Stock
Sheet,radi 443045001
#210

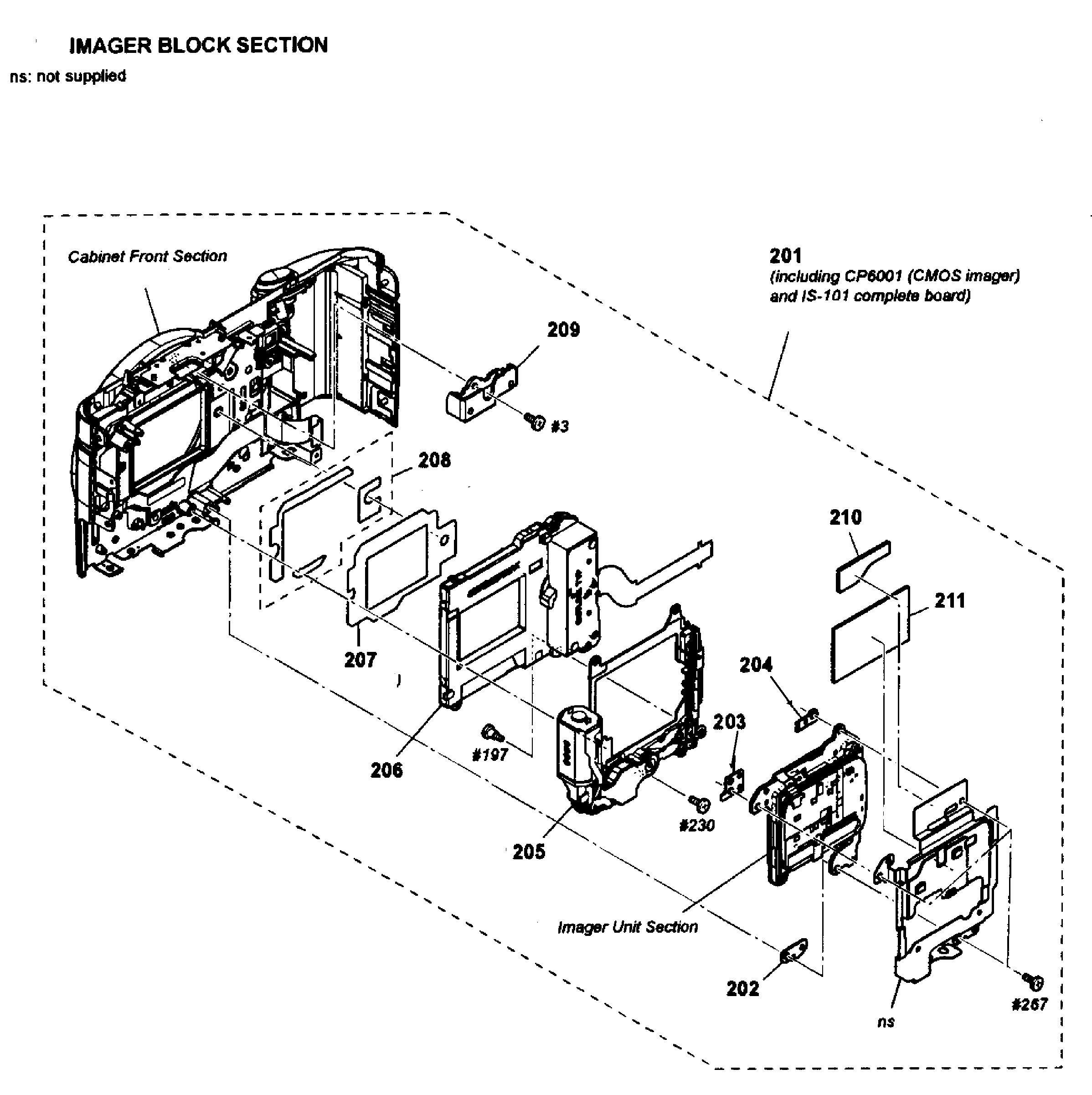

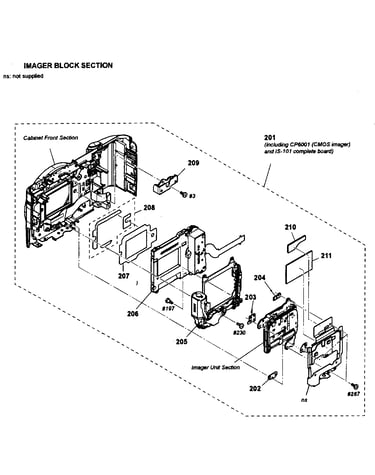

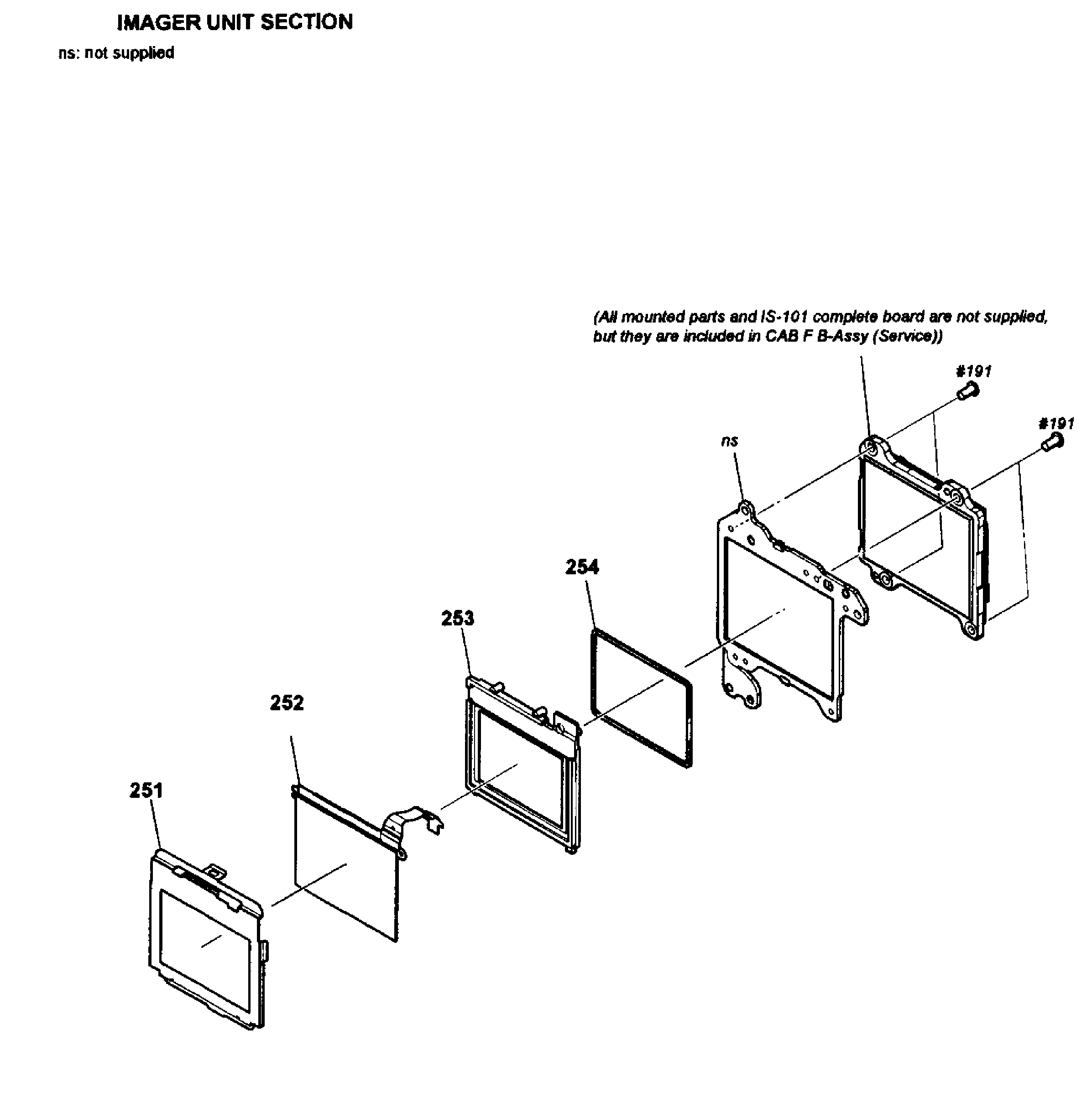

Imager block diagram

Sheet,radi

Part #443045001

This item is not returnable
$5.57
In Stock
Shoulder S 418853801
#NI

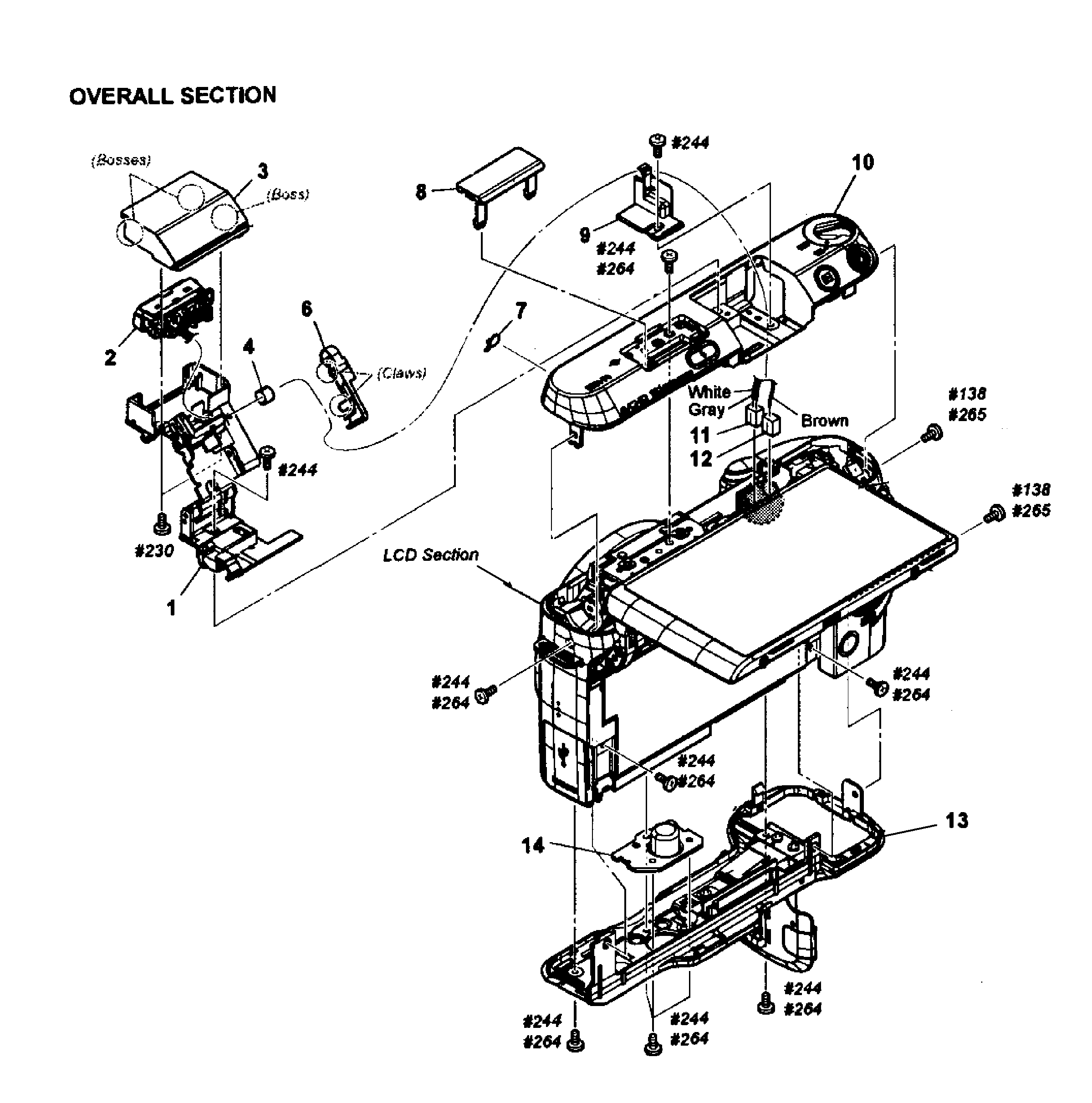

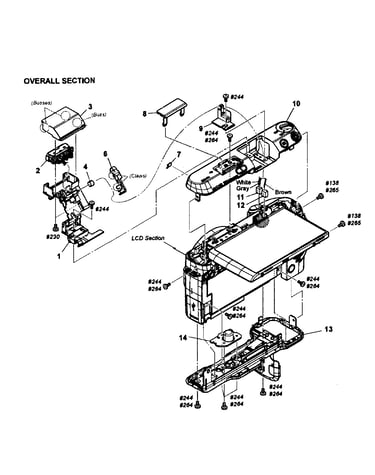

Overall assy diagram

Shoulder s

Part #418853801

$14.95
In Stock
Lever 442735201
#157

Bt assy diagram

Lever

Part #442735201

This item is not returnable
$2.57
In Stock
Heat Sink 443044701
#101

Main pcb diagram

Heat sink

Part #443044701

This item is not returnable
$3.93
In Stock
Light Shield 415963401
#8

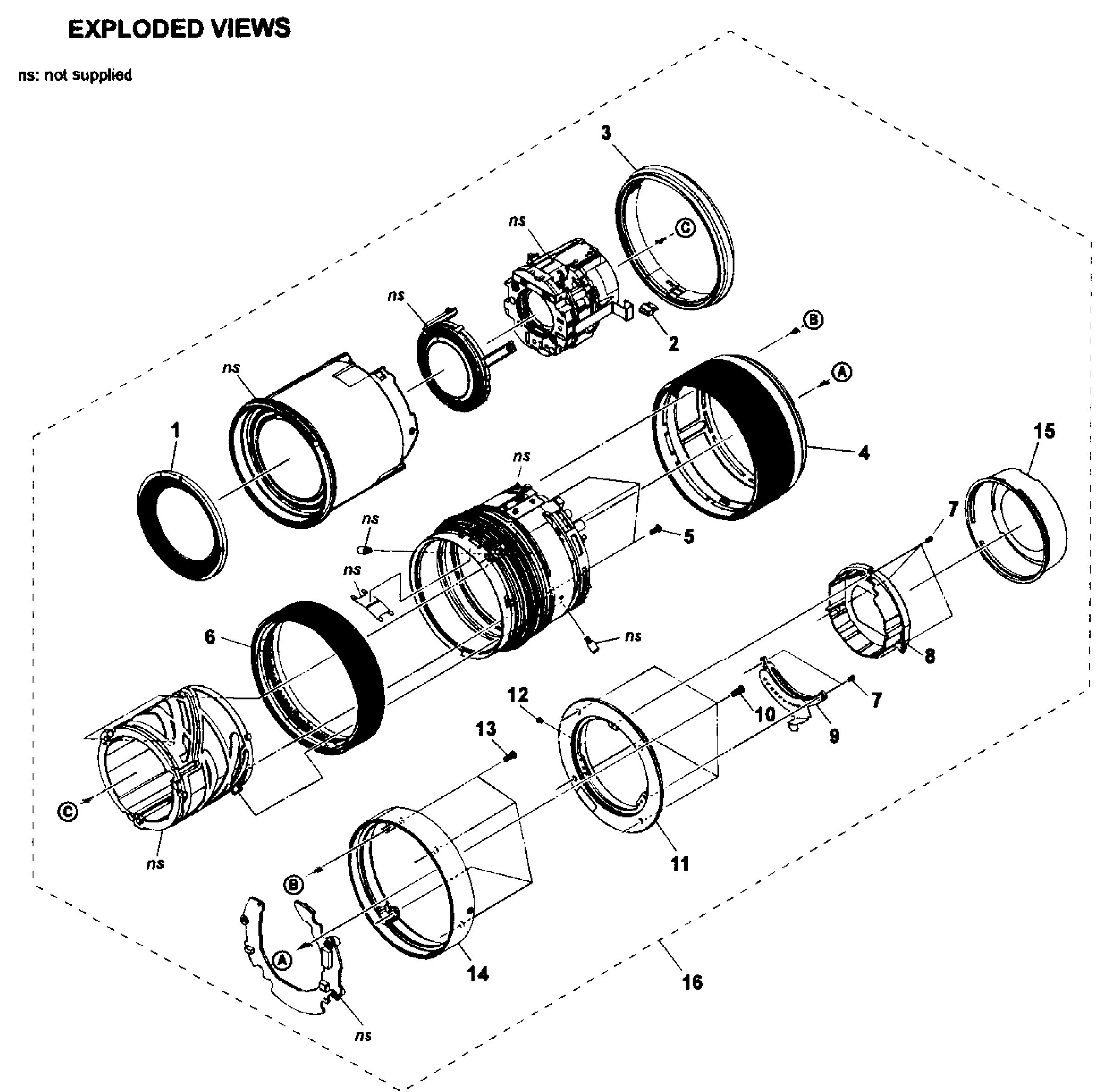

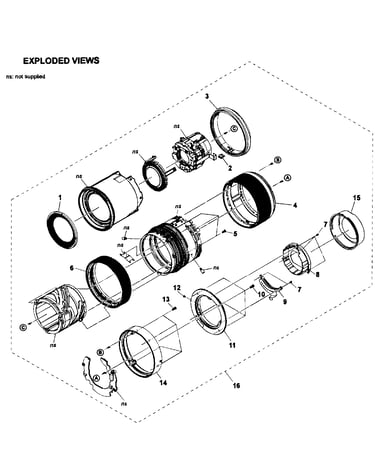

Lens,sel1855 diagram

Light shield

Part #415963401

This item is not returnable
$2.25
In Stock
Cushion 443563901
#166

Bt assy diagram

Cushion

Part #443563901

This item is not returnable
$2.16
In Stock
Mask Sheet 428119601
#208

Imager block diagram

Mask sheet

Part #428119601

This item is not returnable
$3.54
In Stock
Sheet 442739501
#52

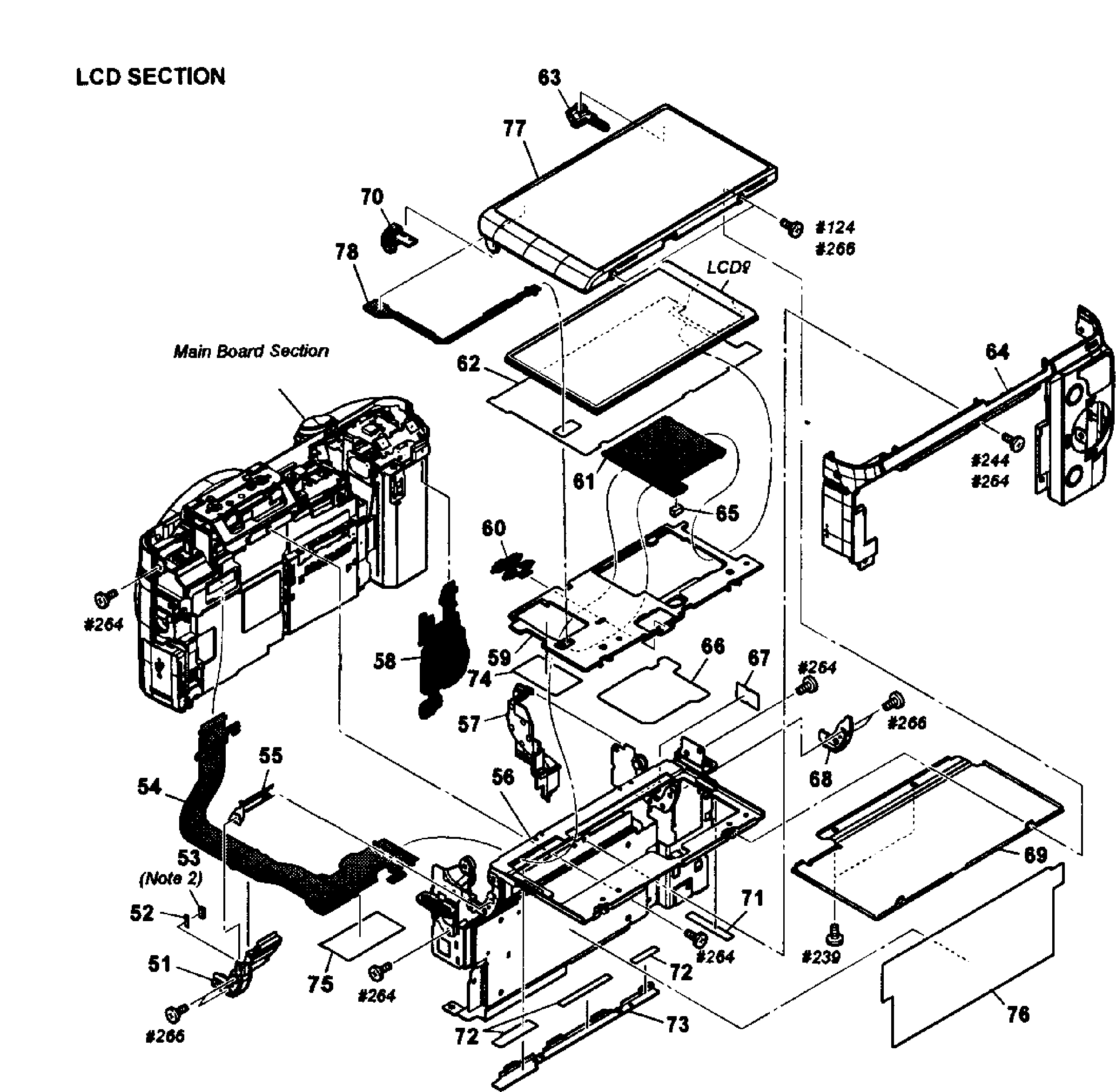

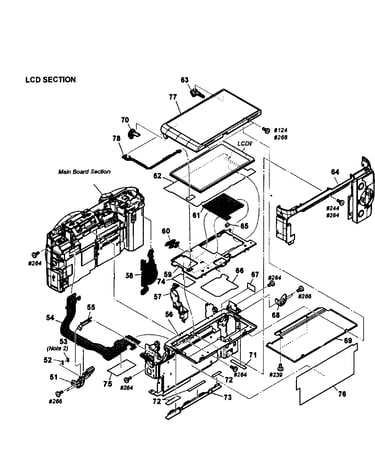

Lcd assy diagram

Sheet

Part #442739501

This item is not returnable
$2.65
In Stock
