Lawn & Garden Engine

Model # 143274042 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143274042 4-cycle engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
143274042 4-Cycle Engine
Generac Lawn & Garden Equipment Engine Fuel Line (replaces 14306, 34357) 29774
#114

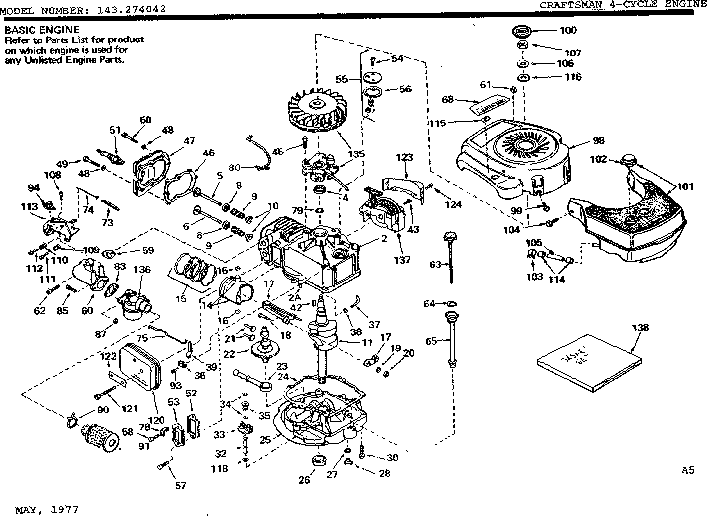

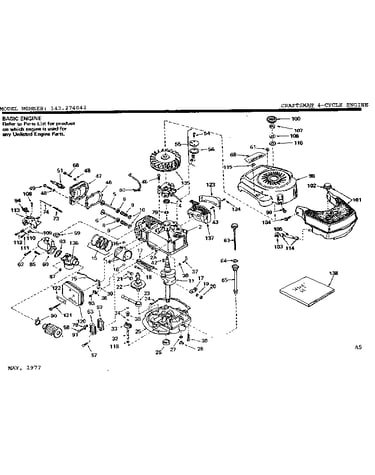

Replacement parts diagram

Generac lawn & garden equipment engine fuel line (replaces 14306, 34357)

Part #29774

BEST SELLER
This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Carburetor 631840
Carburetor

Part #631840

Replaced by #632795A

?
Manufacturer substitution
This part replaces 631840. Substitute parts can look different from the original.
BEST SELLER
$76.19
7% OFF Phone Price : $82.19
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#103

Replacement parts diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Fuel Fitting 631775
#26

Carburetor diagram

Fuel fitting

Part #631775

Replaced by #632527

?
Manufacturer substitution
This part replaces 631775. Substitute parts can look different from the original.
This item is not returnable
$9.59
9% OFF Phone Price : $10.59
In Stock
Troybilt Carburetor Float 631024
#15

Carburetor diagram

Troybilt carburetor float

Part #631024

This item is not returnable
In Stock
Drain Plug 27244
#28

Replacement parts diagram

Drain plug

Part #27244

Replaced by #36083

?
Manufacturer substitution
This part replaces 27244. Substitute parts can look different from the original.
This item is not returnable
$7.89
11% OFF Phone Price : $8.89
In Stock
Flange Gasket 26750A
#24

Replacement parts diagram

Flange gasket

Part #26750A

Replaced by #37609

?
Manufacturer substitution
This part replaces 26750A. Substitute parts can look different from the original.
This item is not returnable
In Stock
Starter Handle 590452
#7

Rewind starter diagram

Starter handle

Part #590452

Replaced by #590701

?
Manufacturer substitution
This part replaces 590452. Substitute parts can look different from the original.
This item is not returnable
$7.80
11% OFF Phone Price : $8.80
In Stock
Lauson Lawn & Garden Equipment Engine Ignition Coil (replaces 29632, 30546, 30560) 30560A
#13

Magneto diagram

Lauson lawn & garden equipment engine ignition coil (replaces 29632, 30546, 30560)

Part #30560A

$47.09
11% OFF Phone Price : $53.09
In Stock
Carburetor Lawn & Garden Equipment Engine Gasket 27554
#18

Carburetor diagram

Carburetor lawn & garden equipment engine gasket

Part #27554

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
