Model # SHX8PT55UC/02 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHX8PT55UC-02 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

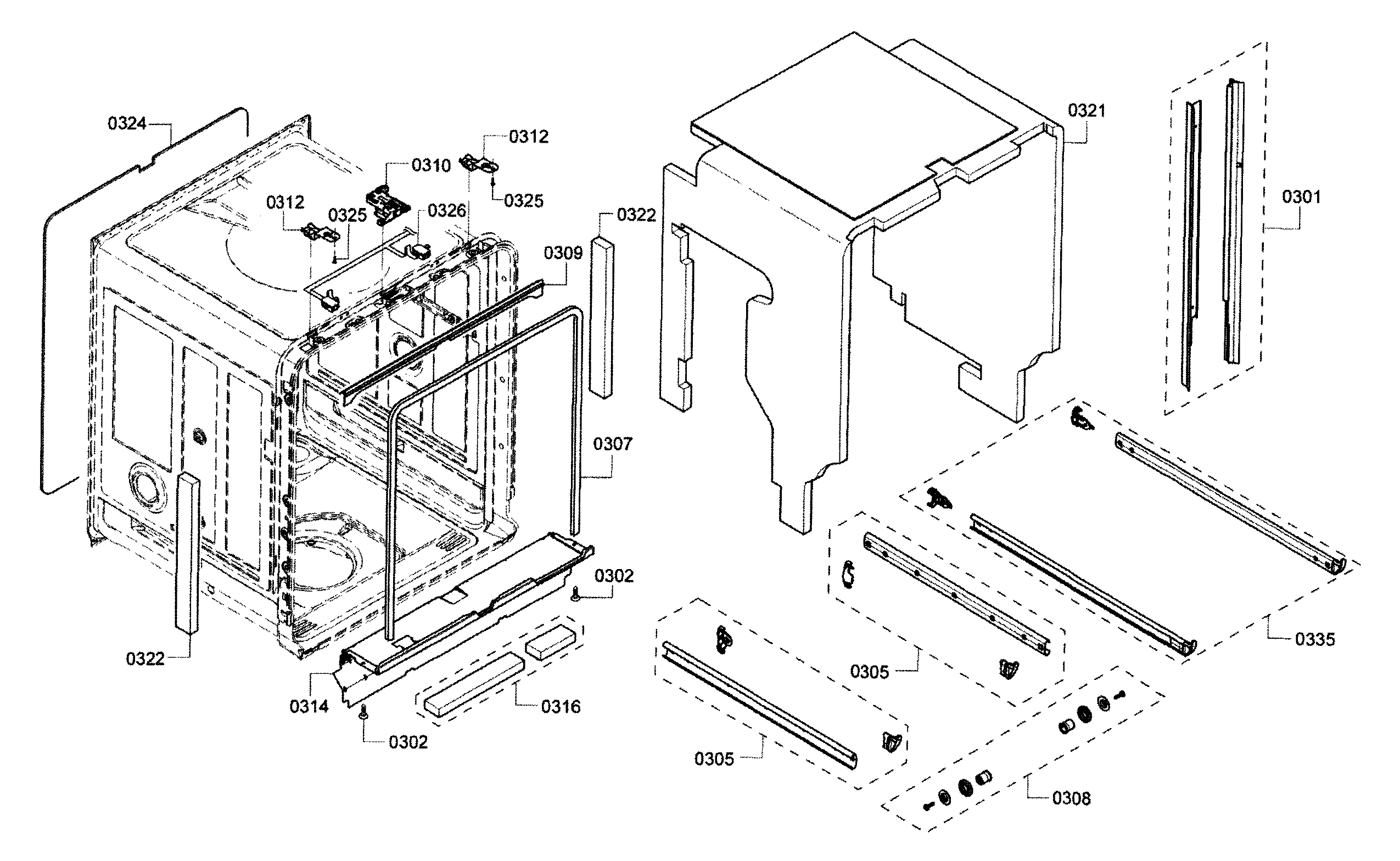

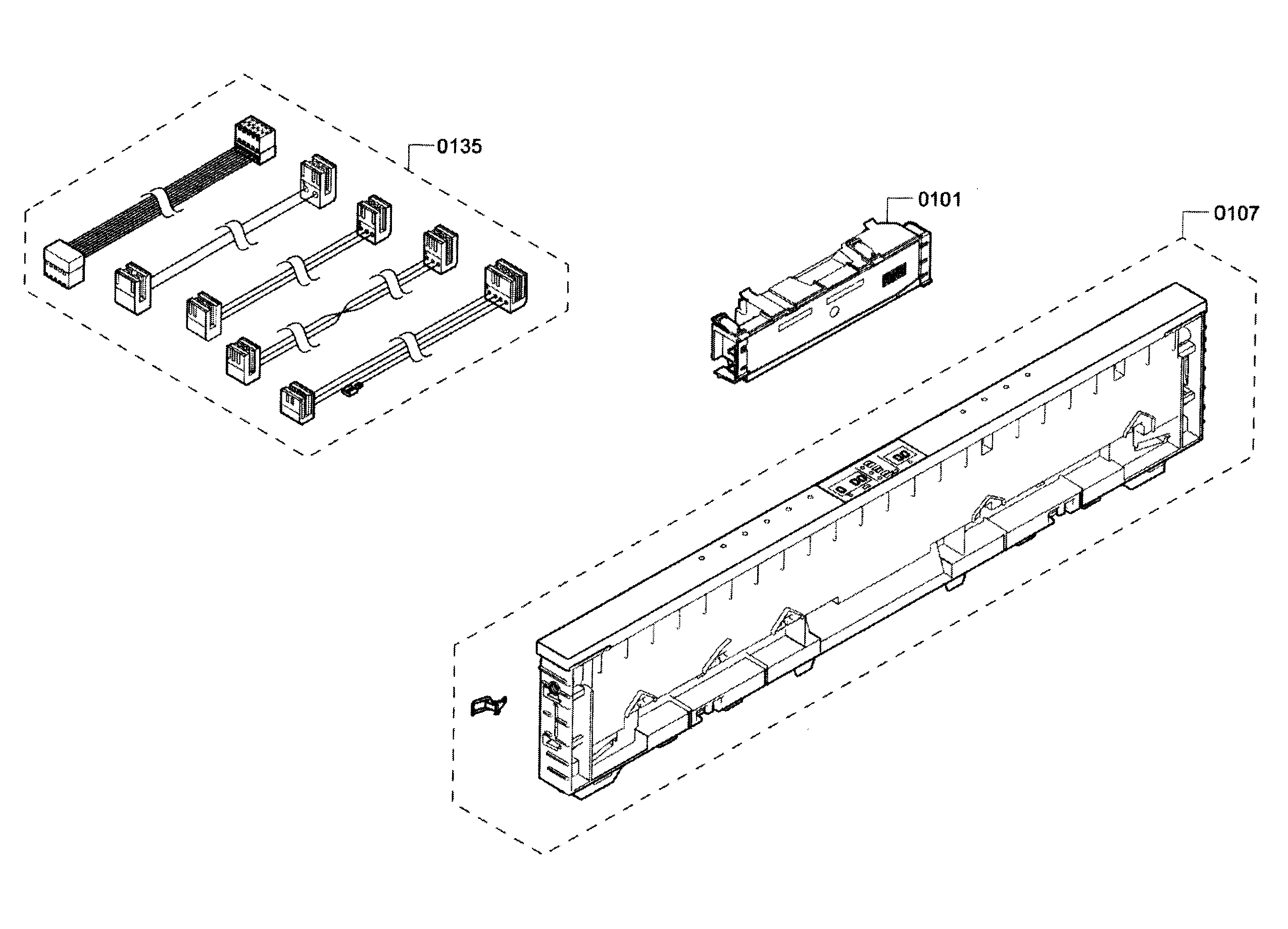

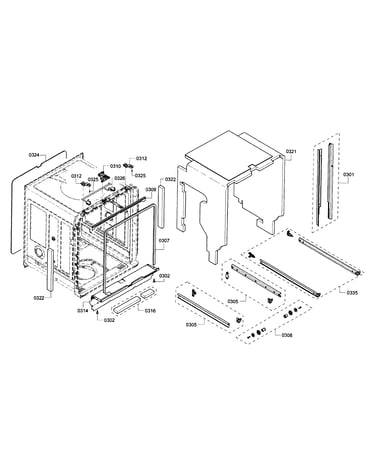

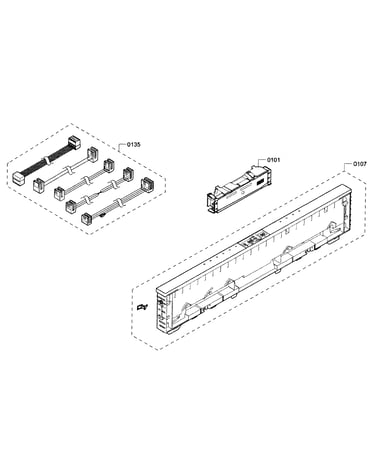

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Dishwasher Water Inlet Valve (replaces 628334) 00628334
#521

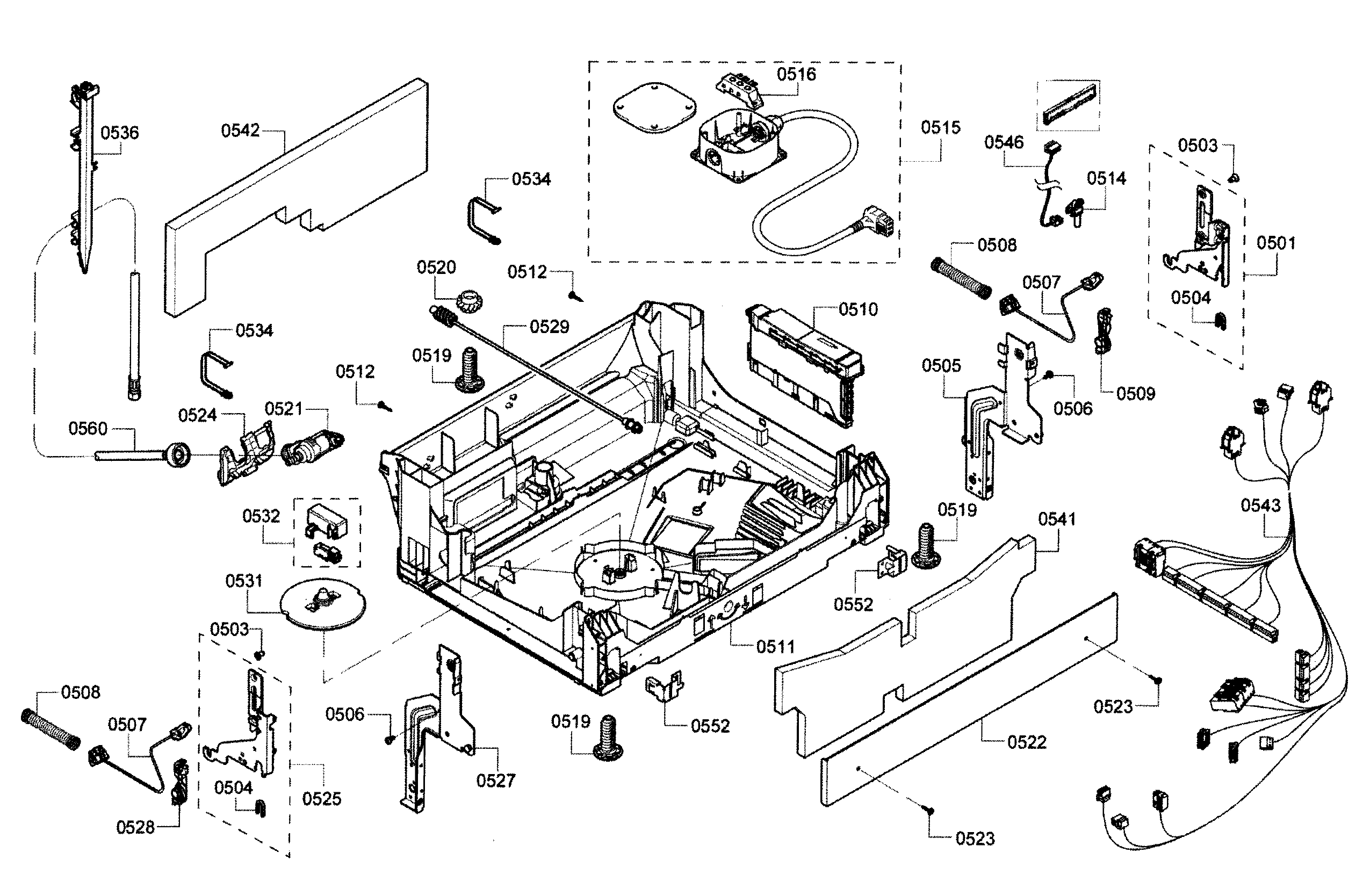

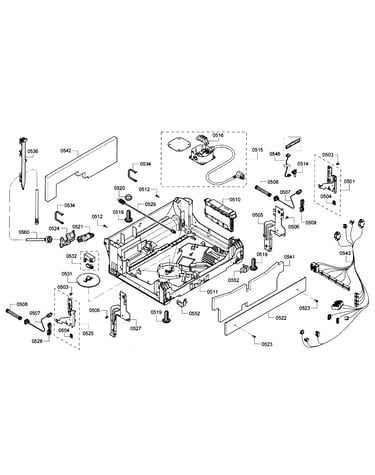

Base diagram

Dishwasher water inlet valve (replaces 628334)

Part #00628334

Replaced by #10023852

?
Manufacturer substitution
This part replaces 00628334. Substitute parts can look different from the original.
BEST SELLER
$26.44 |
18% OFF Phone Price : $32.44
In Stock
Dishwasher Diverter Assembly (replaces 751950) 00751950
#406

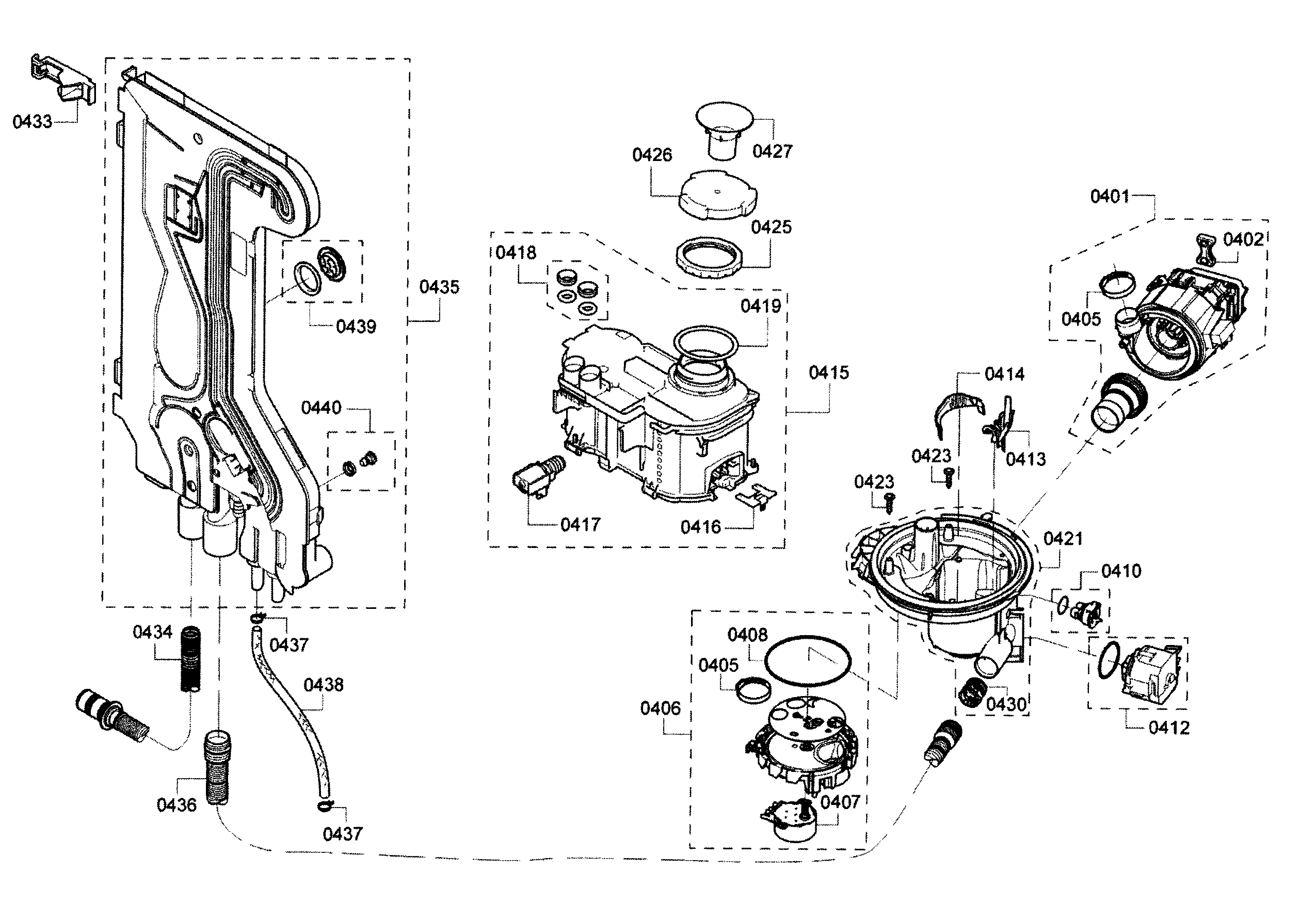

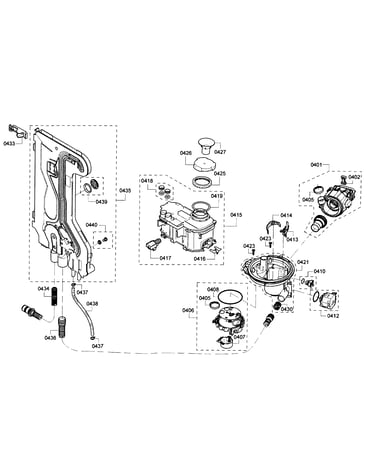

Pump diagram

Dishwasher diverter assembly (replaces 751950)

Part #00751950

BEST SELLER
$49.82 |
11% OFF Phone Price : $55.82
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#405

Pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Spray Arm, Upper (replaces 745856) 00745856
#603

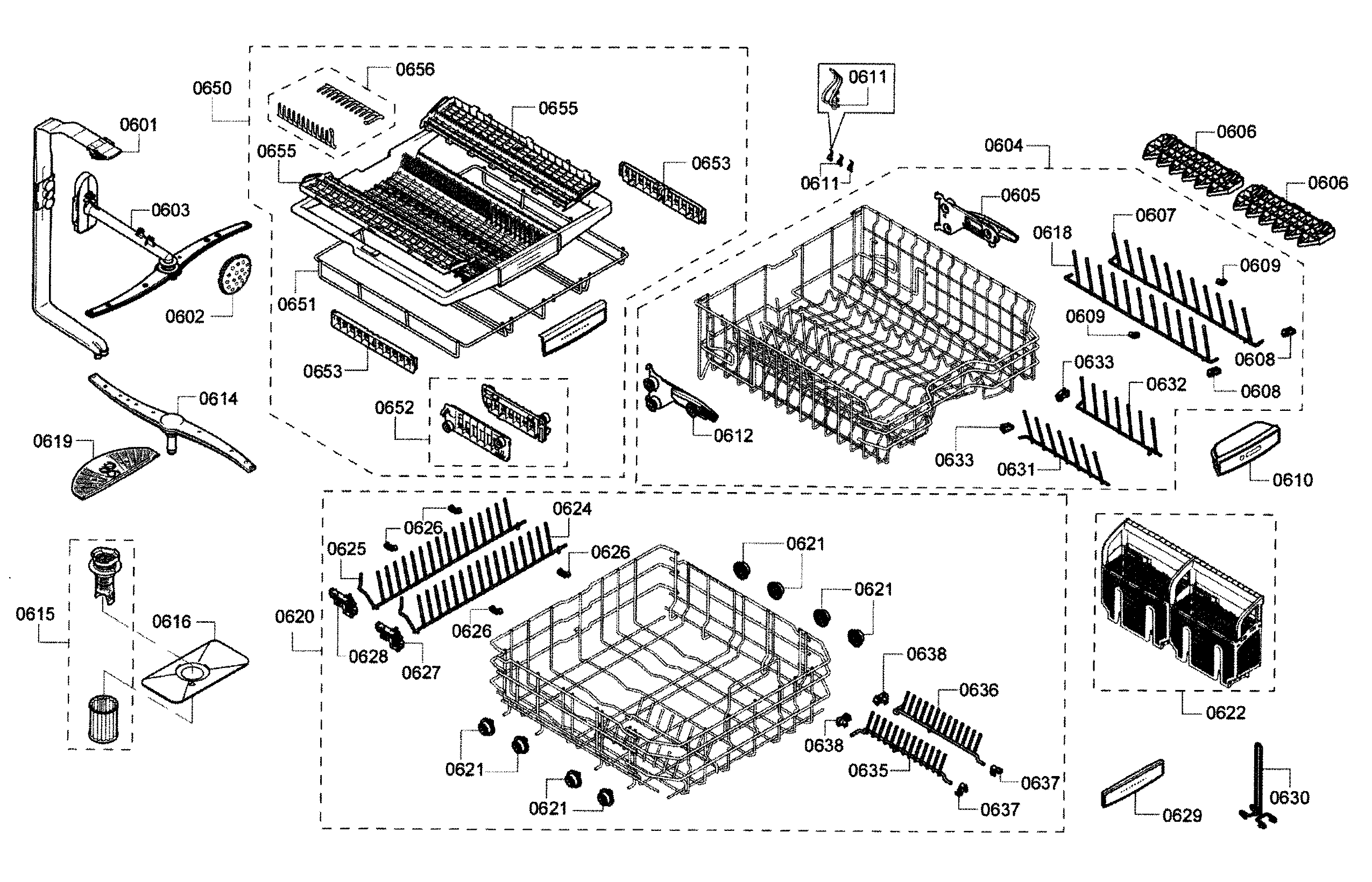

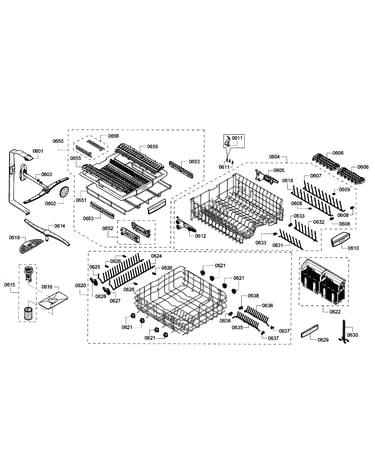

Rack assy diagram

Dishwasher spray arm, upper (replaces 745856)

Part #00745856

BEST SELLER
$27.51 |
18% OFF Phone Price : $33.51
In Stock
Heat Pump 00746094
#401

Pump diagram

Heat pump

Part #00746094

Replaced by #00753351

?
Manufacturer substitution
This part replaces 00746094. Substitute parts can look different from the original.
BEST SELLER
$240.37 |
5% OFF Phone Price : $252.37
In Stock
Dishwasher Drain Pump (replaces 620774) 00620774
#412

Pump diagram

Dishwasher drain pump (replaces 620774)

Part #00620774

BEST SELLER
$66.09 |
8% OFF Phone Price : $72.09
In Stock
Dishwasher Dishrack, Lower 00770024
#620

Rack assy diagram

Dishwasher dishrack, lower

Part #00770024

Replaced by #20000533

?
Manufacturer substitution
This part replaces 00770024. Substitute parts can look different from the original.
BEST SELLER
$119.85 |
9% OFF Phone Price : $131.85
Back Order
Dishwasher Dishrack Roller, Lower (replaces 611475) 00611475
#621

Rack assy diagram

Dishwasher dishrack roller, lower (replaces 611475)

Part #00611475

BEST SELLER
$14.27 |
12% OFF Phone Price : $16.27
In Stock
Dishwasher Float Switch Assembly (replaces 751391) 00751391
#532

Base diagram

Dishwasher float switch assembly (replaces 751391)

Part #00751391

BEST SELLER
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Dishwasher Door Handle End Cap (replaces 628998) 00628998
#214

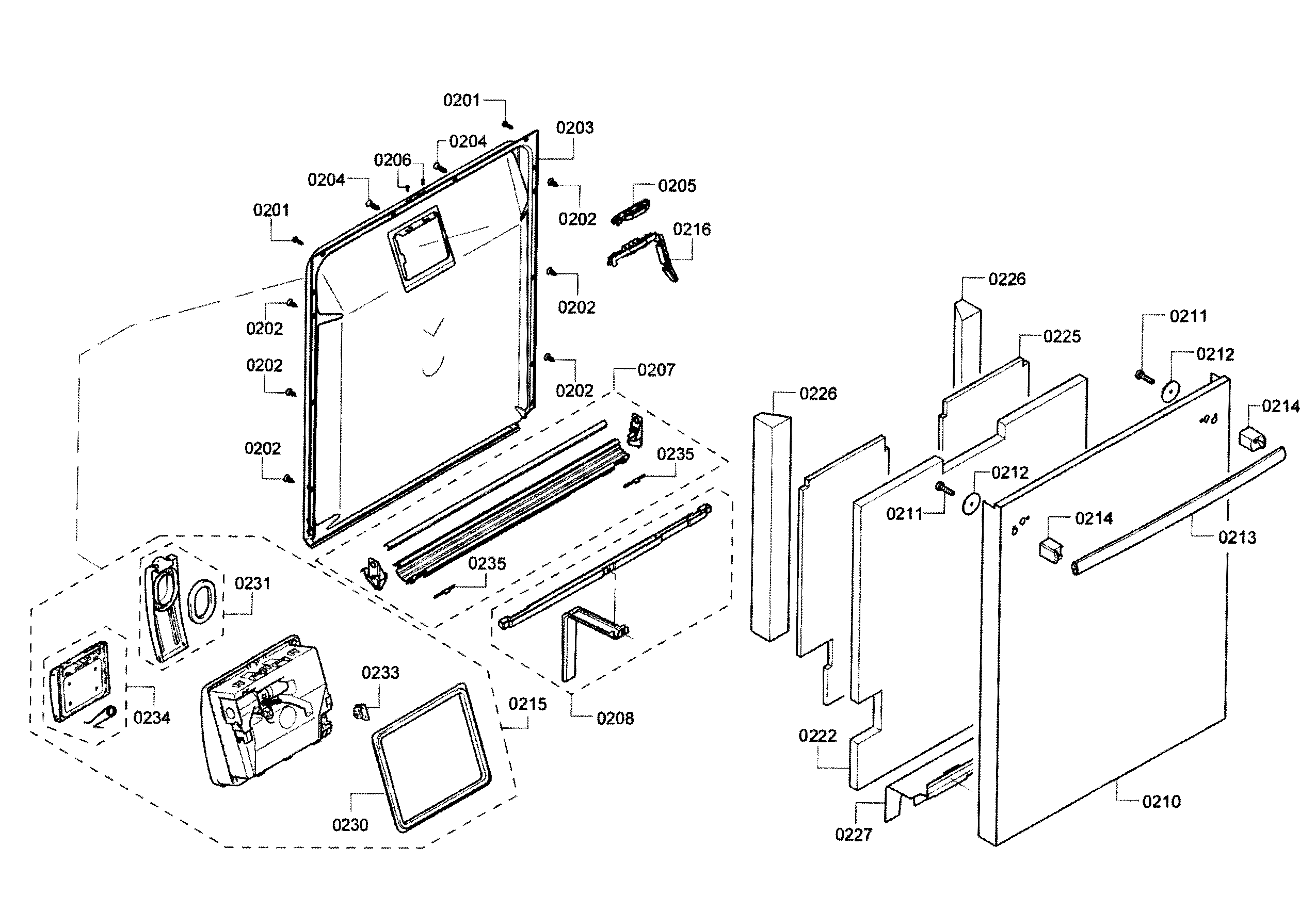

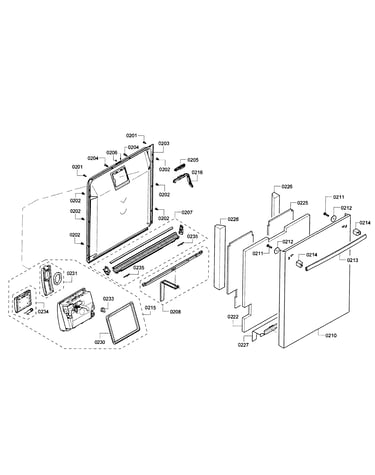

Door assy diagram
