Model # PRD304EG/12 Official Thermador gas range

Here are the diagrams and repair parts for Official Thermador PRD304EG-12 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

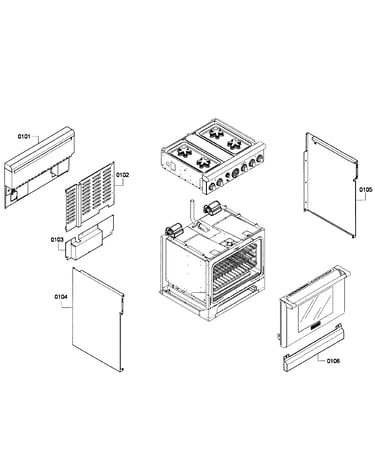

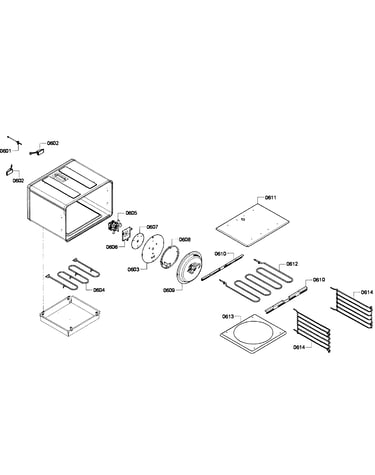

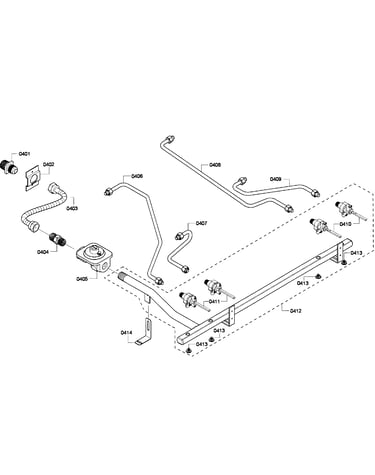

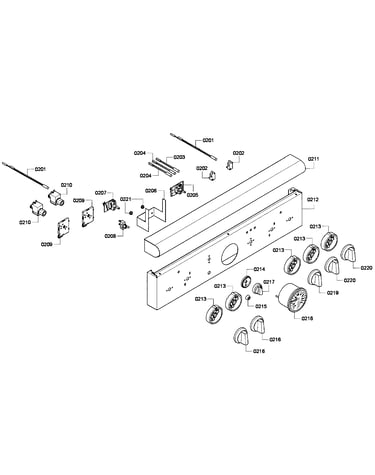

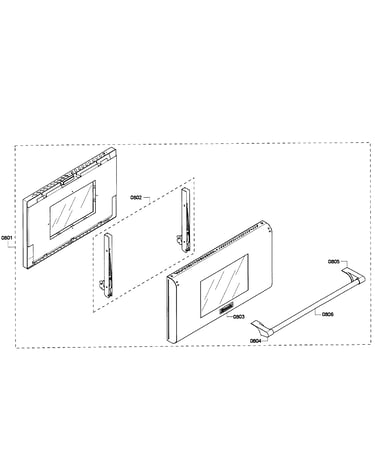

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Holder 600607
#310

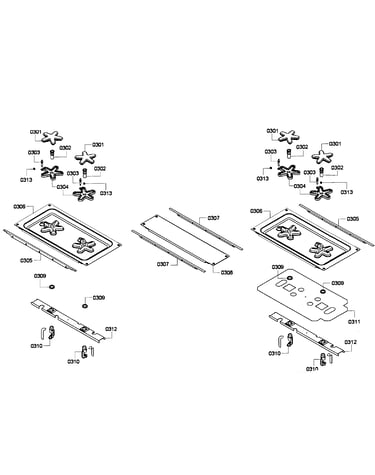

Burners diagram

Holder

Part #600607

Replaced by #00600607

?
Manufacturer substitution
This part replaces 600607. Substitute parts can look different from the original.
BEST SELLER
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Cooktop Burner Orifice Nut 188978
#309

Burners diagram

Cooktop burner orifice nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Range Surface Burner Tube 189023
#302

Burners diagram

Range surface burner tube

Part #189023

Replaced by #00189023

?
Manufacturer substitution
This part replaces 189023. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Terminal Box 436364
#703

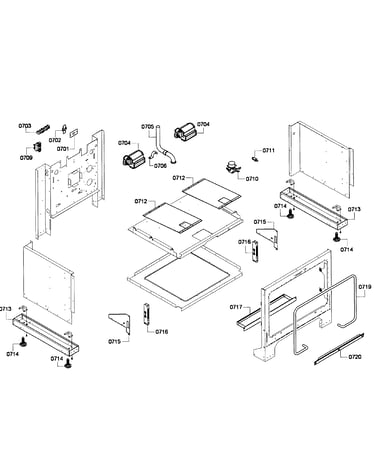

Cabinet diagram

Terminal box

Part #436364

Replaced by #00436364

?
Manufacturer substitution
This part replaces 436364. Substitute parts can look different from the original.
$32.67
In Stock
Ignition 427090
#504

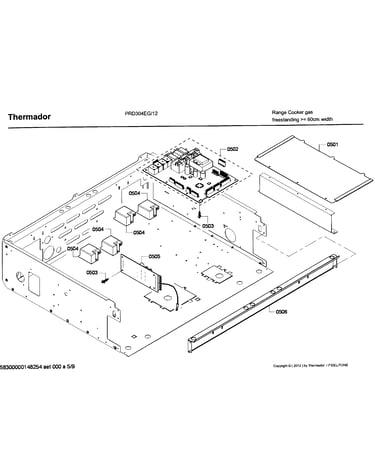

Pcb's assy diagram

Ignition

Part #427090

Replaced by #00619017

?
Manufacturer substitution
This part replaces 427090. Substitute parts can look different from the original.
$138.31 |
8% OFF Phone Price : $150.31
In Stock
Pcb Control 649291
#502

Pcb's assy diagram

Pcb control

Part #649291

Replaced by #00709785

?
Manufacturer substitution
This part replaces 649291. Substitute parts can look different from the original.
This item is not returnable
$338.55 |
$12.00 OFF Phone Price : $350.55
In Stock
Range Surface Burner Cap 494133
#301

Burners diagram

Range surface burner cap

Part #494133

$68.24
In Stock
Shelf 219856
#904

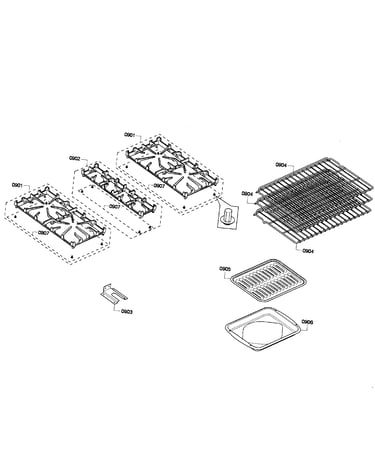

Grids/shelfs diagram

Shelf

Part #219856

Replaced by #00219856

?
Manufacturer substitution
This part replaces 219856. Substitute parts can look different from the original.
$136.32
In Stock
Switch-doo 618400
#711

Cabinet diagram

Switch-doo

Part #618400

Replaced by #00618400

?
Manufacturer substitution
This part replaces 618400. Substitute parts can look different from the original.
$23.49
In Stock
Igniter Plug 603777
#303

Burners diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
