Model # S310LP-2011 Official Weber gas grill

Here are the diagrams and repair parts for Official Weber S310LP-2011 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Tray Rails 62786
#11A

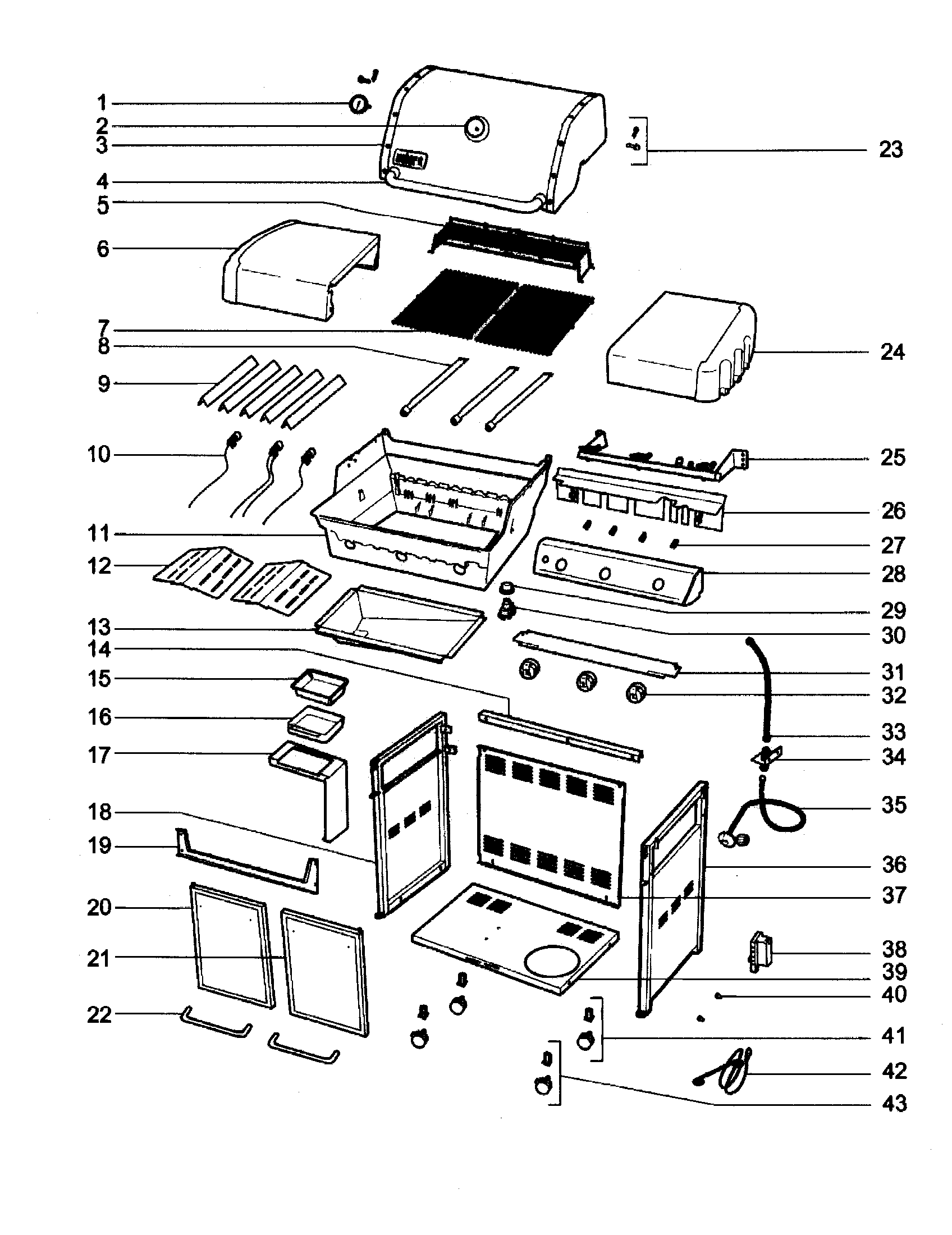

Grill diagram

Tray rails

Part #62786

The manufacturer no longer makes this part, and there's no substitute part

Lhs Door, Ss 62042
#20

Grill diagram

Lhs door, ss

Part #62042

The manufacturer no longer makes this part, and there's no substitute part

Warming Rack 62749
#5

Grill diagram

Warming rack

Part #62749

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge 70332
Door hinge

Part #70332

The manufacturer no longer makes this part, and there's no substitute part

Ignition Module 88826
#30

Grill diagram

Ignition module

Part #88826

The manufacturer no longer makes this part, and there's no substitute part

Table Assembly 62787
#24

Grill diagram

Table assembly

Part #62787

The manufacturer no longer makes this part, and there's no substitute part

Literature Kit 56510
#NI

Grill diagram

Literature kit

Part #56510

The manufacturer no longer makes this part, and there's no substitute part

Hardware 81803
Hardware

Part #81803

The manufacturer no longer makes this part, and there's no substitute part

Rhs Door, Ss 62043
#21

Grill diagram

Rhs door, ss

Part #62043

The manufacturer no longer makes this part, and there's no substitute part

Giddle 7566
#NI

Grill diagram

Giddle

Part #7566

The manufacturer no longer makes this part, and there's no substitute part
