Model # MFES8030RZ0 Official Maytag free standing electric range

Here are the diagrams and repair parts for Official Maytag MFES8030RZ0 free standing electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

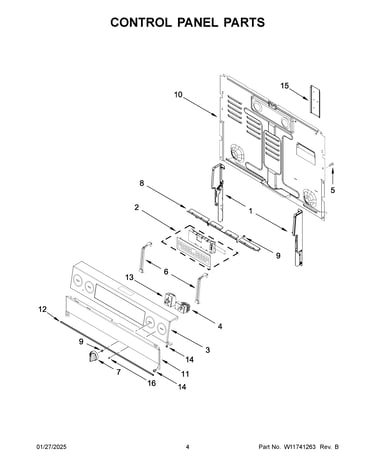

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Screw 3400701
#55

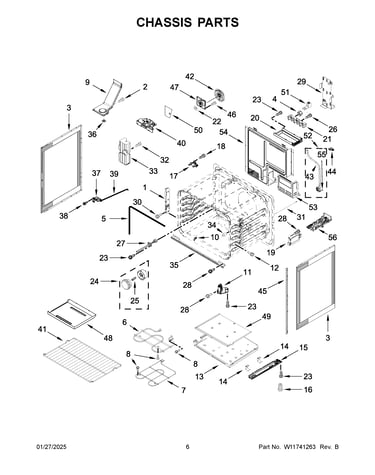

Chassis parts diagram

Screw

Part #3400701

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3400701. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.23 |
14% OFF Phone Price : $7.23
In Stock
Range Radiant Surface Element 8273994
#11

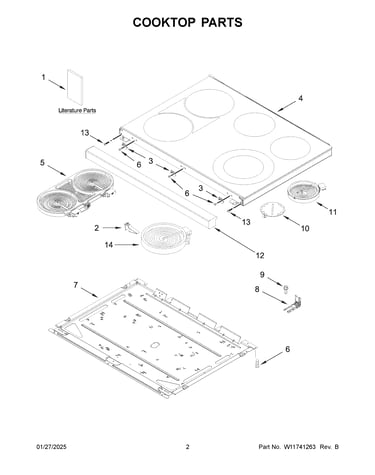

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$102.34 |
10% OFF Phone Price : $114.34
In Stock
Affresh Cooktop Cleaner (replaces 31464) W10355051
#NI

Optional parts diagram

Affresh cooktop cleaner (replaces 31464)

Part #W10355051

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Range Safety Thermostat 3196548
#17

Chassis parts diagram

Range safety thermostat

Part #3196548

Replaced by #WP3196548

?
Manufacturer substitution
This part replaces 3196548. Substitute parts can look different from the original.
BEST SELLER
$23.64 |
20% OFF Phone Price : $29.64
In Stock
Range Screw W10200660
#15

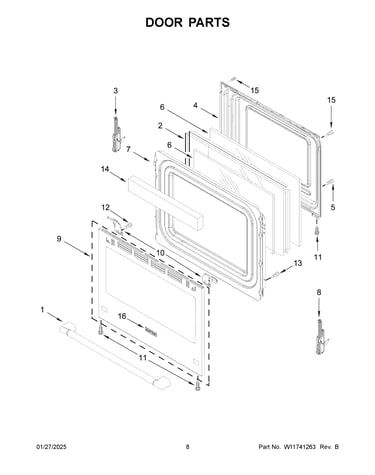

Door parts diagram

Range screw

Part #W10200660

Replaced by #WPW10200660

?
Manufacturer substitution
This part replaces W10200660. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.00 |
14% OFF Phone Price : $7.00
In Stock
Cooktop Scraper WA906B
#NI

Optional parts diagram

Cooktop scraper

Part #WA906B

This item is not returnable

Get free shipping with Automatic Reorder

$6.29 |
14% OFF Phone Price : $7.29
In Stock
Door Glass 9758162
#6

Door parts diagram

Door glass

Part #9758162

Replaced by #WP8053948

?
Manufacturer substitution
This part replaces 9758162. Substitute parts can look different from the original.
$101.26 |
11% OFF Phone Price : $113.26
In Stock
Range Bake Element 9755770
#7

Chassis parts diagram

Range bake element

Part #9755770

Replaced by #WP9755770

?
Manufacturer substitution
This part replaces 9755770. Substitute parts can look different from the original.
$77.73 |
7% OFF Phone Price : $83.73
In Stock
Screw 3196169
Screw

Part #3196169

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196169. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
