Countertop Microwave

Model # CEB1590SS1SS Official GE microwave

Here are the diagrams and repair parts for Official GE CEB1590SS1SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

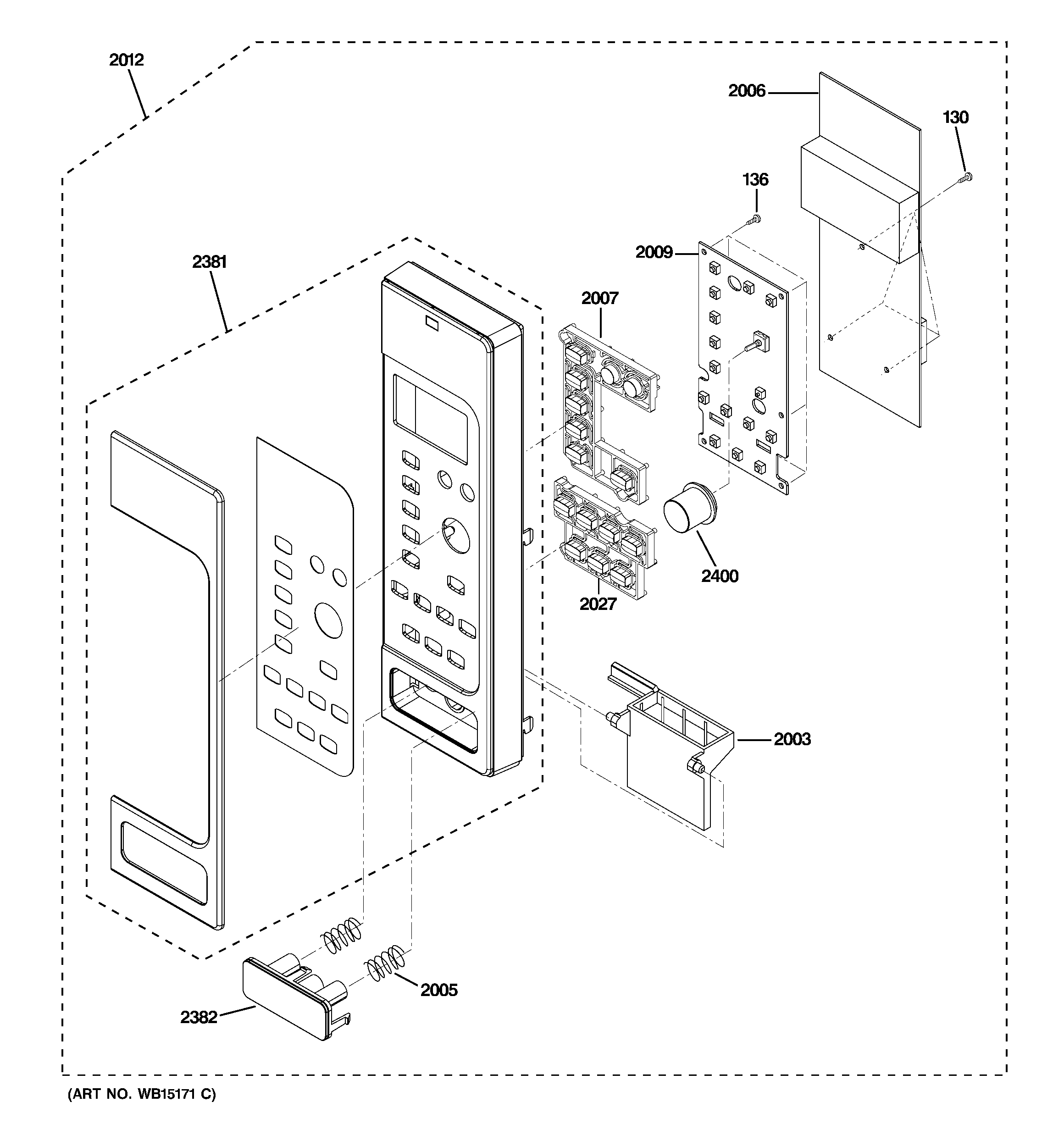

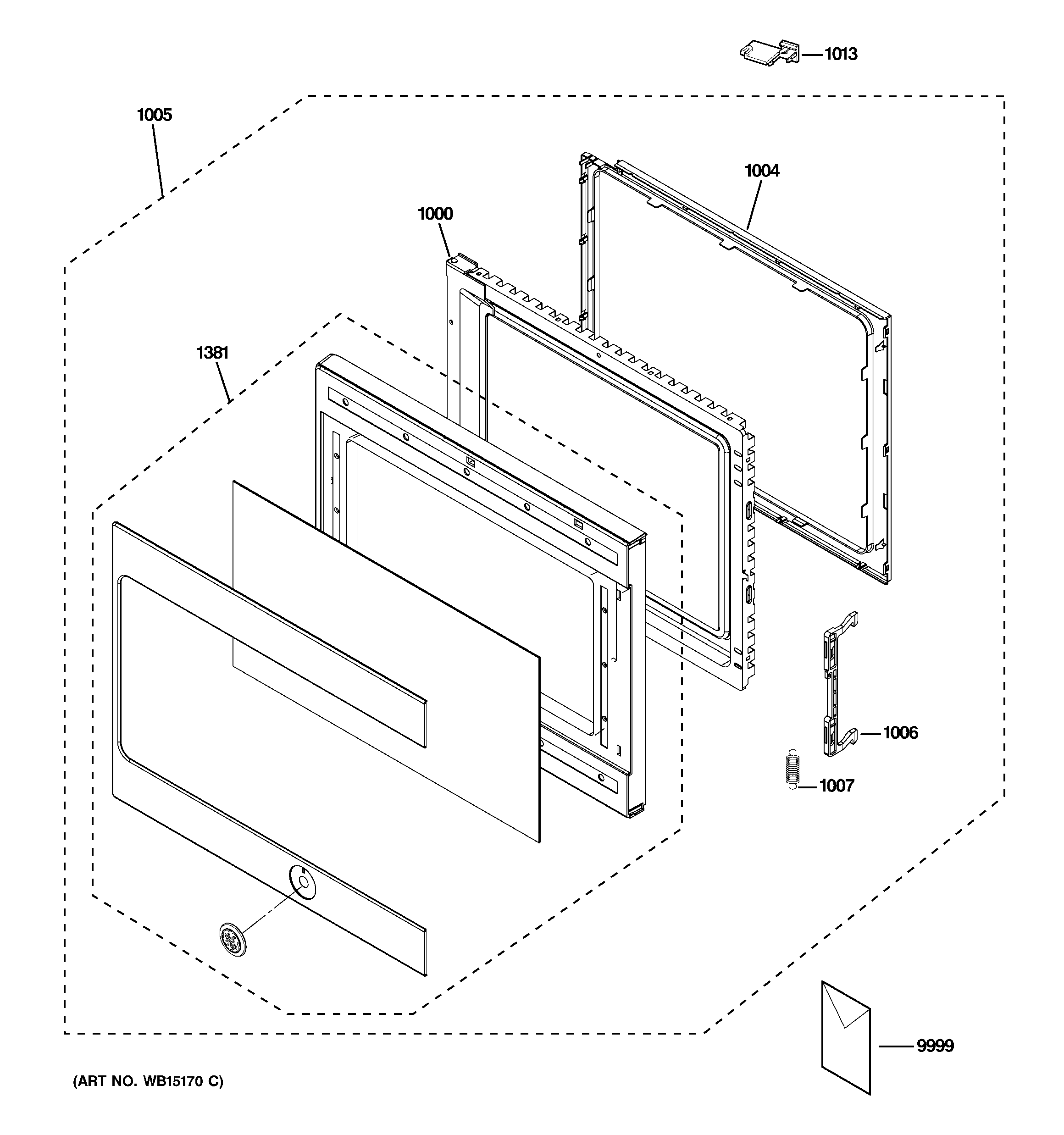

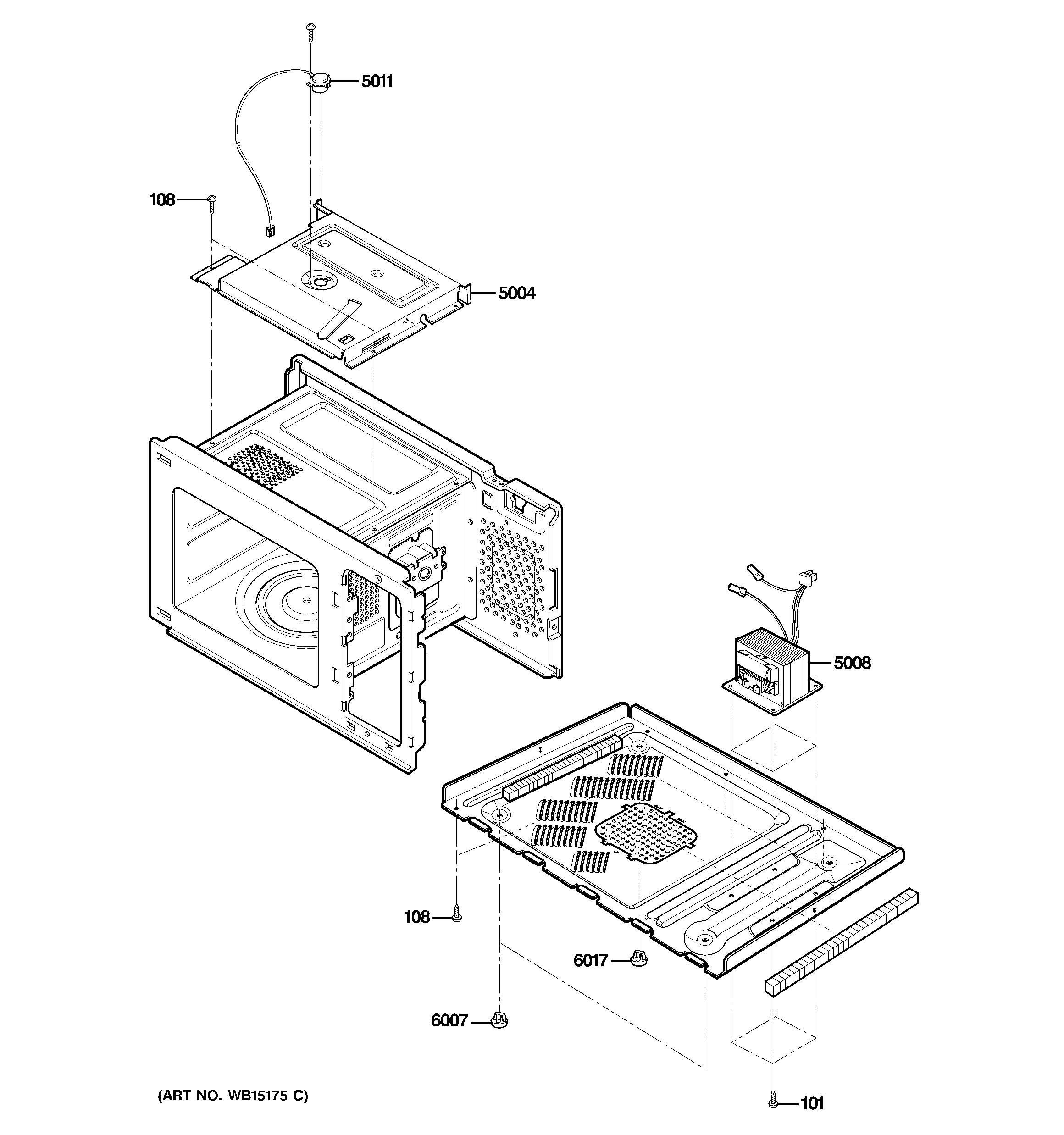

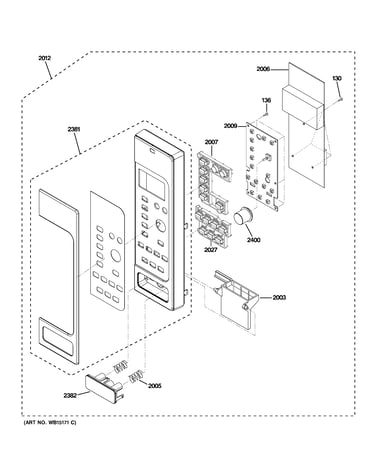

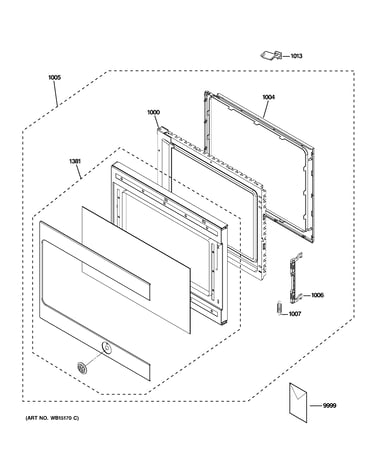

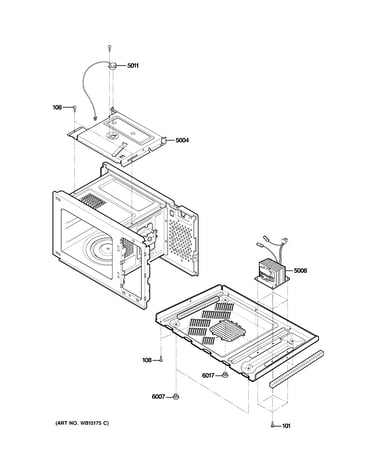

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Microwave Fuse WB27X10388
#5001

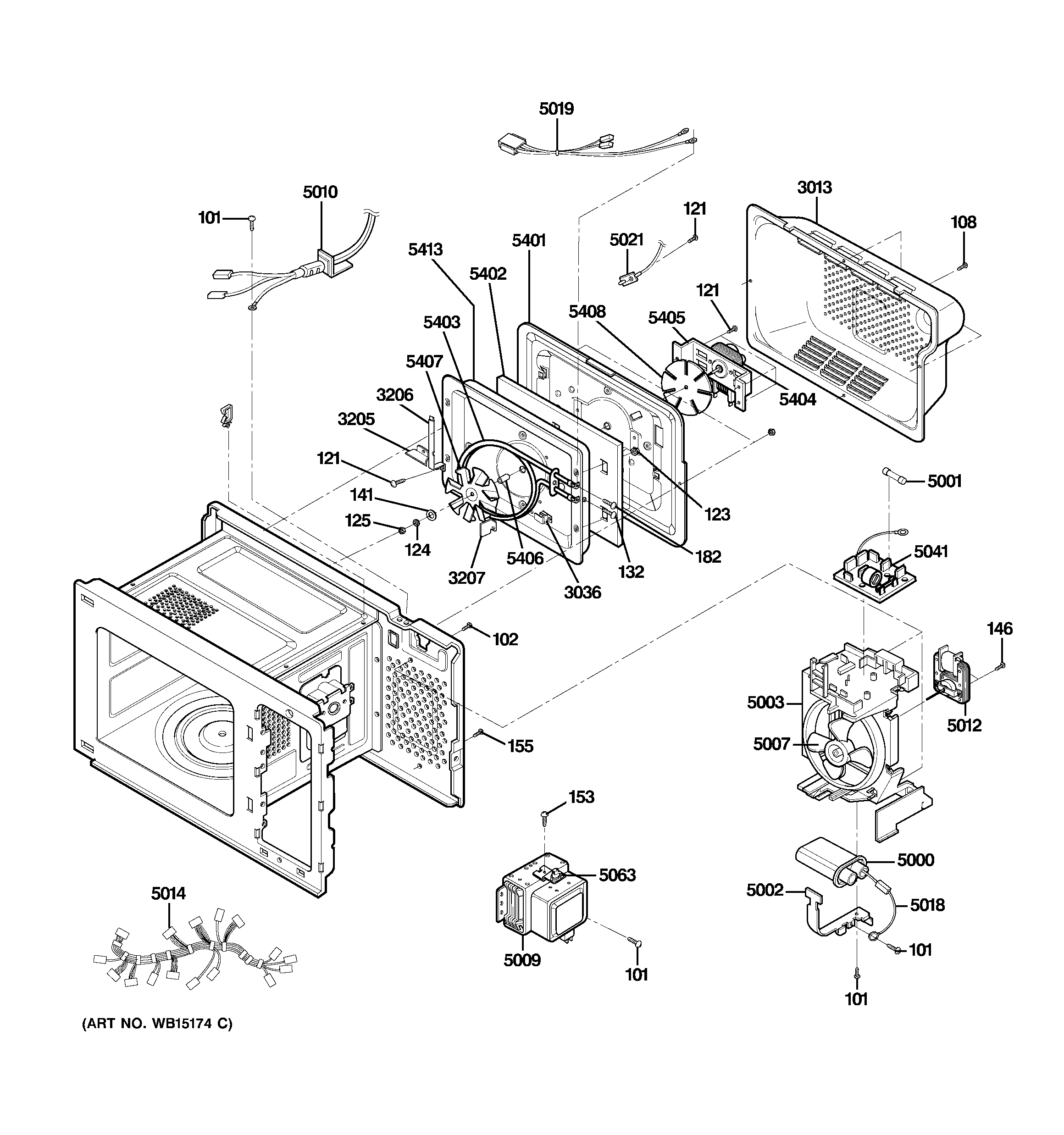

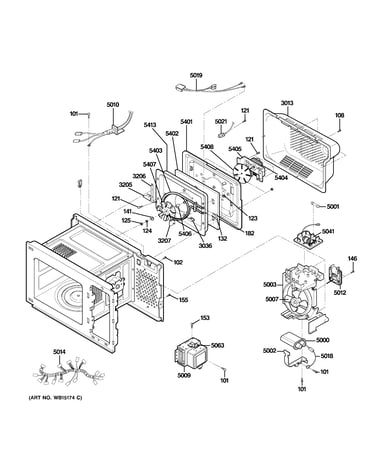

Interior parts diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#5009

Interior parts diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

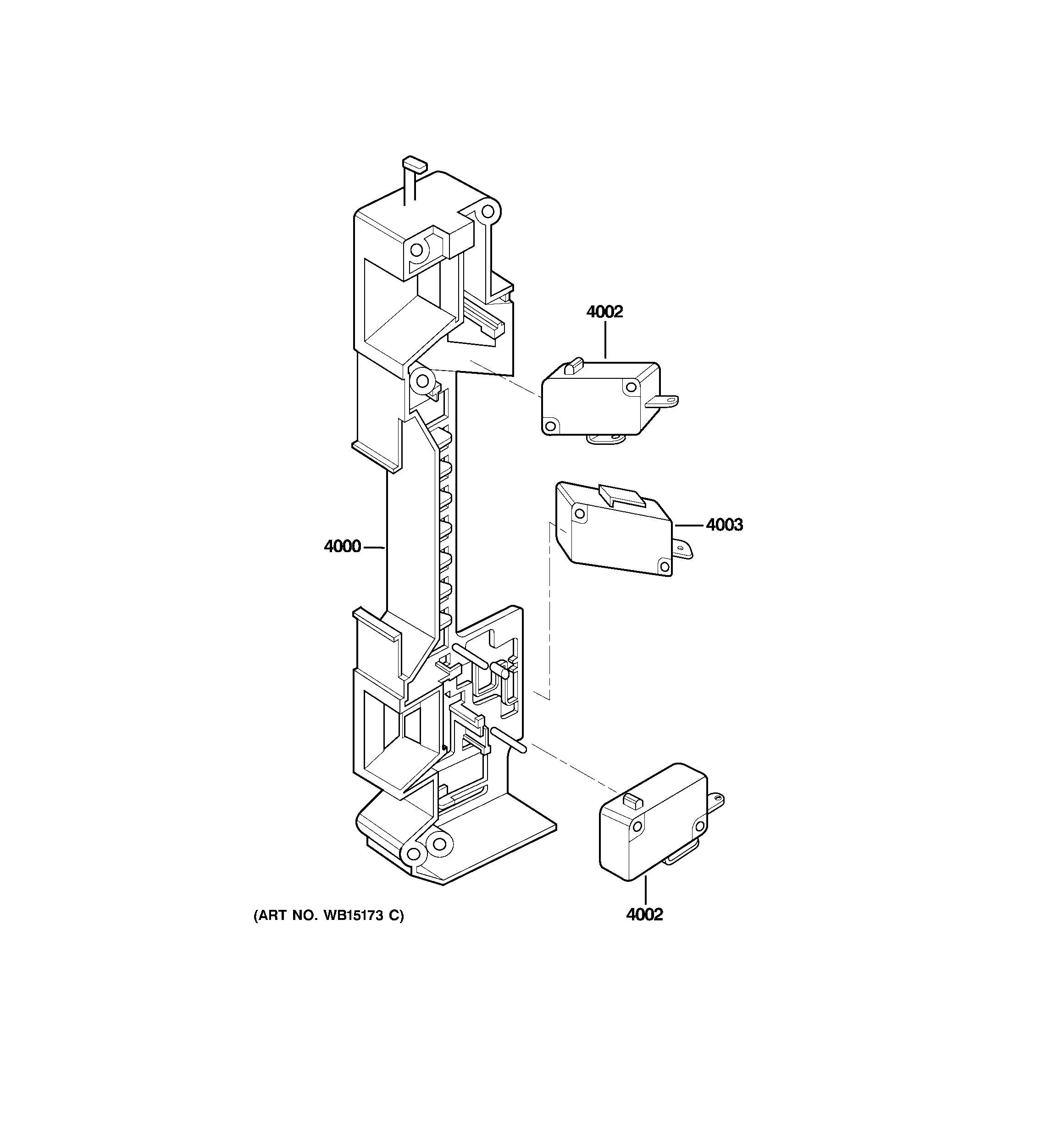

Primary Switch WB24X0815
Primary switch

Part #WB24X0815

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Drive Capacitor WB27X10701
#5000

Interior parts diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Glass Tray WB49X10074
#3002

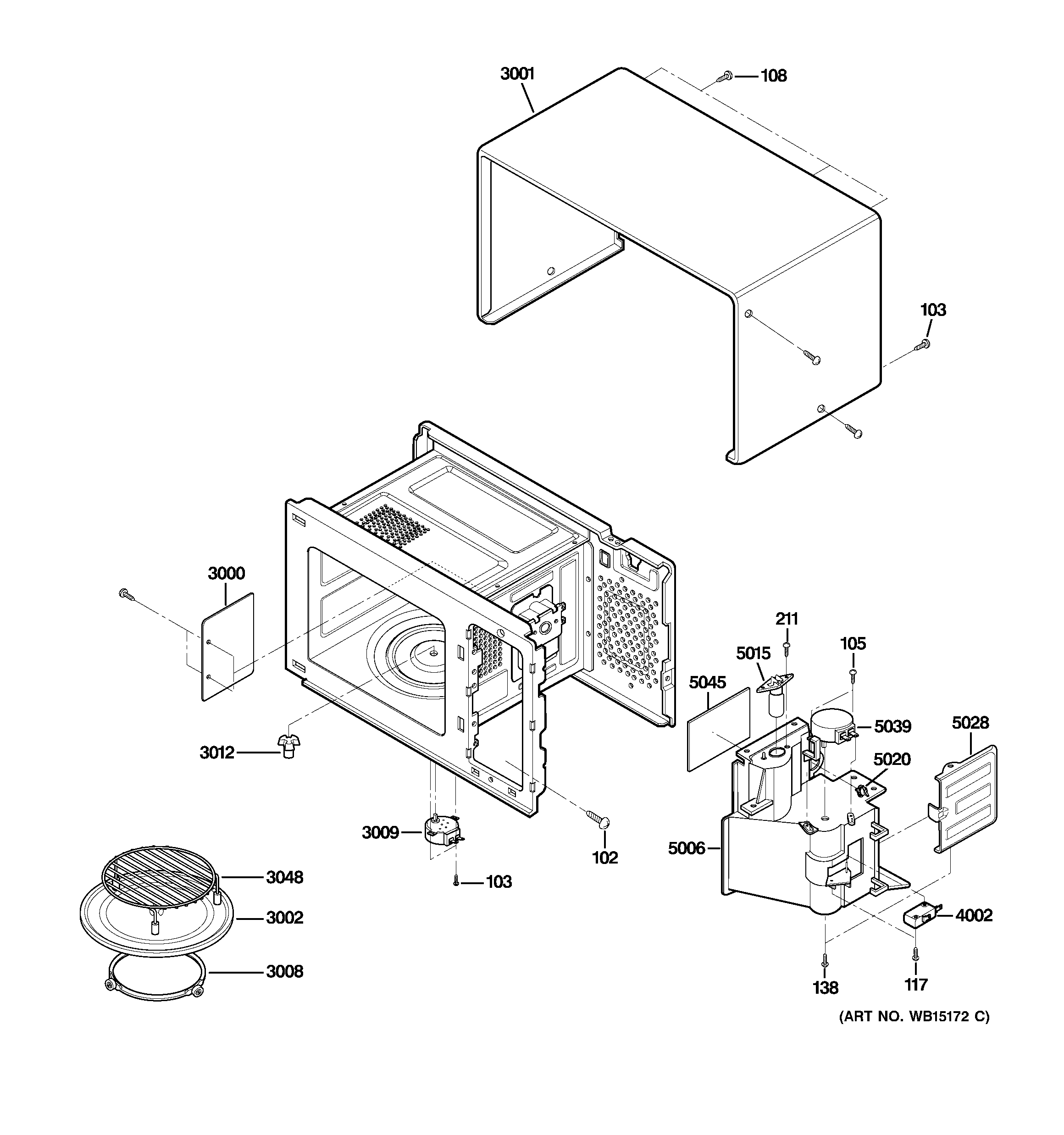

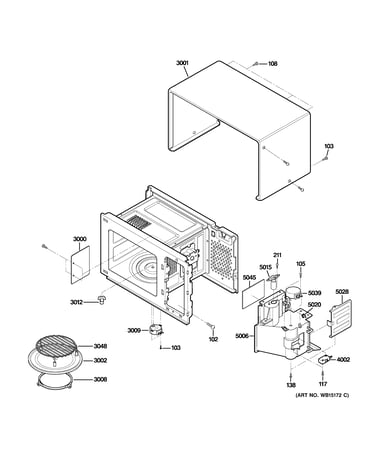

Oven cavity parts diagram

Glass tray

Part #WB49X10074

Replaced by #WB49X10129

?
Manufacturer substitution
This part replaces WB49X10074. Substitute parts can look different from the original.
$78.33 |
7% OFF Phone Price : $84.33
In Stock
Microwave Light Bulb WB36X10131
#5015

Oven cavity parts diagram

Microwave light bulb

Part #WB36X10131

$21.85 |
22% OFF Phone Price : $27.85
In Stock
Microwave Turntable WB02X10719
#3008

Oven cavity parts diagram

Microwave turntable

Part #WB02X10719

$32.91 |
15% OFF Phone Price : $38.91
In Stock
Microwave Convection Element Thermistor WB18X10126
#5021

Interior parts diagram

Microwave convection element thermistor

Part #WB18X10126

$48.06 |
11% OFF Phone Price : $54.06
In Stock
Fan Motor WB26X10085
#5012

Interior parts diagram

Fan motor

Part #WB26X10085

$59.45 |
9% OFF Phone Price : $65.45
In Stock
"nut,hexagon" WB01X1520
#125

Interior parts diagram

"nut,hexagon"

Part #WB01X1520

Replaced by #WB1X1520

?
Manufacturer substitution
This part replaces WB01X1520. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
