Panasonic
Countertop Microwave

Model # NN-S989BAS Official Panasonic microwave

Here are the diagrams and repair parts for Official Panasonic NN-S989BAS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

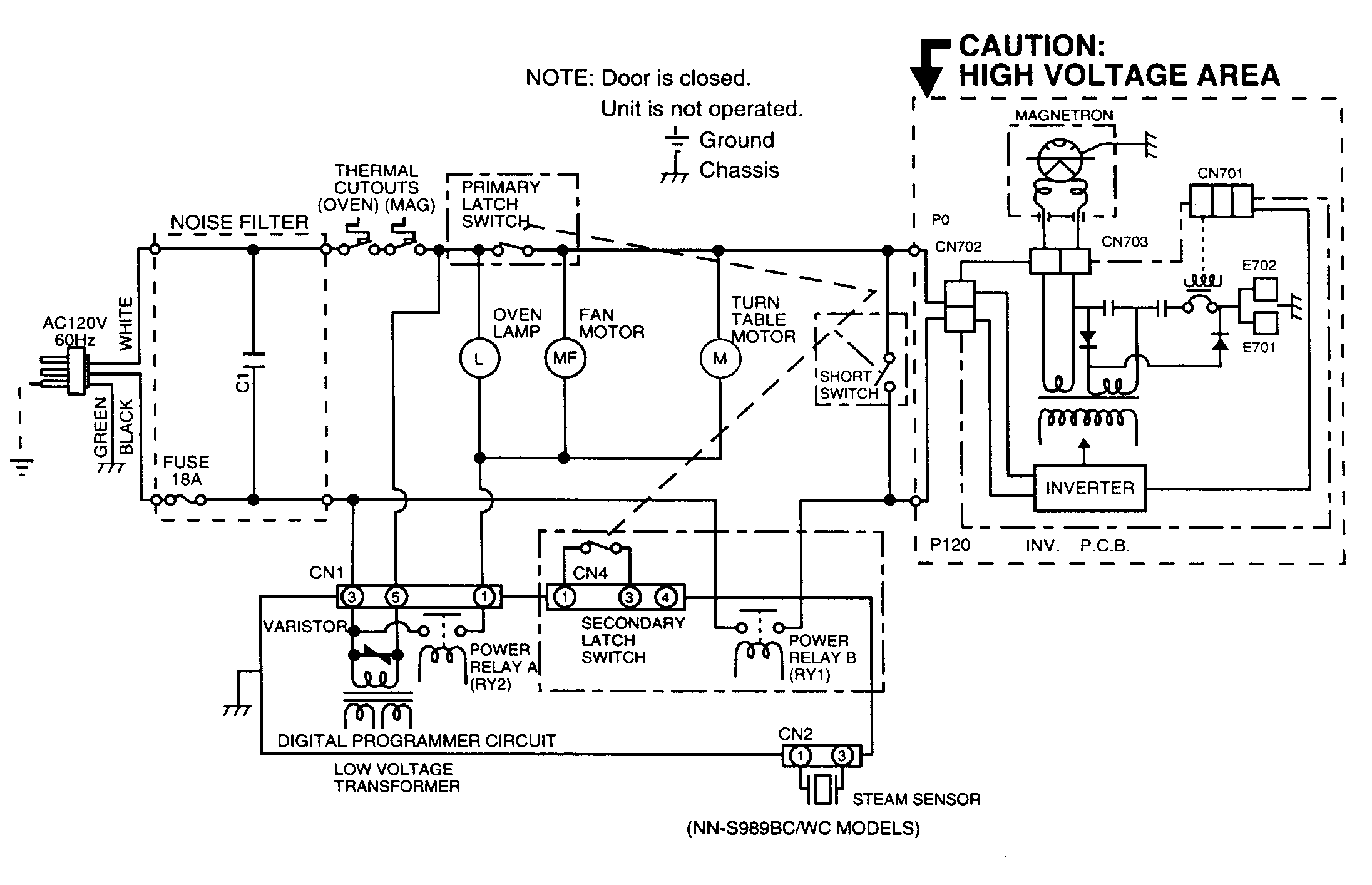

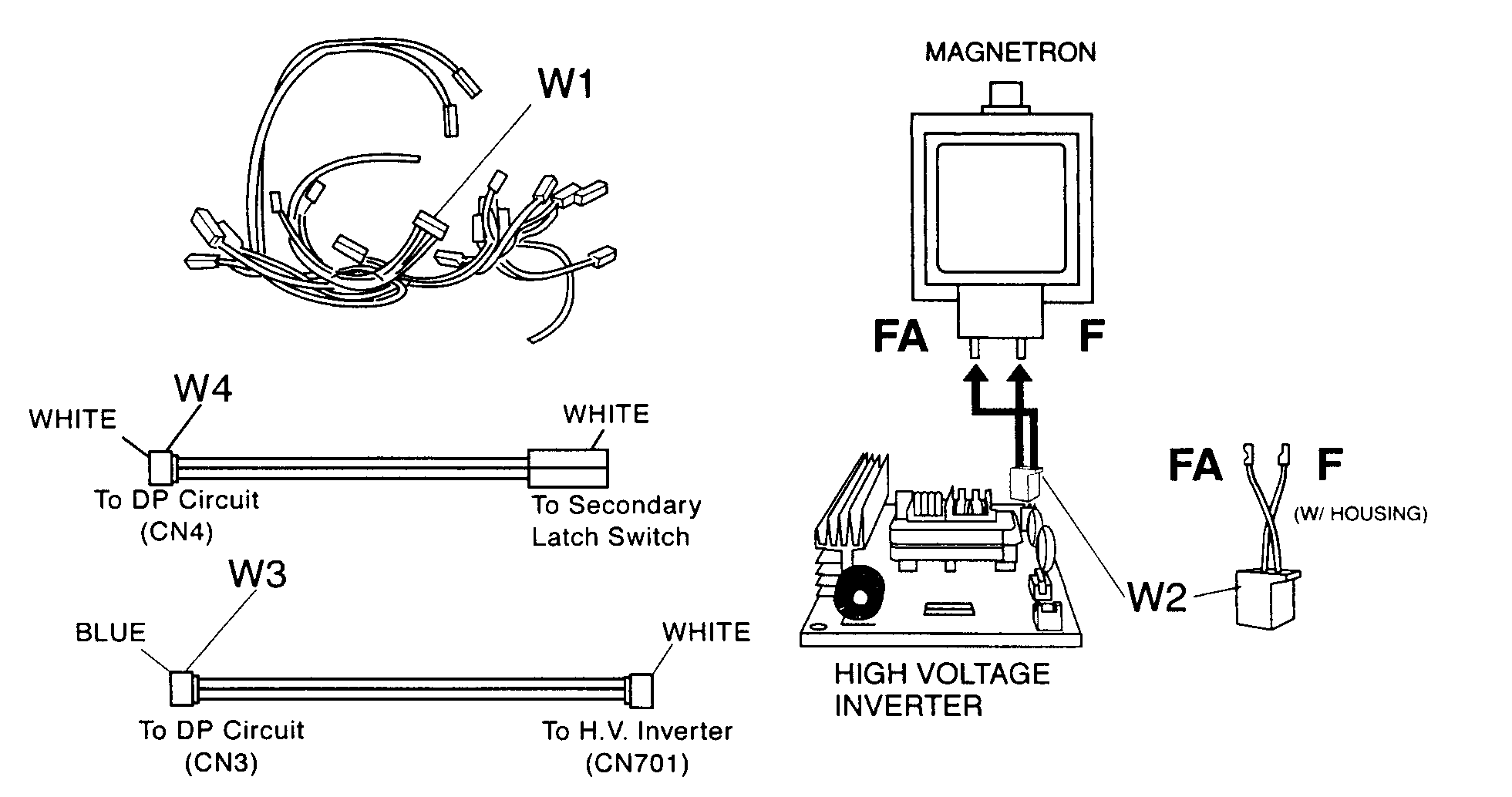

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Roller Ring B290D4M00AP
#17

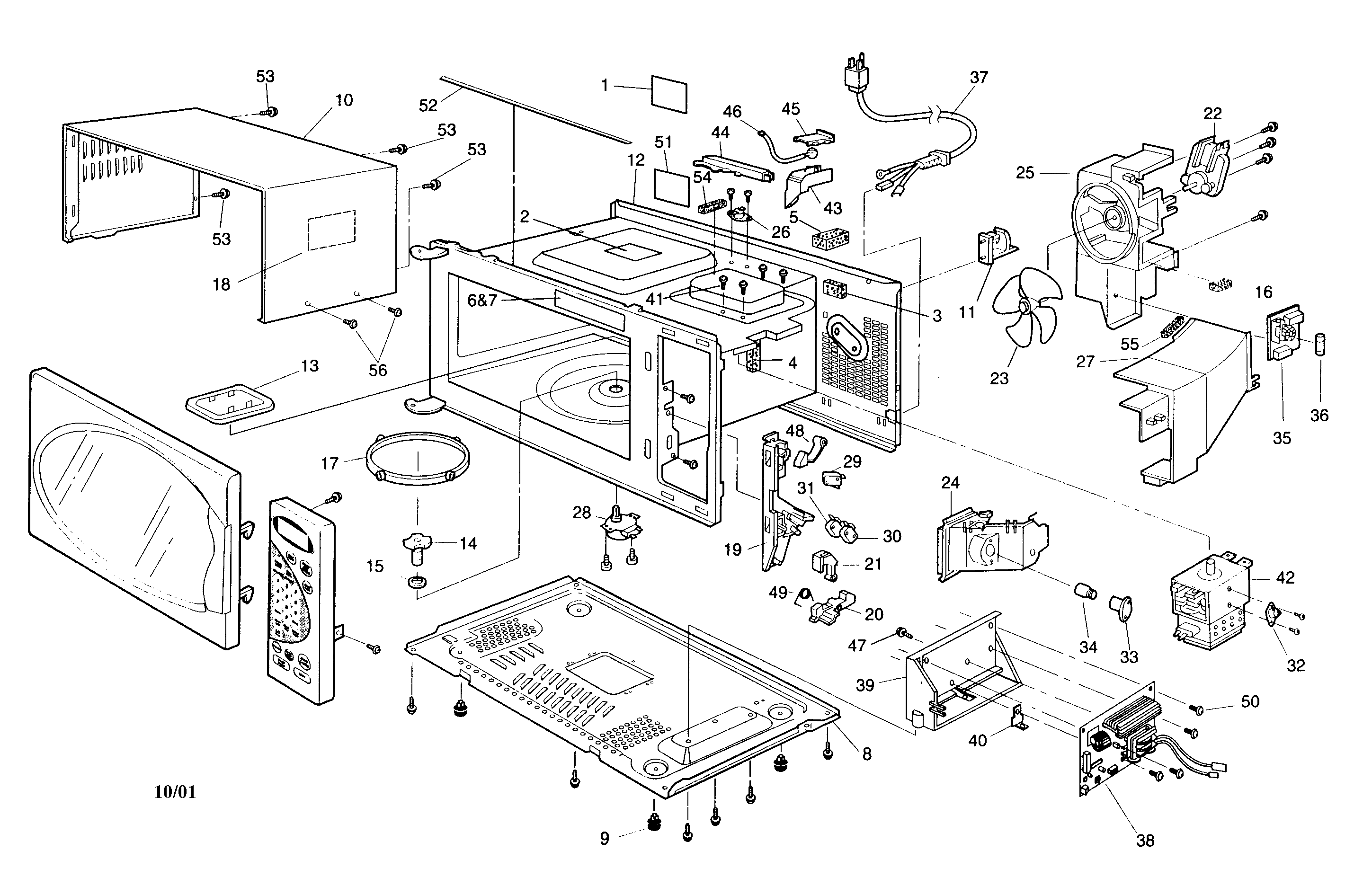

Oven cabinet diagram

Roller ring

Part #B290D4M00AP

Replaced by #F290D9330AP

?
Manufacturer substitution
This part replaces B290D4M00AP. Substitute parts can look different from the original.
$15.79 |
11% OFF Phone Price : $17.79
In Stock
Switch A61785180AP
#31

Oven cabinet diagram

Switch

Part #A61785180AP

Replaced by #501213

?
Manufacturer substitution
This part replaces A61785180AP. Substitute parts can look different from the original.
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Panasonic Cabinet B10094M00HAP
#10A

Oven cabinet diagram

Panasonic cabinet

Part #B10094M00HAP

$69.49
In Stock
Panasonic Nameplate B00078640AP
#E1

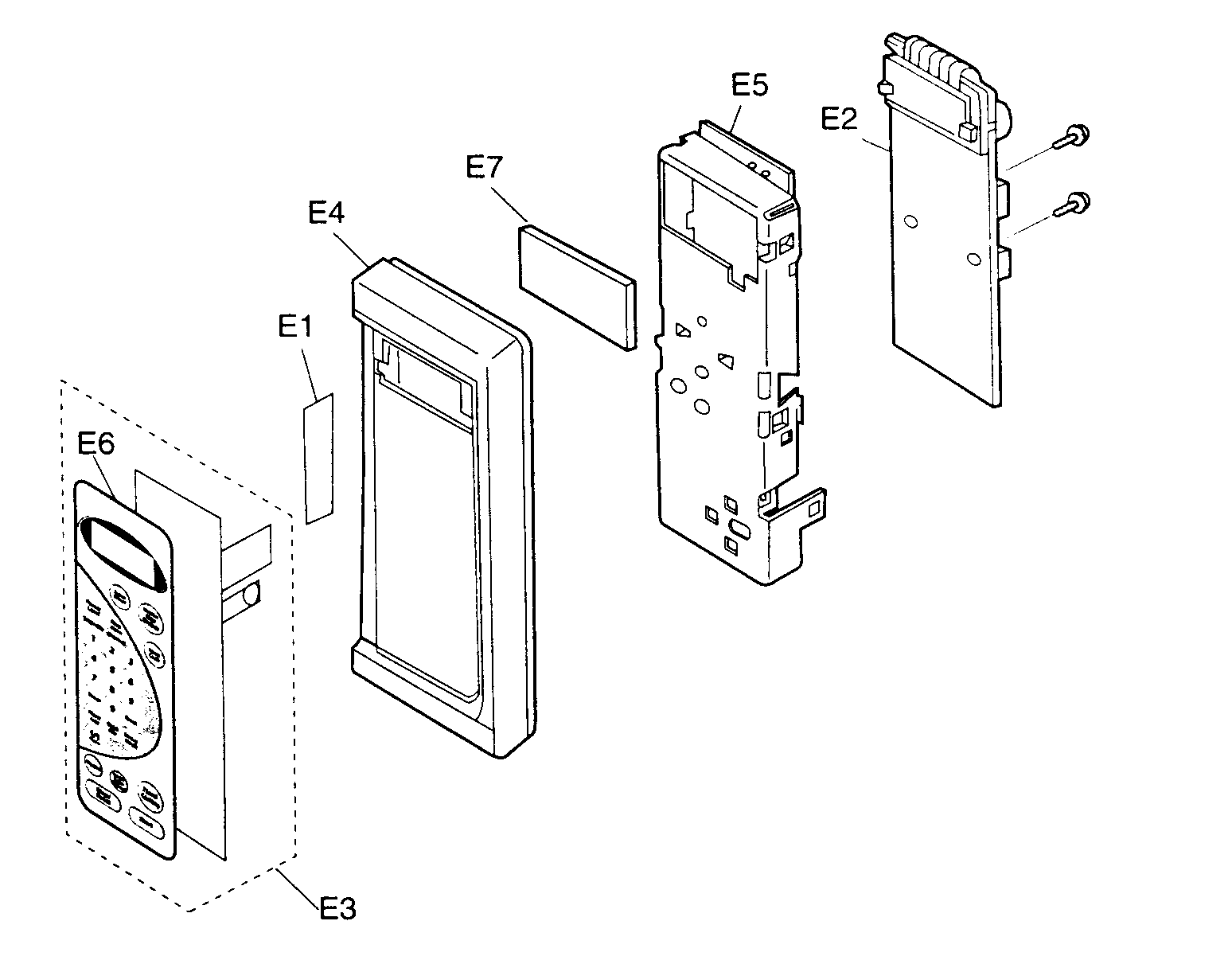

Escutcheon base assy diagram

Panasonic nameplate

Part #B00078640AP

This item is not returnable
$2.99
In Stock
Panasonic Label B00338290AP
#2

Oven cabinet diagram

Panasonic label

Part #B00338290AP

This item is not returnable
$2.49
In Stock
Panasonic Sensor B61454050AP
#26

Oven cabinet diagram

Panasonic sensor

Part #B61454050AP

$12.99
In Stock
Panasonic Screen B31464M00AP
#D10

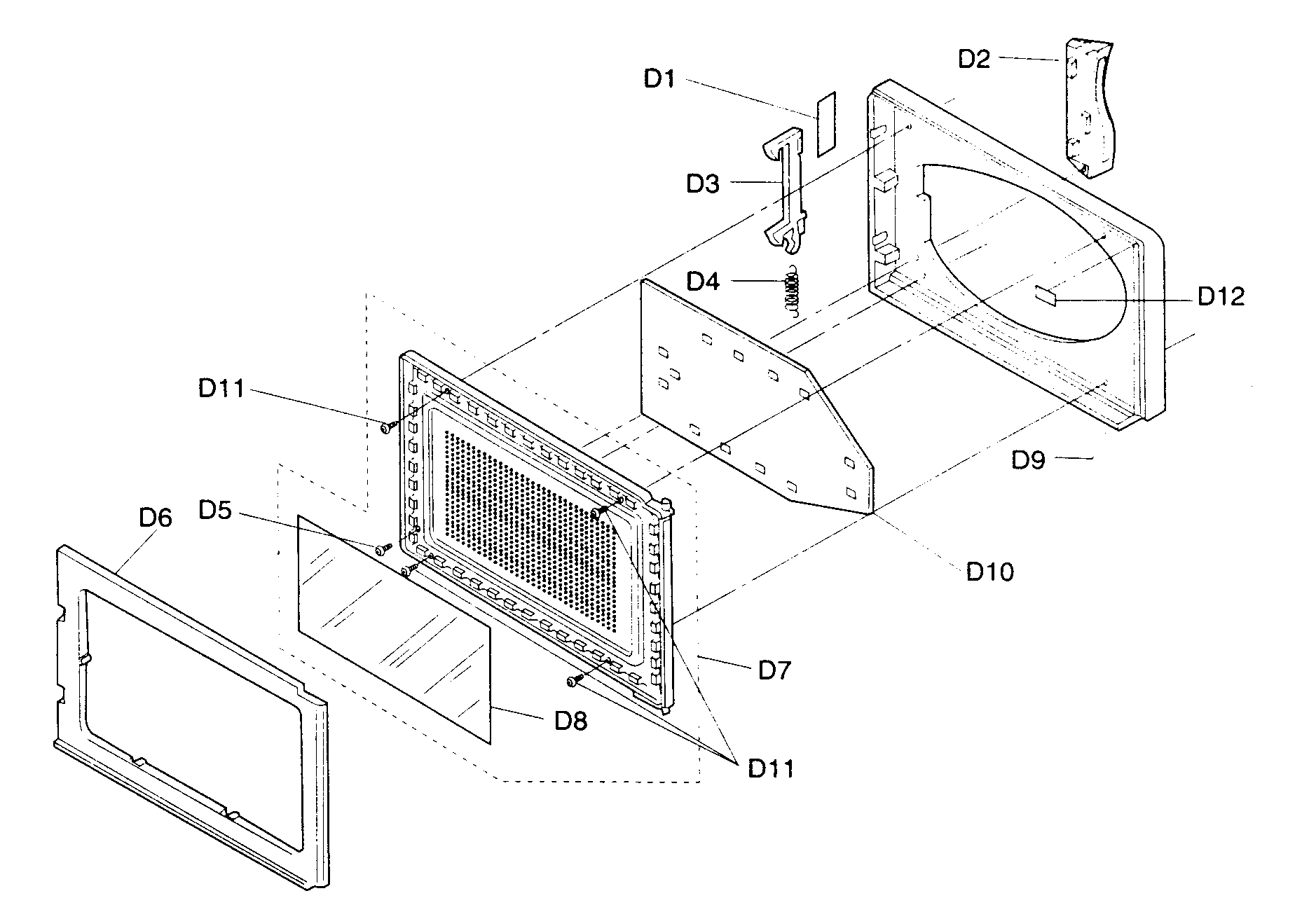

Door assy diagram

Panasonic screen

Part #B31464M00AP

$28.69
In Stock
Panasonic Shaft B21315540AP
#14

Oven cabinet diagram

Panasonic shaft

Part #B21315540AP

$8.95
In Stock
Panasonic Switch ANE6142-1450
#29

Oven cabinet diagram

Panasonic switch

Part #ANE6142-1450

$16.39
In Stock
Panasonic Keyboard B630Y4M00AP
#E3C

Escutcheon base assy diagram

Panasonic keyboard

Part #B630Y4M00AP

$47.44
In Stock
