Model # N2A448AKA100 Official ICP air conditioner

Here are the diagrams and repair parts for Official ICP N2A448AKA100 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 34 parts |

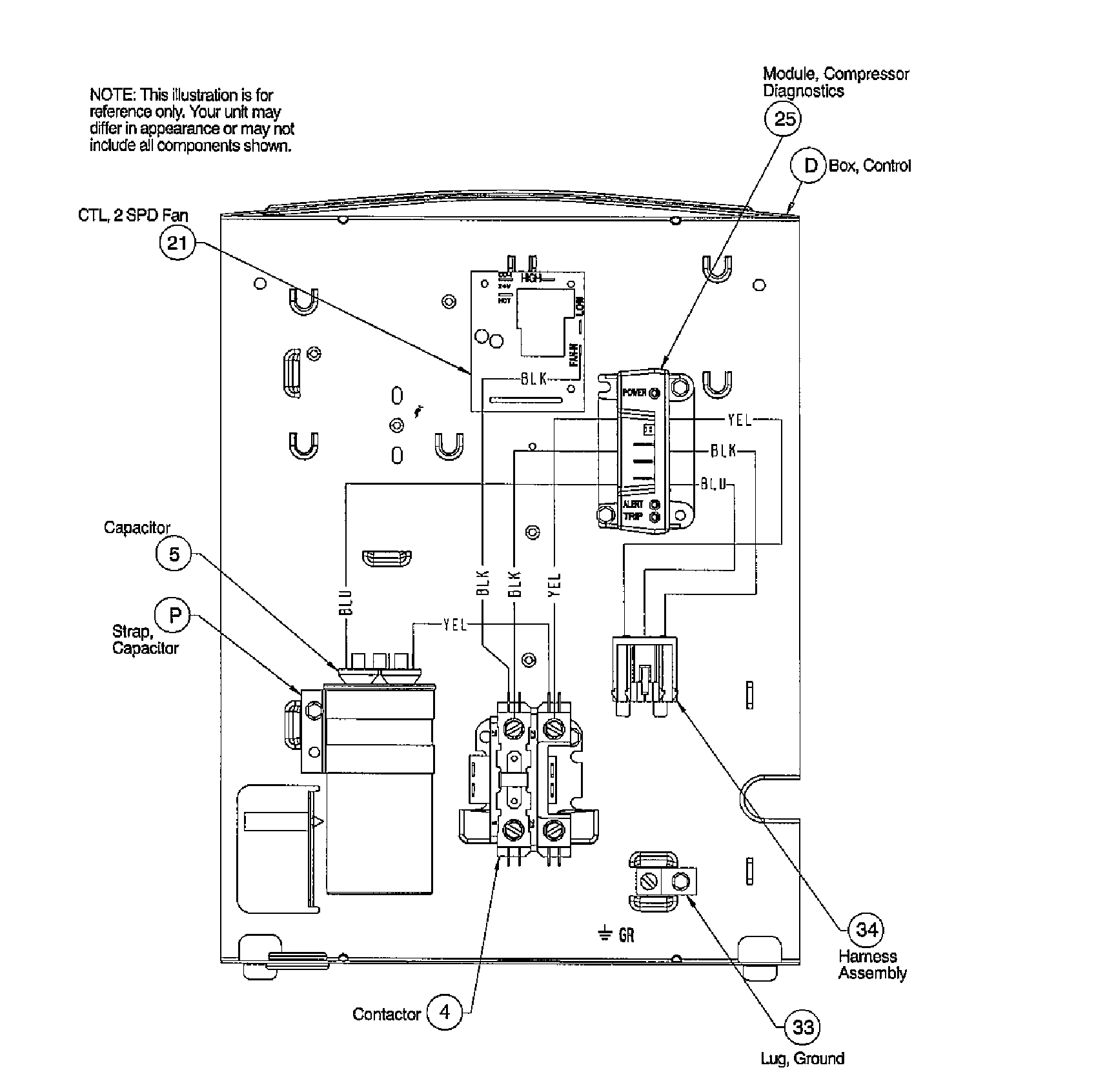

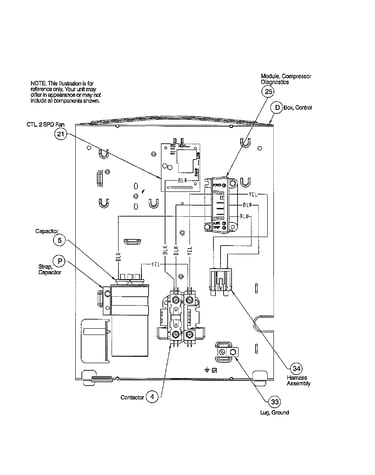

Control panel diagram

Central air conditioner contactor

Part #1172472

$61.35 |

9% OFF Phone Price : $67.35

In Stock

Qty

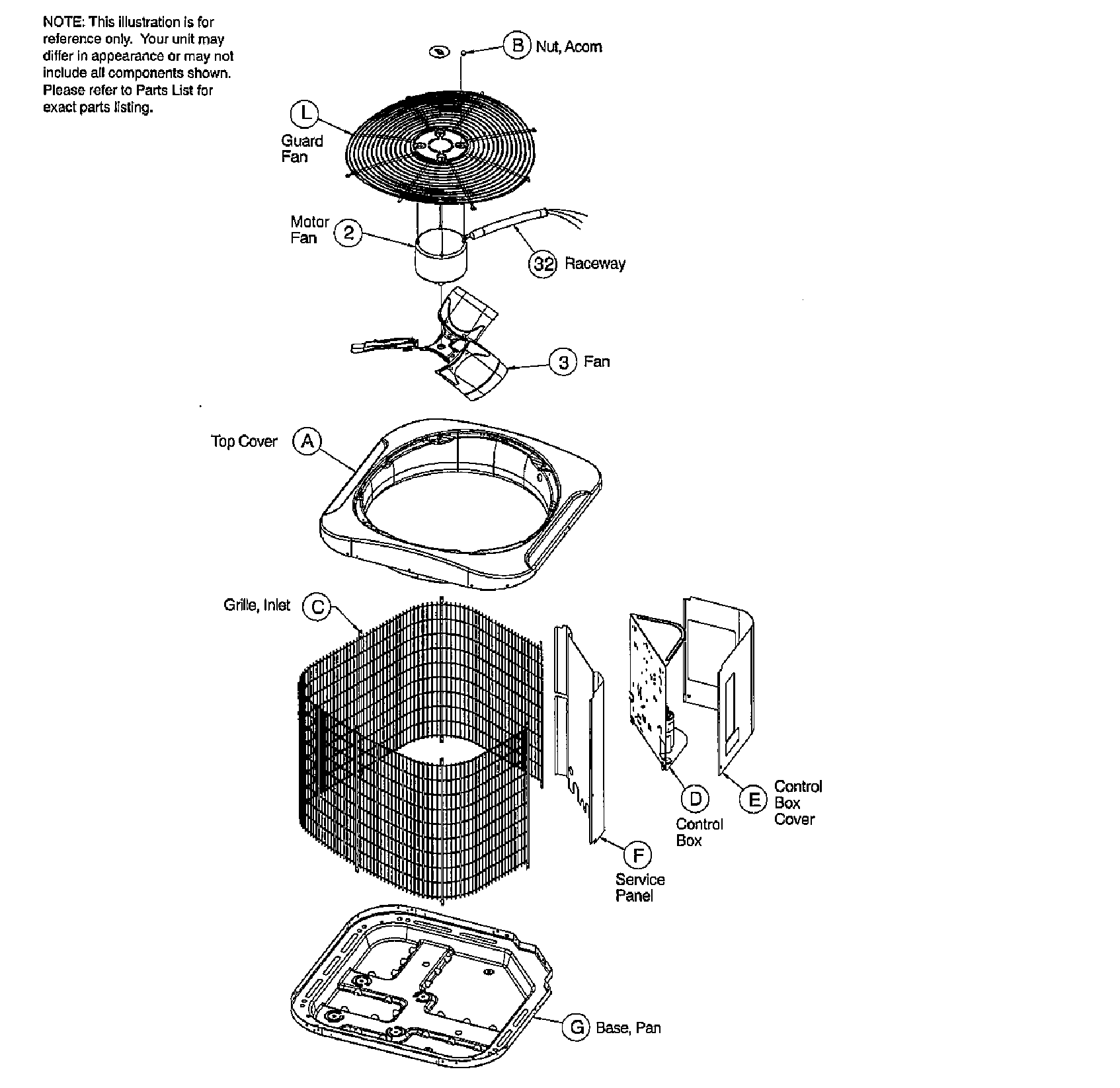

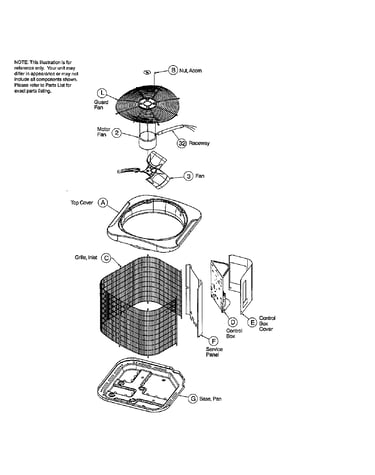

Outer parts diagram

Central air conditioner condenser fan blade

Part #1172716

$197.11

In Stock

Qty

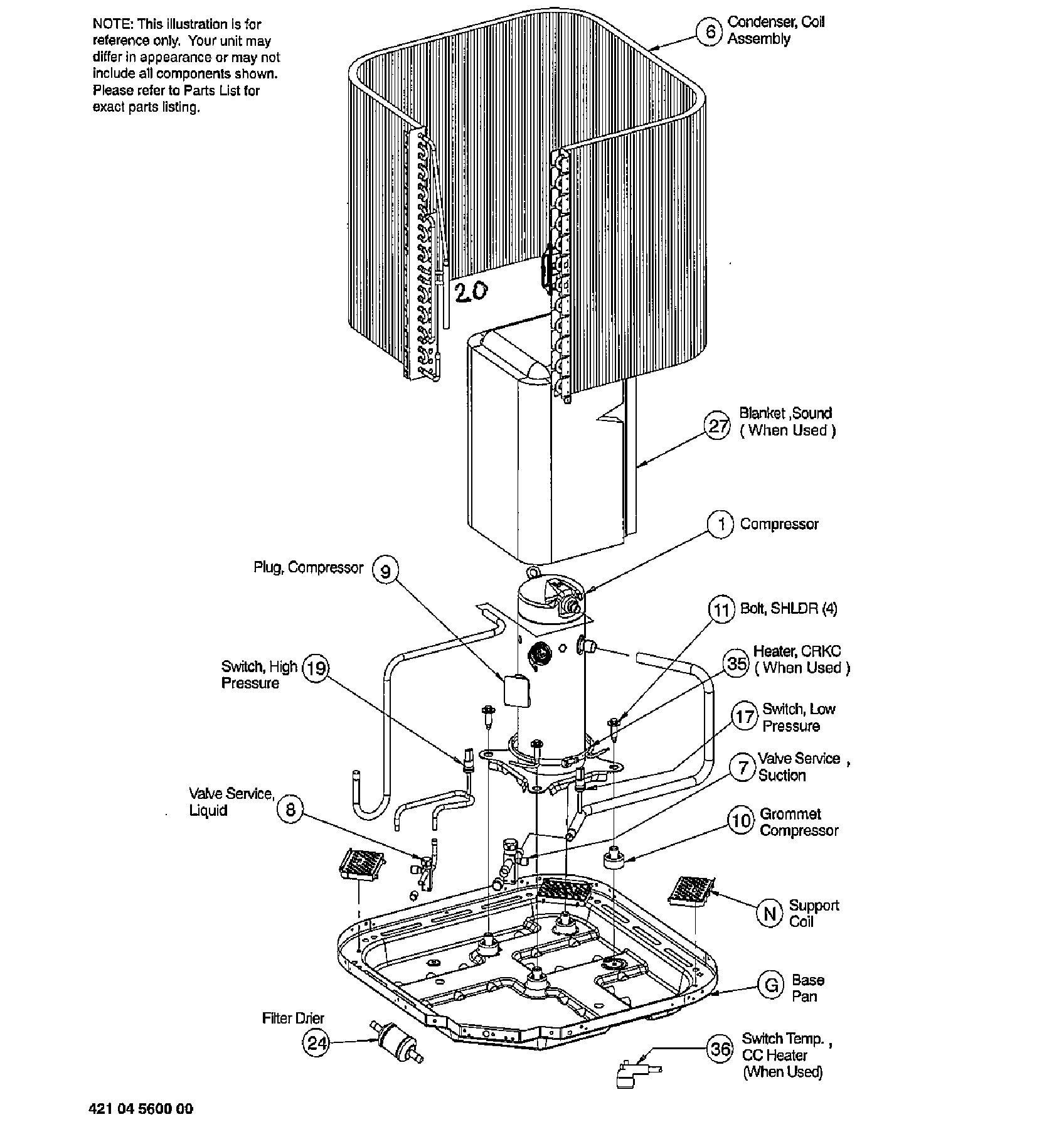

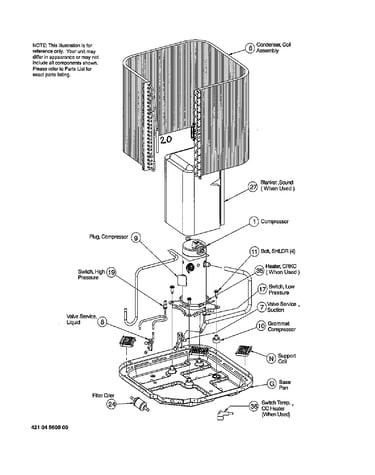

Inner parts diagram

Plug comp

Part #1172793

$49.38

In Stock

Qty

Inner parts diagram

Condenser

Part #1175052

$1579.72

In Stock

Qty

#35

Inner parts diagram

Carrier heater

Part #1173944

$67.11

In Stock

Qty

Control panel diagram

Clamp

Part #1172735

$7.60

In Stock

Qty

Inner parts diagram

Support

Part #1174068

$21.40

In Stock

Qty

#36

Inner parts diagram

Carrier switch

Part #1173669

$22.24

In Stock

Qty

#10

Inner parts diagram

Carrier grommet

Part #1171270

This item is not returnable

$4.00

In Stock

Qty

#33

Control panel diagram

Lug ground

Part #1172300

This item is not returnable

$6.54

In Stock

Qty
