Lawn & Garden Engine

Model # 200643121 Official Craftsman 2-cycle engine

Here are the diagrams and repair parts for Official Craftsman 200643121 2-cycle engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
200643121 2-Cycle Engine
Needle Seat 631021
#2

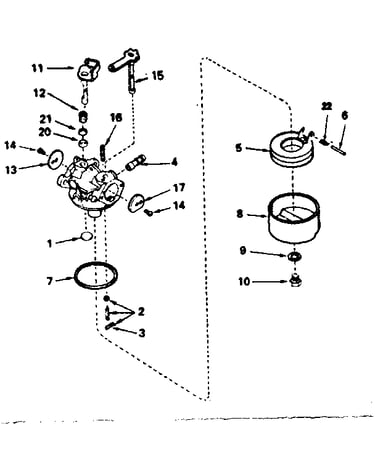

Carburetor no. 632394 diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
Back Order
Lamination 34443A
#86

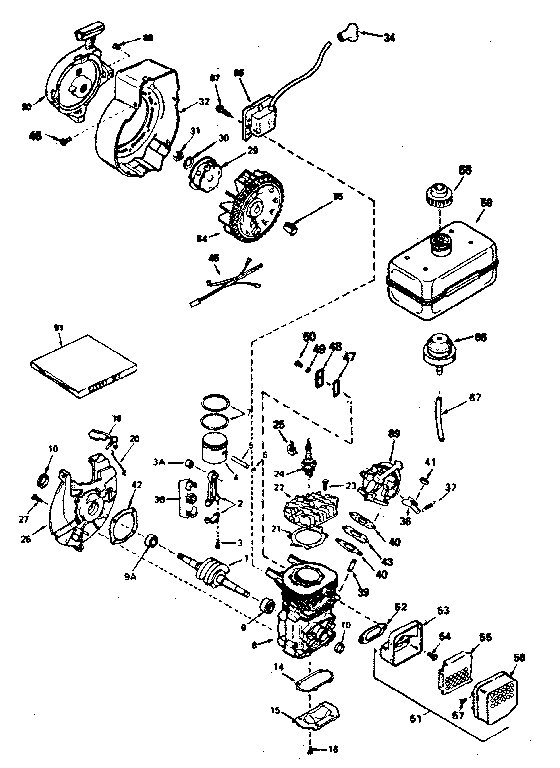

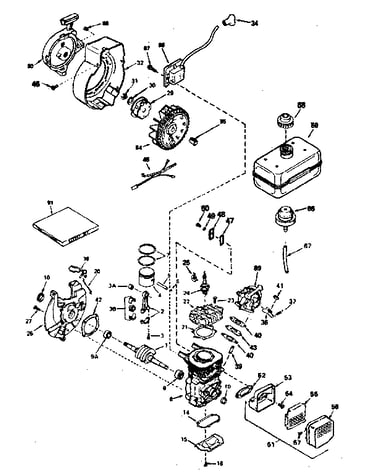

Engine diagram

Lamination

Part #34443A

Replaced by #34443D

?
Manufacturer substitution
This part replaces 34443A. Substitute parts can look different from the original.
BEST SELLER
$41.40 |
13% OFF Phone Price : $47.40
Back Order
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
#9

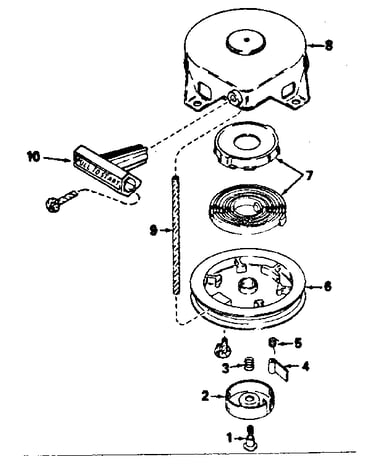

Rewind starter no. 590537 diagram

Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Float 632019
#5

Carburetor no. 632394 diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
Back Order
Troybilt Lawn & Garden Equipment Engine Spark Plug Boot (replaces 27276, Tc-610118) 610118
#34

Engine diagram

Troybilt lawn & garden equipment engine spark plug boot (replaces 27276, tc-610118)

Part #610118

This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Lawn & Garden Equipment Engine Air Vane 490291A
#18

Engine diagram

Lawn & garden equipment engine air vane

Part #490291A

This item is not returnable
$4.14
In Stock
Troybilt Lawn & Garden Equipment Engine Welch Plug (replaces 53-005) 631027
#1

Carburetor no. 632394 diagram

Troybilt lawn & garden equipment engine welch plug (replaces 53-005)

Part #631027

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pawl Spring 590412
#5

Rewind starter no. 590537 diagram

Lawn & garden equipment engine recoil starter pawl spring

Part #590412

$9.51
In Stock
Lawn & Garden Equipment Engine Choke Spring 630735
#16

Carburetor no. 632394 diagram

Lawn & garden equipment engine choke spring

Part #630735

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Throttle Shaft Seal 631183
#20

Carburetor no. 632394 diagram

Lawn & garden equipment engine throttle shaft seal

Part #631183

This item is not returnable
$2.16
In Stock
